Finding and inspecting blown fuses on a first-generation 2017–2022 GAC GN8 MPV involves checking three primary power distribution locations: the Engine Compartment Fuse Box, the Interior Passenger Compartment Fuse Box, and the Battery Pre-Fuse Block.
Fuse Box Locations
-
Engine Compartment Fuse Box: Located in the front left corner of the engine bay on the driver's side, adjacent to the battery and washer fluid reservoir. Release the plastic retaining clips on the cover to access high-amp fuses and system relays.
-
Passenger Compartment Fuse Box: Located under the driver's side dashboard (behind the lower instrument panel trim cover/storage compartment to the left of the steering column).
-
Battery Pre-Fuse Block: Mounted directly on the positive terminal post of the 12V battery under the hood, housing main high-amp master fuses protecting the alternator, starter motor, power sliding doors, and primary body electrical feeds.

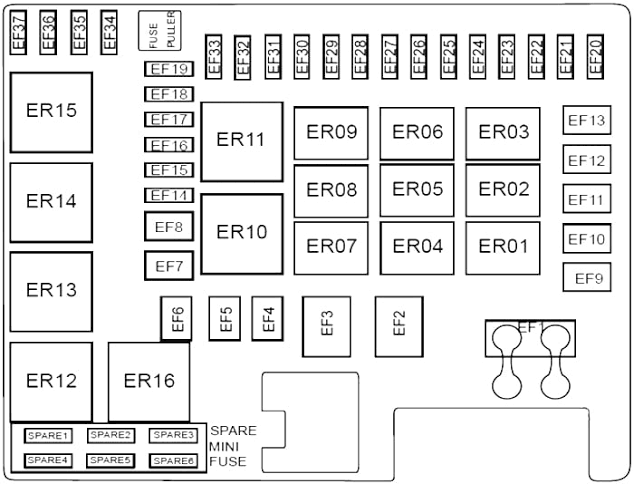

Engine Compartment Fuse Box Assignment
| Fuse ID | Rating | Circuit Protected |
| EF01 | 60A / 80A | Engine Cooling Fan Motor / Radiator Fan |
| EF02 | 50A | Electronic Stability Program (ESP) / ABS Hydraulic Pump |
| EF03 | 40A | Body Control Module (BCM) Main Power Supply 1 |
| EF04 | 30A | ABS / ESP Control Module Solenoid Valves |
| EF05 | 30A | Starter Solenoid Relay / Ignition Start Circuit |
| EF07 | 15A | Front Fog Lamps / Daytime Running Lights |
| EF08 | 10A | Dual Horn Circuit |
| EF10 | 15A | Fuel Pump Control Module |
| EF14 | 10A | A/C Compressor Magnetic Clutch |
| EF15 | 15A | Direct Ignition Coils / Engine Control Module (ECM) |
| EF18 | 10A | Heated Exterior Rearview Mirrors |
| EF20 | 15A | Heated Oxygen Sensors (Upstream & Downstream) |
| EF22 | 20A | Headlight High Beams |

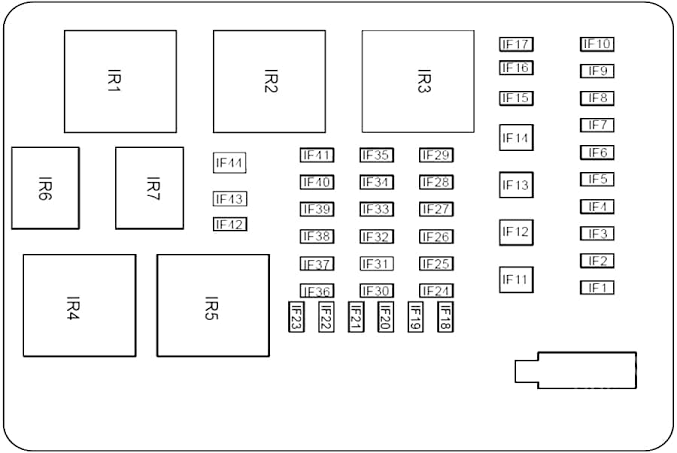

Interior Passenger Compartment Fuse Box Diagram
| Fuse ID | Rating | Circuit Protected |
| IF01 | 15A | Front 12V Auxiliary Power Outlet / Cigarette Lighter |
| IF03 | 15A | Rear Console 12V Outlet & Passenger USB Chargers |
| IF06 | 10A | Instrument Cluster / Dashboard Information Display |
| IF10 | 20A | Panoramic Glass Sunroof / Power Sunshade |
| IF12 | 20A | Electric Power Sliding Side Doors (Left & Right) |
| IF15 | 15A | Infotainment Unit / Rear Executive Entertainment Displays |
| IF20 | 20A | Power Windows Control Module |
| IF22 | 10A | Interior Ambient LED Lighting / Reading Lamps |
| IF25 | 15A | Central Door Locking System / Power Tailgate Actuator |
| IF30 | 30A | Rear HVAC Blower Motor / Climate Control Module |
How to Check & Replace a Blown Fuse
-
Switch off the ignition, turn off all exterior lights and electronic accessories, and firmly set the parking brake.
-
Locate the designated fuse panel (Engine Bay or Dashboard) and detach the protective plastic cover.
-
Use the plastic fuse puller clip clamped inside the engine compartment fuse box lid to remove the target fuse.
-
Inspect the translucent fuse body. If the internal metallic wire strip is melted, cracked, or broken, replace it with a spare fuse of the exact same amperage rating.
Watch the video below to see a step-by-step visual guide to locating and changing fuses on a GAC GN8:
