Staff Answer
Oct 01, 2026 - 02:14 PM
Fault codes P0061 and P0062 indicate that the Powertrain Control Module (PCM) has detected abnormal electrical resistance values, an open circuit, or a short circuit in the internal heating element circuits of downstream Heated Oxygen Sensors (HO2S). On Ford Mustang dual-exhaust systems, P0061 targets Bank 2 Sensor 3 (post-catalytic converter downstream sensor on the driver side), while P0062 targets Bank 1 Sensor 3 (or designated secondary post-cat sensor on multi-catalyst configurations).
Common Symptoms
-
Check Engine Light (CEL / MIL) illuminated on the digital instrument cluster.
-
Failed state emissions / smog testing due to incomplete monitor readiness status.
-
Slightly increased fuel consumption during initial engine warm-up phases.
-
Drivability and horsepower output typically remain unaffected as downstream Sensor 3 primarily monitors catalytic converter efficiency rather than primary air-fuel mixture delivery.
Primary Root Causes
-
Burnt Internal HO2S Heater Element: The internal resistance heating element inside the downstream oxygen sensor has burned out due to thermal stress and high mileage ($>80,000\text{ miles}$).
-
Damaged / Melted Exhaust Wiring Harness: Aftermarket long-tube headers or low underbody clearance causing the sensor pigtail lead to contact hot catalytic converters or mid-pipes.
-
Corroded Harness Connectors: Road salt, water intrusion, or oil seepage leaking into the 4-pin downstream HO2S wiring harness terminals under the chassis.
-
Blown PCM / Oxygen Sensor Heater Fuse: A short circuit in one sensor's heater element blowing the shared HO2S / Engine Management fuse in the under-hood Power Distribution Box.

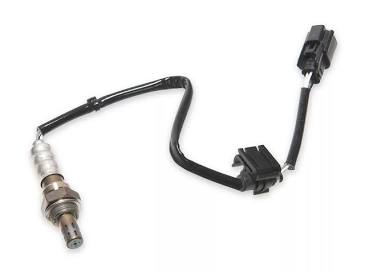

The #1 Solution: Inspect Harness & Replace Downstream Sensor(s)
Watch the video below to see a step-by-step visual guide to testing and replacing downstream oxygen sensors on a Ford Mustang:
