2024 Audi Q7 Fuses and Fuse Box Owner’s Manual
The 2024 Audi Q7 fuse box and fuses are covered in this tutorial. Understanding fuse functions and locations will help you fix electrical issues and keep your car running properly.
2023 Audi Q7 Specs, Price, Features, Mileage (Brochure)
Video: 2024 Audi Q7 Fuses
Replacing Fuses

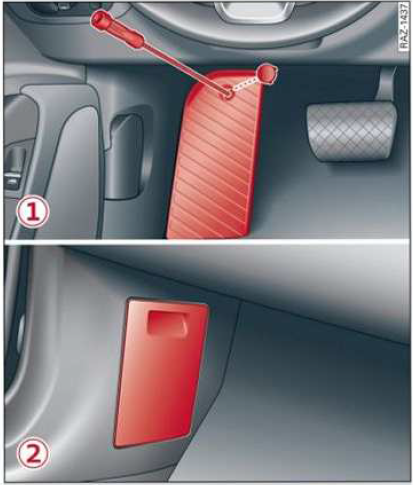

Driver’s side footwell (left-hand drive vehicles): footrest 1, front passenger’s side footwell (right-hand drive vehicles): cover 2

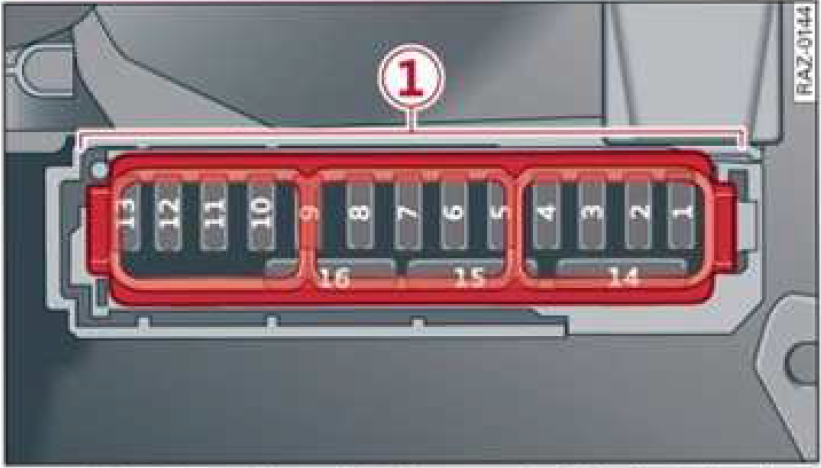

Driver’s side cockpit (left-hand drive/right-hand drive vehicle
cover C, the left side of the luggage compartment cover D
Fuses are installed in various locations in your vehicle. The following information only lists fuses that you can change yourself. To have other fuses changed, contact an authorized Audi dealer authorized Audi Service Facility. The following table does not list fuse locations that are not used. A fuse that has blown will have metal strips that

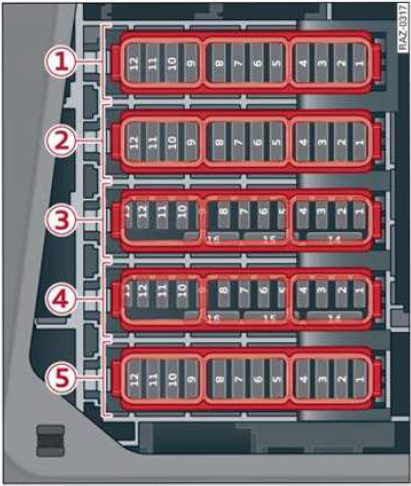

have burned through. The fuses are located in the footwell under the footrest (left-hand drive vehicle) or behind the cover (right-hand drive vehicle)). Additional fuses are located on the front side of the cockpit (driver’s side) and under the left cover in the luggage compartment.
- Switch the ignition and all electrical equipment off.
- Check the table that follows to see which fuse belongs to the affected equipment.
- Remove the screwdriver from the vehicle tool kit.
- Remove the appropriate cover.
- Remove the colored plastic bracket from the fuse panel, if present.
- Remove the clamps from the fuse panel cover in the footwells 1 or 2.
- Remove the fuse using the clip.
- Replace the blown fuse only with a fuse that has the same amp rating.
- Reinstaltlhe plastic bracket, if present.
- Install the cover.
Fuse color identification
Warning
Do not repair fuses and never replace a blown fuse with one that has a higher amp rating.
This can cause damage to the electrical system and increase the risk of fire.
Note
If a new fuse burns out again shortly after you have installed it, have the electrical system checked as soon as possible by an authorized ant pump, fuel pressure regulator Audi dealer or authorized Audi Service Facility.
Tips
Some of the equipment listed in the following tables applies only to certain model versions or certain optional equipment.

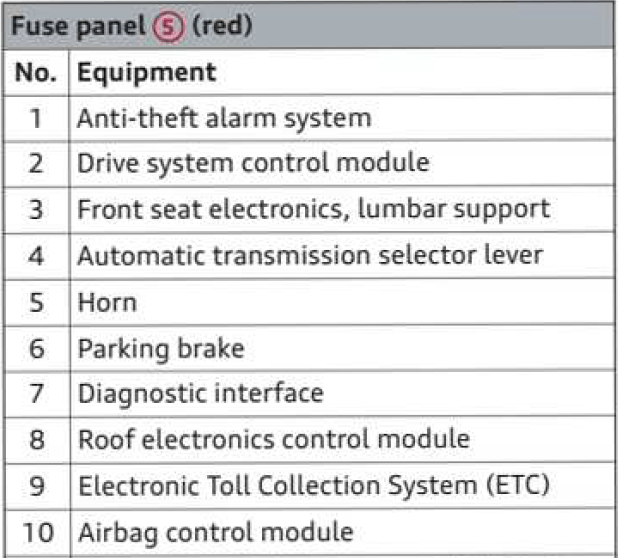

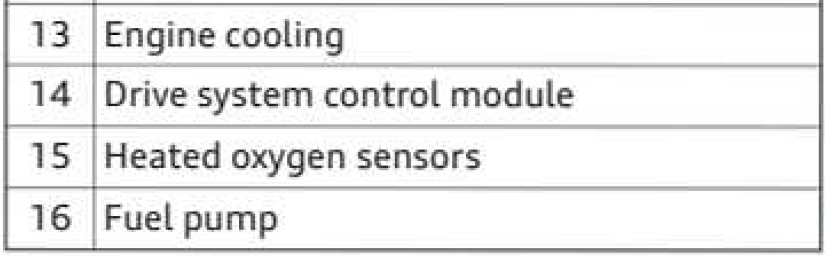

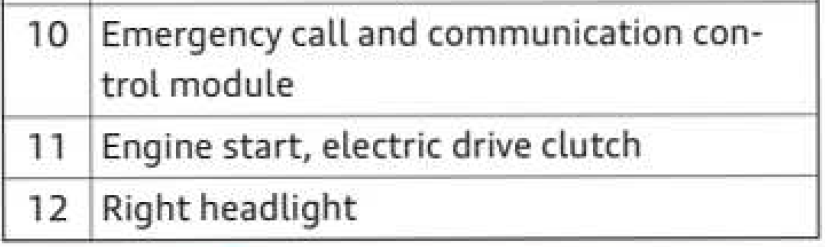

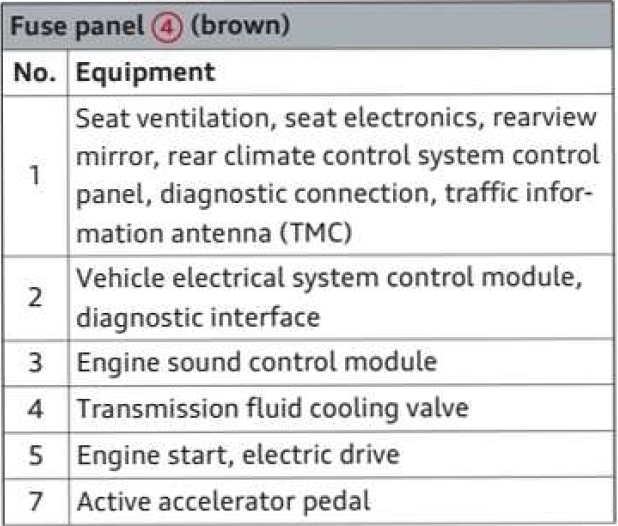

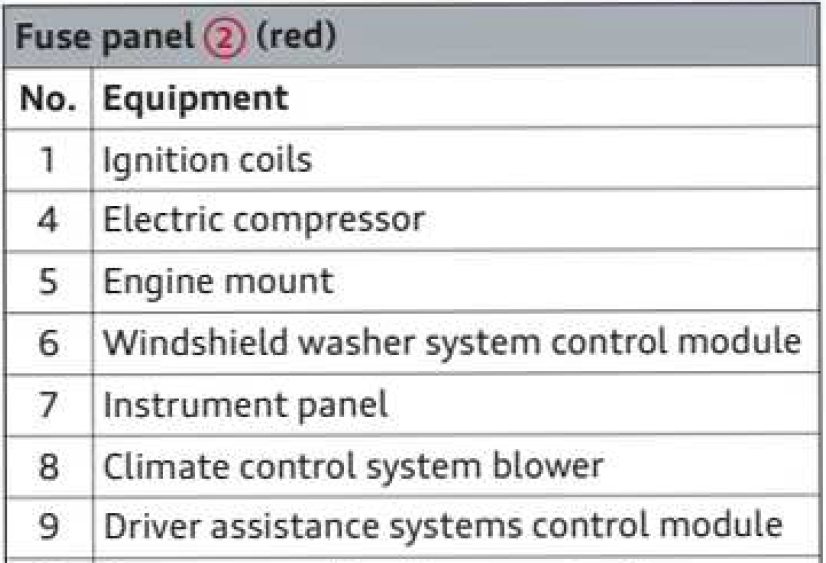

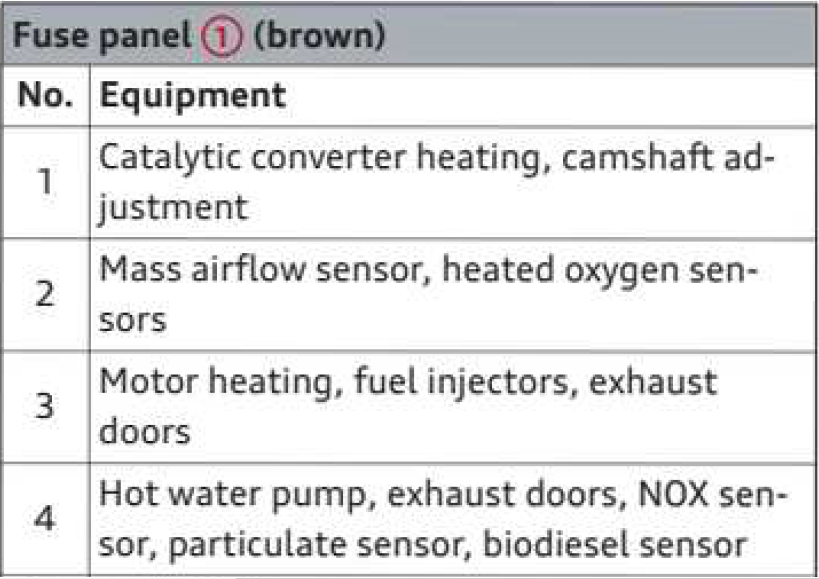

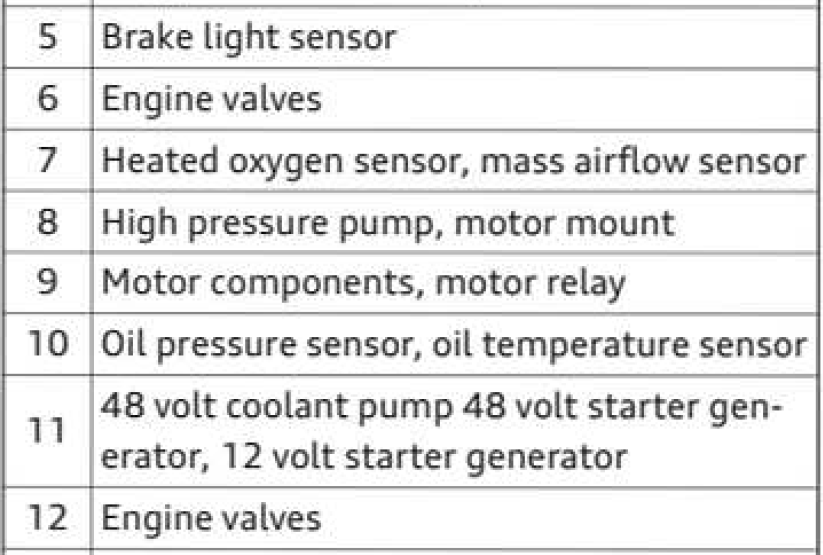

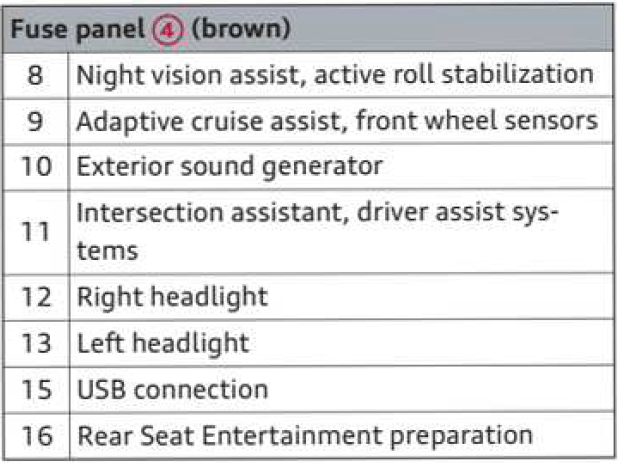

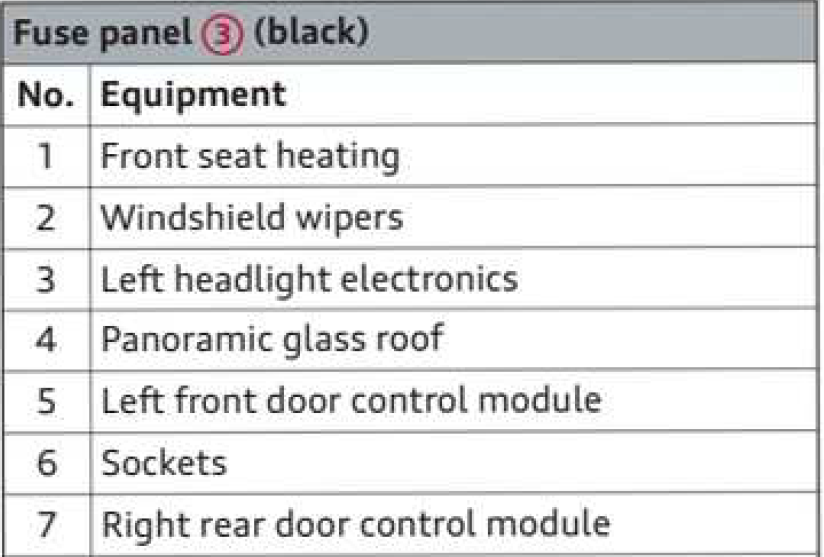

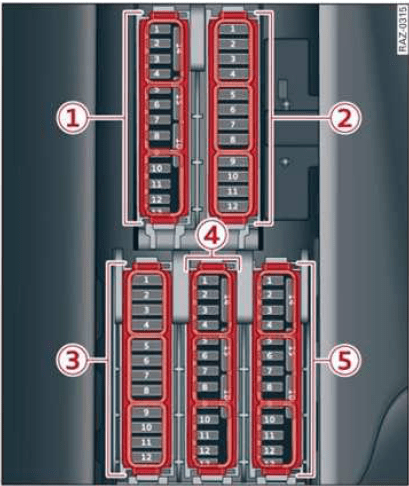

Fuse assignments footwell

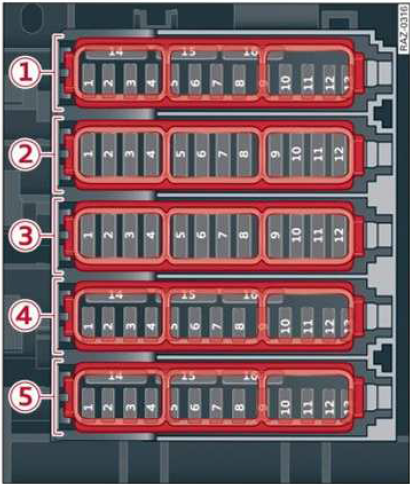

Fuse assignment- cockpit

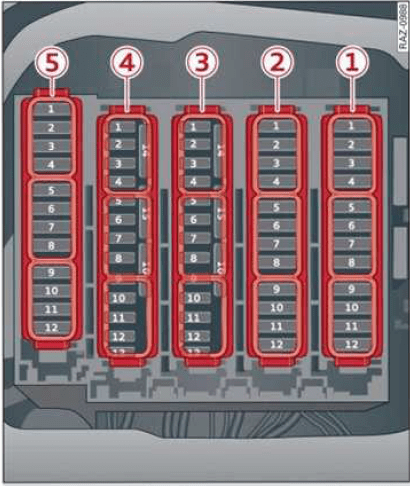

Fuse Assignment-Luggage Compartment
2023 Audi Q7 Specs, Price, Features, Mileage (Brochure)
How to Replace the Fuse of the 2024 Audi Q7
Replacing the fuse in a 2024 Audi Q7 involves several steps. Here’s a general guide to help you through the process:
Materials:
- The new fuse of the correct amperage.
- Fuse puller or needle-nose pliers.
STEPS:
- Locate the Fuse Box:
- The main fuse box in the Audi Q7 is typically located in the engine compartment. There may also be a secondary fuse box inside the vehicle, often under the dashboard on the driver’s side or in the trunk.
- Access the Fuse Box:
- Open the hood and locate the fuse box cover. In the interior, you might need to remove a panel or cover to access the fuses.
- Identify the Fuse to Replace:
- The diagram on the fuse box cover identifies the fuse associated with the malfunctioning component. Each fuse is labelled with its function and amperage.
- Remove the Fuse:
- Use a fuse puller (usually provided in the fuse box) or a pair of needle-nose pliers to gently pull the fuse out. Be careful not to break it.
- Check the Fuse:
- Inspect the fuse to see if the metal strip inside is broken. If it is, the fuse is blown and needs to be replaced.
- Replace the Fuse:
- Find a replacement fuse with the same amperage rating as the blown one. Insert the new fuse into the same slot.
- Test the Component:
- Turn on the ignition and test the component to ensure it is working correctly. If the component still does not work, there may be an underlying electrical issue.
- Close the Fuse Box:
- Secure the fuse box cover back in place and close any panels you opened inside the vehicle.
IMPORTANT TIPS:
- Use the Correct Fuse: Only replace a fuse with one of the same amperage rating to prevent electrical issues.
- Handle with Care: Fuses are delicate, so handle them carefully to avoid damage.
FAQs
The fuse box in the 2024 Audi Q7 is typically located in the engine compartment, under the dashboard on the driver’s side, and sometimes in the trunk.
If a fuse blows in your 2024 Audi Q7, locate the affected fuse using the diagram and replace it with a fuse of the same amperage.
A blown fuse in the 2024 Audi Q7 will have a broken metal filament inside or show visible signs of damage.
The fuse diagram for the 2024 Audi Q7 can be found on the inside of the fuse box cover.
