2022 Cadillac Escalade Keys and Smart Key User Guide
Advanced key systems, such as a conventional key fob and Smart Key capabilities, are available on the 2022 Cadillac Escalade. These include push-button ignition, remote start, and keyless entry, improving driver convenience and security with easy access and customizable settings.
Cadillac Keys and Locks Guide
Keys
Warning
Leaving children in a vehicle with a remote key is dangerous and children or others could be seriously injured or killed. They could operate the power windows or other controls or make the vehicle move. The windows will function with the remote key in the vehicle, and children or others could be caught in the path of a closing window. Do not leave children in a vehicle with a remote key.
The mechanical key inside the remote key can be used for all locks.

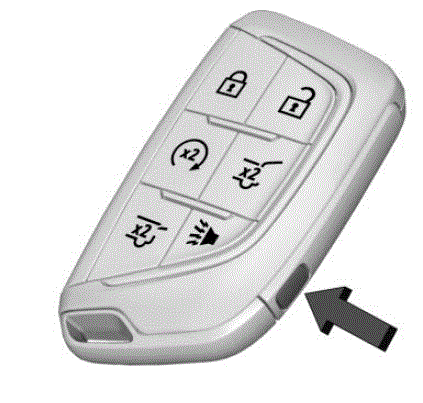

To remove the mechanical key, press the button on the side of the remote key near the bottom, and pull the mechanical key out. Never pull the mechanical key out without pressing the button.
If it becomes difficult to turn the key inspect the key blade for debris. Periodically clean with a brush or pick. See your dealer if a new mechanical key is needed. Contact Roadside Assistance if locked out of the vehicle.
With an active OnStar or connected service plan, an OnStar Advisor may remotely unlock the vehicle.
Remote Key
If there is a decrease in the remote key operating range:
- Check the distance. The remote key may be too far from the vehicle.
- Check the location. Other vehicles or objects may be blocking the signal.
- Check the remote key battery. See “Battery Replacement” later in this section.
- If the remote key is still not working correctly, see your dealer or a qualified technician for service.

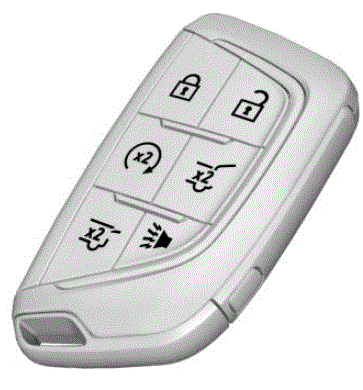

Remote Key Operation
The Keyless Access system allows for vehicle entry when the remote key is within 1 m (3 ft). See “Keyless Access Operation” later
in this section.
The remote key functions may work up to 60 m (197 ft) away from the vehicle.
Other conditions can impact the performance of the remote key.
Press to lock all doors.
If enabled, the turn signal lamps flash once on the second press to indicate locking has occurred. If enabled, the horn chirps whenis pressed again within three seconds. To view available settings for this feature, touch the Settings icon on the infotainment home page. Select “Vehicle” to display the list of available options and select “Remote Lock, Unlock, Start”.
Pressingarms the alarm system.
If equipped with auto mirror folding, double
pressing and holdingfor one second will fold the mirrors, if enabled. To view available settings for this feature, touch the Settings icon on the infotainment home page. Select “Vehicle” to display the list of available options and select “Comfort and Convenience”.
If equipped with remote folding mirrors, double pressing and holding
Press once to unlock the driver door and the fuel door. Ifis pressed again within three seconds, all remaining doors within three seconds, all remaining doors stay on for 20 seconds or until the ignition is turned on.
If enabled, the turn signal lamps flash twice to indicate unlocking has occurred.
If enabled, the exterior lamps may turn on. To view available settings for this feature, touch the Settings icon on the infotainment home page. Select “Vehicle” to display the list of available options and select “Remote Lock, Unlock, Start”.
Pressingon the remote key disarms the alarm system.
If equipped with auto mirror folding, double pressing and holdingfor one second will unfold the mirrors, if enabled. To view available settings for this feature, touch the Settings icon on the infotainment home page. Select “Vehicle” to display the list of available options and select “Comfort and Convenience”.
If equipped with the remote window open feature, double press and holdon the remote key for about three seconds to open all windows. If equipped with the remote window close feature, double press and holdfor about three seconds to close all windows. The vehicle must be off and the remote window operation feature must be enabled. To view available settings for this feature, touch the Settings icon on the infotainment home page. Select “Vehicle” to display the list of available options and select “Remote Lock, Unlock, Start”.
Press twice to open or close the liftgate. Press once to stop the liftgate from moving.
Press twice to open the liftglass.
Press and release one time to initiate vehicle locator. The turn signal lamps flash and the horn sounds three times.
is pressed again or the vehicle is started.
Press and holdfor more than three seconds to activate the panic alarm. The turn signal lamps flash and the horn sounds repeatedly for 30 seconds. The alarm turns off when the ignition is turned on or
is pressed again. The ignition must be off for the panic alarm to work.
Presstwice to start the engine from outside the vehicle using the remote key.
Keyless Access Operation
The Keyless Access system lets you lock and unlock the doors and access the trunk without removing the remote key from your pocket, purse, briefcase, etc. The remote key must be within 1 m (3 ft) of the trunk or door being opened. The button is on the outside door handle.
The Keyless Access system can be programmed to be turned off or to unlock all doors on the first door handle press from the driver door. Keyless unlocking can also be turned off. To view available settings for this feature, touch the Settings icon on the infotainment home page. Select “Vehicle” to display the list of available options and select “Remote Lock, Unlock, Start”.
If equipped with memory seats, remote keys 1 and 2 are linked to seating positions of memory 1 or 2.
Keyless Unlocking/Locking from the Driver Door

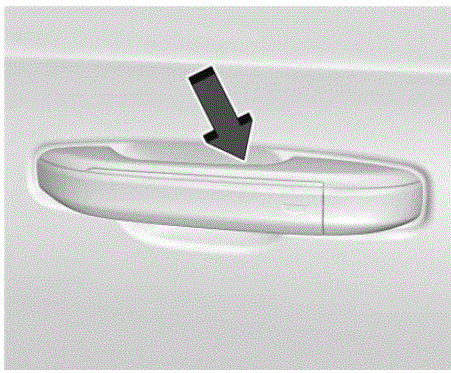

When the doors are locked and the remote key is within 1 m (3 ft) of the door handle, touching the driver door handle inside touchpad will unlock the driver door. Touching the driver door handle outside sensor will lock the doors.
If equipped with remote folding mirror, touching the driver door handle sensor may fold and unfold the mirrors.
Keyless Unlocking/Locking from the Passenger Doors
When the doors are locked and the remote key is within 1 m (3 ft) of the door handle, touching the door handle inside touchpad of the passenger door will unlock all doors. Touching the door handle outside sensor will lock the doors.
Disable/Enable Keyless Unlocking of Exterior
If equipped, keyless unlocking of the exterior door handles and liftgate can be disabled and enabled.
Disabling Keyless Unlocking:
With the vehicle off, press and holdandon the remote key at the same time for approximately four seconds. The turn signal lamps will flash four times quickly to indicate access is disabled. Using any exterior handle to unlock the doors or open the liftgate will cause the turn signal lamps to flash four times quickly, indicating access is disabled. If disabled, disarm the alarm system before starting the vehicle.
Disabling Keyless Unlocking may also be configured under Vehicle Personalization. To view available settings for this feature, touch the Settings icon on the infotainment home page. Select “Vehicle” to display the list of available options and select “Remote Lock, Unlock, Start”.
Enabling Keyless Unlocking:
With the vehicle off, press and hold
andon the remote key at the same time for approximately four seconds. The turn signal lamps will flash twice quickly to indicate access is enabled.
Enabling Keyless Unlocking may also be configured under Vehicle Personalization. To view available settings for this feature, touch the Settings icon on the infotainment home page. Select “Vehicle” to display the list of available options and select “Remote Lock, Unlock, Start”.
Passive (Walkaway) Locking
The Keyless Access system will lock the vehicle several seconds after all doors are closed if the vehicle is off and at least one remote key has been removed or none remain in the vehicle. If equipped, the fuel door will also lock.
If other electronic devices interfere with the remote key signal, the vehicle may not detect the remote key inside the vehicle. If passive (walkaway) locking is enabled, the doors may lock with the remote key inside the vehicle. Do not leave the remote key in an unattended vehicle.
To view available settings for this feature, touch the Settings icon on the infotainment home page. Select “Vehicle” to display the list of available options and select “Power Door Locks”.
If equipped with remote folding mirror, passive (walkaway) locking may fold the mirrors.
Temporary Disable of Passive (Walkaway) Locking
Temporarily disable passive locking by pressing and holdingon the interior door switch with a door open for at least four seconds, or until three chime sare heard. Passive (walkaway) locking will then remain disabled untilthe vehicle is turned on.
Remote Key Left In Vehicle Alert
When the vehicle is turned off and a remote key is left in the vehicle, the horn will chirp three times after all doors are closed. To view available settings for this feature, touch the Settings icon on the infotainment home page. Select “Vehicle” to display the list of available options and select “Remote Lock, Unlock, Start”.
Remote Key No Longer In Vehicle Alert
If the vehicle is on, with a door open, and then all doors are closed, the vehicle will check for a remote key inside. If a remote key is not detected, the Driver Information Center (DIC) will display NO KEY FOUND and the horn will chirp three times.
This occurs only once each time the vehicle is driven. To view available settings for this feature, touch the Settings icon on the infotainment home page. Select “Vehicle” to display the list of available options and select “Remote Lock, Unlock, Start”.
Keyless Liftgate Opening
Press the touchpad on the underside of the liftgate handle to open the liftgate when all doors are unlocked, or when the remote key is within 1 m (3 ft).
Keyless Liftglass Opening
Press the exterior liftglass button to open the liftglass when all doors are unlocked, or when the remote key is within 1 m (3 ft).
Mechanical Key Access
To access a vehicle with a weak remote key battery.
Programming Remote Keys to the Vehicle
Only remote keys programmed to the vehicle will work. If a remote key is lost or stolen, a replacement can be purchased and programmed through your dealer. The vehicle can be reprogrammed so that lost or stolen remote keys no longer work. Each vehicle can have up to eight remote keys matched to it.
Starting the Vehicle with a Low Remote Key Battery
If the remote key battery is weak or if there is interference with the signal, the DIC may display NO KEY FOUND, REPLACE BATTERY IN KEYor NO REMOTE KEY WAS DETECTED PLACE KEY IN KEY POCKET THEN START YOUR
VEHICLE when starting the vehicle.
To start the vehicle:

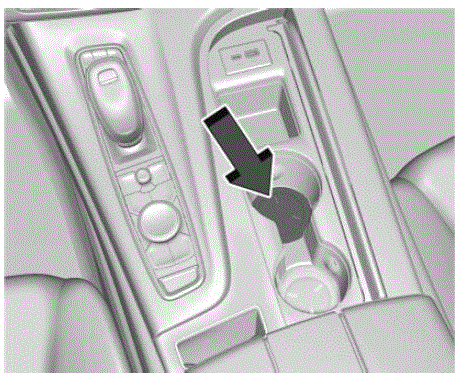

- Place the remote key into the rear cupholder.
- With the vehicle in P (Park) or N (Neutral) press the brake pedal and ENGINE START/STOP.
Replace the remote key battery as soon as possible.
Battery Replacement
Warning
Never allow children to play with the remote key. The remote key contains a small battery, which can be a choking hazard. If swallowed, internal burns can occur, resulting in severe injury or death. Seek medical attention immediately if a battery is swallowed.
To avoid personal injury, do not touch metal surfaces on the remote key when it has been exposed to extreme heat. These surfaces can be hot to the touch at temperatures above 59 °C (138 °F).
Caution
When replacing the battery, do not touch any of the circuitry on the remote key. Static from your body could damage the remote key.
Caution
Always replace the battery with the correct type. Replacing the battery with an incorrect type could potentially create a risk of battery explosion. Dispose of used batteries according to instructions and local laws. Do not attempt to burn, crush, or cut the used battery, and avoid exposing the battery to environments with extremely low air pressures or high temperatures.
Caution
If the remote key is not reassembled properly, liquids could enter the housing and damage the circuitry, resulting in a remote key malfunction and/or failure. To prevent damage, always follow the steps for remote key reassembly in this manual to ensure the remote key is sealed properly whenever the remote key is opened.
Replace the battery if the DIC displays
REPLACE BATTERY IN KEY.

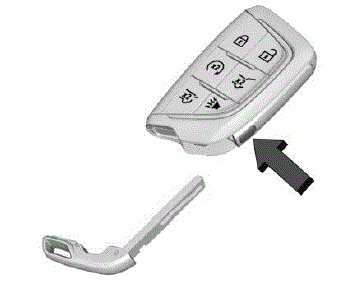

- Press the button on the side of the remote key and pull the mechanical key out. Never pull the mechanical key out without pressing the button.

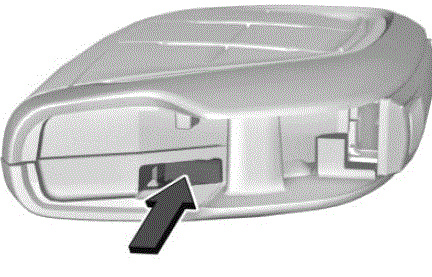

- Use the mechanical key blade in the slot to remove the battery cover by hand.

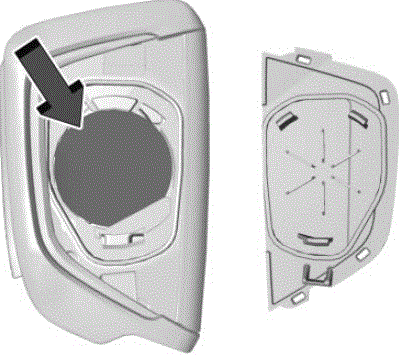

- Remove the seal by pulling on the tab to access the battery.
- Remove the old battery. Do not use a metal object.
- Insert the new battery positive side toward the back cover. Replace with a CR2450 Lithium or equivalent battery.
- Place the seal back into the groove around the battery compartment.
- Reassemble the battery cover by snapping it back on the remote key.
- Reinsert the mechanical key.
Remote Vehicle Start
This feature allows the engine to be started from outside the vehicle. It is not available on vehicles with a manual transmission.
This button on the remote key is for remote start.
The climate control system will use the previous settings during a remote start. The rear window defogger may come on during remote start based on cold ambient conditions. The rear defog indicator light does not come on during remote start.
If equipped, the heated and ventilated front seats may also come on when the vehicle personalization setting is enabled.
If equipped with a remote start heated steering wheel, it may come on during a remote start.
Laws in some local communities may restrict the use of remote starters. For example, some laws may require a person using remote start to have the vehicle in view.
Check local regulations for any requirements If your vehicle is low on fuel, do not use the remote start feature. The vehicle may run out of fuel.
The remote key range may be shorter while the vehicle is running. Other conditions can affect the performance of the remote key.
You are allowed multiple starts totaling 30 minutes of engine run time. The maximum run time of a single start is 15 minutes, and it will shut off automatically. You could do three 10 minute starts, if you manually shut off after 10 minutes. The last 10 minute start would shut off automatically as your total 30 minutes will have been used.
Starting the Engine Using Remote Start
- Press twice on the remote key. The turn signal lamps will flash. The lamps flash to confirm the request to remote start the vehicle has been received. During the remote start, the parking lamps will remain on as long as the engine is running.
- The engine will shut off after 15 minutes or after the remainder of the 30 minute total running time is used, unless you stop the remote start before engine running has completed or the vehicle is turned on.
- Press the brake pedal and turn the ignition on to drive the vehicle.
Additional Engine Run Time
Remote start can be used for up to 30 minutes of total engine run time.
After two remote starts of 15 minutes, or multiple shorter time starts totaling 30 minutes have been used, the vehicle must be started and then turned off before the remote start can be used again.
Canceling a Remote Start
To cancel a remote start, do any of the following:
- Pressonce. The parking lamps will turn off.
- Turn on the hazard warning flashers.
- Turn the vehicle on and then back off.
Conditions in Which Remote Start Will Not Work
The remote start will not operate if any of the following occur:
- The ignition is in any mode other than off.
- A remote key is in the vehicle.
- The hood is not closed.
- The hazard warning flashers are on.
- There is an emission control system malfunction.
- The engine coolant temperature is too high.
- The oil pressure is low.
- The 30 minutes of engine run time have been used.
- The vehicle is not in P (Park).
