2025 Cadillac XT6 Instrument Cluster User Guide
The 2025 Cadillac XT6 Instrument Cluster has a sleek digital display with critical vehicle information, adjustable layouts, and creative driver-assist alerts for a smooth and intuitive driving experience.
2024 Cadillac XT6 Specs, Price, Features, Mileage (Review)
Video: 2025 Cadillac XT6 Dashboard Warning Indicators
Instrument Cluster Guide
- Tachometer
- Driver Information Center (DIC)
- Speedometer
- Engine Coolant Temperature Gauge
- Fuel Gauge
- Tachometer
- Driver Information Center (DIC)
- Speedometer
- Engine Coolant Temperature Gauge
- Fuel Gauge
Cluster Menu
There is an interactive display area in the center of the instrument cluster.
Use the right steering wheel control to open and scroll through the different items and displays.
Press
to access the cluster applications. Use the thumbwheel to scroll through the list of available features within the applications. Not all applications or features will be available on all vehicles.
- Info App. This is where the selected Driver Information Center (DIC) displays can be viewed. See Driver Information Center (DIC)
- Audio
- Navigation
- Phone
- Options
Audio
In the Audio menu browse for music, select from the favorites, or change the audio source. Use the thumbwheel to change the station or go to the next or previous track.
Navigation
If there is an active route, press the thumbwheel to cancel or resume route guidance, or turn the voice prompts on or off.
Phone
In the Phone menu, if there is no active phone call, view recent calls, or scroll through contacts. If there is an active call, mute the phone or switch to handset operation.
Options
Use the thumbwheel to scroll through items in the Options menu.
Units: Choose English or metric units by pressing the thumbwheel while the desired item is highlighted.
Info Page Options: Press the thumbwheel to select the items to be displayed in the Info app
Display: Press the thumbwheel to enter the Display menu. Select to turn on or off the speedometer, time, fuel range, or, if equipped, compass or speed sign.
Speed Warning: The Speed Warning display allows the driver to set a warning at a speed that they do not want to exceed. To set the Speed Warning press the thumbwheel when Speed Warning is displayed. Use the thumbwheel to adjust the value and press to set the speed.
Once the speed is set, this feature can be turned off by pressing the thumbwheel while viewing this page. If the selected speed limit is exceeded, a pop-up warning is displayed with a chime.
Head-up Display (HUD) (Uplevel): If equipped, this feature allows for adjusting the angle of the HUD image and changing or turning off the Speed Limit Sign.
HUD Rotation (Uplevel): Press the thumbwheel while Adjust Rotation is highlighted to enter Adjust Mode. Scroll to adjust the angle of the HUD display. Press the thumbwheel to confirm and save the setting. This feature may only be available in P (Park).
Speed Sign: If equipped, press the thumbwheel while Speed Sign is highlighted to turn it on or off.
Software Information: Displays open source software information.
Speedometer
The speedometer shows the vehicle speed in either kilometers per hour (km/h) or miles per hour (mph).
Odometer
The odometer shows how far the vehicle has been driven, in either kilometers or miles.
Trip Odometer
The trip odometer shows how far the vehicle has been driven since the trip odometer was last reset.
The trip odometer is accessed and reset through the Driver Information Center (DIC).
Tachometer
The tachometer displays the engine speed in revolutions per minute (rpm).
For vehicles with the Stop/Start system, when the ignition is on, the tachometer indicates the vehicle status. When pointing to AUTO STOP, the engine is off but the vehicle is on and can move. The engine could auto start at any time. When the indicator points to OFF, the vehicle is off.
When the engine is on, the tachometer will indicate the engine’s revolutions per minute (rpm). The tachometer may vary by several hundred rpm, during Auto Stop mode, when the engine is shutting off and restarting.
Fuel Gauge
When the ignition is on, the fuel gauge indicates the approximate amount of fuel left in the tank.
There is an arrow near the fuel gauge pointing to the side of the vehicle the fuel door is on.
When the indicator nears empty, the low fuel light comes on. There still is a little fuel left, but the vehicle should be refueled soon.
The fuel gauge may:
- Take a little more, or less fuel to fill up than it indicates. For example, the gauge may have indicated the tank is half full, but it actually will take a little more, or less than half the tank’s capacity to fill the tank.
- Moves a little while turning a corner, speeding up, or braking.
- Take a few seconds to stabilize after the ignition is turned on and goes back to empty when the ignition is turned off.
These are normal conditions, none of which indicate a problem with the fuel gauge.

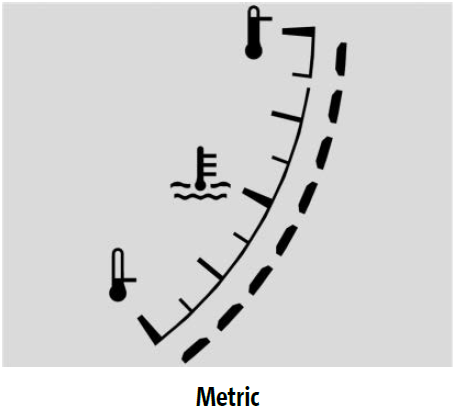

Engine Coolant Temperature Gauge
This gauge measures the temperature of the vehicle’s engine.
While driving under normal operating conditions, if the red LED is illuminated, the engine is too hot. Pull off the road, stop the vehicle, and turn off the engine as soon as possible.
