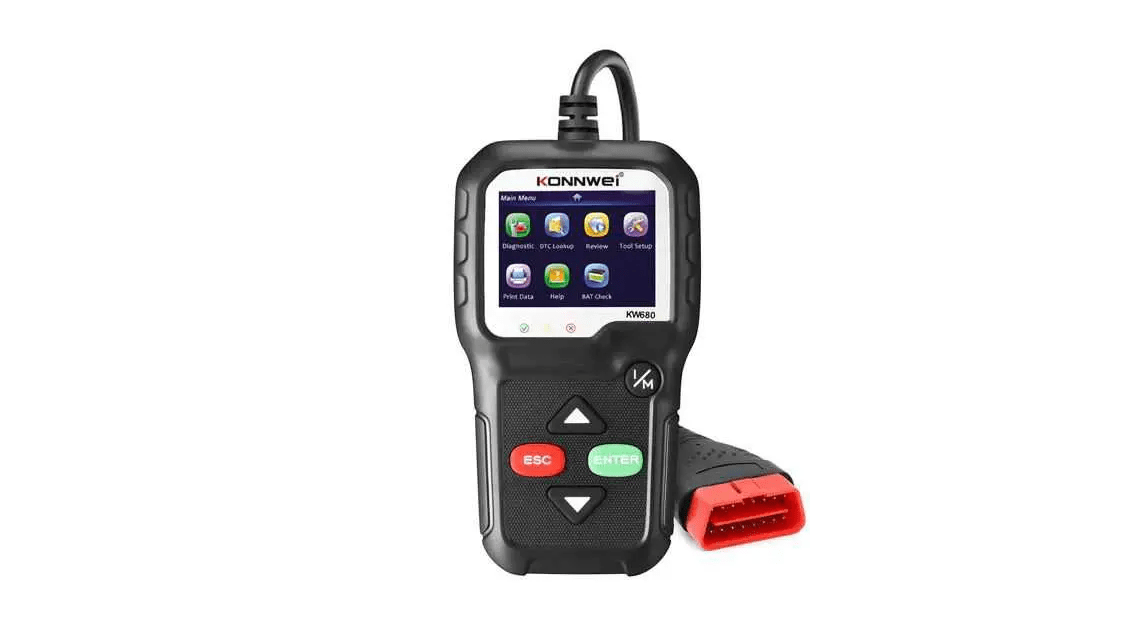

KW680 KONNWEI Fixing Car Diagnostic Errors and Code Scanner
On March 15, 2016, the KONNWEI KW680 OBD2 Scanner Car Code Reader went on sale. This OBD2 / EOBD / CAN Auto Diagnostic Scanner offers a 3-year free guarantee and covers all 10 OBDII test modes on all OBDII compliant vehicles for a thorough diagnostic.

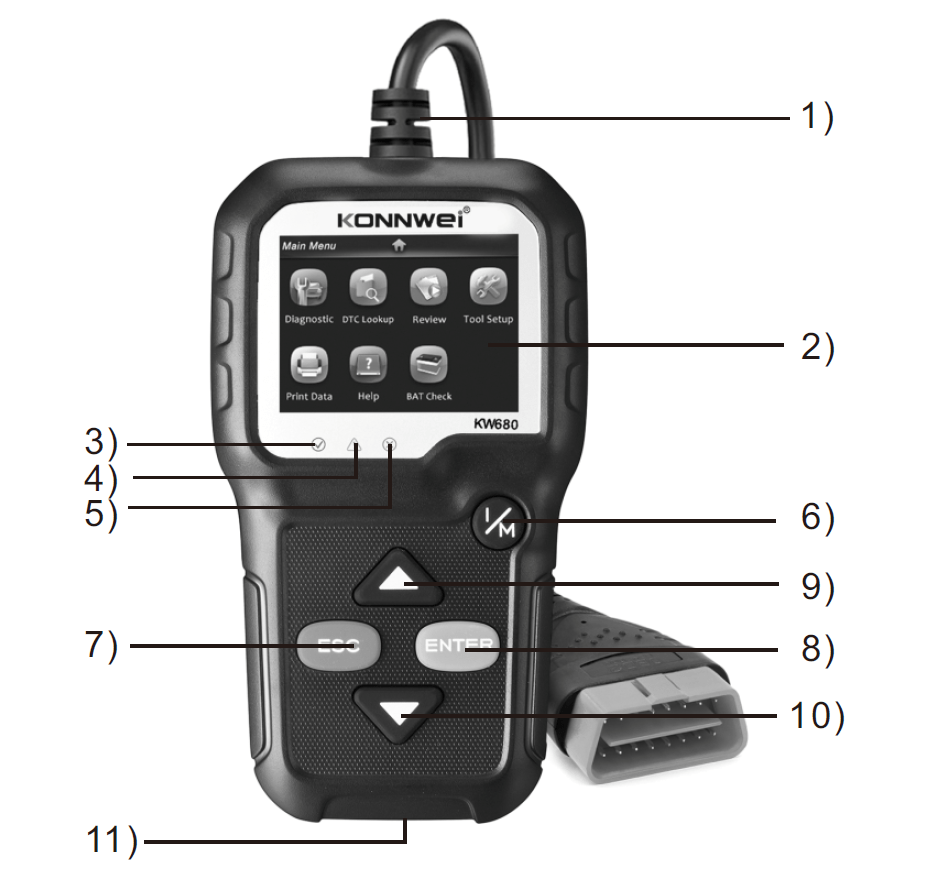

Tool Description
- OBD IT CONNECTOR – Connects the scan tool to the chicle’s Data Link Connector (DLC).
- LCD DISPLAY – Bisplays menus and test results.
GREEN LED – Indicates that engine systems are running normally (The number of monitors on the vehicle which are active and performing their diagnostic testing is in the allowed limit, and no DTCs are present).
YELLOW LED – Indicates there is a possible problem. A “pending” DTC is present and/or some of the vehicle’s emission
monitors have not run their diagnostic testing.
RED LED – Indicates there is a problem in one or more of the
vehicle’s systems. The red LED is also used to show that DTUs are present. DTCs are shown on the Scan Tool’s emission monitors have not run their diagnostic testing.
Onc-Click I/M Readiness Key – Quick-checks State Emissions readiness and drive cycle verifiention.
ESC BUTTON – Returns to previous menu o ENTER a menu list.|
ENTER BUTTON – Confirms a selection (or action) from
UP SCROLL BUTTON – Move cursor up for selection,
DOWN SCROLL BUTTON – Move cursor down for selection- USB CONNECTOR – Connects the scan tool to the PC for printing and upgrading.
Specifications
- Display: TFT color display (320 x 240 dpi)
- Operating Temperature: 0 to 60°C (32 to 140 F° )
- Storage Temperature: -20 to 70°C (-4 to 158 F° )
- External Power: 8.0 to 18. OV power provided via vehicle battery
- Dimensions:
- Length: 124mm (4. 88″ )
- Width: 70mm (2. 76″ )
- Height: 20mm (0. 79″ )
- NW: 0. 21kg (0. 46 Ib) GW: 0. 29kg (0. 64 Ib)
Accessories Included
- User’ s Manual – Instructions on tool operations.
- 0BD2 cable – Provides power to tool and communicates between tool and vehicle.
- USB cable – Used to upgrade the scan tool, and to print retrieved data.
- Protective Nylon case – A nylon case to store the tool when not in use.
FAQs About KONNWEI KW680
How do I connect the KONNWEI KW680 to my car?
Plug it into the OBDII port, usually found under the dashboard.
Can the KONNWEI KW680 read live data from the car?
The Konnwei KW680 Diagnostic Scan Tool can read live sensor data from a car. It can also store and play back live sensor data.
What functions does the KONNWEI KW680 Scanner perform?
The KONNWEI KW680 Scanner can read and clear engine fault codes, diagnose check engine light issues, and perform other car diagnostic functions.
How much does the KONNWEI KW680 Scanner cost?
The Konnwei KW680 OBD2 Engine Auto Diagnostic Scanner costs is $43.99.
