2025 Dodge Hornet Fuses and Fuse Box User Guide
This Guide covers 2025 Dodge Hornet Fuses & Fuse Box. To maintain electrical system operation and avoid car component failure, learn fuse box locations, kinds, and replacement.
2024 Dodge Hornet Specs, Price, Features, Mileage and Review
Video: 2025 Dodge Hornet Fuses
2025 Fuses Guide
General Information
WARNING!
- When replacing a blown fuse, always use an appropriate replacement fuse with the same amp rating as the original fuse. Never replace a fuse with another fuse of higher amp rating. Never replace a blown fuse with metal wires or any other material. Do not place a fuse inside a circuit breaker cavity or vice versa. Failure to use proper fuses may result in serious personal injury, fire and/or property damage.
- Before replacing a fuse, make sure that the ignition is off and that all the other services are switched off and/or disengaged.
- If the replaced fuse blows again, contact an authorized dealer.
- If a general protection fuse for safety systems (air bag system, braking system), power unit systems (engine system, transmission system) or steering system blows, contact an authorized dealer.
The fuses protect electrical systems against excessive current. When a device does not work, you must check the fuse element inside the blade fuse for a break/melt.
Also, please be aware that using power outlets for extended periods of time with the engine off may result in vehicle battery discharge.

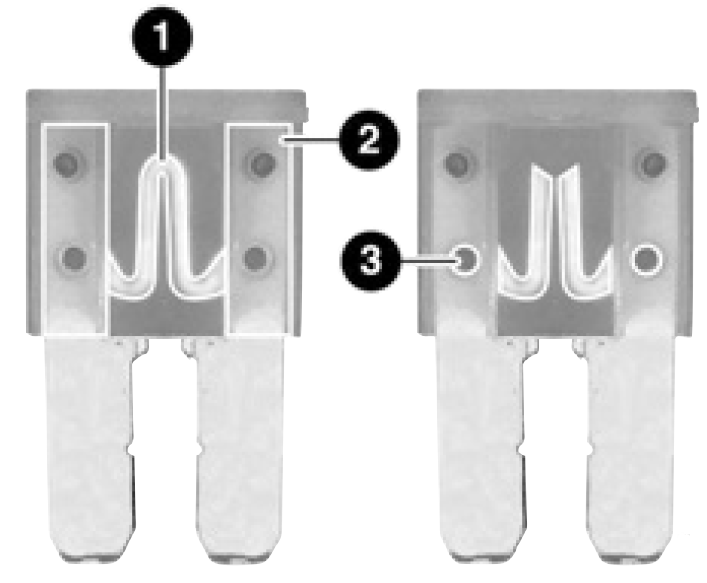

Blade Fuses
- Fuse Element
- Blade Fuse with a good/functional fuse element
- Blade Fuse with a bad/not functional fuse element (blown fuse)
Power Distribution Center/Fuses And Relays
The Front Power Distribution Center is located in the engine compartment. This module contains fuses and relays. Fuse cavity locations are printed on the inside of the power distribution center cover.
CAUTION!
When installing the power distribution center cover, it is important to ensure the cover is properly positioned and fully latched. Failure to do so may allow water to get into the power distribution center and possibly result in an electrical system failure.

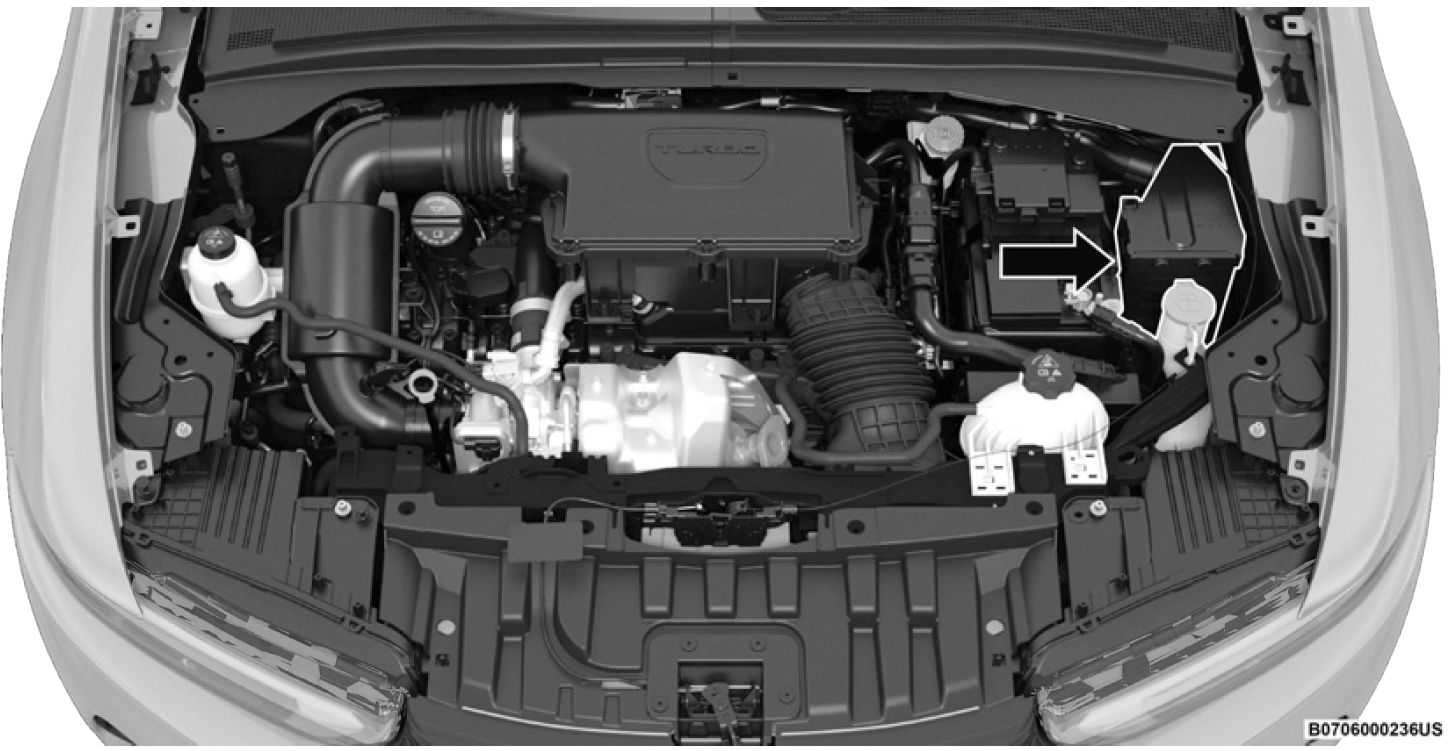

Underhood Power Distribution Location (Gasoline Engine)
Underhood Power Distribution Location (Hybrid)
The fuse box screw and cover must be removed to gain access to the fuses.
Fuse Box Cover And Locking Screw Removal
- Fuse Cover
- Locking Screw
For fuse box access, proceed as follows:
- Turn the locking screw counterclockwise.
- Slowly release the screw.
- Remove the fuse box cover by sliding it upward.
- Reverse the procedure to reinstall.
Gasoline Engine
| Cavity | Cartridge Fuse | Maxi Fuse | Mini Fuse | Description |
| * If Equipped | ||||
| F01 | – | 70 Amp Tan | – | BCM1 |
| F02 | – | 70 Amp Tan | – | BCM2 / RDU |
| F03 | 20 Amp Blue | – | – | BCM3 |
| F04 | 40 Amp Green | – | – | BCM Valves |
| F05 | – | 40 Amp Orange | – | PTC 1 |
| F06 | – | 20 Amp Yellow | – | Front Wiper Motor |
| F07 | – | 20 Amp Yellow | – | DTCM |
| F08 | 30 Amp Pink | – | – | Power Supply F24 – F87 – Fxx |
| F09 | – | – | 7.5 Amp Brown | ECM T09 |
| F10 | – | – | 15 Amp Blue | Horn |
| F11 | – | – | 5 Amp Tan | Engine Secondary Loads |
| F14 | – | – | 7.5 Amp Brown | LTR |
| F15 | – | 40 Amp Orange | – | BSM Pump |
| F16 | – | – | 10 Amp Red | ECM / TCM / AGSM |
| F17 | – | – | 10 Amp Red | Engine Primary Loads |
| F18 | – | – | 5 Amp Tan | IGNM |
| F19 | – | – | 7.5 Amp Brown | A/C Compressor |
| F20 | – | – | 15 Amp Blue | Rear Cargo Outlet |
| F21 | – | – | 20 Amp Yellow | Fuel Pump |
| F22 | – | – | 15 Amp Blue | ECM |
| F23 | – | – | 5 Amp Tan | USB / Aux Outlet |
| F24 | – | – | 10 Amp Red | DTCM |
| F30 | – | – | 5 Amp Tan | AWD DTCM |
| F81 | – | 30 Amp Green | – | Brake Booster Vacuum Pump |
| F82 | – | – | – | Spare |
| F82 | 40 Amp Green | – | – | External Oil Pump * |
| F83 | 40 Amp Green | – | – | HVAC Fan |
| F84 | – | – | 7.5 Amp Brown | Rad Fan Enable |
| F87 | – | – | 5 Amp Tan | AGSM |
| F88 | – | – | 7.5 Amp Brown | Heated Mirrors & Washer Nozzle |
| F89 | 30 Amp Pink | – | – | Rear Window Defrost |
| F90 | – | – | 5 Amp Tan | Intelligent Battery Sensor |
Hybrid
| Cavity | Cartridge Fuse | Maxi Fuse | Mini Fuse | Description |
| * If Equipped | ||||
| F01 | – | 70 Amp Tan | – | BCM1 |
| F02 | – | 70 Amp Tan | – | BCM2 / RDU |
| F03 | 20 Amp Blue | – | – | BMC3 |
| F04 | 40 Amp Green | – | – | BCM Valves |
| F05 | – | 40 Amp Orange | – | PTC 1 |
| F06 | – | 20 Amp Yellow | – | Front Wiper Motor |
| F07 | – | 50 Amp Red | – | AUX 1 RDU |
| F08 | 30 Amp Pink | – | – | Power Supply F24 – F87 – Fxx |
| F09 | – | – | 7.5 Amp Brown | ECM T09 |
| F10 | – | – | 15 Amp Blue | Horn |
| F11 | – | – | 5 Amp Tan | Engine Secondary Loads |
| F14 | – | – | 7.5 Amp Brown | LTR |
| F15 | – | 70 Amp Tan | – | BSM Pump |
| F16 | – | – | 10 Amp Red | ECM / TCM / AGSM |
| F17 | – | – | 10 Amp Red | Engine Primary Loads |
| F18 | – | – | 5 Amp Tan | IGNM * |
| F19 | – | – | 7.5 Amp Brown | A/C Compressor |
| F20 | – | – | 15 Amp Blue | Rear Cargo Outlet |
| F21 | – | – | 20 Amp Yellow | Fuel Pump |
| F22 | – | – | 20 Amp Yellow | Engine Primary Loads |
| F23 | – | – | 5 Amp Tan | USB / Aux Outlet |
| F24 | – | – | 10 Amp Red | TCM |
| F30 | – | – | – | Spare |
| F81 | – | 40 Amp Orange | – | AUX 2 RDU |
| F82 | 40 Amp Green | – | – | External Oil Pump (AT) |
| F83 | 40 Amp Green | – | – | HVAC Fan |
| F84 | – | – | 7.5 Amp Brown | Rad Fan Enable |
| F87 | – | – | 5 Amp Tan | AGSM |
| F88 | – | – | 7.5 Amp Brown | Heated Mirrors & Washer Nozzle |
| F89 | 30 Amp Pink | – | – | Rear Window Defrost |
| F90 | – | – | 5 Amp Tan | Intelligent Battery Sensor |
| Fxx | – | – | 25 Amp Clear | PIM |
Supplemental Fuse Box Location (Hybrid)
Supplemental Fuse Box — Hybrid
| Cavity | Mini Fuse | Description |
| F01 | 5 Amp Tan | Electric Air Heater (EAH) |
| F02 | 7.5 Amp Brown | Electric Air Compressor (EAC) |
| F03 | 5 Amp Tan | Integrated Dual Charge Module (IDCM) |
| F04 | 5 Amp Tan | Charge Port Indicator Module (CPIM) |
| F05 | 15 Amp Blue | Power Electronic Coolant Pump 2 (PECP2) |
| F06 | 15 Amp Blue | Power Electronic Coolant Pump (PECP) |
| F07 | 5 Amp Tan | Aux Heater Pump (AHP) |
| F08 | 5 Amp Tan | PIM Feed 1 |
| F09 | 10 Amp Red | BPCM Feed 1 |
| F10 | 5 Amp Tan | PIM Feed 3 |
| F11 | 10 Amp Red | BPCM Feed 2 |
| F12 | 5 Amp Tan | Electronic Pedestrian Protection Module (EPPM) |
Relays — Gasoline Engine
| Cavity | Maxi Fuse | Mini Fuse | Description |
| T02 | – | – | Not Used |
| T03 | – | 30 Amp | Horn |
| T05 | – | 30 Amp | A/C Compressor |
| T06 | – | 30 Amp | Rad Fan Enable |
| T07 | 50 Amp | – | Aux.1 / DTCM |
| T08 | – | 30 Amp | HVAC Fan |
| T09 | – | 30 Amp | Engine Main Relay |
| T10 | – | – | Not Used |
| T14 | – | 30 Amp | Rear Cargo Power Outlet |
| T17 | – | 30 Amp | Rear Window Defrost/Heated Mirrors |
| T19 | – | – | Not Used |
| T20 | – | 30 Amp | Starter Relay R1 |
| T31 | – | 30 Amp | Fuel Pump |
| T89 | – | – | Not Used |
| T90 | – | 30 Amp | Brake Booster Vacuum Pump |
Relays — Hybrid
| Cavity | Maxi Fuse | Mini Fuse | Description |
| T02 | – | – | Not Used |
| T03 | – | 30 Amp | Horn |
| T05 | – | 30 Amp | A/C Compressor |
| T06 | – | 30 Amp | Rad Fan Enable |
| T07 | 50 Amp | – | Aux.1 |
| T08 | – | 30 Amp | HVAC Fan |
| T09 | – | 30 Amp | Engine Main Relay |
| T10 | – | – | Not Used |
| T14 | – | 30 Amp | Rear Cargo Power Outlet |
| T17 | – | 30 Amp | Rear Window Defrost/Heated Mirrors |
| T19 | – | 30 Amp | External Oil Pump |
| T20 | – | 30 Amp | Starter Relay R1 |
| T31 | – | 30 Amp | Fuel Pump |
| T89 | – | – | Not Used |
| T90 | – | 30 Amp | Brake Booster Vacuum Pump |
Interior Fuses
The interior fuse panel is located under the driver’s side lower instrument panel.
Interior Fuse Box Location
| Cavity | Mini Fuse | Description |
| *If Equipped | ||
| F31 | 7.5 Amp Brown | HVAC Relay Coil & Power Outlet / Seat Relay Coil |
| F33 | 20 Amp Yellow | Front Passenger Window Lifter |
| F34 | 20 Amp Yellow | Front Driver Window Lifter |
|
F36 |
15 Amp Blue |
HVAC / VTA / External Mirror /Ceiling Light / CVPM / Radio Mod / USB / AUX/ DCSD / Electric Steering Lock |
| F37 | 10 Amp Red | Brake Switch / DASM / IPC |
| F38 | 20 Amp Yellow | Door Lock & Unlock / Liftgate Release |
| F42 | 7.5 Amp Brown | Brake System Module, Electric Power Steering |
| F43 | 20 Amp Yellow | Bi-Directional Washer Pump |
| F47 | 20 Amp Yellow | Rear Left Window Lifter |
| F48 | 20 Amp Yellow | Rear Right Window Lifter |
|
F49 |
7.5 Amp Brown |
Park Assist, Blind Spot, Voltage Stabilizer, Humidity Sensor, Electronic Steering Lock, Temp Sense, Mirror, Heated Seats, Light And Rain Sensor, Start Stop Switch |
| F50 | 7.5 Amp Brown | Occupant Restraint Controller |
|
F51 |
7.5 Amp Brown |
Electronic Climate Control, Occupant Classification, Rear View Camera, Climate Con- trol, Headlamp Leveling, Terrain Select, Heated Rear Window, Trailer Tow, Haptic Lane Mod |
|
F53 |
7.5 Amp Brown |
HCP / Reverse Gear / ISNSR / A/C Compressor / HVAC / Defrosting / Right & Left Headlamp Leveling / LDW / Alarm Mod / Psg Airbag / Trailer Tow Mod / AFLM / Air Quality Sensor / ASBM |
| F94 | 15 Amp Blue | Power Outlet |
Rear Cargo Fuse/Relay Distribution Unit— If Equipped
To access the fuses, remove the access door from the left rear panel in the rear cargo area.
Rear Fuse Access Door Location
The fuses may be contained in two units.
- Fuse Holder No. 1 is located closest to the rear of the vehicle
- Fuse Holder No. 2 (If equipped with trailer towing) is located closest to the front of the vehicle.
Rear Cargo Fuse Cavity Example
- Fuse Holder No. 1
- Fuse Holder No. 2
Fuse Holder No. 1
| Cavity | Mini Fuse | Description |
| * If Equipped | ||
| F1 | 20 Amp Yellow | Sunroof* |
| F2 | – | – |
| F3 | 30 Amp Green | Power Liftgate Module (PLGM) |
| F4 | 5 Amp Tan | Driver And Passenger Ventilated Seats (HMSM*) |
| F5 | 25 Amp Clear | Heating And Memory Drive Seat Module 1 |
| F6 | 10 Amp Red | Heating And Memory Drive Seat Module 2 |
|
F7 |
7.5 Amp Brown |
Driver And Passenger Lumbar Regulator (Without HMSM) |
| F8 | 20 Amp Yellow | Passenger Seat SW (HMSM*) |
Fuse Holder No. 2
| F3 | 5 Amp Tan | Hands-Free Power Liftgate (HFRM) |
| F4 | 7.5 Amp Brown | Damping Control Module |
| F5 | 5 Amp Tan | Changeover Valve Feed (ELCM) |
| F8 | 7.5 Amp Brown | Damping Control Module |
On the Rear Cargo Fuse/Relay Distribution Unit bracket, there is a Maxi Fuse holder for the Amplifier (if equipped).
| Cavity | Maxi Fuse | Description |
| * If Equipped | ||
| F01 | 30 Amp Green | Amplifier* |
