TECHNICAL SPECIFICATIONS

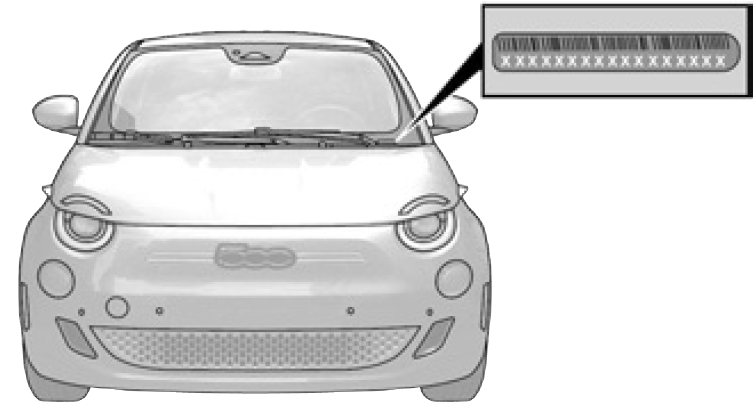

VEHICLE IDENTIFICATION NUMBER (VIN)
(The label is shown divided into two parts for reading purposes)
It is applied to the left front pillar.
Vehicle Identification Number
NOTE:
It is illegal to remove or alter the VIN.
BRAKE SYSTEM
Your vehicle is equipped with dual hydraulic brake systems. If either of the two hydraulic systems lose normal capability, the remaining system will still function. However, there will be some loss of overall braking effectiveness. You may notice increased pedal travel during application, greater pedal force required to slow or stop, and potential activation of the Brake System Warning Light.
In the event power assist is lost for any reason (i.e., repeated brake applications with the engine off), the brakes will still function. However, the effort required to brake the vehicle will be much greater than that required with the power system operating.
CAUTION!
If the Brake System Warning Light remains on with the parking brake released, a brake system malfunction is indicated. Have the brake system serviced by an authorized dealer immediately.
WHEEL AND TIRE TORQUE SPECIFICATIONS
Proper lug nut/bolt torque is very important to ensure that the wheel is properly mounted to the vehicle. Any time a wheel has been removed and reinstalled on the vehicle, the lug nuts/bolts should be torqued using a properly calibrated torque wrench using a high quality six sided (hex) deep wall socket.
TORQUE SPECIFICATIONS
|
Lug Nut/Bolt Torque |
**Lug Nut/ Bolt Size | Lug Nut/ Bolt Socket
Size |
| 88.5 Ft-Lbs (120 N·m) | M12 x 1.25 | 17 mm |
Use only your authorized dealer recommended lug nuts/bolts and clean or remove any dirt or oil before tightening.

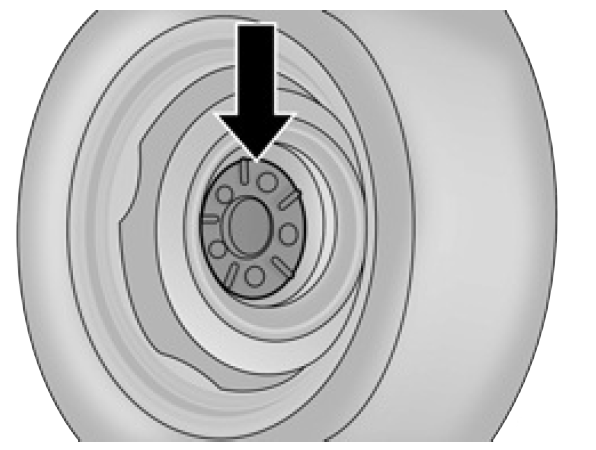

Inspect the wheel mounting surface prior to mounting the tire and remove any corrosion or loose particles.
Wheel Mounting Surface
Tighten the lug nuts/bolts in the following pattern until each nut/bolt has been tightened twice.
Torque Patterns
After 25 miles (40 km), check the lug nut/bolt torque to be sure that all the lug nuts/bolts are properly seated against the wheel.
WARNING!
To avoid the risk of forcing the vehicle off the jack, do not tighten the lug nuts/bolts fully until the vehicle has been lowered. Failure to follow this warning may result in personal injury.
FLUID CAPACITIES
| Systems | U.S. | Metric |
| EDM (Electronic Drive Module) | 0.18 US gal | 0.67 Liters |
| Cooling system | 1.72 US gal | 6.5 Liters |
| Hydraulic brake circuit | 1.76 lb | 0.8 kg |
| Windshield and rear window washer fluid reservoir | 0.40 US gal | 1.5 Litres |
DRIVE TRANSMISSION FLUIDS AND LUBRICANTS
| Component | Fluid, Lubricant, or Genuine Part |
|
Drive Transmission Greases |
We recommend using Mopar® Molybdenum disulphide grease, for use at high temperatures. N.L.G.I. consistency 1-2. Specifica- tion: 9.55580-GRAS II.
We recommend using Mopar® Low friction coefficient grease for constant velocity joints. N.L.G.I. consistency 0-1. Specification: 9.55580-GRAS II. |
| Drive Transmission Lubricant | We recommend using Mopar® SAE 75W-70, API GL-4. Specification: 9.55550-MZ14. |
| Drive Transmission Coolant | We recommend using Mopar® Antifreeze/Coolant 10 Year/150,000 Mile (240,000 km) Formula OAT (Organic Additive Technology)
meeting the requirements of the manufacturer Material Standard MS.90032. |
CAUTION!
- Mixing of engine coolant (antifreeze) other than specified Organic Additive Technology (OAT) engine coolant (antifreeze), may result in engine damage and may decrease corrosion protection. Organic Additive Technology (OAT) engine coolant is different and should not be mixed with Hybrid Organic Additive Technology (HOAT) engine coolant (antifreeze) or any “globally compatible” coolant (antifreeze). If a non-OAT engine coolant (antifreeze) is introduced into the cooling system in an emergency, the cooling system will need to be drained, flushed, and refilled with fresh OAT coolant (conforming to MS.90032), by an authorized dealer as soon as possible.
- Do not use water alone or alcohol-based engine coolant (antifreeze) products. Do not use additional rust inhibitors or antirust products, as they may not be compatible with the radiator engine coolant and may plug the radiator.
- This vehicle has not been designed for use with propylene glycol-based engine coolant (antifreeze). Use of propylene glycol-based engine coolant (antifreeze) is not recommended.
CHASSIS FLUIDS AND LUBRICANTS
| Component | Fluid, Lubricant, Or Genuine Part |
| Refrigerant | We recommend using Mopar® R1234yf. |
| Brake Master Cylinder | We recommend using Mopar® DOT 4, ISO 4925, Class 6, SAE J1704. DOT 4 brake
fluid must be changed every two years regardless of mileage. |
| Windshield/Rear Window Washer Fluid | Use only Mopar® Mixture of alcohol, water and surfactants CUNA NC 956–II. |
