FUSE SPECIFICATION CHART

Power Distribution Box

WARNING: Always disconnect the battery before servicing high current fuses.

WARNING: To reduce risk of electrical shock, always replace the cover to the power distribution box before reconnecting the battery or refilling fluid reservoirs.

Note: There is a 40A fuse on the cowl side engine harness that controls the all wheel drive module. If this fuse requires service, see an authorized dealer.

The power distribution box is in the engine compartment. It has high-current fuses that protect your vehicle’s main electrical systems from overloads.
If the battery has been disconnected and reconnected, some features need to be reset.

Fuse or Relay Number	Fuse Rating	Protected Component
1	30A1	Not used (spare).
2	—	Starter relay.
3	15A2	Rear wiper. Rain sensor. Rear washer pump relay coil.
4	—	Blower motor relay.
5	20A1	Power point 3 – back of console.
6	—	Not used.
7	20A2	Powertrain control module – vehicle power 1.
8	20A2	Powertrain control module – vehicle power 2.
9	—	Powertrain control module relay.
10	20A1	Power point 1 – driver front.
11	15A3	Powertrain control module – vehicle power 4.
12	15A3	Powertrain control module – vehicle power 3. All wheel drive module relay coil.
13	—	Not used.
14	—	Not used.
15	—	Run-start relay.
16	20A1	Power point 2 – console bin.
17	20A1	Power point 4 – luggage compartment.
18	20A2	Not used (spare).
19	10A2	Run-start electronic power assist steering.

Fuse or Relay Number	Fuse Rating	Protected Component
20	10A2	Headlamp leveling motors.
21	15A2	Not used (spare).
22	10A2	Air conditioner clutch solenoid.
23	15A	Run-start 6. Blind spot information system. Rear view camera. Voltage quality module (start/stop). Front split view camera. Front split view camera module.
24	10A2	Not used (spare).
25	10A3	Run-start anti-lock brake system.
26	10A3	Run-start powertrain control module.
27	—	Not used.
28	10A2	Rear washer pump.
29	5A2	Not used (spare).
30	—	Not used.
31	—	Not used.
32	—	Electronic fan 1 relay.
33	—	A/C clutch relay.
34	15A2	Not used (spare).
35	—	Not used.
36	—	Not used.
37	10A2	Power transfer unit fan.
38	—	Electronic fan 2 relay.
39	—	Electronic fan 3 relay.
40	—	Horn relay.

Fuse or Relay Number	Fuse Rating	Protected Component
41	—	Low beam assumption relay.
42	—	Fuel pump relay.
43	15A2	2nd row easy fold seat release.
44	20A2	Not used (spare).
45	—	Not used.
46	—	Not used.
47	—	Not used.
48	15A2	Steering column lock relay power.
49	—	Not used.
50	20A2	Horn.
51	—	Not used.
52	—	Not used.
53	—	Not used.
54	10A3	Brake on off switch.
55	10A3	Alternator sensor.
86	–	Not used.

1. M case fuse.
2. Micro 2 fuse.
3. Micro 3 fuse.

Power Distribution Box – Bottom
There are fuses on the bottom of the fuse box. To access the bottom of the fuse box, do the following:

1. Release the latches on both sides of the fuse box.
2. Raise the inboard side of the fuse box from the cradle.
3. Move the fuse box toward the center of the engine compartment.
4. Pivot the outboard side of the fuse box to access the bottom side.

Fuse or Relay Number	Fuse Rating	Protected Component
56	—	Not used.
57	—	Not used.
58	30A1	Fuel pump feed.
59	40A2	Electronic fan 3.
60	40A2	Electronic fan 1.
61	—	Not used.
62	50A2	Body control module 1.
63	25A1	Electronic fan 2.
64	—	Not used.
65	20A1	Front heated seat.
66	15A1	Heated wiper park.
67	50A2	Body control module 2.
68	40A1	Heated rear window.
69	30A1	Anti-lock brake system valves.
70	30A1	Passenger seat.
71	—	Not used.
72	20A1	Not used (spare).
73	20A1	Rear heated seats.
74	30A1	Driver seat module. Power driver seat (less memory).
75	25A1	Wiper motor 1.
76	30A1	Power liftgate module.

Fuse or Relay Number	Fuse Rating	Protected Component
77	30A1	Climate control seat module.
78	40A1	Trailer lighting module.
79	40A2	Blower motor.
80	25A1	Wiper motor 2.
81	40A1	110 volt inverter.
82	–	Not used.
83	20A1	Not used (spare).
84	30A1	Starter solenoid.
85	—	Not used.
87	60A2	Anti-lock brake system pump.

1. M case fuse.
2. J case fuse.

Passenger Compartment Fuse Panel
The fuse panel is under the instrument panel to the left of the steering column.

Note: It may be easier to access the fuse panel if you remove the finish trim piece.

Fuse or Relay Number	Fuse Rating	Protected Component
1	–	Not used.
2	7.5A1	Memory seats. Lumbar. Wireless charger.
3	20A1	Driver door unlock.
4	5A1	Not used (spare).
5	20A1	Audio amplifier.
6	10A 2	Not used (spare).
7	10A2	Not used (spare).
8	10A2	Not used (spare).
9	10A2	Not used (spare).
10	5A2	Keypad. Power liftgate module logic power. Hands free liftgate module.

Fuse or Relay Number	Fuse Rating	Protected Component
		Embedded modem.
11	5A2	Not used (spare).
12	7.5A2	Climate control module. Gear shift module.
13	7.5A2	Cluster. Steering column control module. Smart datalink connector (gateway) module.
14	10A2	Extended power module.
15	10A2	Datalink power.
16	15A1	Not used (spare).
17	5A2	Not used (spare).
18	5A2	Push button start switch.
19	7.5A2	Extended power module.
20	7.5A2	Not used (spare).
21	5A 2	Humidity and in–car temperature sensor.
22	5A2	Occupant classification system.
23	10A1	Delayed accessory (power inverter logic, moonroof logic, driver window switch power).
24	20A1	Central lock/unlock.
25	30A1	Driver door (window, mirror). Driver door module. Driver door lock indicator. Driver lock switch illumination.
26	30A1	Front passenger door (window, mirror). Front passenger door module. Front passenger lock indicator.

Fuse or Relay Number	Fuse Rating	Protected Component
		Front passenger switch illumination (window, lock).
27	30A1	Moonroof.
28	20A1	Amplifier.
29	30A1	Not used (spare).
30	30A1	Not used (spare).
31	15A1	Not used (spare).
32	10A1	Center stack display. Voice control (SYNC). Radio transceiver module.
33	20A1	Radio.
34	30A1	Run-start bus (fuse 19, 20, 21, 22, 35, 36, 37, circuit breaker 38).
35	5A1	Not used (spare).
36	15A1	Auto-dimming rear view mirror. Auto high beam/lane departure mirror module. Rear heated seat module logic power.
37	20A1	Heated steering wheel module. Active front steering wheel.
38	30A3	Rear power windows. Rear window switch illumination.

1. Micro 2 fuse.
2. Micro 3 fuse.
3. Circuit breaker.

CHANGING A FUSE

Fuses
WARNING: Always replace a fuse with one that has the specified amperage rating. Using a fuse with a higher amperage rating can cause severe wire damage and could start a fire.

If electrical components in the vehicle are not working, a fuse may have blown. Blown fuses are identified by a broken wire within the fuse. Check the appropriate fuses before replacing any electrical components.

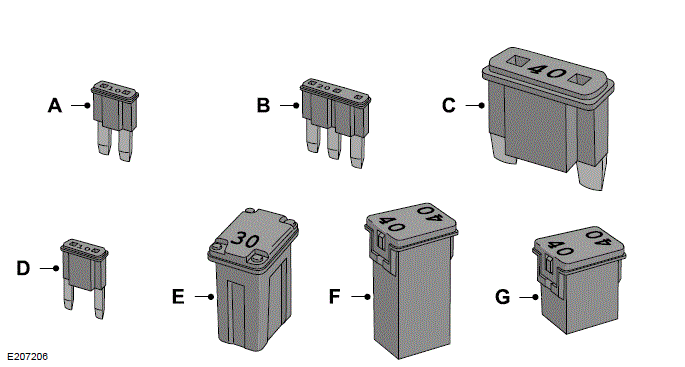

Callout	Fuse Type
A	Micro 2
B	Micro 3
C	Maxi
D	Mini

Callout	Fuse Type
E	M Case
F	J Case
G	J Case Low Profile
