2024 FORD Ranger Keys and smart Key Guide

2024 FORD Ranger Keys and Smart Key Guide

Amidst the constantly changing field of automotive advancements, Ford persistently challenges the limits of quality with its newest release, the 2024 Ford Ranger. The 2024 Ranger showcases a combination of strong resilience, advanced technology, and exceptional performance, serving as a tribute to Ford’s unwavering dedication to skillful workmanship and innovation. This version of the Ranger, with its stylish appearance and impressive skills, is set to completely transform the experience of adventure both on and off the road. Notable characteristics of the vehicle include its sophisticated key and smart key systems, which effectively combine convenience and security to enhance the driving experience. The 2024 Ranger offers easy entry and increased security with its keys and smart key technology, whether you’re driving in the city or tackling difficult terrain. This demonstrates Ford’s commitment to enhancing the driving experience to a higher level.

2024 Ford Ranger Specs, Price, Features, Mileage and Review

Keys and Remote Controls

REMOTE CONTROL LIMITATIONS

WARNING:
Changes or modifications not expressively approved by the party responsible for compliance could void the user’s authority to operate the equipment. The term “IC:” before the radio certification number only signifies that Industry Canada technical specifications were met.

This device complies with Part 15 of the FCC Rules and with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions:

1. This device may not cause harmful interference, and
2. This device must accept any interference received, including interference that may cause undesired operation. Make sure a valid remote control is within 3 ft (1 m) from the front door handles and rear of vehicle.

The system may not function if:
The remote control remains stationary for about a minute. The vehicle battery has no charge. The remote-control battery has no charge. There is interference causing issues with the remote-control frequencies. The remote control is too close to metal objects or electronic devices, for example keys or a cell phone.

USING THE REMOTE CONTROL WARNING:
Do not leave a key or remote control unattended in the vehicle. Children or pets could operate the power windows, moonroof or other controls. Failure to follow this instruction could result in personal injury or death.

Use your remote control to access various vehicle systems.

Note: The buttons on your remote may vary depending on the vehicle region or options.

Unlock
Press the button to unlock all doors.



Lock

Press the button to lock all doors. See Unlocking and Locking the Doors Using the Remote Control.



Remote Start
Press the button to remote start. See Remotely Starting and Stopping the Vehicle.



Panic Alarm
Press the button to sound the panic alarm.



OPENING AND CLOSING THE
FLIP KEY

Opening Your Flip Key
Press the round button on the remote control to extend the flip key.

Note: Inspect the key blade for debris. Periodically clean with a brush.

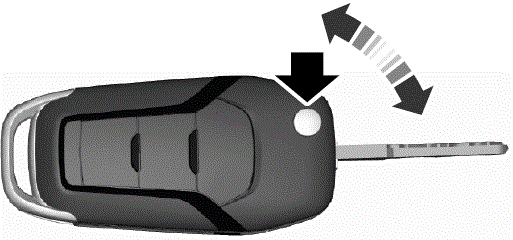

Closing Your Flip Key
Press and hold the round button on the remote control to fold the key blade when not in use

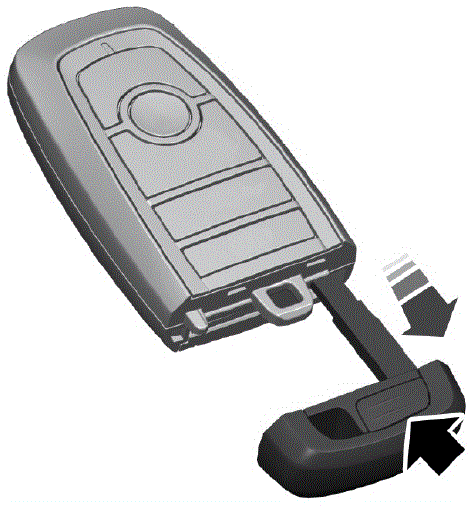

REMOVING THE KEY BLADE

Push the release button on your passive key and pull the key blade out.

SOUNDING THE PANIC ALARM

Press the button to sound the panic alarm.  Press the button again or switch the vehicle on to turn it off.

Note: We recommend you use this method to locate your vehicle.

CHANGING THE REMOTE CONTROL BATTERY – VEHICLES WITH: PUSH BUTTON START

 WARNING:
Keep batteries away from children to prevent ingestion. Failure to follow this instruction could result in personal injury or death. If ingested, immediately seek medical attention.

WARNING:
If the battery compartment does not securely close, stop using the remote control and replace it as soon as possible. In the meantime, keep the remote control away from children. Failure to follow this instruction could result in personal injury or death.

The remote control uses one coin-type 3-volt lithium battery, CR2450, or equivalent.

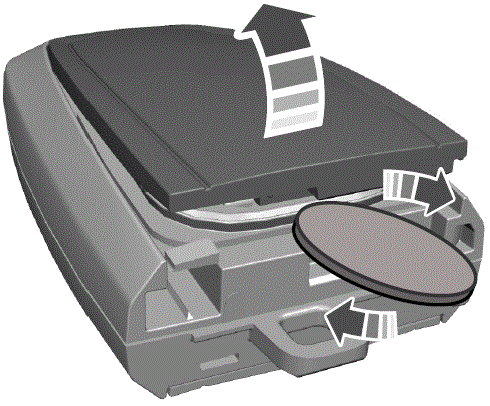

1. Push the release button and pull the key blade out.

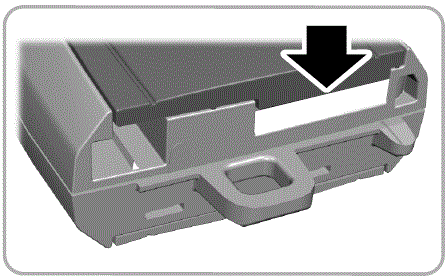

2. Twist a thin coin under the tab hidden behind the key blade head to remove the battery cover.
3. Insert a screwdriver in the position shown and carefully remove the battery.
4. Insert a new battery with the + facing upward.
5. Reinstall the battery cover onto the remote control and install the key blade.

Dispose of old batteries in an environmentally friendly way. Seek advice from your local authority about recycling old batteries.

Note: Do not wipe off any grease on the battery terminals or on the back surface of the circuit board.

Note: Replacing the battery does not erase the programmed key from your vehicle. The remote control should operate normally.

CHANGING THE REMOTE CONTROL BATTERY – VEHICLES WITH: FLIP KEY

WARNING: Keep batteries away from children to prevent ingestion. Failure to follow this instruction could result in personal injury or death. If ingested, immediately seek medical attention.

WARNING: If the battery compartment does not securely close, stop using the remote control and replace it as soon as possible. In the meantime, keep the remote control away from children. Failure to follow this instruction could result in personal injury or death.

Battery Replacement Procedure
The remote control uses one coin-type 3-volt lithium battery CR2032 or equivalent.

Press the button to release the key blade before beginning the procedure.

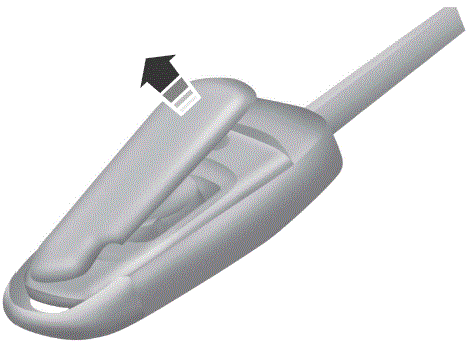

1. Insert a screwdriver, in the position shown and gently push the clip.
2. Press the clip down to release the battery cover.

3. Carefully remove the cover.

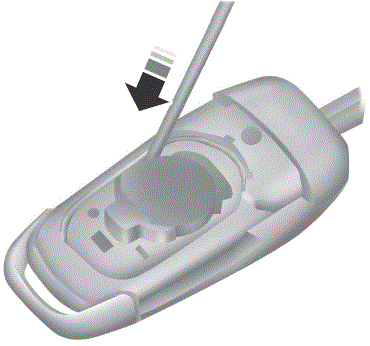

4. Insert a screwdriver as shown to release the battery.
   Note: Do not touch the battery contacts or the printed circuit board with the screwdriver.
5. Remove the battery.
6. Install a new battery with the + facing up.
7. Replace the battery cover.

Dispose of old batteries in an environmentally friendly way.

Seek advice from your local authority about recycling old batteries.

Note: Do not wipe off any grease on the battery terminals or on the back surface of the circuit board.

Note: Replacing the battery does not erase the programmed key from your vehicle. The remote control should operate normally.

REPLACING A LOST KEY OR REMOTE CONTROL
You can purchase replacement keys or remote controls from an authorized dealer.
Authorized dealers can program remote controls for your vehicle.

Note: Your vehicle keys came with a security label that provides important key cut information. Keep the label in a safe place for future reference

PROGRAMMING THE REMOTE CONTROL – VEHICLES WITH: PUSH BUTTON START
You must have two previously programmed remote controls inside your vehicle and the new, unprogrammed remote controls readily accessible. Contact an authorized dealer to have the spare remote control programmed if two previously programmed remote controls are not available. Make sure that your vehicle is off before beginning this procedure.

Make sure that you close all the doors before beginning and that they remain closed throughout the procedure. Perform all steps within 30 seconds of starting the sequence. Stop and wait for at least one minute before starting again if you perform any steps out of sequence.

Note: You can program a maximum of four remote controls to your vehicle.

Note: If your programmed remote controls get lost or stolen and you do not have an extra coded remote, you need to have your vehicle towed to an authorized dealer. Store an extra programmed remote away from your vehicle in a safe place to help prevent any inconvenience. Contact an authorized dealer to purchase additional spare or replacement remote controls.

Read and understand the entire procedure before you begin.

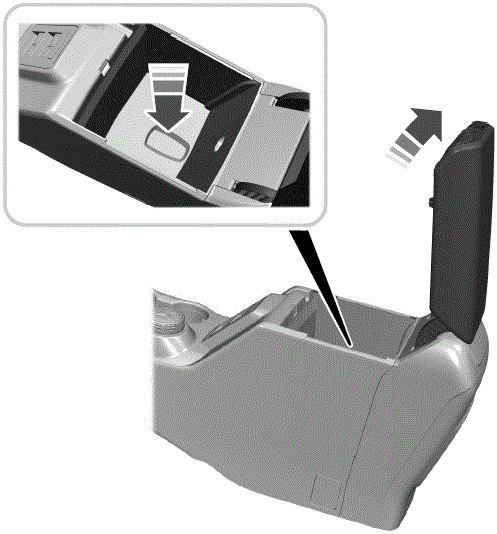

Programming Backup Location

1. Place the first programmed remote in the backup slot inside the center console. With your foot off the brake pedal, press and release the push-button ignition switch.
2. Wait five seconds and then press and release the push-button ignition switch again.
3. Remove the remote control.
4. Within 10 seconds, place a second programmed remote control in the backup slot. Press and release the push-button ignition switch.
5. Wait five seconds and then press and release the push-button ignition switch again. Keep the ignition on for at least 3 seconds, but no more than 10 seconds.
6. Remove the remote control.
7. Place the unprogrammed remote control in the backup slot and press and release the push-button ignition switch.

Programming is now complete. With your foot on the brake pedal, press the push-button ignition switch to verify the remote control functions operate and your vehicle starts with the new remote control.
If programming was not successful, wait 10 seconds and repeat Steps 1 through 7. If you are still unsuccessful, take your vehicle to an authorized dealer.

PROGRAMMING THE REMOTE CONTROL – VEHICLES WITH: FLIP KEY

General Information
You can program your own remote control to your vehicle. This procedure programs both the engine immobilizer keycode and the remote entry portion of the remote control to your vehicle.
Only use remote controls with an integrated mechanical key.

You must have two previously programmed coded remote controls and the new unprogrammed remote readily accessible. Contact an authorized dealer to have the spare remote control programmed if the two previously programmed coded remote controls are not available.

Read and understand the entire procedure before you begin.

Steps for Programming Your Spare Remote Control

1. Insert the first previously programmed coded key into the ignition.
2. Switch the ignition from off to on. Keep the ignition on for at least three seconds, but no more than 10 seconds.
3. Switch the ignition off and remove the first coded key from the ignition.
4. After three seconds but within 10 seconds of switching the ignition off, insert the second previously coded key into the ignition.
5. Switch the ignition from off to on. Keep the ignition on for at least three seconds, but no more than 10 seconds.
6. Switch the ignition off and remove the second previously programmed coded key from the ignition.
7. After three seconds but within 10 seconds of switching the ignition off and removing the previously programmed coded key, insert the new unprogrammed key into the ignition.
8. Switch the ignition from off to on. Keep the ignition on for at least six seconds until you hear the door locks cycle.
9. Remove the newly programmed coded key from the ignition.

The key starts the engine if programming is successful. You can operate the keyless remote entry system with the new remote control with integrated key.

If programming was not successful, wait 20 seconds and repeat Steps 1 through 8. If you are still unsuccessful, take your vehicle to an authorized dealer.

Note: You can program a maximum of six coded remote controls to your vehicle.

• The vehicle is out of park (P).
• You switch the vehicle off.
• You open the driver’s door.
• You have left the key inside the vehicle.

KEYS AND REMOTE CONTROLS AUDIBLE WARNINGS – VEHICLES WITH: PUSH BUTTON START

KEYS AND REMOTE CONTROLS AUDIBLE WARNINGS – VEHICLES WITH: FLIP KEY
Sounds when you open the driver’s door, turn off the vehicle and you have left the key in the ignition.

KEYS AND REMOTE CONTROLS – TROUBLESHOOTING

KEYS AND REMOTE CONTROLS – INFORMATION MESSAGES

Message	Action
Key Battery Low Replace Soon	Replace remote control battery.

 Keyless Entry

WHAT IS KEYLESS ENTRY
The system allows you to lock and unlock your vehicle without taking the passive key out of your pocket or purse.

KEYLESS ENTRY LIMITATIONS
Make sure your remote control is within 3 ft (1 m) from the front door handles and the tailgate.

The system could not function if:

• The remote control remains stationary for about a minute.
• The vehicle battery has no charge.
• The remote-control battery has no charge.
• There is interference causing issues with the remote-control frequencies.
• The remote control is too close to metal objects or electronic devices, for example, keys or a cell phone.

KEYLESS ENTRY SETTINGS

Switching Keyless Entry On and Off

1. Press Settings on the touchscreen.
2. Press Vehicle.
3. Press Locks.
4. Switch KeyFree on or off.

USING KEYLESS ENTRY

Unlocking the Doors
With your passive key within 3 ft (1 m) of your vehicle, touch the unlock sensor on the back of the door handle for a brief period and then pull on the door handle to unlock, being careful not to touch the lock sensor at the same time or pull on the door handle too quickly. The intelligent access system requires a brief delay to authenticate your passive key.

Locking the Doors

With your passive key within 3 ft (1 m) of your vehicle, touch the outer door handle lock sensor for approximately one second to lock, being careful not to touch the unlock sensor on the back of the door handle at the same time. After locking, you can immediately pull on the door handle to confirm locking occurred without inadvertently unlocking.

KEYLESS ENTRY – TROUBLESHOOTING

KEYLESS ENTRY – FREQUENTLY ASKED QUESTIONS
Why does the keyless entry system not function?
If the system does not function it may be limited. See Keyless Entry Limitations.If the system still does not function use the remote control or the key blade to lock and unlock your vehicle.

Why can I not lock my vehicle?
If you electronically lock your vehicle with a rear door or the liftgate open, the system searches for a passive key inside your vehicle after you close the last door. If the system detects a key, all doors unlock indicating that a key is inside. Your vehicle locks if another passive key is within the detection range after you close the last door.

Why does the passive key not work?
The system deactivates passive keys left inside your vehicle when you lock it. You cannot switch the ignition on using a deactivated passive key. Press the unlock button on the remote control to reactivate a passive key.
