FUSES Guide
- A: Blade type,
- B: Cartridge type,
- C: Multi type,
- D: Midi type
- O: Normal,
- X: Blown
A vehicle’s electrical system is protected from electrical overload damage by fuses.
This vehicle has 5 fuse panels, one located in the driver’s side panel bolster, the other in the engine compartment.
If any of your vehicle’s lights, accessories, or controls do not work, check the appropriate circuit fuse. If a fuse has blown, the element inside the fuse will be melted or broken.
If the electrical system does not work, first check the driver’s side fuse panel. Before replacing a blown fuse, turn the engine and all switches off, and then disconnect the negative battery cable. Always replace a blown fuse with one of the same rating.
If the replacement fuse blows, this indicates an electrical problem.
Avoid using the system involved and immediately consult an authorized retailer of Genesis Branded products.
WARNING
NEVER replace a fuse with anything but another fuse of the same rating.
- A higher capacity fuse could cause damage and possibly cause a fire.
- Do not install a wire or aluminum foil instead of the proper fuse – even as a temporary repair. It may cause extensive wiring damage and possibly a fire.
NOTICE
Do not use a screwdriver or any other metal object to remove fuses because it may cause a short circuit and damage the system.
Instrument Panel Fuse Replacement
A: Driver’s side,
B: Trunk
- Turn the vehicle off.
- Turn all other switches off.
- Open the fuse panel cover.
- Refer to the label on the inside of the fuse panel cover to locate the suspected fuse location.
- Pull the suspected fuse straight out. Use the removal tool provided in the engine compartment fuses panel cover.
- Check the removed fuse; replace it if it is blown. Spare fuses are provided in the instrument panel fuse panels (or in the engine compartment fuse panel).
- Push in a new fuse of the same rating, and make sure it fits tightly in the clips. If it fits loosely, consult an authorized retailer of Genesis Branded products.
In an emergency, if you do not have a spare fuse, use a fuse of the same rating from a circuit you may not need for operating the vehicle, such as the cigarette lighter fuse.
If the headlights or other electrical components do not work and the fuses are undamaged, check the fuse panel in the engine compartment. If a fuse is blown, it must be replaced with the same rating.
Engine Compartment Panel Fuse Replacement
Blade fuse/Cartridge fuse

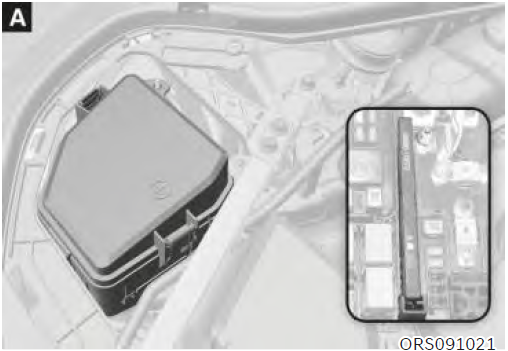

A: Blade type fuse,

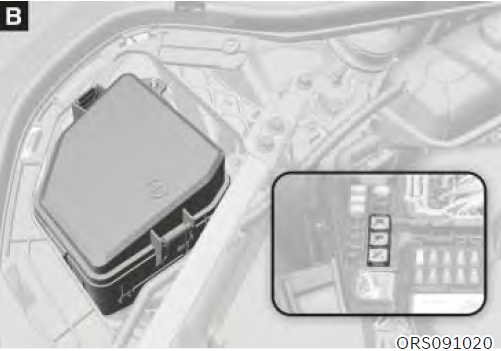

B: Cartridge-type fuse
- Turn the vehicle off.
- Turn all other switches off.
- Remove the fuse panel cover by pressing the tap and pulling up.
- Check the removed fuse; replace it if it is blown. To remove or insert the fuse, use the fuse puller in the engine compartment fuse panel.
- Push in a new fuse of the same rating, and make sure it fits tightly in the clips. If it fits loosely, consult an authorized retailer of Genesis Branded products.
NOTICE
After checking the fuse panel in the engine compartment, securely install the fuse panel cover. You may hear a clicking sound if the cover is securely latched. If it is not securely latched, electrical failure may occur from water contact.
Multi fuse/Midi fuse
A: Multi type fuse,
B: Midi type fuse
If the multi fuse or midi fuse is blown, consult an authorized retailer of Genesis Branded products.
Fuse/Relay Panel Description
Instrument panel fuse panel
Inside the fuse/relay box cover, you can find the fuse/relay label describing fuse/relay names and ratings.
Information
Not all fuse panel descriptions in this manual may be applicable to your vehicle; the information is accurate at the time of printing. When you inspect the fuse box on your vehicle, refer to the fuse box label.
Instrument panel fuse panel
| Fuse Name | Fuse Rating | Circuit Protected |
| P/SEAT (PASS)2 | 25A | Passenger Power Seat Module |
| S/HEATER (PASS) | 25A | Passenger Power Seat Module |
| A/BAG IND | 10A | Overhead Console |
| UWB | 10A | BLE Unit, Interior UBW Unit #1/#2/#3, Interior UBW Unit, Rear UBW Unit LH/RH, Front UBW Unit LH/RH |
| P/SEAT (PASS)1 | 30A | Passenger Power Seat Module |
| P/SEAT (DRV)1 | 30A | Driver Power Seat Module |
| SUNROOF2 | 20A | Sunroof Rear Roller Controller |
| MODULE13 | 10A | Electro Chromic Mirror, Data Link Connector, Front A/C Controller, A/C Control Module, AMP CCIC Keyboard, Smart Phone Wireless Charger, Support AMP, LDC (IG1 Input), CCIC Head Unit, REAR Junction Block (LDC – IG1 Input), Driver/Passenger Power Seat Module, Rear Seat CCS Module LH/RH, Rear Seat Heater Control Module LH/ RH, Rear Power Seat Module LH/RH, Rear Seat Console Wireless Charger, Rear Seat Console UVC Lamp, Armrest Touch Screen, AMP |
| MASSAGE SEAT (FRT) | 15A | Driver/Passenger Lumbar Support Unit, Passenger Foot Massage Unit |
| S/HEATER (DRV) | 25A | Driver Power Seat Module |
| CURTAIN | 15A | IBU |
| ADAS DRV1 | 10A | ADAS Unit (Driving) |
| MODULE14 | 10A | Driver/Passenger Door Outside Handle, Rear Door Outside Handle LH/RH |
| P/SEAT (DRV)2 | 25A | Driver Power Seat Module |
| PRESAFETY SEAT BELT1 | 10A | Pre-Active Seat Belt Unit |
| SBCM (RR LH) | 20A | Rear SBCM LH |
| P/WINDOW (LH) | 30A | Driver Safety Power Window Module, Rear Safety Power Window Module LH |
| MODULE8 | 10A | ADAS Unit (Parking), Center Control Panel, CCIC Head Unit, Rear Seat Console Tray Lamp, Rear Seat Console Remote Control Switch, Instrument Cluster, Rear Seat Console UVC Lamp |
| BRAKE SWITCH | 10A | IBU, Stop Lamp Switch |
| SUNROOF1 | 20A | Sunroof Glass Controller |
| Fuse Name | Fuse Rating | Circuit Protected |
| SBCM (DRV) | 20A | Driver SBCM |
| CCU1 | 10A | CCU |
| POWER HANDLE | 15A | Steering Tilt & Telescopic Unit |
| MODULE2 | 10A | Front A/C Controller, Multifunction Switch, Head Lamp LH/ RH |
| MODULE9 | 10A | Multifunction Switch, Data Link Connector, CCIC Keyboard, Rain Sensor, Driver Power Window Switch, Driver Power Outside Mirror Switch |
| CCU2 | 10A | Stop Lamp Switch, CCU |
| A/C3 | 10A | A/C Control Module, Front A/C Controller, Incar Temperature Sensor, E/R Sub Junction Block (PTC Heater #1/#2 Relay) Rear Junction Block (Rear Blower Relay) |
| MODULE3 | 10A | IBU, IAU |
| IBU1 | 10A | IBU, IAU |
| IBU2 | 10A | IBU, BMS Control Module |
| E-SHIFTER2 | 10A | Electronic ATM Shift Lever Dial |
| E-SHIFTER1 | 10A | Electronic ATM Shift Lever Dial |
| MODULE12 | 10A | Rear Corner Radar LH/RH, ECS Unit, Air ECS Unit, AWD ECU, RWS Module, ADAS Unit (Parking), IBU, Crash Pad Switch, Steering Tilt & Telescopic Unit, Front View Camera (ADAS) |
| MODULE11 | 10A | Driver Power Window Switch, Multifunction Switch, IAU |
| AIR BAG2 | 15A | SRS Control Module, Passenger Occupant Detection Sensor |
| AIR BAG1 | 15A | SRS Control Module |
| MODULE16 | 10A | Front Console Mood Lamp #1/2, Garnish Lamp LH/RH, Mood Lamp Unit, Roof Mood Lamp #1/2, Driver/Passenger Door Garnish Mood Lamp, Rear Door Garnish Mood Lamp LH/RH, ADAS Unit (Parking) |
| CLUSTER | 10A | Instrument Cluster, Head-Up Display |
| MODULE15 | 10A | ADAS Unit (Driving) |
| Wireless DCU | 10A | Domain Control Unit |
| MODULE5 | 10A | Rear Door Curtain, Rear Occupant Alert (ROA) Sensor, Clock Spring, Front Console Switch, Active Air Flap Module, Steering Tilt & Telescopic Unit |
| Fuse Name | Fuse Rating | Circuit Protected |
| USB CHARGER | 15A | Rear USB Charger Connector |
| MODULE10 | 10A | IAU, CCU, IBU, Electronic ATM Shift Lever Dial, LDC (ACC Input), Armrest Console Lamp, Domain Control Unit, Rear Junction Block (LDC – ACC Input), E/R Sub Junction Block (Power Outlet Relay) |
| MODULE4 | 10A | Security Indicator, A/C Control Module, Head-Up Display, Front A/C Controller |
| MULTIMEDIA2 | 15A | Center Control Panel, Rear Seat Console Multimedia Jack, Rear Seat Console Remote Control Switch |
| MODULE7 | 10A | Smart Phone Wireless Charger, Rear Seat Console Wireless Charger, Front Corner Radar LH/RH, Rear Corner Radar LH/ RH |
| MULTIMEDIA1 | 25A | CCIC Head Unit |
| MODULE6 | 10A | Armrest Touch Screen, Instrument Cluster, Front A/C Controller, Head-Up Display |

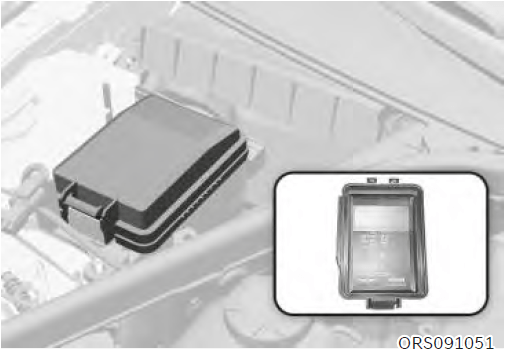

Engine compartment fuse panel (Engine room junction block)
Inside the fuse/relay box cover, you can find the fuse/relay label describing fuse/relay names and ratings.
Information
Not all fuse panel descriptions in this manual may be applicable to your vehicle; the information is accurate at the time of printing. When you inspect the fuse panel in your vehicle, refer to the fuse panel label.

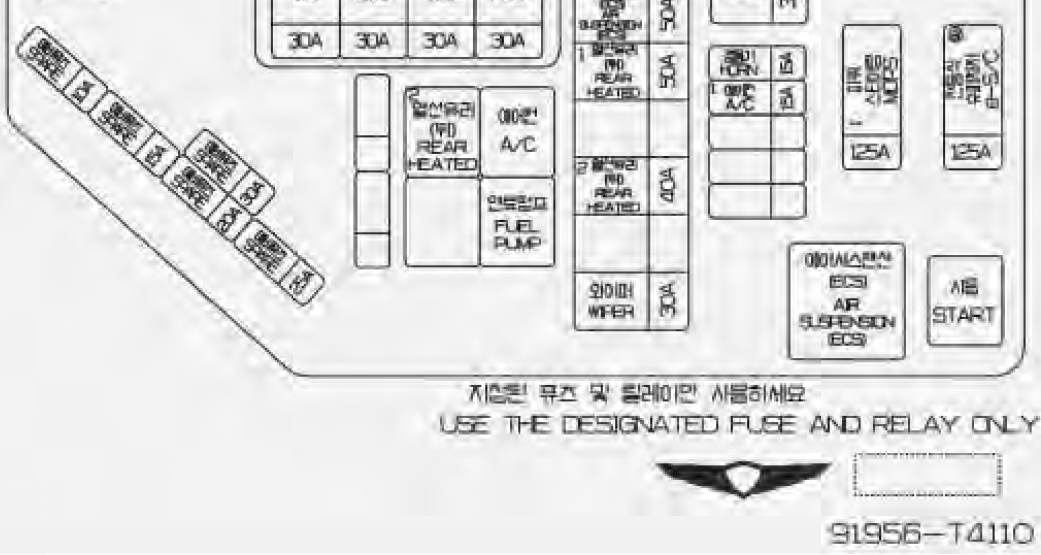

Engine compartment fuse panel
| Type | Fuse Name | Fuse Rating | Circuit Protected |
| MAIN | ALT | 225A | Alternator |
| MDPS1 | 125A | MDPS Unit | |
| e-S/C | 125A | [Mild HEV] Electric Super Charging Unit (Power) | |
| MULTI | COOLING FAN | 100A | Cooling Fan Motor |
| IEB1 | 60A | IEB Unit | |
| IEB2 | 60A | IEB Unit | |
| AIR SUSPENSION (ECS) | 50A | Air Suspension (ECS) Relay | |
| REAR HEATED1 | 50A | Rear Heated #1 Relay | |
| REAR HEATED2 | 40A | Rear Heated #2 Relay | |
| WIPER | 30A | Wiper Motor | |
| SB | EOP | 30A | Electronic Oil Pump |
| HEAD LAMP RH | 40A | Head Lamp RH | |
| HEAD LAMP LH | 40A | Head Lamp LH | |
| START | 30A | Start Relay | |
| MICRO | HORN | 15A | PCB Block (Horn Relay) |
| A/C1 | 15A | A/C Relay | |
| ECU1 | 15A | ECM | |
| TCU1 | 20A | TCM | |
| FUEL PUMP | 20A | Fuel Pump Relay | |
| 4WD | 20A | AWD ECU |
Engine compartment fuse panel
| Fuse Name | Fuse Rating | Circuit Protected |
| IG1 | 30A | IG1 Relay |
| ECU3 | 30A | Engine Control Relay |
| IG2 | 30A | IG2 Relay |
| ACC | 30A | ACC Relay |
| ECU2 | 10A | ECM |
| EWP | 20A | Electronic Water Pump |
| MODULE1 | 10A | Front Radar, Front Corner Radar LH/RH |
| MDPS2 | 10A | MDPS Unit |
| IEB3 | 10A | IEB Unit |
| TCU2 | 15A | TCM, P/N Relay, Electronic Oil Pump |
| SENSOR3 | 10A | Oxygen Sensor #1 (B1/S1), Oxygen Sensor #2 (B2/S1) |
| SENSOR2 | 10A | Oxygen Sensor #3 (B1/S2), Oxygen Sensor #4 (B2/S2), Purge Control Solenoid Valve, Oil Pump Solenoid Valve, Canister Close Valve, Oil Control Valve (Intake #1/#2), Oil Control Valve (Exhaust #1/#2), RCV Control Solenoid Valve #1/#2, E/R Junction Block (A/C Relay) |
| SENSOR1 | 10A | E/R Junction Block (Fuel Pump Relay), Injector #1/#2/#3/#4/#5/#6 (MPI) |
| IGN COIL | 15A | Ignition Coil #1/#2/#3/#4/#5/#6 |
| SENSOR4 | 15A | Cooling Fan Motor, Electric Super Charging Unit (Signal) |
| ECU4 | 20A | ECM |
| WASHER | 15A | WASHER RELAY |
| MHSG | 10A | [With Mild HEV] Mild Hybrid Starter & Generator Motor (Signal) |
Engine compartment fuse panel (Engine room junction block)
Inside the fuse/relay box cover, you can find the fuse/relay label describing fuse/relay names and ratings.
Information
Not all fuse panel descriptions in this manual may be applicable to your vehicle; the information is accurate at the time of printing. When you inspect the fuse panel in your vehicle, refer to the fuse panel label.

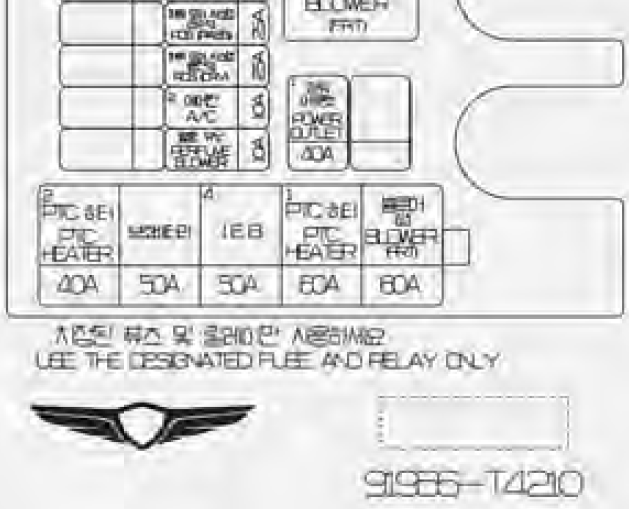

Engine compartment fuse panel
| Type | Fuse Name | Fuse Rating | Circuit Protected |
| MULTI | BLOWER (FRT) | 60A | Blower (FRT) Relay |
| PTC HEATER1 | 60A | PTC Heater #1 Relay | |
| IEB4 | 50A | IEB Unit | |
| PTC HEATER2 | 40A | PTC Heater #2 Relay | |
| SB | POWER OUTLET1 | 40A | Power Outlet Relay |
| MICRO | POWER OUTLET2 | 25A | Front Power Outlet |
| POWER OUTLET3 | 25A | Rear Power Outlet, Rear Seat Console Power Outlet | |
| PDS (RR RH) | 25A | Rear Power Door Closing Actuator RH | |
| PDS (RR LH) | 25A | Rear Power Door Closing Actuator LH | |
| PDS (PASS) | 25A | Passenger Power Door Closing Actuator | |
| PDS (DRV) | 25A | Driver Power Door Closing Actuator | |
| A/C2 | 10A | Blower (FRT) Relay, Perfume Blower Relay | |
| PERFUME BLOWER | 10A | Perfume Blower Relay |
Trunk fuse panel (Rear sub junction block)
Inside the fuse/relay box cover, you can find the fuse/relay label describing fuse/relay names and ratings.
Information
Not all fuse panel descriptions in this manual may be applicable to your vehicle; the information is accurate at the time of printing. When you inspect the fuse panel in your vehicle, refer to the fuse panel label.

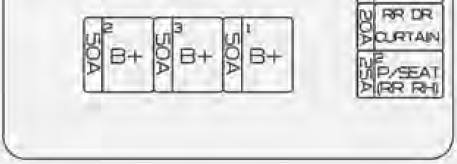

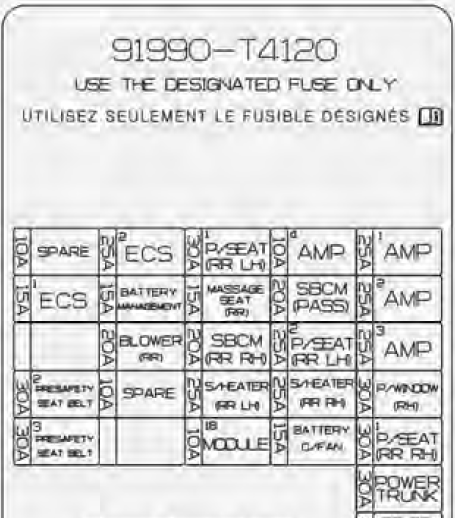

Rear junction block
| Fuse Name | Fuse Rating | Circuit Protected |
| B+2 | 50A | ICU Junction Block (IPS4, IPS5, Fuse – E-SHIFTER1, BRAKE SWITCH, IBU1, UWB, MODULE9, CCU1, AIR BAG1) |
| B+3 | 50A | ICU Junction Block (IPS1/IPS6/IPS7/IPS8) |
| B+1 | 50A | ICU Junction Block (LDC, Long Term Load Latch Relay, Short Term Load Latch Relay) |
| ECS1 | 15A | ECS Unit, Air ECS Unit |
| PRESAFETY SEAT BELT2 | 30A | Pre-Active Seat Belt Unit |
| PRESAFETY SEAT BELT3 | 30A | Pre-Active Seat Belt Unit |
| ECS2 | 25A | Air ECS Unit |
| BATTERY MANAGEMENT | 15A | BMS Control Module |
| BLOWER (RR) | 20A | Rear Blower Relay |
| P/SEAT (RR LH)1 | 30A | Rear Power Seat Module LH |
| MASSAGE SEAT (RR) | 15A | Rear Seat Lumbar Support Unit LH/RH |
| SBCM (RR RH) | 20A | Rear SBCM RH |
| S/HEATER (RR LH) | 25A | Rear Power Seat Module LH, Rear Seat CCS Module LH, Rear Seat Heater Control Module LH |
| MODULE18 | 10A | Driver/Passenger Power Seat Switch, Driver/Passenger Power Seat Module, Driver/Passenger Lumbar Support Unit, Passenger Foot Massage Unit, Rear Seat Console Switch LH/RH, Rear Power Seat Module LH/RH, Rear Seat Lumbar Support Unit LH/RH, PTL Unit |
| AMP4 | 10A | AMP, Support AMP |
| SBCM (PASS) | 20A | Passenger SBCM |
| P/SEAT (RR LH)2 | 25A | Rear Power Seat Module LH |
| S/HEATER (RR RH) | 25A | Rear Power Seat Module RH, Rear Seat CCS Module RH, Rear Seat Heater Control Module RH |
| BATTERY C/FAN | 15A | BMS Cooling Fan |
| AMP1 | 25A | AMP |
| AMP2 | 25A | AMP |
| AMP3 | 25A | Support AMP |
| P/WINDOW (RH) | 30A | Passenger Safety Power Window Module, Rear Safety Power Window Module LH |
| P/SEAT (RR RH)1 | 30A | Rear Power Seat Module RH |
| POWER TRUNK | 30A | PTL Unit |
| RR DR CURTAIN | 20A | Rear Door Curtain |
| P/SEAT (RR RH)2 | 25A | Rear Power Seat Module RH |
Trunk fuse panel (Battery junction block)
Inside the fuse/relay box cover, you can find the fuse/relay label describing fuse/relay names and ratings.
Information
Not all fuse panel descriptions in this manual may be applicable to your vehicle; the information is accurate at the time of printing. When you inspect the fuse panel in your vehicle, refer to the fuse panel label.

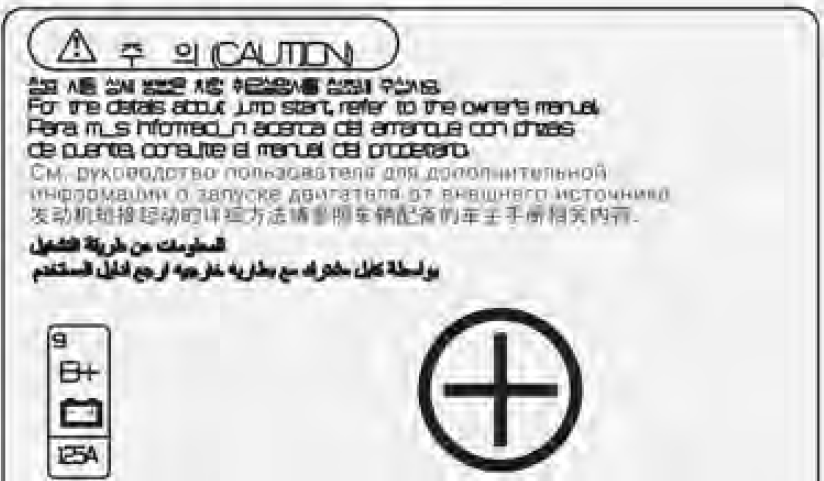

Battery junction block
| Fuse Name | Fuse Rating | Circuit Protected |
| LDC | 225A | [Mild HEV] Battery System Assembly (Low DC-DC Converter) |
| AMS | 10A | 12 V Battery Sensor |
| B+6 | 100A | Rear Junction Block (Fuse – P/WINDOW (RH), BATTERY C/ FAN, P/SEAT (RR RH)1, P/SEAT (RR RH)2, S/HEATER (RR RH), POWER TRUNK, RR DR CURTAIN, B+1) |
| B+5 | 60A | ICU Junction Block (Fuse – P/SEAT (PASS)1, P/SEAT (PASS)2, MASSAGE SEAT (FRT), ADAS DRV1, S/HEATER (PASS), CURTAIN, SUNROOF2, MODULE14) |
| B+4 | 60A | ICU Junction Block (Fuse – SBCM (DRV), SBCM (RR LH), SUNROOF1, P/SEAT (DRV)1, P/SEAT (DRV)2, POWER HANDLE, S/HEATER (DRV), P/WINDOW (LH)) |
|
B+8 |
100A |
Rear Junction Block (LDC, Fuse – PRESAFETY SEAT BELT2, ECS1, ECS2, PRESAFETY SEAT BELT3, BATTERY MANAGEMENT) |
| B+7 | 100A | Rear Junction Block (Fuse -SBCM (PASS), SBCM (RR RH), P/SEAT (RR LH)1, P/SEAT (RR LH)2, S/HEATER (RR LH), MASSAGE SEAT (RR), BLOWER (RR), MODULE18, B+2, B+3) |
| RWS | 100A | RWS Module |
| B+9 | 125A | E/R Junction Block (Fuse – HEAD LAMP LH, START, TCU1, AWD, HEAD LAMP RH, ECU1, FUEL PUMP, ECU3) |
