2026 GMC Acadia Fuse Box Diagram & Location User Guide
You can easily locate and identify fuses for electrical troubleshooting with the help of the 2026 GMC Acadia fuse box diagram and placement instructions. To keep your car operating smoothly, find out where each fuse is situated, what it does, and how to replace it.
Video: 2026 GMC Acadia Fuse
Electrical System
Electrical System Overload
The vehicle has fuses and circuit breakers to protect against an electrical system overload. When the current electrical load is too heavy, the circuit breaker opens and closes, protecting the circuit until the current load returns to normal or the problem is fixed. This greatly reduces the chance of circuit overload and fire caused by electrical problems. Fuses and circuit breakers protect power devices in the vehicle.
If there is a problem on the road and a fuse needs to be replaced, the same amperage fuse can be borrowed. Choose some feature of the vehicle that is not needed to use and replace it as soon as possible.

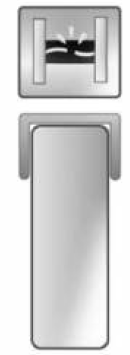

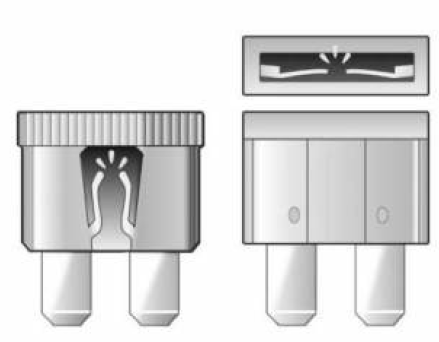

To check a fuse, look at the band inside the fuse. If the band is broken or melted, replace the fuse. Be sure to replace a bad fuse with a fuse of the identical size and rating.
Replacing a Blown Fuse
- Turn off the vehicle.
- Locate the fuse puller in the engine compartment fuse block.

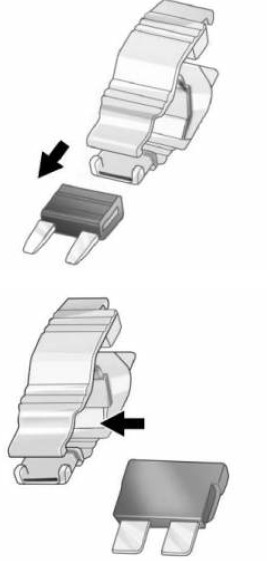

- Use the fuse puller to remove the fuse from the top or side, as shown above.
- If the fuse must be replaced immediately, borrow a replacement fuse with the same amperage from the fuse block. Choose a vehicle feature that is not needed to safely operate the vehicle. Repeat Steps 2-3.
- Insert the replacement fuse into the empty slot of the blown fuse.
At the next opportunity, see your dealer to replace the blown fuse.
Headlamp Wiring
An electrical overload may cause the lamps to go on and off, or in some cases to remain off. Have the headlamp wiring checked right away if the lamps go on and off or remain off.
Windshield Wipers
If the wiper motor overheats due to heavy snow or ice, the windshield wipers will stop until the motor cools and will then restart. Although the circuit is protected from electrical overload, overload due to heavy snow or ice may cause wiper linkage damage. Always clear ice and heavy snow from the windshield before using the windshield wipers.
If the overload is caused by an electrical problem and not snow or ice, be sure to get it fixed.
Fuses and Circuit Breakers
The wiring circuits in the vehicle are protected from short circuits by a combination of fuses and circuit breakers. This greatly reduces the chance of damage caused by electrical problems.
Danger
Fuses and circuit breakers are marked with their ampere rating. Do not exceed the specified amperage rating when replacing fuses and circuit breakers. Use of an oversized fuse or circuit breaker can result in a vehicle fire. You and others could be seriously injured or killed.
Warning
Installation or use of fuses that do not meet GM’s original fuse specifications is dangerous. The fuses could fail, and result in a fire. You or others could be injured or killed, and the vehicle could be damaged.
Engine Compartment Fuse Block
The underhood fuse block is in the engine compartment, on the driver side of the vehicle.
Caution
Do not pull the engine compartment fuse block lever, since it is intended only for service purposes. If pulled, vehicle malfunction may occur.
To remove the fuse block cover, press the clips on the cover and lift it straight up.
Caution
Spilling liquid on any electrical component on the vehicle may damage it. Always keep the covers on any electrical component.
To remove fuses, use the fuse puller and pull straight out.
The vehicle may not be equipped with all of the fuses, relays, and features shown.
| Fuses | Usage |
| F01 | SPARE |
| F02 | SPARE |
| F03 | FRT_WIPER – Front Wiper |
| F04 | SPARE |
| F05 | SPARE |
| F06 | HDLP RT – Headlight Right |
| F07 | RR_WIPER – Rear Wiper |
| F08 | SPARE |
| F09 | RR DEFOG – Rear Defog |
| F10 | ELM_4 – Exterior Lighting Module 4 |
| F11 | HDLP LT – Headlight Left |
| F12 | HORN |
| F13 | SPARE |
| F14 | SPARE |
| F15 | SPARE |
| F16 | RR_WPR_CTRL – Rear Wiper Control |
| F17 | RLY COIL GND – Relay Coil Ground |
| F18 | DC DC BATT1 – Direct Current Direct Current Battery 1 |
| F19 | ELM7 – Exterior Lighting Module 7 |
| F20 | SPARE |
| F21 | SPARE |
| F22 | ELM_5 – Exterior Lighting Module 5 |
| F23 | WIPER_DE_ICE |
| F24 | EBCM1 – Electronic Brake Control Module 1 |
| F25 | ELM_3 – Exterior Lighting Module 3 |
| F26 | SPARE |
| F27 | TRLR_STP_TRN_LT–Trailer Light Stop Left |
| F28 | TRLR_STP_TRN_RT –Trailer Light Stop Right |
| F29 | WASH |
| F30 | AERO SHUTTER |
| F31 | SPARE |
| F32 | PCM – Power Control Module |
| F33 | SPARE |
| F34 | SPARE |
| F35 | PCM – Power Control Module |
| F36 | STRTR MTR –Starter Motor |
| F37 | AC CLUTCH GAS –Alternating Current Clutch Gas |
| F38 | SOL CP_TURBO BYPASS –Solenoid Turbo Bypass |
| F39 | COIL ODD |
| F40 | SPARE |
| F41 | SNSR MAF/IAT/H/P SNSR O2H MTR EVAPP |
| F42 | SPARE |
| F43 | SPARE |
| F44 | SPARE |
| F45 | SPARE |
| F46 | SPARE |
| F47 | SPARE |
| F48 | SPARE |
| F49 | SPARE |
| F50 | E PHASER –Electronic Phaser |
| F51 | SPARE |
| F52 | PCM 2 – Power Control Module 2 |
| F53 | SPARE |
| F54 | AIR_PUMP |
| F55 | SPARE |
| F56 | STRTR PINION |
| F57 | WATER PUMP |
| F58 | SERVICE FUSE |
| F59 | SERVICE FUSE |
| F60 | SERVICE FUSE |
| F61 | SERVICE FUSE |
| F62 | SERVICE FUSE |
| F63 | SERVICE FUSE |
Instrument Panel Fuse Block
The instrument panel fuse block is inside the center console on the passenger side of the vehicle.
Remove the fuse access door by inserting a coin or tool into the slot of the access door.
To remove a fuse, use the fuse puller located in the Engine Compartment Fuse block.
The vehicle may not be equipped with all of the fuses, relays, and features shown.
| Fuses | Usage |
| F01 | BLOWER MOTOR |
| F02 | SPARE |
| F03 | SCL – Steering Column Lock |
| F04 | SPARE |
| F05 | BCM 2 – Body Control Module 2 |
| F06 | OHC – OnStar Hands Free Calling |
| F07 | STEERING WHEEL CONTROL |
| F08 | TELEMATICS |
| F09 | S658_A505/A15_BAT 1 |
| F10 | RAIN SNR/UGDO – Rain Sensor/Universal Garage Door Opener SPARE |
| F11 | HVAC & TPIM_HUD– Heating, Ventilation, and Air Conditioning and Traction Power Inverter Module_Head Up Display |
| F12 | RC_E600 |
| F13 | CGM & DLC – Central Gateway Module and Data Link Connector |
| F14 | EBCM & PCM –Electronic Brake Control Module and Power Control Module |
| F15 | AUX DISPLAY |
| F16 | APO_RR_CARGO –Auxiliary Power Outlet_Rear_Cargo |
| F17 | SDM_AOS –Sensing Diagnostic Module_Automatic Occupant Sensor SPARE |
| F18 | LF & RF_A766_DR & CODR_A765 |
| F19 | ELM RC – Exterior Lighting Module Ride Control |
| F20 | VKM – Virtual Key Module SPARE |
| F21 | VCU_BATT 1 & 2 – Virtual Cockpit Unit Battery 1 and 2 |
| F22 | SDM – Sensing Data Module |
| F23 | APO ROW 1 – Auxiliary Power Outlet Row 1 |
| F24 | WCM – Wireless Charging Module |
| F25 | HVPO – High Voltage Power Outlet |
| F26 | SPARE |
| F27 | AUX |
| F28 | LRR – Long Range Radar |
| F29 | SRR – Short Range Radar |
| F30 | – |
| F31 | BCM 3 – Body Control Module 3 |
| F32 | HSWM – Heated Steering Wheel Module |
| F33 | – |
| F34 | CPM – Column Position Module |
| F35 | AMPLIFIER |
| F36 | DC/DC BATT 2 – Direct Current/Direct Current Battery 2 |
| F37 | BCM 4 – Body Control Module 4 |
| F38 | AMPLIFIER 2 |
| F39 | ELM 6 – Exterior Lighting Module 6 |
| F40 | DCAC – Direct Current Alternating Current |
| CB01 | – |
| CB02 | APO – Auxiliary Power Outlet |
Rear Compartment Fuse Block
The rear compartment fuse block may be behind two trim panels on the driver side of the rear storage compartment.
The panel is removed by prying along the top edge of the trim panel. Remove the trim panel to access the fuse block, or see your dealer.
To remove a fuse, use the fuse puller in the engine compartment fuse block.
| Fuses | Usage |
| F01 | RR_BLOW – Rear Blower |
| F02 | DSP_CODR – Door Switch Panel_Code |
| F03 | TAILGATE |
| F04 | TRLR_BAT 1 – Trailer Battery 1 |
| F05 | ACP 2 – AWD Control Processor 2 |
| F06 | PWR_FOLD_SEAT_L_R –Power Fold Seat Left and Rear |
| F07 | DSP – Door Switch Panel |
| F08 | SPARE |
| F09 | LAMPS_RT – Right Lights |
| F10 | SPARE |
| F11 | SPARE |
| F12 | SPARE |
| F13 | LAMPS_LT – Left Lights |
| F14 | SP_DRVR |
| F15 | MSM_DRIVER – Memory Seat Module Driver |
| F16 | MTR PFTS_ROW 2_L |
| F17 | FRT |
| F18 | SBP_CO_DRIVER |
| F19 | MTR PFTS_ROW 2_R |
| F20 | SPARE |
| F21 | RFA – Remote Function Actuator |
| F22 | SPARE |
| F23 | SPARE |
| F24 | SPARE |
| F25 | SPARE |
| F26 | CANISTER |
| F27 | UPA – Universal Park Assist |
| F28 | RDCM – Right Door Control Module |
| F29 | SBZA – Side Blind Zone Assist |
| F30 | TRLR_PRK_LMP – Trailer Park Light |
| F31 | FCM – Front Camera Module |
| F32 | SPARE |
| F33 | ROW 2_BAT 1 – Second Row Battery 1 |
| F34 | SPARE |
| F35 | SPARE |
| F36 | ROW 2_BAT 2 – Second Row Battery 2 |
| F37 | SPARE |
| F38 | SPARE |
| F39 | SPARE |
| F40 | TRLR_BACK_UP – Trailer Backup Light |
| F41 | ELM 2 – Exterior Lighting Module 2 |
| F42 | DSP – Door Switch Panel |
| F43 | POWER FOLD SEAT SW/N 3_ROW |
| F44 | OUT_OF_PARK_DISABLE |
| F45 | TRAILER_BRAKE |
| F46 | ACP 3 – AWD Control Processor 3 |
| F47 | FTZM – Fuel Tank Zone Module |
| F48 | SP_PASS |
| F49 | SPARE |
| F50 | ELM 1 – Exterior Lighting Module 1 |
| F51 | FRT_BAT 2 – Front Battery 2 |
| F52 | SPARE |
| F53 | SPARE |
| F54 | ROW 2_FOLD_RH –Second Row Righthand Fold |
| F55 | ROW 3 |
| F56 | SUNROOF |
| F57 | RDCM – Right Door Control Module |
How to replace the Fuse of the 2026 GMC Acadia
Replacing a fuse in a 2026 GMC Acadia is a relatively straightforward process. Here’s a general guide:
Materials:
- The new fuse of the correct amperage.
- Fuse puller or needle-nose pliers.
Instructions:
- Locate the Fuse Boxes:
- Engine Compartment Fuse Box: Open the hood and find the fuse box near the front on the driver’s side.
- Interior Fuse Box: This is typically located under the glove box on the passenger side.
- Identify the Blown Fuse:
- Use to the fuse box diagram to determine which fuse corresponds to the malfunctioning component.
- Inspect the fuse; a blown fuse will have a broken metal filament or appear discolored.
- Remove the Blown Fuse:
- Use a fuse puller or needle-nose pliers to gently extract the faulty fuse.
- Replace with an Identical Fuse:
- Ensure the replacement fuse has the same amperage rating as the original.
- Insert the new fuse firmly into the correct slot.
- Test the Component:
- After replacement, turn on the vehicle and check if the previously malfunctioning component is now operational.
Tips:
- Always use a fuse with the correct amperage rating to prevent electrical issues or damage to the vehicle.
