2025 Kia Telluride Instrument Cluster User Guide
The sophisticated features, capabilities, and personalization choices of the instrument cluster of the 2025 Kia Telluride will be covered in this tutorial. Find out how this technology improves safety and the driving experience.
2023 – 2024 Kia Telluride Review, Specs, Price and Mileage (brochure)
Video: 2025 Kia Telluride Cluster Display & Warning Lights
Kia Instrument Cluster Guide
Type A
Type B
The actual cluster and contents of the LCD display in the vehicle may differ from the illustration.
- Tachometer
- Speedometer
- Engine coolant temperature gauge
- Fuel gauge
- Odometer
- Distance to empty
- Transmission shift indicator
- Outside temperature gauge
- Warning and indicator lights
Instrument cluster control
The brightness of the instrument panel illumination is changed by pressing the illumination control button (“+” or “-“) when the ENGINE START/STOP button is ON, or the taillights are turned on.
- If you hold the illumination control button (“+” or “-“), the brightness will continuously change.
- If the brightness reaches to the maximum or minimum level, an alarm will sound.
A: Illumination
Gauges
The gauges display various information such as the speed of the vehicle, the amount of charge of the battery, and so on.

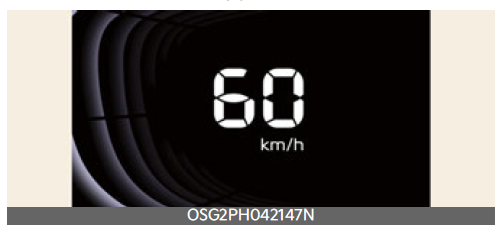

Speedometer
Type A
Type B (km/h)/ (mph)
The speedometer indicates the speed of the vehicle and is calibrated in kilome-ters per hour (km/h) and/or miles per hour (mph).

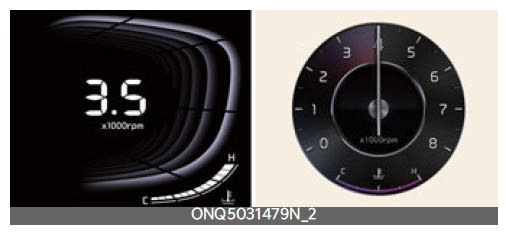

Tachometer
Type A / Type B
The tachometer indicates the approxi-mate number of engine revolutions per minute (rpm). Use the tachometer to select the correct shift points and to prevent lugging and/or over-revving the engine.
CAUTION
Do not operate the engine within the tachometer’s RED ZONE. This may cause severe engine damage.
Engine Coolant Temperature Gauge
Type A / Type B
This gauge indicates the temperature of the engine coolant when the ENGINE START/STOP button is ON.
CAUTION
If the gauge pointer moves beyond the normal range area (between the C-H) toward the “H” position, it indicates over-heating that may damage the engine. Do not continue driving with an over-heated engine. If your vehicle overheats, refer to “If the engine overheats” on page 7-6.
WARNING
Never remove the radiator cap when the engine is hot or if the vehicle in the ON position. The engine coolant is under pressure and could severely burn. Wait until the engine is cool before adding coolant to the reservoir.
Fuel Gauge
Type A / Type B
This gauge indicates the approximate amount of fuel remaining in the fuel tank.
NOTICE
- The fuel tank capacity is given in “Recommended lubricants and capacities” on page 9-9.
- The fuel gauge is supplemented by a low fuel warning light, which will appear when the fuel tank is nearly empty.
- On inclines or curves, the fuel gauge pointer may fluctuate or the low fuel warning light may turn on earlier than usual due to the movement of fuel in the tank.
WARNING
Fuel Gauge
Running out of fuel can expose vehicle occupants to danger.
You must stop and obtain additional fuel as soon as possible after the warning light illuminates or when the gauge indi-cator comes close to the “E” (Empty) level.
2023 – 2024 Kia Telluride Review, Specs, Price and Mileage (brochure)
CAUTION
Avoid driving with an extremely low fuel level. Running out of fuel could cause the engine to misfire, which could dam-age the catalytic converter.
NOTICE
The fuel display may not be accurate if the vehicle is on an incline.
Odometer
Type A / Type B
The odometer Indicates the total dis-tance that the vehicle has been driven and should be used to determine when periodic maintenance should be per-formed.
- Odometer range: 0~1,599,999 kilome ters or 0~999,999 miles.
Outside Temperature Gauge
Type A
Type B
This gauge indicates the current outside air temperatures by 1 °C (1 °F).
- Temperature range: -40~60 °C (- 40~140 °F) The outside temperature on the display may not change immediately, like a nor-mal thermometer would. To change the temperature unit (from °F to °C or from °C to °F) The temperature unit can be changed from the infotainment system screen by going to Setup → General → Units → Temperature Unit.
Transmission shift indicator
Transmission shift indicator displays gear information depending on your vehicle’s transmission type.
Automatic Transmission Shift Indicator
This indicator displays which automatic transmission shift lever is selected.
Type A
Type B
- Park: P
- Reverse: R
- Neutral: N
- Drive: D
- Sports Mode: 1, 2, 3, 4, 5, 6, 7, 8
