2023 Lexus GX 460 LCD Display User Guide
This Guide covers the 2023 Lexus GX 460 LCD Display. This high-tech screen displays driving data, navigation, and multimedia controls for a smooth, intuitive driving experience.
2023 Lexus GX Review, Price, Features And Mileage (Brochure)
Video: 2023 Lexus GX 460 Dashboard Warning Indicators

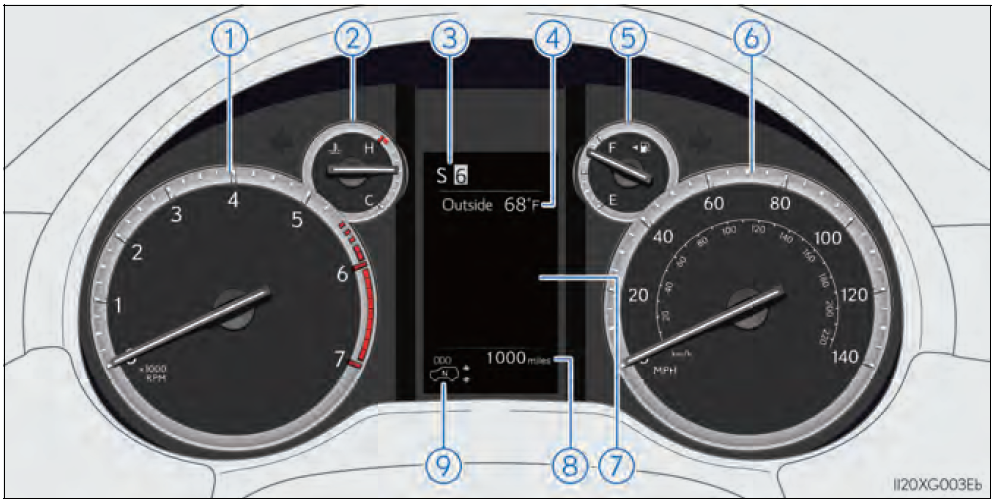

Lexus Gauges and meters Guide
The units used on the speedometer may differ depending on the target region.
- Tachometer
Displays the engine speed in revolutions per minute - Engine coolant temperature gauge
Displays the engine coolant temperature - Shift position and shift range
Displays the selected shift position or selected shift range - Outside temperature
Displays the outside temperature within the range of -40°F (-40°C) to 122°F (50°C). Low outside temperature indicator comes on when the ambient temperature is 37°F (3°C) or lower. - Fuel gauge
Displays the quantity of fuel remaining in the tank - Speedometer
Displays the vehicle speed - Multi-information display
Presents the driver with a variety of driving-related data. - Odometer, trip meter and maintenance required information display
Odometer:
Displays the total distance the vehicle has been driven
Trip meter:
Displays the distance the vehicle has been driven since the meter was last reset. Trip meters A and B can be used to record and display different distances independently.
Maintenance required information:- Displays the maintenance required information when the engine switch is in IGNI-TION ON mode.
- It can be reset from of the multi-information display.
- Rear height control air suspension display (if equipped) Displays the rear height mode selected.
Changing the display
Switches between odometer, trip meter and maintenance required information displays. When the trip meter is dis-played, pressing and holding the button will reset the trip meter.
Instrument cluster light control switch
The brightness of the instrument cluster lights can be adjusted.
- Brighter
- Darker
The meters and display illuminate when
The engine switch is in IGNITION ON mode.
Instrument cluster brightness adjustment
The instrument cluster brightness levels when the tail lights are on and off can be adjusted.
The brightness of the instrument cluster lights
When the tail lights are on, the brightness will change. However, when the surroundings are bright (daytime, etc.) turning on the tail lights will not change the instrument cluster brightness.
In addition, the brightness of the instrument cluster lights is automatically adjusted based on the light sensor detecting how bright the surroundings are.
Customization
The meter display can be customized on the multi-information display.
WARNING
The information display at low temperatures
Allow the interior of the vehicle to warm up before using the liquid crystal information display. At extremely low temperatures, the information display monitor may respond slowly, and display changes may be delayed.
For example, there is a lag between the driver’s shifting and the new gear number appearing on the display. This lag could cause the driver to downshift again, causing rapid and excessive engine braking and possibly an accident resulting in death or injury.
2023 Lexus GX Review, Price, Features And Mileage (Brochure)
NOTICE
To prevent damage to the engine and its components
- Do not let the indicator needle of the tachometer enter the red zone, which indicates the maximum engine speed.
- The engine may be overheating if the engine coolant temperature gauge is in the red zone (H). In this case, immediately stop the vehicle in a safe place, and check the engine after it has cooled completely.
