2025 Maserati Grecale Fuses and Fuse Box User Guide

The fuse box of the 2025 Maserati Grecale guards against overload damage by safeguarding critical electrical components. It contains fuses for the lights, entertainment, and safety systems and is found in the engine bay and interior. Use the appropriate fuse rating at all times.

2024 Maserati Levante Specs, Price, Features, Mileage and Review

Video: 2025 Maserati Grecale Fuses

Maserati If a Fuse Blows Guide

Used Fuses Characteristics
When an electrical device is not functioning, check that the corresponding fuse is in proper working order (intact).

1. Fuse intact
2. Fuse blown

On the vehicle are mainly used with mini-and maxi-fuses with blade engagement. Besides these there are other types of the fuse provided with holes for fixing to the cable connection terminals. For the replacement of these fuses contact an Authorized Maserati Dealer.
Replace the faulty fuse with a new one featuring the same rating, by using appropriate forceps.

The color identifies the value of the fuses in amperes which is also reported on them. The table shows the match between color and amperage of mini and maxi fuses.

Type
Mini Fuse	Maxi Fuse
Beige – 5	Yellow – 20
Brown – 7,5	Green – 30
Red – 10	Orange – 40
Blue – 15	Red – 50
Yellow – 20	Blue – 60
White – 25	–
Green – 30	–

CAUTION!

• Never replace a blown fuse with anything other than a new and suitable fuse (same rating).
• After replacing a fuse, if the fault recurs, contact an Authorized Maserati Dealer.

Position of Fuses
The fuses are located in five parts of the vehicle, namely:

• inside the fuse and relay box, located in a covered area, on the front right hand side of the front electric motor compartment;

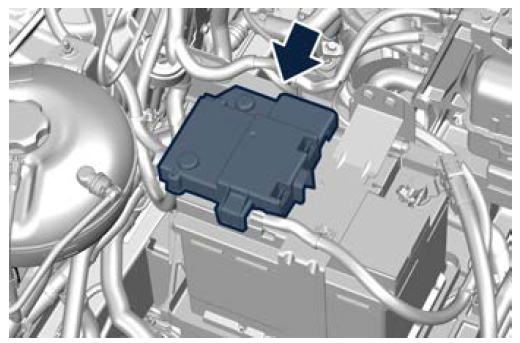

• on the positive post of the battery, inside the inner central side of the front electric motor compartment;

• inside the fuse and relay box, on the rear right hand side of the front electric motor compartment;

• in the fuse and relay box located in a covered area, inside the boot compartment right side;

• inside the remote positive post, on right hand side of the boot compartment under a covered area.


Fuses Box on the Front Right Hand Side of the Front Electric Motor Compartment

• To access the module it is necessary to lift the hood (see “Open and Close the Hood” in section “Before Driving”).
• To access the fuses remove the front electric motor compartment cover

• To access the fuses remove the module cover unhooking the frontal locks as shown in the picture. To recognize the reference number of the fuses in the table below, see the diagram inside the cover just removed. reference number of the fuses in the table below, see the diagram inside the cover just removed.

The table points out the position as featured in the cover, the type and function of the fuses included in the box.

CAUTION!
After replacement, refit the protective cover of the module.

Ref.	Type	Function
F1	Mini – 25A	PECP input
F2	Mini – 20A	PECP4 input
F3	Mini – 25A	PECP5 input
F4	Mini – 25A	PECP3 input
F5	Mini – 7,5A	Water Valve input
F7	Mini – 7,5A	Radio Fre- quency HUB in- put
F8	Mini – 7,5A	Dome console input



Ref.	Type	Function
R3	Micro – 30A	HVAC Blower input
R4	Micro – 30A	Rear HVAC Blower input



Ref.	Type	Function
R1	Micro – 30A	Horn relay
R4	Micro – 30A	ADAS relay
R6	Micro – 30A	Power out- let/Cigarette Lighter relay

Fuses Box on the Rear Right Hand Side of the Front Electric Motor Compartment

• To access the module it is necessary to lift the hood (see “Open and Close the Hood” in section “Before Driving”).
• To access the fuses remove the module cover unhooking the lateral locks as shown in the picture. To recognize the reference number of the fuses in the table below, see the diagram inside the cover just removed.

The table points out the position as featured in the cover, the type and function of the fuses included in the box.

Ref.	Type	Function
F01	Maxi – 60A	EPS module
F02	Maxi – 60A	IBS module
F03	Maxi – 20A	Cigarette Lighter / Power Outlet input
F04	Maxi – 40A	IBS valves module
F05	Maxi – 60A	EPS 2 module
F06	Maxi – 30A	ETM R1 module
F07	Maxi – 60A	Pumps input
F08	Maxi – 40A	HVAC Blower input
F09	Mini – 20A	TBM module
F10	Mini – 10A	Horn input
F11	Mini – 10A	EPS module
F14	Mini – 10A	TCM module
F15	Maxi – 30A	DDM Driver Door input
F16	Mini – 3A	Clockspring input
F17	Mini – 10A	EPS 2 module
F18	Mini – 10A	BCM 3 module

F19	Mini – 15A	Devio, HUD & ICS module
F20	Mini – 20A	Top LT Head- lamp input
F21	Mini – 20A	Top RT Head- lamp input
F22	Mini – 10A	Headlamps input
F23	Mini – 10A	Battery and APM input
F24	Mini – 10A	SGW module
F30	Mini – 25A	Rear window wiper input
F81	Maxi – 30A	PDM Passenger Door module
F82	Maxi – 20A	Wiper input
F83	Maxi – 20A	HVAC Rear Blower and Half Resistor input
F84	Mini – 20A	Electric Motors ECU + Pump input
F87	Mini – 5A	Heater ADAS input
F88	Mini – 7,5A	ECU HVAC module

F90	Mini – 10A	ECM/DTCM module
FXX	Mini – 5A	IBS module
T07	Maxi – 50A	Pumps relay
T09	Micro – 30A	BCM module relay
T17	Micro – 30A	A/C Compres- sor relay

Fuse Boxes in the Boot Compartment
These boxes are located in a covered area inside the boot compartment right side. To access the fuses, remove the cover in the boot compartment, then remove the module cover unhooking the lateral locks as shown in the picture. To recognize the reference number of the fuses in the table below, see the diagram inside the cover just removed.

Ref.	Type	Function
F1	Mini – 7,5A	E-Latch Rear Left side input
F2	Mini – 7,5A	E-Latch Pas- senger side in- put
F3	Mini – 7,5A	E-Latch Driver side input
F4	Mini – 7,5A	E-Latch Rear Right side input
F5	Mini – 20A	Motor H001 input
F6	Mini – 20A	Motor H002 input
F7	Mini – 30A	Rear Seat Heater input
F8	Mini – 25A	220-110 Power Outlet

Ref.	Type	Function
F9	Mini – 25A	Window Lifter Rear Left input
F10	Mini – 25A	Window Lifter Rear Right input
R4	Maxi – 50A	VDCM Air Spring relay



Ref.	Type	Function
T02	Micro – 30A	VDCM Relay
T03	Micro – 30A	Rear relay
T05	Micro – 30A	H001 Heater relay
T06	Micro – 30A	Steering Wheel Heater relay
T20	Micro – 30A	CADM relay
T31	Micro – 30A	H002 Heater relay
T89	Micro – 30A	Rear Seat heater relay

2024 Maserati Levante Specs, Price, Features, Mileage and Review

Ref.	Type	Function
F01	Maxi – 60A	Power outlets input
F02	Maxi – 30A	BCM1 module
F03	Maxi – 20A	VDCM module
F04	Maxi – 25A	Heated module
F05	Maxi – 30A	EESSM module

F06	Maxi – 25A	BCM2 module
F08	Maxi – 30A	HI-FI module
F09	Mini – 10A	ECU BEV mod- ule: Battery HV – OBCM – CPIM
F10	Mini – 10A	ORC module
F11	Mini – 5A	Power Outlets input
F14	Mini – 5A	VDCM module
F15	Maxi – 40A	VDCM module
F16	Mini – 10A	MCPB – BPCM – OBCM input
F17	Mini – 7,5A	USB Charger input
F18	Mini – 5A	VDCM module
F19	Mini – 10A	Steering Wheel input
F20	Mini – 15A	AFLM – QVPM2 input
F21	Mini – 20A	Sunroof module
F22	Mini – 20A	12 V Rear Cen- tral Tunnel Compartment Power Outlet
F23	Mini – 15A	CADM input
F24	Mini – 25A	MTA input

F30	Mini – 30A	PLGM module
F81	Maxi – 25A	Heated Rear Seat input
F82	Maxi – 30A	HI-FI module
F83	Maxi – 20A	ECU module
F84	Mini – 5A	VDCM module
F87	Mini – 7,5A	MCPA – APM module
F89	Maxi – 30A	Rear Window Defroster mod- ule
F90	Mini – 15A	CVPAM module
FXX	Mini – 10A	ASU – ITM input
T07	Maxi – 50A	Master relay for F9-F10
T09	Micro – 30A	Power Outlets relay
T17	Micro – 30A	Defrost relay



Ref.	Type	Function
F01	Mini – 25A	KL30 for Trailer Tow Module
F02	Mini – 15A	KL30 for Trailer Tow Module
F03	Mini – 10A	KL30 for Trailer Tow Module

F04	Mini – 10A	KL30 for Trailer Tow Module
T14	Maxi – 30A	KL30 for Trailer Tow Module

How to Replace the Fuses of the 2025 Maserati Grecale

Replacing the fuses in your 2025 Maserati Grecale is a straightforward process, but it’s important to follow the proper steps to ensure safety and that you replace the correct fuse. Here’s how you can do it:

Materials:

1. The new fuse of the correct amperage.
2. Fuse puller or needle-nose pliers.

Steps to Replace Fuses

Locate the Fuse Box

• Interior Fuse Box: Typically located under the dashboard on the driver’s side. It may be accessed by removing a cover panel near the footwell area.
• Engine Compartment Fuse Box: Found near the battery, under a lid in the engine bay.

2. Turn Off the Ignition

• Ensure the car is off before replacing any fuses to avoid electrical shocks or short circuits.

3. Open the Fuse Box

• Use the fuse box cover release or latch to open it.
• On some models, there may be a diagram on the inside of the cover showing the fuse layout.

4. Identify the Faulty Fuse

• Use the fuse box diagram to identify the specific fuse that needs to be replaced (e.g., lights, wipers, radio).
• A blown fuse usually has a broken metal strip inside it or appears discolored.

5. Remove the Faulty Fuse

• Use a fuse puller (often included in the fuse box) or a pair of needle-nose pliers to gently pull the blown fuse out of its slot.

6. Install the New Fuse

• Insert the new fuse of the same amperage rating into the correct slot. Make sure it is securely seated.

7. Check the Fuse Box

• Ensure all other fuses are properly in place, and there are no signs of damage or corrosion.

8. Test the Function

• Turn the vehicle on and test the component that the fuse powers to ensure it is working properly.

9. Close the Fuse Box

• Once the replacement is complete and everything is working, close the fuse box cover.

Tips:

• Always use a fuse with the correct amperage rating to prevent electrical issues or damage to the vehicle.

Useful Links:

2025 Maserati Grecale Warning Lights and Indicator User Guide

2025 Maserati Grecale Instrument Cluster User Guide

2024 Maserati Levante Specs, Price, Features, Mileage and Review

Video: 2025 Maserati Grecale Fuses
