2024 Mazda CX-30 Instrument Cluster User Guide
This Guide covers the 2024 Mazda CX-30 Instrument Cluster’s principal display features, warning lights, and critical indications to help drivers safely and confidently interpret vehicle information.
2023 MAZDA CX-30 Specs, Price, Features, Mileage (Brochure)
Video: 2024 Mazda CX-30 Dashboard Warning Indicators
Instrument Cluster
- Ā Tachometer
- Multi-information Display
- Ā Engine Coolant Temperature Gauge
- Fuel Gauge
- Dashboard Illumination Switch
- Speedometer
- TRIP Switch
Speedometer
The speedometer indicates the speed of the vehicle.

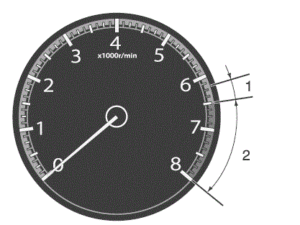

Tachometer
The tachometer shows engine speed in thousands of revolutions per minute (rpm).
Displays while driving in SPORT mode/OFF-ROAD mode/TOWING mode.
Refer to How to Use the Mazda intelligent Drive Select (Mi-Drive)
CAUTION
Do not run the engine with the tachometer needle in the RED ZONE. This may cause severe engine damage.
- STRIPED ZONE
- RED ZONE
NOTE
When the tachometer needle enters the STRIPED ZONE, this indicates to the driver that the gears should be shifted before entering the RED ZONE.
Multi-information Display
The screen display informs you of the vehicle information.
The multi-information display indicates the following information.
- Speedometer
- Odometer
- Trip meter
- Outside temperature
- Maximum driving distance
- Average fuel economy
- Current fuel economy
- Deceleration regeneration charge display (e-SKYACTIV G)
- i-ACTIVSENSE display
- Compass display
- Door-ajar/liftgate-open/hood-open warning indication*1
- Message display
- *1 Displayed when opening door/liftgate/hood.
How to Use the Multi-information Display
The screen content changes each time the INFO switch is pressed.
- Basic display
- Drive information display
- i-ACTIVSENSE display
- Message display*1
*1 Displayed only when a warning occurs.
Convenient Ways to Use the Multi-information Display
The type of display for the fuel economy and the maximum driving distance can be changed.
Refer to the Settings section in the Mazda Connect Owner’s Manual.
Odometer/Trip Meter
The odometer records the total distance the vehicle has been driven.
Trip meter
The driving distance for a speciļ¬ed interval is indicated. Two types (TRIP A, TRIP B) of interval distance can be measured.
How to Use the Odometer/Trip Meter
The display changes each time the TRIP switch is pressed.
- Odometer display
- Trip meter A display
- Trip meter B display
When returning the trip meter to ā0ā, press the TRIP switch for 2 seconds or longer while the trip meter is displayed.
Engine Coolant Temperature Gauge
Displays the engine coolant temperature. The blue range of the gauge indicates that the engine coolant temperature is low, and the red range of the gauge indicates that the engine coolant temperature is high and overheating.
Fuel Gauge
The fuel gauge shows approximately how much fuel is remaining in the tank when the vehicle power is switched ON.
When the fuel tank is full, F (Full) is indicated, and as the level lowers the needle approaches E (Empty).
NOTE
- After refueling, it may require some time for the indicator to stabilize. In addition, the indicator may deviate while driving on a slope or curve since the fuel moves in the tank.
- The direction of the arrow indicates that the fuel-ļ¬ller lid is on the left side of the vehicle.
Dashboard Illumination
(Without auto-light control)
When the lights are turned on with the vehicle power switched ON, the brightness of the dashboard illumination is dimmed.
(With auto-light control)
When the lights are turned on with the vehicle power switched ON, the brightness of the dashboard illumination is dimmed. However, when the light sensor detects that the surrounding area is bright such as when the lights are turned on in the daytime, the dashboard illumination does not dim.
NOTE
(With auto-light control)
When the vehicle power is switched ON in the early evening or at dusk, the dashboard illumination is dimmed for several seconds until the light sensor detects the brightness of the surrounding area, however, the dimming may cancel after the brightness is detected.
How to Use the Dashboard Illumination
Brightening the dashboard illumination

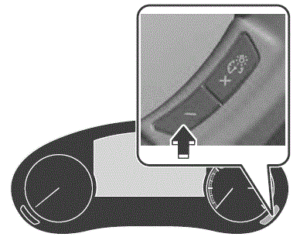

Dimming the dashboard illumination
High VoltageĀ Battery Temperature Gauge
Displays the high voltage battery temperature. The blue range of the gauge indicates that the high voltage battery temperature is low and the red range indicates that it is high and overheating.
If you press the – switch again while the dashboard illumination is at maximum dimness, a sound is activated to notify you that the dimmer setting is at maximum dimness.
Function for canceling illumination dimmer
The illumination dimmer can be canceled by pressing the + switch while the instrument cluster is at maximum dimness and while the vehicle power is switched ON. If you press the + switch again while the illumination dimmer is canceled, a sound is activated to notify you that it is canceled. If the instrument cluster’s visibility is reduced due to glare from surrounding brightness, cancel the illumination dimmer.
Outside Temperature Display
When the vehicle power is switched ON, the outside temperature is displayed.
NOTE
The outside temperature display may differ from the actual outside temperature depending on the surroundings and vehicle conditions.
Maximum Driving Distance Display
The maximum driving distance is calculated and displayed based on the current remaining fuel tank level and the fuel economy. When the maximum driving distance is 50 km (30 miles) or farther, the maximum driving distance indication decreases in 10 km (10 mile) increments, and when the maximum driving distance is shorter than 50 km (30 miles), it decreases in 1 km (1 mile) increments.
NOTE
The maximum driving distance is just an approximate numerical value and differs from the actual driving distance. Drive the vehicle while checking the fuel gauge.
Average Fuel Economy Display
This mode displays the average fuel economy by calculating the total traveled distance and the total fuel consumption since the vehicle was purchased or the past data was reset. The average fuel economy is calculated and displayed every 30 seconds.
How to Use the Average Fuel Economy Display
To reset the displayed average fuel economy data, press the INFO switch for 2 seconds or longer.
After resetting the data, – – – L/100 km (- – – mpg) is displayed until the average fuel economy is recalculated and displayed.

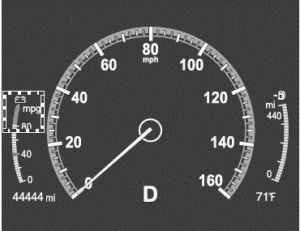

Instantaneous Fuel Economy Display
This displays the current fuel economy by calculating the amount of fuel consumption and the distance traveled.
NOTE
- Displays the 0 position when the vehicle speed decreases to a constant speed or slower.
- The arrow on the scale indicates the average fuel economy.
Deceleration Regeneration Charge Display (e-SKYACTIV G)
This displays the status of the charging produced by deceleration regeneration.
i-ACTIVSENSE Display
Displays the system status.
Compass Display
The direction the vehicle is moving is displayed in one of eight directions while the vehicle is being driven.
Message Display
Displays a message to notify the user of the system operation status and malfunctions or abnormalities. Follow the instructions indicated on the display.
