Toyota Other Interior Features Guide

USB charging port
The USB charging port is used to supply 3 A of electricity at 5 V to external devices.
The USB charging ports are for charging only. They are not designed for data transfer or other purposes.
Depending on the external device, it may not charge properly. Refer to the manual included with the device before using a USB charging port.

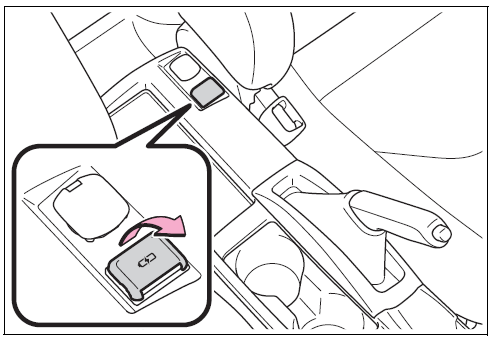

Using the USB charging port
Open the console box lid.

The USB charging port can be used when
The engine switch is in ACC or ON.

Situations in which the USB charging port may not operate correctly

• If a device which consumes more than 3 A at 5 V is connected
• If a device designed to communicate with a personal computer, such as a USB memory device, is connected
• If the connected external device is turned off (depending on the device)
• If the temperature inside the vehi-cle is high, such as after the vehi-cle has been parked in the sun

About connected external device
Depending on the connected external device, charging may occasionally be suspended and then start again. This is not a malfunction.

NOTICE

To prevent damage to the USB charging port

• Do not insert foreign objects into the port.
• Do not spill water or other liquids into the port.
• Do not apply excessive force to or impact the USB charging port.
• Do not disassemble or modify the USB charging port.

To prevent damage to external devices

• Do not leave external devices in the vehicle. The temperature inside the vehicle may become high, resulting in damage to an external device.
• Do not push down on or apply unnecessary force to an external device or the cable of an external device while it is con-nected.

To prevent battery discharge
Do not use the USB charging port for a long period with the engine stopped.

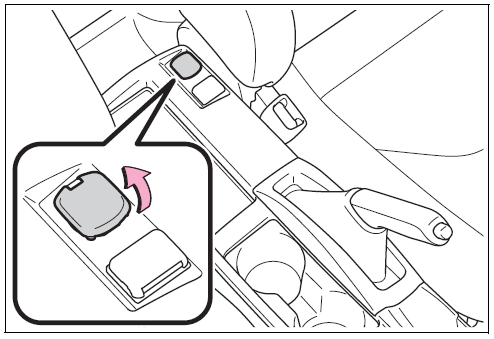

Power outlets

The power outlet can be used for 12 V accessories that run on less than 10 A.
Open the console box lid and open the lid.

The power outlet can be used when
The engine switch is in ACC or ON.

When turning the engine switch off
Disconnect electrical devices with charging functions, such as mobile battery packs.
If such devices are left connected, the engine switch may not be turned off normally.

NOTICE

To prevent the fuse from being blown
Do not use an accessory that uses more than 12 V 10 A.

To avoid damaging the power outlet
Close the power outlet lid when the power outlet is not in use. Foreign objects or liquids that enter the power outlet may cause a short circuit.

To prevent the battery from being discharged
Do not use the power outlet lon-ger than necessary when the engine is not running.

Wireless charger (if equipped)

A portable device, such as a smartphone or mobile battery, can be charged by just placing it in the charging area, provided the device is compatible with the Qi wireless charging standard created by the Wireless Power Consortium.
The wireless charger cannot be used with a portable device that is larger than the charging area. Additionally, depending on the portable device, the wireless charger may not operate properly. Refer to the operation manual of the portable device.

The “Qi” logo
The “Qi” logo is a trademark of the Wireless Power Consortium.

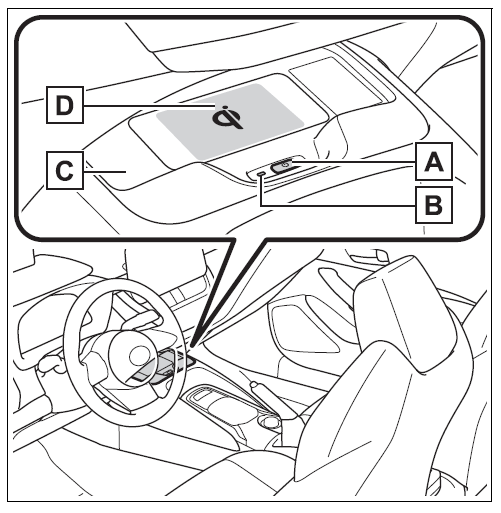

Name for all parts

1. Power supply switch
2. Operation indicator light
3. Charging tray
4. Charge area

Using the wireless charger

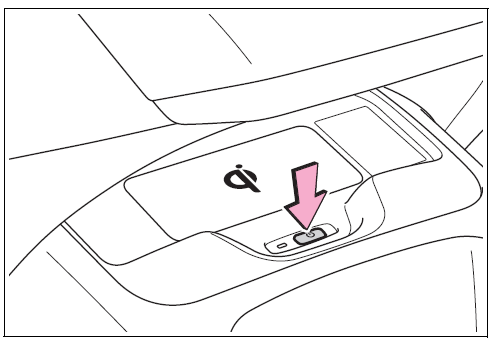

1. Press the power supply switch of the wireless charger.
   Pressing the switch again turns the wireless charger off. When turned on, the operation indi-cator light (green) comes on. When the engine switch is turned off, the on/off state of the wireless charger will be memorized.

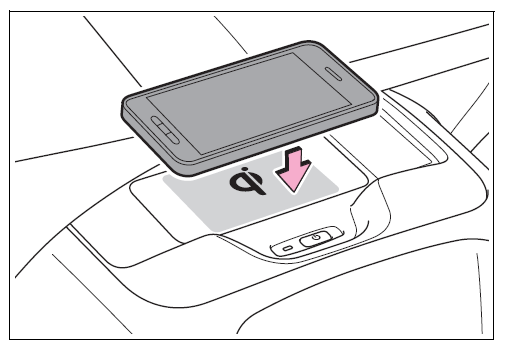

2. Place a portable device on the charging area with its charging surface facing down.

While charging, the operation indi-cator light (orange) will be illuminated.

Operation indicator light status

Operation indicator light	State
Off	The Wireless charger is off
Green (illuminated)	Standby (charging is possible)
	Charging is complete*

If charging does not begin, move the portable device as close to the centre of the charging area as possible. If charging is not performed, the operation indicator light will slowly illuminate in green and orange alternatively and a sound of charging coil operation may be heard repeatedly.
When charging is complete, the operation indicator light (green) will illuminate.

Recharging function

• If a certain amount of time has elapsed since charging was completed and the portable device has not been moved, the wireless charger will restart charging.
• If the portable device is moved within the charging area, charging will stop temporarily and then restart.

Operation indicator light	State
Orange (illuminated)	A portable device has been placed in the charging area (identifying the portable device)
	Charging in progress

• Depending on the portable device, the operation indicator light may stay illuminated (orange) after charging has been completed.
• If the operation indicator light blinks

If an error is detected, the operation indicator light will blink (orange). Take the appropriate measures according to the table below.

Operation indicator light	Suspected cause	Measure
Blinks (orange) at a one-second interval continuously	Vehicle to charger communication failure.	Contact your Toyota dealer.
Blinks (orange) 3 times repeatedly	A foreign object exists between the portable device and the charging area.	Remove the foreign object.
	The portable device is not positioned properly in the charging area.	Move the portable device toward the centre of the charging area.
Blinks (orange) 4 times repeatedly	The temperature of the wireless charger is excessively high.	Stop charging immediately and continue charging after a while.

The wireless charger can be operated when
The engine switch is in ACC or ON.

Portable devices that can be charged

• Portable devices compatible with the Qi wireless charging standard can be charged by the wireless charger. However, compatibility with all devices which meet the Qi wireless charging standard is not guaranteed.
• The wireless charger is designed to supply low-power electricity (5 W or less) to a cellular phone, smartphone, or other portable device.

If a cover or accessory is attached to the portable device
Do not charge a portable device if a cover or accessory which is not Qi-compatible is attached. Depending on the type of cover (including some genuine parts of the manufacturer) and/or accessory attached, it may not be possible to charge the portable device. If the portable device is placed in the charging area and does not charge, remove the cover and/or accessories.

If interference is heard in AM radio broadcasts while charging
Turn off the wireless charger and check if the noise is reduced. If noise is reduced, press and hold the power supply switch of the wireless charger for 2 seconds. The frequency of the wireless charger is changed and noise may be reduced. When the frequency is changed, the operation indicator light will blink (orange) 2 times.

Charging precautions

• If the electronic key cannot be detected in the cabin, charging cannot be performed. When a door is opened and closed, charging may be temporarily suspended.
• While charging, the wireless charger and the portable device will become warm.
  This is not a malfunction. If a portable device becomes warm while charging and charging stops due to the protection function of the portable device, wait until the portable device cools down and charge it again.

The sound generated during opera-tion
When the power supply switch is turned on or while a portable device is being identified, operation sounds may be heard. This is not a malfunction.

Cleaning the wireless charger

WARNING

Caution while driving
When charging a portable device while driving, for safety reasons, the driver should not operate the portable device.

Caution regarding interference with electronic devices
People with implantable cardiac pacemakers, cardiac resynchronization therapy pacemakers implantable cardioverter defibrillators, as well as any other electronic medical device, should consult their physician about the usage of the wireless charger. Operations of the wireless charger may affect medical devices.

To prevent damage or burns
Observe the following precau-tions. Failure to do so may result in the possibility of fire, equipment failure or damage, or burns due to heat.

• Do not put any metallic objects between the charging area and the portable device while charging.
• Do not attach metallic objects, such as aluminium stickers, to the charging area.
• Do not apply force or impact to the wireless charger.
• Do not disassemble, modify or remove the wireless charger.
• Do not attempt to charge portable devices which are not compatible with the Qi wireless charging standard.
• Do not cover the wireless charger with a cloth or other object while charging.

NOTICE

Conditions in which the wire-less charger may not operate correctly
In the following situations, the wireless charger may not operate correctly:

• When a portable device is fully charged
• When there is a foreign object between the charging area and the portable device
• When a portable device becomes hot while charging
• When a portable device is placed on the wireless area with its charging surface facing up
• When a portable device is not centred in the charging area
• When the vehicle is near a TV tower, electric power plant, gas station, radio station, large display, airport or other facility that generates strong radio waves or electrical noise
• When the portable device is in contact with or is covered by any of the following metallic objects:
  • Cards to which aluminium foil is attached
  • Cigarette boxes that have alu-minum foil inside
  • Metallic wallets or bags
  • Coins
  • Metal hand warmers
  • Media such as CDs and DVDs
• When wireless keys (that emit radio waves) other than those of your vehicle are being used nearby.
  If in situations other than above the wireless charger does not operate properly or the operation indicator light is blinking, the wire-less charger may malfunction. Contact your Toyota dealer.

To prevent failure or damage to data

• such as a credit card, or magnetic recording media, close to the wireless charger while charging. Otherwise, data may be erased due to the influence of magnetism.
  Additionally, do not bring precision instruments such as wristwatches, close to the wireless charger, as such objects may malfunction.
• Do not leave portable devices in the cabin. The temperature inside the cabin may become high when parked in the sun, and cause damage to the device.

To prevent battery discharge
Do not use the wireless charger for a long period with the engine stopped.

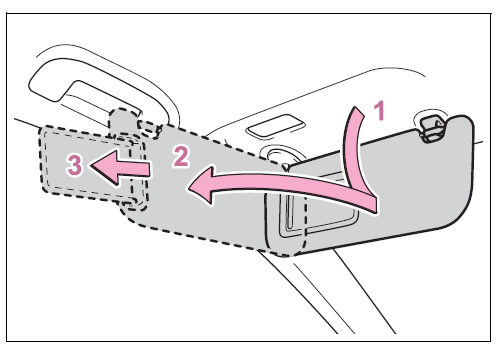

Sun visors

1. To set the visor in the forward position, flip it down.
2. To set the visor in the side position, flip it down, unhook it, and swing it to the side.
3. To use the side extender, place the visor in the side position, then slide it backwards.

2023 GR Corolla Review, Price, Features And Mileage (Brochure)

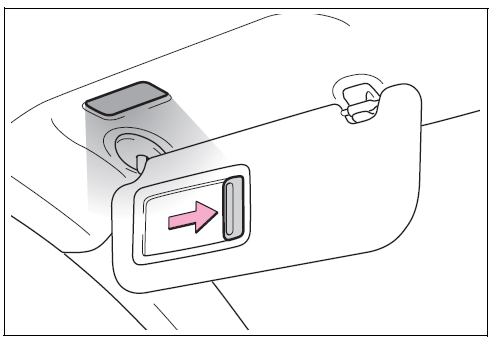

Vanity mirrors

Slide the cover to open.
The vanity light turns on.

To prevent battery discharge
If the vanity lights remain on when the engine switch is OFF, the lights will go off automatically after 20 minutes.

NOTICE

To prevent the battery from being discharged
Do not leave the vanity lights on for extended periods while the engine is stopped.

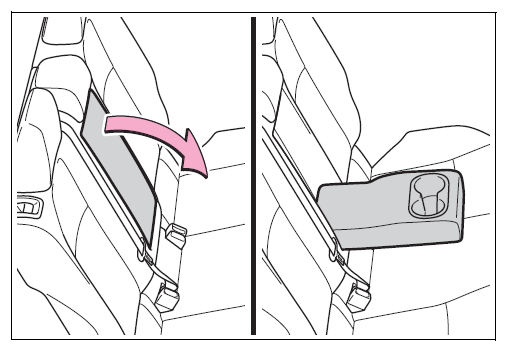

Armrest

Fold down the armrest for use.

NOTICE

To prevent damage to the armrest
Do not apply too much load on the armrest.

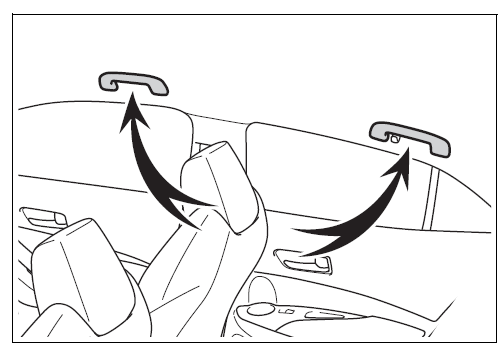

Assist grips

An assist grip installed on the ceiling can be used to support your body while sitting on the seat.

WARNING

Assist grip
Do not use the assist grip when getting in or out of the vehicle or rising from your seat.

NOTICE

To prevent damage to the assist grip
Do not hang any heavy objects or put a heavy load on the assist grip.

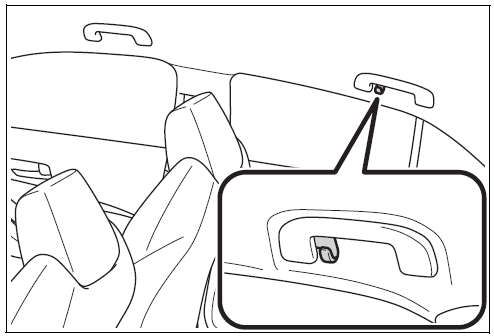

Coat hooks

The coat hooks are provided with the rear assist grips.

WARNING

Items that cannot be hung on the coat hook
Do not hang coat hangers or other hard or sharp objects on the hook. If the SRS curtain shield airbags deploy, these items may become projectiles, causing death or serious injury.
