2024 Volkswagen Taos Specifications and Features Guide

The 2024 Volkswagen Taos is a small SUV that is meant to change the way you drive with its cutting-edge features and amazing specs. This versatile car has a sleek exterior that blends style and functionality seamlessly. Inside, the large space makes things comfortable and easy for both drivers and passengers. Behind the scenes, the Taos has a responsive engine that provides powerful performance and great fuel economy, making every trip fun and cost-effective. With an easy-to-use infotainment system, driver-assistance technologies, and multiple connectivity choices, the Taos makes sure that you can stay connected and stay safe while driving. When it comes to performance, comfort, and new features, the 2024 Volkswagen Taos sets a new standard for compact SUVs. It’s perfect for getting around town or going on an adventure off the beaten road.

2023 – 2024 Volkswagen Taos Review, Price, Features And Mileage (Brochure)

Technical data

Information on technical data

General information about specifications
As long as nothing else is specified or listed, the technical data applies to the base model. Different values may result due to optional equipment, different model versions, special equipment, and country-specific equipment. The specifications in the legal vehicle documents always take precedence.
The drive and power of the vehicle are listed in the official vehicle registration.

Weight
The values for the curb weight in the following tables apply to a vehicle ready for operation with standard equipment, without a driver, with fluids including a 100% full fuel tank. Optional equipment and retrofitted equipment will increase the specified curb weight and reduce the possible load.
The load consists of the following weight:

• Passengers.
• All luggage inside and outside the vehicle.
• Attachments.

The permitted total vehicle weight and the gross axle weight rating must never be exceeded. The permissible values are indicated on the safety compliance label or the identification label on the B-pillar on the driver’s side ⇒ Safety certificate ⇒ Identification label.

Performance
The performance was determined without equipment that limits performance, such as add-on parts.
Due to technical or legal reasons, the performance specifications and mileage may vary.
On some engines with heavy-duty suspension, the speed maximum speed may be limited and lower.

Incline angle
The incline angle is the specification up to which the vehicle can drive uphill on an angle with its power. This can depend on the road conditions, the weather conditions, and the engine power, among other things. The values apply to a vehicle that is in motion and not to a vehicle that starts to drive from a stationary position.
A rising difference in altitude (incline) on a 100 m (approx. 300 ft) stretch is given in percentage or degrees (100% = 45 degrees).

Vehicle Identification Number (VIN)

Structure of the vehicle identification number (VIN)
The vehicle identification number (VIN, VIN ) consists of 17 characters. These characters can be sorted into seven groups. The structure is explained using the following examples of vehicle identification numbers.

Group	1	2	3	4	5	6	7
Position	1    2   3	4   5   6	7  8	9	10	11	112  13  14  15  16 7



Group	1			2			3		4	5	6	7
Example	W	V	W	Z	Z	Z	C	B	Z	M	E	4	0	0	9	5	3
	W	V	W	A	F	2	9	N	4	8	Y	0	0	0	0	0	1

1. Vehicle manufacturer identification:
   WVW: Volkswagen Passenger Vehicles
   WVG: Volkswagen Passenger Vehicles
   1VW: Volkswagen Group of America Inc., Volkswagen de México, S.A. de C.V
   3VW: Volkswagen de México, S.A. de C.V
   XW8: LLC Volkswagen Group Rus (Volkswagen/Skoda Kaluga)
   MFB: Garuda Matraman Motor (Indonesia)
2. Filler characters: The filler characters may vary depending on the manufacturer, or contain information on the body shape and transmission type.
3. Vehicle class, depending on model:
   14: ID.7
   3H: Arteon
   5T: Touran
   6R: Polo
   AC: T-Roc convertible
   BV: Golf
   CB: Passat
   CA: Atlas
   RC: Touareg
   Depending on the manufacturer, digits 7 to 9 can also contain information on the fuel type (7) and vehicle class (8 and 9).
4. Filler characters or check digits: The filler characters or check digits may vary depending on the manufacturer.
5. VIN index, depending on the model year:
   P: 2023
   R: 2024
   S: 2025
   T: 2026
   U: 2027
6. Production location, plant where the vehicle was manufactured:
   C: Volkswagen plant in Chattanooga
   D: Volkswagen plant in Bratislava
   E: Volkswagen plant in Emden
   K: Volkswagen plant in Osnabrück Or: Volkswagen plant in Kaluga
   M: Volkswagen plant in Puebla
   P: Volkswagen plant in Zwickau
   T: Volkswagen plant in Pune
   U: Volkswagen plant in Uitenhage
   V: Volkswagen plant in Palmela
   W: Volkswagen plant in Wolfsburg
   Y: Volkswagen plant in Pamplona
   The letter assignment for the production site may vary depending on the vehicle or be assigned twice.
7. Sequential production number for each model year.

Position of the vehicle identification number

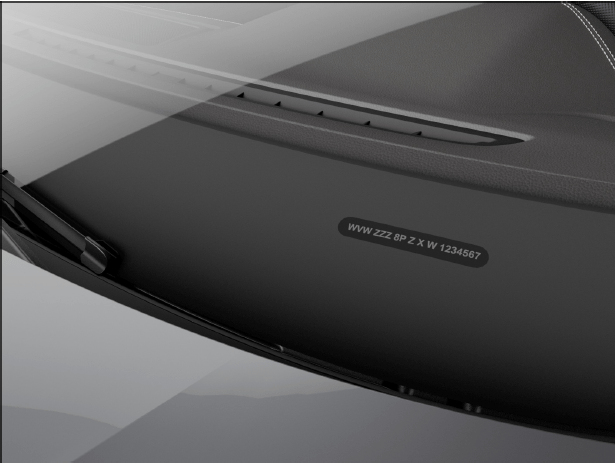

Fig. 194 In the windshield: vehicle identification number (VIN)
The VIN can be read from the outside through the viewing window in the windshield. The viewing window is at the side of the lower section of the windshield.
In some models, it may be possible to display the VIN in the Service menu or the vehicle settings, depending on the Infotainment system. The vehicle identification number may also be located on the identification label. The VIN may also be stamped in the following locations, depending on the model, country and engine:

• In the right water drain channel in the engine/motor compartment
• On the right suspension strut tower in the engine/motor compartment
• In the engine compartment near the hinge for the hood on the right side of the vehicle.
• Under the carpet behind the right front seat

Identification label

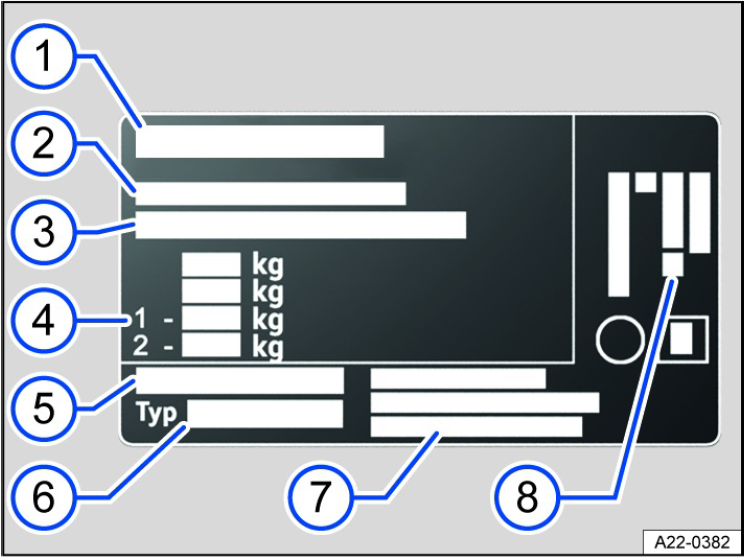

Fig. 195 Identification label (general example): version 1.
Depending on the country, the type of approval number, such as the EU operating license, may be specified.

1. Manufacturer code.
2. Type approval.
3. Vehicle Identification number.
4. Gross Vehicle Weight Rating.
   Gross combination weight rating (towing vehicle and trailer).
   Front Gross Axle Weight Rating.
   Rear Gross Axle Weight Rating.
5. Type approval number differs according to country.
6. Vehicle Model
7. Manufacturer’s address.
8. Engine code.

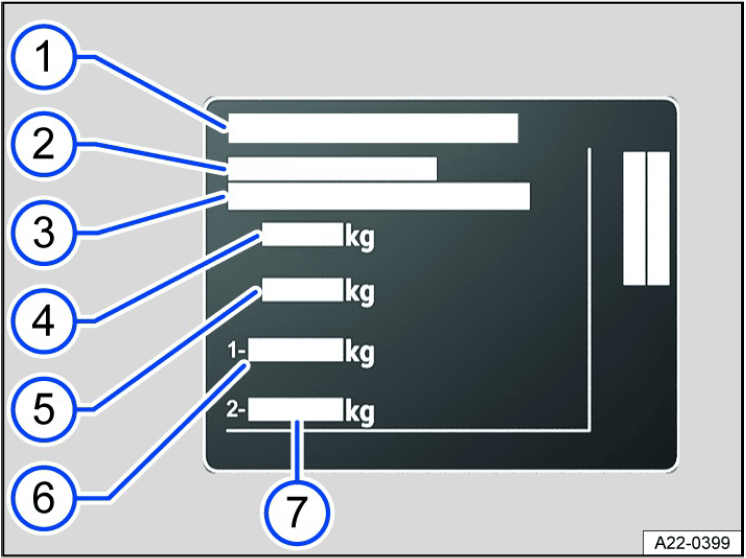

Fig. 196 Identification label (general example): version 2.
Depending on the country, the type of approval number, such as the EU operating license, may be specified.

1. Manufacturer code.
2. Type approval.
3. Vehicle Identification number.
4. Gross Vehicle Weight Rating.
5. Gross combination weight rating (towing vehicle and trailer). Front
6. Gross Axle Weight Rating.
7. Rear Gross Axle Weight Rating.

Depending on the country and model, the model plate may be visible in the lower section of the door pillar when the driver’s front passenger door is open. Vehicles exported to some countries do not have a model plate.

Safety certificate

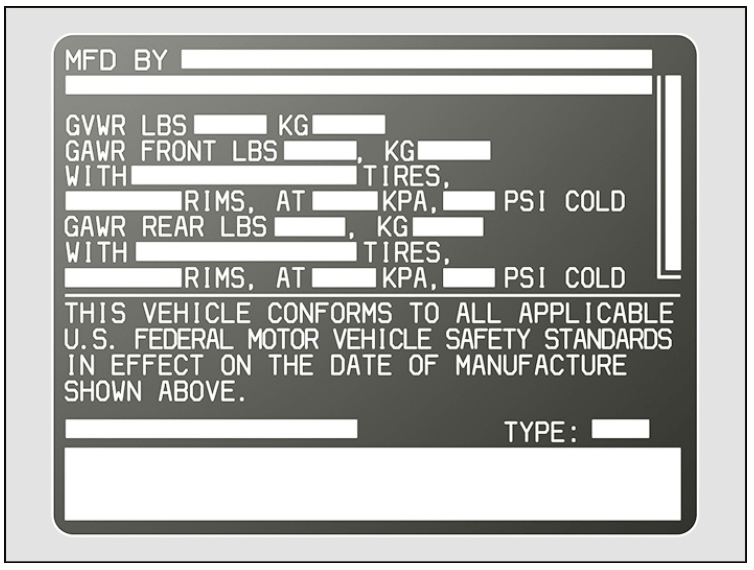

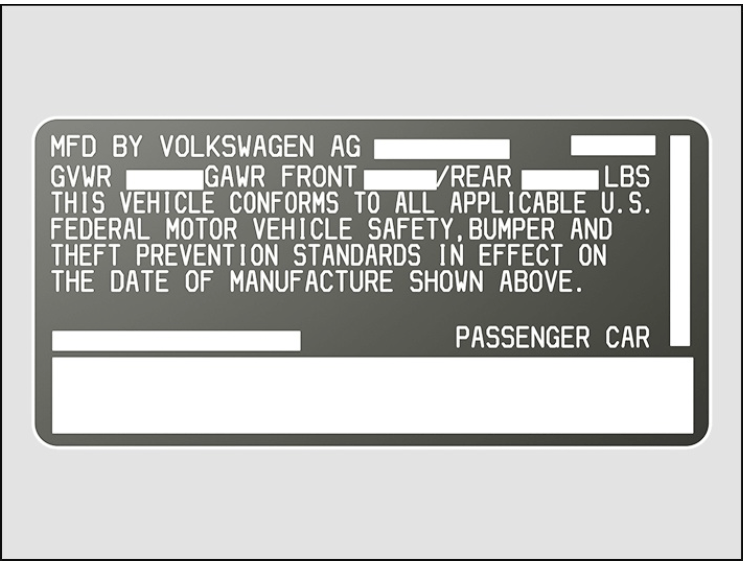

Fig. 197 Safety certificate (general example).
Fig. 198 Safety certificate (general example).
A safety certificate on the driver door pillar displays the following information:

• Manufacturer.
• Country of manufacture.
• Date of manufacture.
• Gross vehicle weight rating.
• Gross axle weight ratings.
• Tire size.
• Rim size
• Tire pressure.
• Vehicle Identification number.
• Type designation.

Dimensions

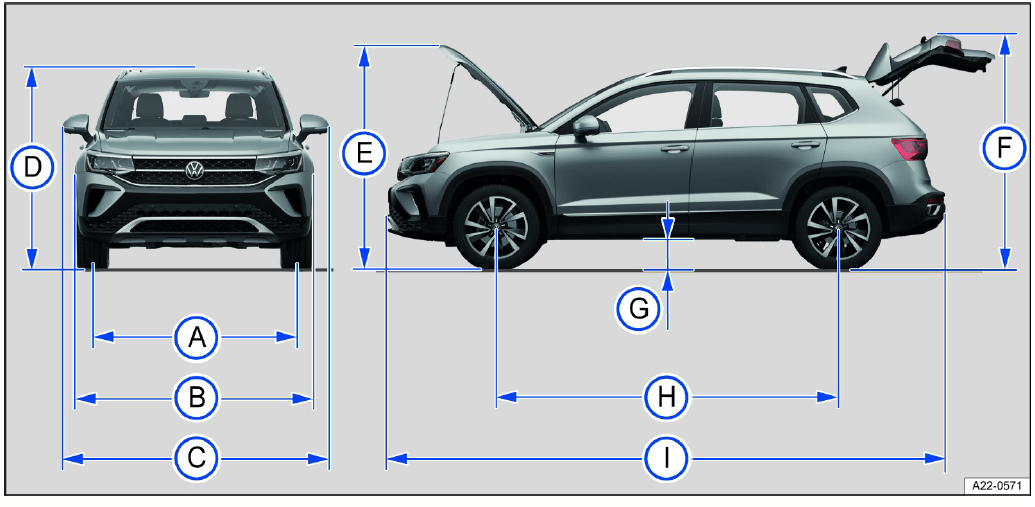

Fig. 199 Vehicle dimensions.
The information in the table applies to the standard model with standard equipment.
For other wheel rims, tyre sizes, options, differing model designs and retrofitted accessories, as well as special vehicles and vehicles in other countries, these values can differ.
Information about how the weight specifications are compiled can be found in section ⇒ General information about specifications.
Where the vehicle dimensions are not given, the values were not available at the time of printing.

Front-wheel drive

The key for fig. 199:
	Front track	mm (in)	1 5 7 2 ( 6 1 . 9 )
	Rear track	mm (in)	1 5 3 7 ( 6 0 . 5 )
	Width	mm (in)	1 8 4 1 ( 7 2 . 5 )
	Width from outside mirror to outside mirror	mm (in)	2 0 9 7 ( 8 2 . 6 )



The key for fig. 199:
	Height at curb weight	mm (in)	1 6 3 6 ( 6 4 . 4 )
	Height with open hood and curb weight	mm (in)	1 7 5 0 ( 6 8 . 9 )
	Height with open trunk lid and curb weight	mm (in)	2 0 9 0 ( 8 2 . 3 )
	Ground clearance at curb weight between the axles	mm (in)	1 6 2 ( 6 . 4 )



The key for fig. 199:
	Wheelbase at full load	mm (in)	2 6 8 9 ( 1 0 5 . 9 )
	Minimum turning circle diameter	m (ft)	– –
	Length from bumper to bumper	mm (in)	4 4 6 6 ( 1 7 5 . 8 )

2023 – 2024 Volkswagen Taos Review, Price, Features And Mileage (Brochure)

All-wheel drive (4MOTION)

The key for fig. 199:
	Front track	mm (in)	1 5 6 9 ( 6 1 . 8 )



	The key for fig. 199:
	Rear track	mm (in)	1 5 4 4 ( 6 0 . 8 )
	Width	mm (in)	1 8 4 1 ( 7 2 . 5 )
	Width from outside mirror to outside mirror	mm (in)	2 0 9 7 ( 8 2 . 6 )
	Height at curb weight	mm (in)	1 6 5 4 ( 6 5 . 1 )



The key for fig. 199:
	Height with open hood and curb weight	mm (in)	1 7 8 2 ( 7 0 . 2 )
	Height with open trunk lid and curb weight	mm (in)	2 1 0 6 ( 8 2 . 9 )
	Ground clearance at curb weight between the axles	mm (in)	1 9 3 ( 7 . 6 )
	Wheelbase at full load	mm (in)	2 6 8 0 ( 1 0 5 . 5 )
	Minimum turning circle diameter	m (ft)	– –



	The key for fig. 199:
	Length from bumper to bumper	mm (in)	4 4 6 6 ( 1 7 5 . 8 )

Tank capacities

The fuel tank has the following volume:

• approx. 50 l (13.2 gals)
• 14.5 gallons (approximately 55 l) for all-wheel drive vehicles

The capacity of the fuel tank includes an indeterminate reserve quantity that remains in the fuel tank when the fuel gauge shows that the fuel tank is empty. The reserve quantity is variable and cannot reliably serve to increase the remaining range.

Gasoline engines

1.5 l, 4 cylinder, TSI®, 118 kW (158 hp), gasoline engine

Engine Overview

Output	kW	118 at 5500 rpm
	hp	158 at 5500 rpm
Engine code (EC)		DNKA
Maximum torque	Nm	250 at 1750 – 4000 rpm
	ft-lb	184 at 1750 – 4000 rpm
Transmission		AG8	D S G ® 7 4 M O T I O N
	km/h	–	–

Maximum speed

mph

–

–

Weight specifications and axle loads

Transmission		AG8	D S G ® 7 4 M O T I O N
Curb weight	kg	1443 – 1445	1 5 5 6 – 1 5 5 7
	lbs	3181 – 3186	3 4 3 0 – 3 4 3 3
Gross Vehicle Weight Rating	kg	1970	2 1 0 0
	lbs	4343	4 6 3 0
Front Gross Axle Weight Rating	kg	1040	1 0 8 0

	lbs	2293	2 3 8 1
Rear Gross Axle Weight Rating	kg	980	1 0 7 0
	lbs	2161	2 3 5 9

This data was not available at the 4) time of printing.
