Can I replace a fuse myself in the 2024 Audi Q4 e-tron?

You can replace a fuse yourself in the 2024 Audi Q4 e-tron. Ensure the vehicle is turned off, locate the fuse box, identify the blown fuse, and replace it with a fuse of the same amperage rating.

What should I do if the fuse box cover is missing in my 2024 Audi Q4 e-tron?

If the fuse box cover is missing in your 2024 Audi Q4 e-tron, you should contact an authorized Audi dealership for a replacement to protect the fuses from dirt and moisture.

2024 Audi Q4 e-tron Fuses and Fuse Box User Guide

Table of Contents

2024 Audi Q4 e-tron Fuses and Fuse Box Owner’s Manual

The 2024 Audi Q4 e-tron has a fuse box that holds the necessary fuses for different electrical parts. This keeps the car’s electrical system safe and working properly and improves overall safety.

2024 Audi Q4 E-Tron Review, Specs, Price And Mileage (Brochure)

Video: 2024 Audi Q4 e-tron Fuses

Replacing Fuses

Fuses are installed in various locations in your vehicle. The following information only lists fuses that you can change yourself. To have other fuses changed, contact an authorized Audi dealer or authorized Audi Service Facility. The following table does not list fuse locations that are not used. A fuse that has blown will have metal strips that have burned through.

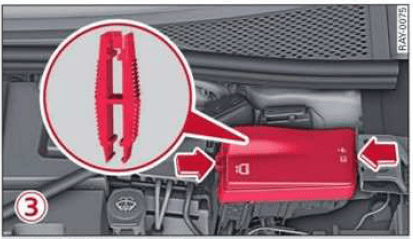

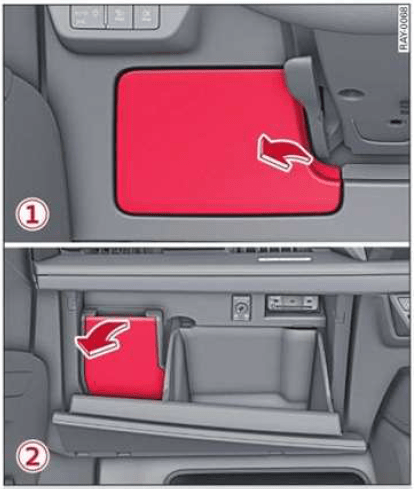

The fuses are located on the left side of the engine compartment (), or behind the storage compartment on the left side of the cockpit @) (left-hand drive vehicles) or the glove compartment @) (right-hand drive vehicles).

Switch the ignition and all electrical equipment off.
Check the table that follows to see which fuse belongs to the affected equipment.
Remove the screwdriver from the vehicle tool kit 2 page 254.
Remove the appropriate cover.
Remove the clamp from the rear side of the fuse cover.
Remove the fuse using the clip.
Replace the blown fuse only with a fuse that has the same amp rating.
Install the cover.

Fuse color identification

Warning
Do not repair fuses and never replace a blown fuse with one that has a higher amp rating.
This can cause damage to the electrical system and increase the risk of fire.

Note
If the new fuse burns out again shortly after you have installed it, have the electrical system Audi dealer or authorized Audi Service Facility.

Tips
Some of the equipment listed in the following tables applies only to certain model versions or certain optional equipment.

Cockpit fuse assignment

Fuse Assignment-Front Compartment

FAQs

Where is the fuse box located in the 2024 Audi Q4 e-tron?

The fuse box in the 2024 Audi Q4 e-tron is typically located in the engine compartment and inside the cabin, either under the dashboard or in the glove compartment.

What type of fuses does the 2024 Audi Q4 e-tron use?

The 2024 Audi Q4 e-tron uses standard blade-type fuses for most electrical components.

How do I identify a blown fuse in the 2024 Audi Q4 e-tron?

A blown fuse in the 2024 Audi Q4 e-tron can be identified by a broken metal filament inside the fuse or by using a multimeter to check for continuity.
