Dodge Journey (2009 – 2010) Fuse Box Diagrams & Location User Guide
Find the 2009–2010 Dodge Journey fuse box diagrams and locations. This guide shows interior and engine fuse layouts to help you diagnose and fix electrical issues fast. Keep informed and your car functioning well.
Engine Compartment Fuse Box
Dodge Journey (2009 and 2010)
Fuse Box Location
The integrated power module (IPM) is located in the engine compartment near the air cleaner assembly.
A label that identifies each component may be printed or embossed on the inside of the cover.

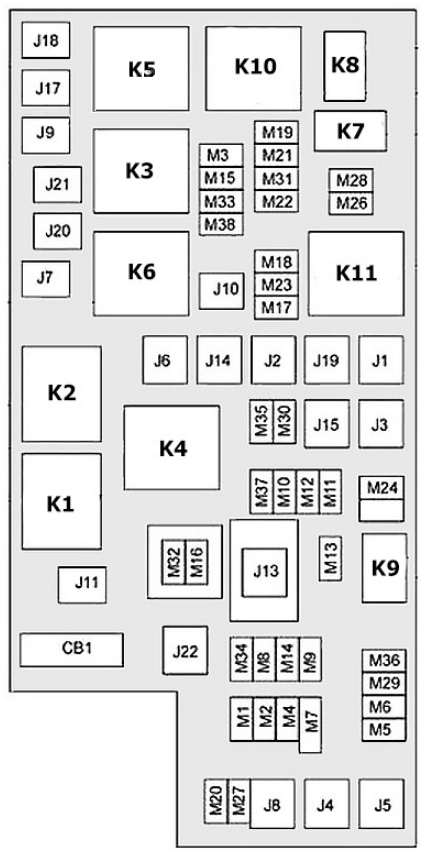

Fuse Box Diagram
Assignment of fuses in the IPM
| Cavity | Cartridge Fuse | Mini-Fuse | Description |
|---|---|---|---|
| J1 | 40 Amp Green | — | Power Folding Seat |
| J2 | 30 Amp Pink | — | Transfer Case Module – If Equipped |
| J3 | 30 Amp Pink | — | Rear Door Module |
| J4 | 25 Amp Natural | — | Driver Door Node |
| J5 | 25 Amp Natural | — | Passenger Door Node |
| J6 | 40 Amp Green | — | Anti-Lock Brake System (ABS) Pump/ Electronic Stability Program (ESP) |
| J7 | 30 Amp Pink | — | Anti-Lock Brake System (ABS) Valve/ Electronic Stability Program (ESP) |
| J8 | 40 Amp Green | — | Power Memory Seat -If Equipped |
| J9 | 40 Amp Green | — | Flex Fuel/PZEV Motor – If Equipped |
| J10 | 30 Amp Pink | — | (If Equipped) Headlamp Washer Relay-(BUX), Manifold Tuning Valve |
| J11 | 30 Amp Pink | — | (If Equipped) Sway Bar/Thatchum Security (BUX)/Power Sliding Door |
| J13 | 60 Amp Yellow | — | Ignition Off Draw (IOD) Main |
| J14 | 40 Amp Green | — | Electric Back Light (EBL) |
| J15 | 30 Amp Pink | — | Rear Blower – If Equipped |
| J17 | 40 Amp Green | — | Starter Solenoid |
| J18 | 20 Amp Blue | — | NGC (Powertrain Control Module)/ Transmission Range |
| J19 | 60 Amp Yellow | — | Radiator Fan Motor |
| J20 | 30 Amp Pink | — | Front Windshield Wiper Hi/Low |
| J21 | 20 Amp Blue | — | Front/Rear Washer |
| J22 | 25 Amp Natural | Sunroof Module – If Equipped | |
| M1 | — | 15 Amp Blue | Center High Mounted Stop Light (CHMSL) |
| M2 | — | 20 Amp Yellow | Trailer Lights – If Equipped |
| M3 | — | 20 Amp Yellow | Front/Rear Axle, AWD Mod |
| M4 | — | 10 Amp Red | Trailer Tow – If Equipped |
| M5 | — | 25 Amp Natural | Power Inverter – If Equipped |
| M6 | — | 20 Amp Yellow | Power Outlet #1 / Accessory (ACC) Rain Sensor |
| M7 | — | 20 Amp Yellow | Power Outlet #2 (Battery’ or Accessory’ (ACC) Selectable) |
| M8 | — | 20 Amp Yellow | Front Heated Seats -If Equipped |
| M9 | — | 20 Amp Yellow | Rear Heated Seats – If Equipped |
| M10 | — | 15 Amp Blue | Vanity Lamps/ Hands-Free Module (HFM) – If Equipped, Remote Display – If Equipped, Satellite Digital Audio Receiver (SDARS) – If Equipped, Universal Garage Door Opener (UGDO) – If Equipped, Vanity Light, Video Entertainment System (VES)™ – If Equipped |
| M11 | — | 10 Amp Red | Automatic Temperature Control (ATC) -If Equipped, Underhood Light |
| M12 | — | 30 Amp Green | Radio, Amplifier (AMP) |
| M13 | — | 20 Amp Yellow | Cabin Compartment Node (CCN), Multifunction Switch/Siren Module, ITM |
| M14 | — | 20 Amp Yellow | Trailer Tow (BUX) – If Equipped |
| M15 | — | 20 Amp Yellow | Auto Dim Rearview Mirror – If Equipped, Infrared Sensor (IR) -If Equipped, Multifunction Switch, Tire Pressure Monitor System (TPMS) – If Equipped, Transfer Case Module – If Equipped |
| M16 | — | 10 Amp Red | Occupant Restraint Controller (ORC)/ Occupant Classification Module (OCM) |
| M17 | — | 15 Amp Blue | Left Park/Side Marker/ Running/Tail Lights, License Lights |
| M18 | — | 15 Amp Blue | Right Park/Side Marker/ Running/Tail Lights |
| M19 | — | 25 Amp Natural | Auto Shut Down (ASD) #1 and #2 |
| M20 | — | 15 Amp Blue | Electronic Vehicle Information Center (EVIC) – If Equipped, Interior Lighting, Steering Wheel Switches – If Equipped, Switch Bank |
| M21 | — | 20 Amp Yellow | Auto Shut Down (ASD) #3 |
| M22 | — | 10 Amp Red | Right Horn |
| M23 | — | 10 Amp Red | Left Horn |
| M24 | — | 25 Amp Natural | Rear Wiper |
| M25 | — | 20 Amp Yellow | Fuel Pump/Diesel Lift Pump |
| M26 | — | 10 Amp Red | Power MIRRORS Switch/Drivers Window Switch |
| M27 | — | 10 Amp Red | Steering Column Lock, Wireless Ignition Node (WIN)/ PEM |
| M28 | — | 10 Amp Red | NGC (Powertrain Control Module)/ Transmission Feed (Batt) |
| M29 | — | 10 Amp Red | Occupant Classification Module (OCM) |
| M30 | — | 15 Amp Blue | Rpar Wiper Module Module/Power Folding Mirror, J1962 Diag Feed |
| M31 | — | 20 Amp Yellow | Back-Up Lights |
| M32 | — | 10 Amp Red | Occupant Restraint Controller (ORC) |
| M33 | — | 10 Amp Red | NGC (Powertrain Control Module) Battery’ Feed/TCM |
| M34 | — | 10 Amp Red | Power Assist Module, HVAC Module, Headlamp Washers, Compass Module – If Equipped, Flashlight – If Equipped, RAD Fan Diesel |
| M35 | — | 10 Amp Red | Heated Mirrors – If Equipped |
| M36 | — | 20 Amp Yellow | Power Outlet #3 (Batt) |
| M37 | — | 10 Amp Red | Anti-Lock Brake System (ABS), Electronic Stability Program (ESP), Stop Light Switch |
| M38 | — | 25 Amp Natural | Lock/Unlock Motors |
| K1 | — | — | Ignition Run/ Accessory’ Relay |
| K2 | — | — | Ignition Run Relay |
| K3 | — | — | Starter Solenoid Relay |
| K4 | — | — | Ignition Run/Start Relay |
| K5 | — | — | (NGC) Powertrain Control Module Relay/ PCM |
| K6 | — | — | Electric Back Light (EBL) Relay |
| K7 | — | — | — |
| K8 | — | — | — |
| K9 | — | — | Rear Blower Relay |
| K10 | — | — | ASD Relay (Feed for M19 and M21) |
| K11 | — | — | Radiator Fan Relay Low Speed |
