2024-Honda-CR-V Fuses and Fuse Box Diagram User Guide
In the 2024 Honda CR-V, fuses protect vital electrical components. This guide covers the fuse box diagram, fuse functions, and placements to help you find and replace blown fuses to keep your car running.
2024 Honda CR-V Specs, Price, Features, Mileage (Brochure)
Video: 2024-Honda-CR-V Fuses
Engine Compartment Fuse Box
Located near the battery. Push the tabs to open the box.
Fuse locations are shown on the fuse box cover. Locate the fuse in question by the fuse number and box cover number.
Fuse Box Diagram
Circuit protected and fuse rating
| Type | No. | Description |
|---|---|---|
| Fuse125A | 1 | MAIN FUSE |
| Multi fuse block MUSB | 2-1 | I/S2 |
| Multi fuse block MUSB | 2-2 | – |
| Multi fuse block MUSB | 2-3 | F/BOX OPTION 1 |
| Multi fuse block MUSB | 2-4 | PTC HTR 1 |
| Multi fuse block MUSB | 2-5 | F/BOX OPTION 2 |
| Multi fuse block MUSB | 2-6 | – |
| Multi fuse block MUSB | 2-7 | F/BOX MAIN 1 |
| Multi fuse block MUSB | 3-1 | AUDIO AMP |
| Multi fuse block MUSB | 3-2 | ST MAGNETIC SW |
| Multi fuse block MUSB | 3-3 | PTC HTR 3 |
| Multi fuse block MUSB | 3-4 | RR DEF |
| Multi fuse block MUSB | 3-5 | – |
| Multi fuse block MUSB | 3-6 | HTR MTR |
| Multi fuse block MUSB | 3-7 | PTG MTR |
| Multi fuse block MUSB | 4-1 | ABS/VSA FSR |
| Multi fuse block MUSB | 4-2 | ABS/VSA MTR |
| Multi fuse block MUSB | 4-3 | – |
| Multi fuse block MUSB | 4-4 | E BOOSTER |
| Multi fuse block MUSB | 4-5 | IG1 MAIN 1 |
| Multi fuse block MUSB | 4-6 | – |
| Multi fuse block MUSB | 4-7 | IG1 MAIN 2 |
| Multi fuse block MUSB | 5-1 | VS1 |
| Multi fuse block MUSB | 5-2 | WIPER |
| Multi fuse block MUSB | 5-3 | EPS |
| Multi fuse block MUSB | 5-4 | – |
| Multi fuse block MUSB | 5-5 | – |
| Multi fuse block MUSB | 5-6 | MAIN FAN |
| Multi fuse block MUSB | 5-7 | F/BOX MAIN 2 |
| Fuse FMM/MCase30A | 6 | SUB FAN |
| Fuse FMM/MCase20A | 7 | SRM2 |
| Fuse MINI10A | 9 | BACK UP |
| Fuse MINI15A | 10 | FR WIPER DEICER |
| Fuse MINI10A | 11 | RR FOG |
| Fuse MINI7.5A | 13 | AUDIO SUB |
| Fuse MINI10A | 15 | FR FOG |
| Fuse MINI10A | 17 | A/C MG CLUTCH |
| Fuse MINI15A | 18 | HORN |
| Fuse MINI15A | 19 | FR WASHER |
| Fuse MINI15A | 20 | AUDIO |
| Fuse MINI20A | 21 | SRM1 |
| Fuse MINI15A | 22 | DBW |
| Fuse MINI10A | 23 | HAZARD |
| Fuse MINI10A | 24 | VBU |
| Fuse MINI15A | 25 | IGP |
| Fuse MINI10A | 26 | TCU |
| Fuse MINI20A | 27 |

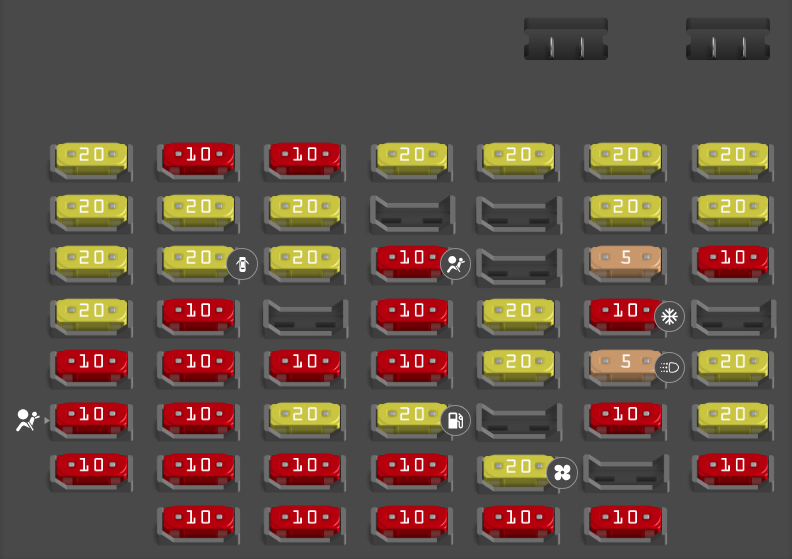

Interior Main Fuse Box
Located under the dashboard.
Fuse locations are shown on the label under the steering column. Locate the fuse in question by the fuse number and label number.
Circuit-protected and fuse rating
| Type | No. | Description |
|---|---|---|
| Fuse MINI20A | 1 | P/W DR |
| Fuse MINI20A | 2 | P/W AS |
| Fuse MINI20A | 3 | P/W RR R |
| Fuse MINI20A | 4 | P/W RR L |
| Fuse MINI10A | 5 | OPTION |
| Fuse MINI10A | 6 | SRS |
| Fuse MINI10A | 7 | T/G MTR / TRUNK ACT |
| Fuse MINI10A | 8 | RVU |
| Fuse MINI20A | 9 | FR ACC SOCKET |
| Fuse MINI20A | 10 | DOOR LOCK |
| Fuse MINI10A | 11 | METER |
| Fuse MINI10A | 12 | OPTION 3 (ST CUT) |
| Fuse MINI10A | 13 | OPTION 2 |
| Fuse MINI10A | 14 | OPTION 6 (VB SOL) |
| Fuse MINI10A | 15 | DR DOOR UNLOCK |
| Fuse MINI10A | 16 | IMG |
| Fuse MINI20A | 17 | YOP TRAILER |
| Fuse MINI20A | 18 | HAC OP |
| Fuse MINI10A | 20 | USB CHG |
| Fuse MINI20A | 21 | CARGO ACC SOCKET |
| Fuse MINI10A | 22 | SMART |
| Fuse MINI10A | 23 | DR DOOR LOCK |
| Fuse MINI20A | 24 | E-DPS |
| Fuse MINI10A | 26 | SRS |
| Fuse MINI10A | 27 | ACG |
| Fuse MINI10A | 28 | OPTION 5 (ABS) |
| Fuse MINI20A | 29 | FUEL PUMP |
| Fuse MINI10A | 30 | L SIDE DOOR UNLOCK |
| Fuse MINI10A | 31 | R SIDE DOOR UNLOCK |
| Fuse MINI20A | 32 | SUN ROOF |
| Fuse MINI20A | 35 | SUN SHADE |
| Fuse MINI20A | 36 | RR H/SEAT |
| Fuse MINI20A | 38 | RR BLOWER |
| Fuse MINI10A | 39 | R SIDE DOOR LOCK |
| Fuse MINI20A | 40 | DR P/SEAT SLIDE |
| Fuse MINI20A | 41 | DR P/SEAT REC |
| Fuse MINI5A | 42 | ETHANOL |
| Fuse MINI10A | 43 | A/C |
| Fuse MINI5A | 44 | DRL |
| Fuse MINI10A | 45 | ACC |
| Fuse MINI10A | 47 | L SIDE DOOR LOCK |
| Fuse MINI20A | 48 | H/SEAT |
| Fuse MINI20A | 49 | AS P/SEAT REC |
| Fuse MINI10A | 50 | P/LUMBAR DR/AS |
| Fuse MINI20A | 52 | PTG CLOSER |
| Fuse MINI20A | 53 | AS P/SEAT SLI |
| Fuse MINI10A | 54 | OPTION1 |
Interior Sub Fuse Box
Located under the dashboard.
Fuse locations are shown on the label under the steering column.
Locate the fuse in question by the fuse number and label number.
Circuit-protected and fuse rating
| No | Circuit Protected | Amps |
|---|---|---|
| A | ACC | 5 A |
| B | EOP* | 10 A |
| C | – | – |
| D | METER | 10 A |
| E | OPTION | 10 A |
| F | – | – |
| G | – | – |
| H | – | – |
Inspecting and Changing Fuses
- Set the power mode to VEHICLE OFF. Turn headlights and all accessories off.
- Remove the fuse box cover.
- Check the main fuse in the engine compartment fuse box.
- Look at the fuse through the hole.
- If the fuse is blown, have it replaced by a dealer.
NOTICE
Replacing a fuse with one that has a higher rating greatly increases the chances of damaging the electrical system.
Use the charts to locate the fuse in question and confirm the specified amperage on the fuse label.
- Check the combined fuses in the engine compartment fuse box.
Look into the space between the fuses.
If the fuse is blown, have it replaced by a dealer.
- Inspect the small fuses in the engine compartment and the vehicle interior.
If there is a blown fuse, remove it with the fuse puller and replace it with a new one.
