2026 Hyundai Palisade Fuses and Fuse Box User Guide
This guide includes important information regarding the 2026 Hyundai Palisade fuses and fuse box. Understand fuse operations, location, and how they protect critical electrical systems.
Fuses
A vehicle’s electrical system is protected from electrical overload damage by fuses. This vehicle has 2 (or 3) fuse panels, one located in the driver’s side panel bolster, the other in the engine compartment.
If any of your vehicle’s lights, accessories, or controls do not work, check the appropriate circuit fuse. If a fuse has blown, the element inside the fuse is melted or broken.
If the electrical system does not work, first check the driver’s side fuse panel.
WARNING
Never replace a fuse with anything but another fuse of the same rating.
- A higher capacity fuse may cause damage and possibly cause a fire.
- Do not install a wire or aluminum foil instead of the proper fuse – even as a temporary repair. It may cause extensive wiring damage and possibly a fire.
CAUTION
Do not use a screwdriver or any other metal object to remove fuses because it may cause a short circuit and damage the system.
Information
Not all fuse panel descriptions in this manual may be applicable to your vehicle. When you inspect the fuse panel on your vehicle, refer to the fuse panel label. Inside the fuse panel cover, you can find the label describing fuse names and ratings.

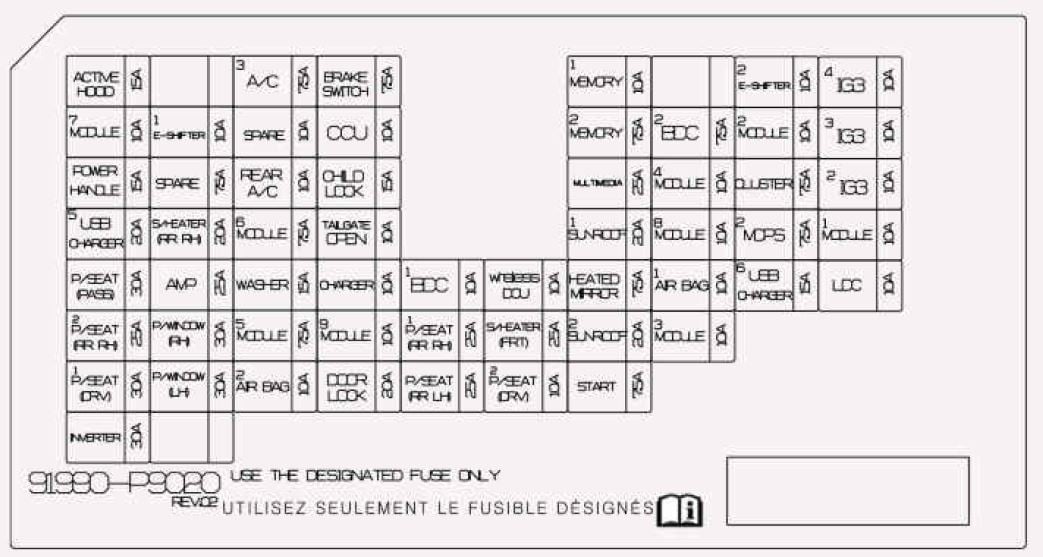

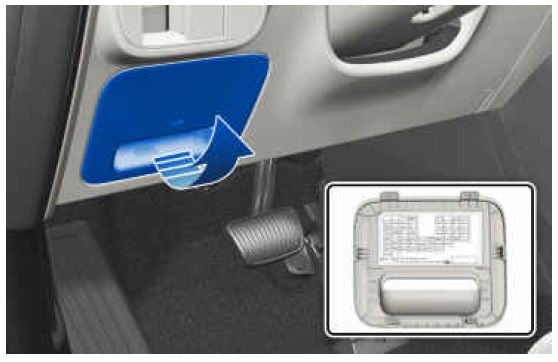

Instrument Panel Fuse Panel
| Fuse Name | Fuse Rating | Circuit Protected |
| A/C 3 | 7.5 A | Front A/C Control Panel, Front A/C Control Module, Incar Temperature Sensor, E/R Junction Block (PTC HEATER1/2 RELAY) |
| BRAKE SWITCH | 7.5 A | BDC, Stop Lamp Switch |
|
MEMORY 1 |
10 A |
Rear A/C Control Module, Driver/Passenger Door Mood Lamp, Smart Ambient Light Control Unit (Mood Lamp), Rear Door Mood Lamp LH/RH, BDC |
| E-SHIFTER 2 | 10 A | Electronic Atm Shift Lever & Start/Stop Button |
|
MODULE 7 |
10 A |
Hazard Switch, ICC Unit, Rain Sensor, Multifunction Switch, Data Link Connector, 3RD Power Seat Module, Driver/Passenger Power Outside Mirror, Driver Power Window Module, Driver/ Passenger Power Seat Module,2ND Power Seat Module LH/RH, Rear Junction Block (Rear Blower Relay), Crash Pad Switch, Driver/Passenger Door Outside Handle, Power Tailgate Unit, 2ND & 3RD Seat Reclining Switch (Luggage) |
| E-SHIFTER 1 | 10 A | Electronic Atm Shift Lever & Start/Stop Button |
| SPARE (IG2) | 10 A | Standby Power (IG2) |
| CCU | 10 A | CCU |
|
MEMORY 2 |
7.5 A |
Head-Up Display, Front A/C Control Panel, Front A/C Control Module |
| BDC 2 | 7.5 A | BDC |
| MODULE 2 | 10 A | CCU, DCU, Stop Lamp Switch |
| SPARE (B+) | 7.5 A | Standby Power (B+) |
| REAR A/C | 10 A | Rear A/C Control Module |
| CHILD LOCK | 15 A | Child Lock/Unlock Relay |
| MULTIMEDIA | 25 A | Low DC-DC Converter |
|
MODULE 4 |
10 A |
Floor Console UVC Switch, AMP, Smart Phone Wireless Charger Unit, USB Connector Assembly, Driver Power Seat Module,
3RD Seat Switch LH/RH, 2ND Power Seat Module LH/RH, 3RD Power Seat Module, 2ND Seat LH/RH Switch Unit, ICC Unit, Overhead Console Lamp, Electro Chromic Mirror, Data Link Connector, CCNC Head Unit, Front A/C Control Panel, Trailer Control Module, Low DC-DC Converter, Built-In Cam Unit |
| CLUSTER | 7.5 A | Cluster Unit, Head-Up Display |
| USB CHARGER 5 |
20 A |
USB Connector Assembly |
| S/HEATER RR RH |
20 A |
2ND Warmer/Air Ventilation Control Module |
|
MODULE 6 |
7.5 A |
Head Lamp LH/RH, AC Inverter Outlet, Inverter Unit, 12V Lithium Auxiliary Battery |
| TAILGATE OPEN |
10 A |
Tailgate Open Relay, Passenger Occupant Detection Sensor |
| SUNROOF 1 | 20 A | Front Sunroof Control Module |
|
MODULE 8 |
10 A |
Multifunction Switch, Driver Power Window Module, 2ND Seat Belt Buckle Switch LH/RH/Center |
| MDPS 2 | 7.5 A | MDPS Unit |
|
MODULE 1 |
10 A |
BDC, CCU, DCU, ADAS Unit (Parking), Built-In Cam Unit, Low DC-DC Converter |
|
P/SEAT PASS |
30 A |
Passenger Power Seat Module, Passenger Relay Unit, Passenger Power Seat Switch |
| AMP | 25 A | [400W] Low DC-DC Converter |
| WASHER | 15 A | Multifunction Switch |
| wireless DCU | 10 A | DCU |
|
BDC 1 |
10 A |
Front/Rear UWB Unit LH/RH, UWB Unit (Master/Slave), Driver/ Passenger Door Outside Handle, BDC |
| HEATED MIRROR |
7.5 A |
Driver/Passenger Power Outside Mirror |
| AIR BAG 1 | 10 A | SRS Control Module, Passenger Occupant Detection Sensor |
| USB CHARGER 6 |
15 A |
USB Connector Assembly |
|
LDC |
10 A |
CCNC Head Unit, LOW DC-DC Converter, REAR Corner Radar LH/RH, REAR A/C Control Module, Cluster Unit, ADAS Unit(Parking), CCNC Keyboard, FRONT A/C Control Pannel , HEAD-UP Display |
| P/SEAT RR RH 2 |
25 A |
2ND Seat RH Walk In Communication Switch (Cushion/ Reclining), 2ND Power Seat Module RH |
|
P/WINDOW RH |
30 A |
Passenger Safety Power Window Module,
[With Safety] Rear Safety Power Window Module RH, [W/O Safety] Rear Power Window Switch RH |
| MODULE 5 | 7.5 A | BDC |
|
P/SEAT RR RH 1 |
25 A |
[With Power Seat] 2ND Power Seat Module RH, [8P] 2ND Seat Rh Walk In & Folding Switch, 2ND Seat RH Walk In Communication Switch (Cushion/Reclining)
[With 2nd Folding & Walk In – 8P] 2ND Seat RH Walk In & Folding Switch |
| S/HEATER FRT | 25 A | 1ST Seat Warmer/Air Ventilation Seat Control Module |
| SUNROOF 2 | 20 A | Rear Sunroof Control Module |
|
MODULE 3 |
10 A |
AWD ECM, Front View Camera, ADAS Unit (Driving), ADAS Unit (Parking), Front/Rear Corner Radar LH/RH, Front Radar, Center Fascia Switch (Driver), Crash Pad Switch, Rear Corner Radar LH/RH |
| P/SEAT DRV 1 | 30 A | Driver Power Seat Module, Driver Power Seat Switch |
|
P/WINDOW LH |
30 A |
Driver Safety Power Window Module,
[With Safety] Rear Safety Power Window Module LH, [W/O Safety] Rear Power Window Switch LH |
| AIR BAG 2 | 10 A | SRS Control Module |
| DOOR LOCK | 20 A | Door Lock/Unlock Relay, Two Turn Unlock Relay |
|
P/SEAT RR LH |
25 A |
[With Power Seat] 2ND Power Seat Module LH, [8P] 2ND Seat Rh Walk In & Folding Switch, 2ND Seat LH Walk In Communication Switch (Cushion/Reclining)
[With 2nd Folding & Walk In – 8P] 2ND Seat LH Walk In & Folding Switch |
| P/SEAT DRV 2 | 10 A | Driver Lumbar Support Unit |
| START | 7.5 A | BDC, ECM |
| INVERTER | 30 A | Inverter Unit |
Engine Compartment Fuse Panel

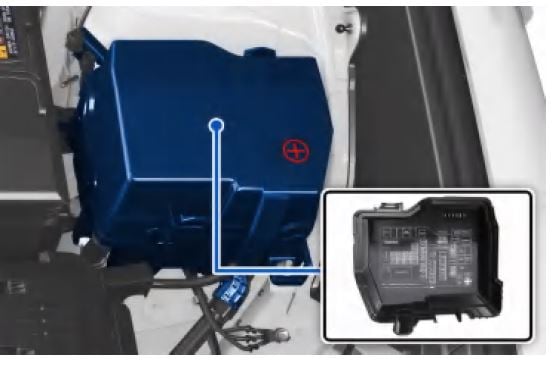

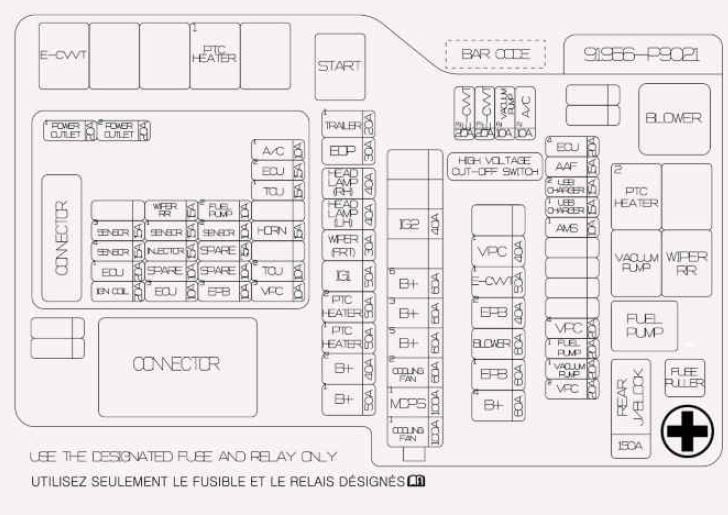

Engine compartment junction block
| Type | Fuse Name | Fuse Rating | Circuit Protected |
|
MULTI FUSE |
IG2 | 40 A | PCB Block (IG2 Relay), E/R Junction Block (Start Relay) |
|
B+6 |
60 A |
PCB Block (Main Relay, Wiper Relay, Fuse – A/C1, Horn, B/ALARM Horn, TCU1) | |
|
B+3 |
60 A |
PDC (Fuse – USB Charger5, P/SEAT PASS, P/SEAT DRV1, P/WINDOW LH/RH, AMP, SPARE (B+), Inverter, Module7, S/HEATER RR RH, E-SHIFTER1,P/SEAT RR RH 2) | |
|
B+5 |
60 A |
PDC (Fuse – S/HEATER FRT,Wireless DCU, AIR BAG2,
P/SEAT DRV2, Sunroof2, Sunroof1) |
|
| MDPS 1 | 100 A | MDPS Unit |
| COOLING FAN |
100 A |
Cooling Fan Controller |
|
|
MIDI FUSE |
REAR J/ BLOCK |
150 A |
Rear Junction Block (S/B Fuse – REAR HEATED, Aux Batt, Power Tailgate, REAR Blower, 3rd S/HEATER, Trailer2/3/4, 3rd Row Seat Foldig, P/SEAT RR LH 2, Fuse – AWD, USB Charger3/4, Combi Lamp LH/RH, E-LSD |
|
FUSE |
ECU4 | 20 A | ECM |
| ACTIVE AIR FLAP |
15 A |
Active Air Flap (Upper, Lower LH/RH) |
|
| USB CHARGER 2 |
15 A |
Passenger USB Charger Connector |
|
| USB CHARGER 1 |
15 A |
Driver USB Charger Connector |
|
| AMS 1 | 10 A | Battery Sensor | |
| VPC 4 | 20 A | VPC | |
| FUEL PUMP 1 | 20 A | E/R Junction Block (Fuel Pump1 Realy) | |
| VACUUM PUMP 1 |
20 A |
E/R Junction Block (RLY.4) |
|
| VPC 2 | 20 A | VPC | |
| VPC 1 | 40 A | VPC | |
| EPB 2 | 60 A | ESP Control Module | |
| BLOWER | 60 A | E/R Junction Block (Blower Realy) | |
| EPB 1 | 60 A | ESP Control Module | |
|
B+4 |
60 A |
PDC (Fuse – BDC1, CCU, Barke Switch, P/SEAT RR LH, P/SEAT RR RH1, Door Lock, Tailgate Open, IPS13, Long Term Load Latch Relay (Fuse – Multi Media, Memory1/2)) | |
| TRAILER1 | 20 A | Electronic Brake Controller | |
| EOP | 30 A | Electronic Oil Pump |
| HEAD LAMP (RH) |
40 A |
Head Lamp RH |
|
| HEAD LAMP (LH) |
40 A |
Head Lamp LH |
|
| WIPER (FRT) | 30 A | Front Wiper Motor | |
| IG1 | 50 A | PCB Block (IG1 Relay, ACC Relay) | |
| PTC HEATER 2 |
50 A |
E/R Junction Block (Ptc Heater2 Relay) |
|
| PTC HEATER 1 |
50 A |
E/R Junction Block (Ptc Heater1 Relay) |
|
| B+2 | 40 A | PDC (IPS11, IPS12) | |
| B+1 | 50 A | PDC (IPS1,IPS4, IPS5, IPS6, IPS7) |
PCB block
| Fuse Name | Fuse Rating | Circuit Protected |
| POWER OUTLET 1 |
20 A |
2ND & 3RD Seat Reclining Switch (Luggage) |
| POWER OUTLET 2 |
20 A |
1ST Power Outlet |
| A/C 1 | 10 A | A/C Relay |
| TCU 1 | 15 A | TCM |
| WIPER RR | 15 A | Rear Wiper Motor, E/R Junction Block (Wiper Rr Relay) |
| FUER PUMP 2 |
10 A |
E/R Junction Block (Fuel Pump Relay) |
| SENSOR 3 | 15 A | Canister Close Valve, Oil Level Sensor |
| SENSOR 1 | 15 A | Oxygen Sensor (UP/Down) |
|
SENSOR 2 |
10 A |
Purge Control Solenoid Valve, Oil Control Valve #2/#4 (Exhaust), Oil Control Valve #1/#3 (Intake)), Variable Oil Pump Solenoid Valve, Variable Intake Solenoid Valve, Cooling Fan Controller |
| HORN | 15 A | Horn Relay |
| INJECTOR | 15 A | Injector #1/#2/#3/#4/#5/#6 |
| B/ALARM HORN |
15 A |
B/Alarm Horn Relay |
| ECU 1 | 20 A | ECM |
| TCU 2 | 10 A | TCM, Electronic Oil Pump |
| IGN COIL | 20 A | Ignition Coil #1/#2/#3/#4/#5/#6 |
| ECU 3 | 10 A | ECM |
| EPB 3 | 10 A | ESP Control Module |
| VPC 3 | 10 A | VPC |

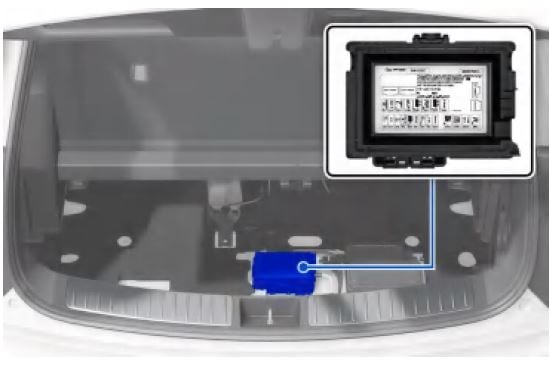

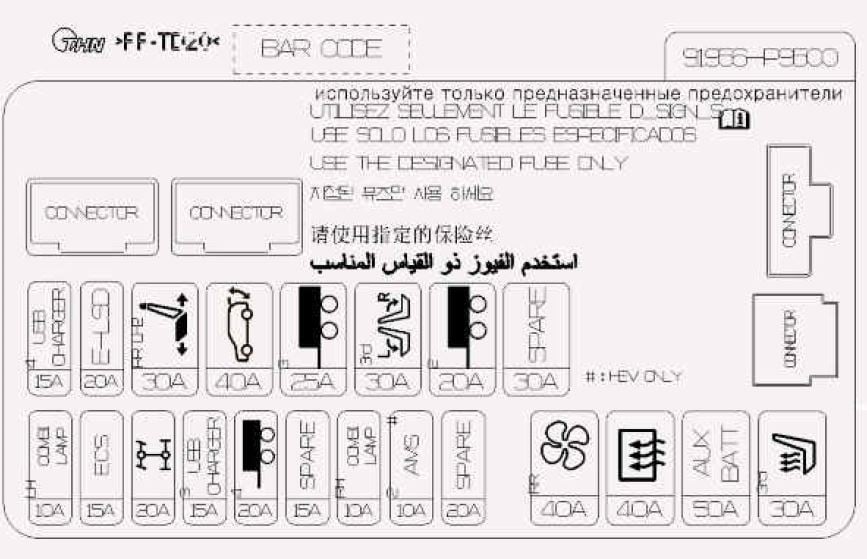

Cargo compartment fuse panel
| Fuse Name | Fuse Rating | Circuit Protected |
| USB CHARGER 4 | 15 A | Luggage USB Charger Connector RH |
| COMBI LAMP LH | 30 A | Rear Combination Lamp (OUT) LH |
| AWD | 40 A | AWD ECM |
| USB CHARGER 3 | 30 A | Luggage USB Charger Connector LH |
| COMBI LAMP RH | 10 A | Rear Combination Lamp (OUT) RH |
|
P/SEAT RR LH 2 |
30 A |
2ND Power Seat Module LH [7P] 2ND Seat LH Walk In Communication Switch (Cushion/Reclining) |
| POWER TAILGATE | 15 A | Power Tailgate Unit |
| E-LSD | 20 A | E-LSD Control Module |
|
Fuse Name |
Fuse Rating |
Circuit Protected |
|
TRAILER2 |
20 A |
Trailer Connector, [With Mobis Trailer] Trailer Custom Module |
|
TRAILER3 |
25 A |
Trailer Control Module, [With Mobis Trailer] Trailer Custom Module |
| TRAILER4 | 20 A | Trailer Control Module |
| 3RD SEAT FOLDING | 30 A | 3RD Power Seat Module |
| REAR BLOWER | 40 A | RR Blower Relay |
| REAR HEATED | 40 A | RR Heated Relay |
| AUX BATT | 50 A | 12V Lithium Auxiliary Battery |
| 3RD SEAT HEATER | 10 A | 3RD Seat Warmer Control Module |

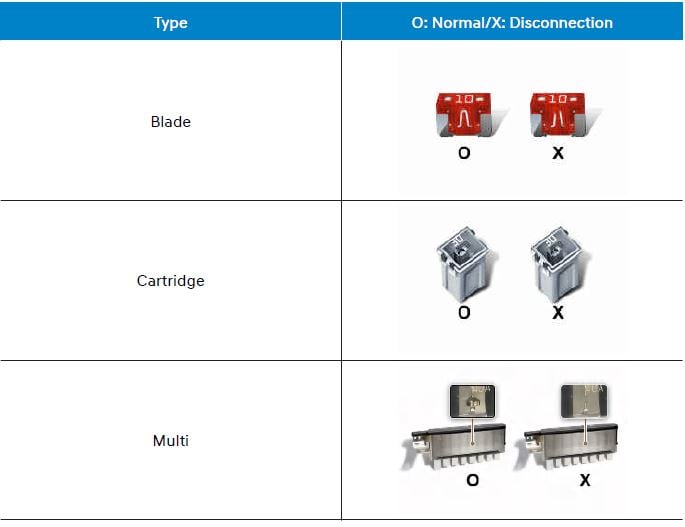

How to Check Fuses by Type
Replacing Fuses

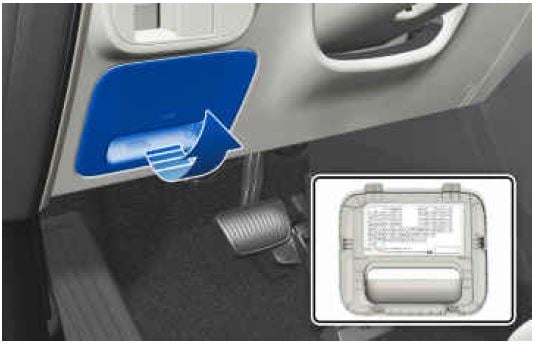

Instrument panel fuse replacement
- Turn off the vehicle and all other switches.
- Open the fuse panel cover. Refer to the label on the inside of the fuse panel cover to locate the suspected fuse location.
- Pull the suspected tool straight out. Use the removal tool provided in the engine compartment fuses panel.
- Check the removed fuse and replace it if it is blown. Spare fuses are provided in the instrument panel fuse panels (or in the engine compartment fuse panel).
- Push in a new fuse of the same rating, and make sure it fits tightly in the clips. If it is not tight, contact an authorized HYUNDAI dealer.
In an emergency, if you do not have a spare fuse, use a fuse of the same rating from a circuit you may not need for operating the vehicle.

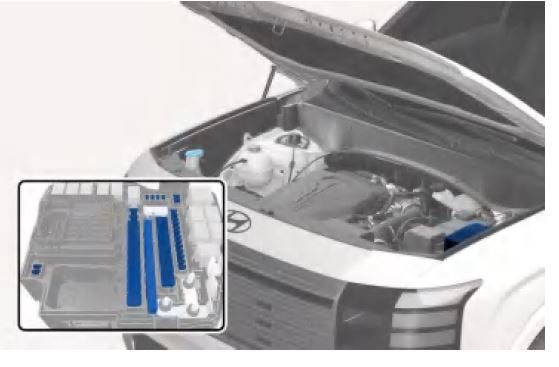

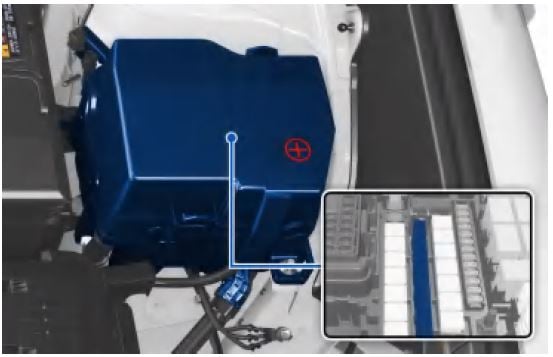

Engine compartment panel fuse replacement

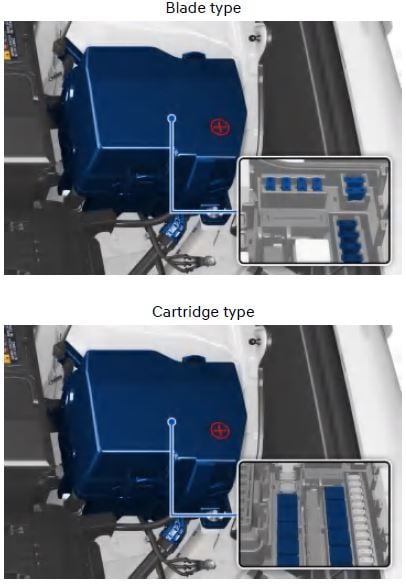

Blade fuse/Cartridge fuse
- Turn off the vehicle and all other switches.
- Remove the fuse panel cover by pressing the tap and pulling up. Refer to the label on the inside of the fuse panel cover to locate the suspected fuse location.
- Pull the suspected fuse straight out. Use the removal tool provided in the engine compartment fuses panel .
- Check the removed fuse and replace it if it is blown. To remove or insert the fuse, use the fuse puller in the engine compartment fuse panel.
- Push in a new fuse of the same rating, and make sure it fits tightly in the clips. If it is not tight, contact an authorized HYUNDAI dealer.
CAUTION
Always securely install the fuse panel cover. Water may contact the fuse and cause an electrical failure.
Multi fuse
