Hyundai Terracan (2001 – 2007) Fuse Box Diagrams & Location
Locate the fuse boxes and explore detailed fuse diagrams for the Hyundai Terracan (2001–2007) with this easy-to-follow reference. Identify each fuse and relay, understand their functions, and quickly find the correct component for troubleshooting electrical issues, maintenance, or safe fuse replacement.
Fuse Box Location

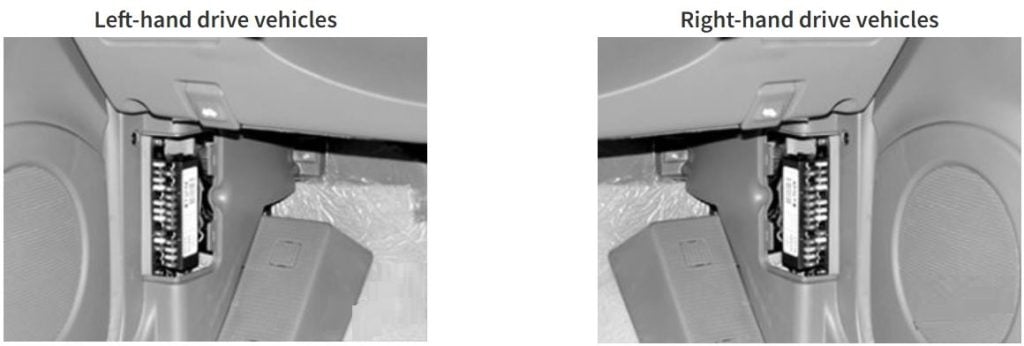

Passenger Compartment Fuse Box
The fuse box is located on the lower portion of the dashboard adjacent to the bonnet release (behind the cover).

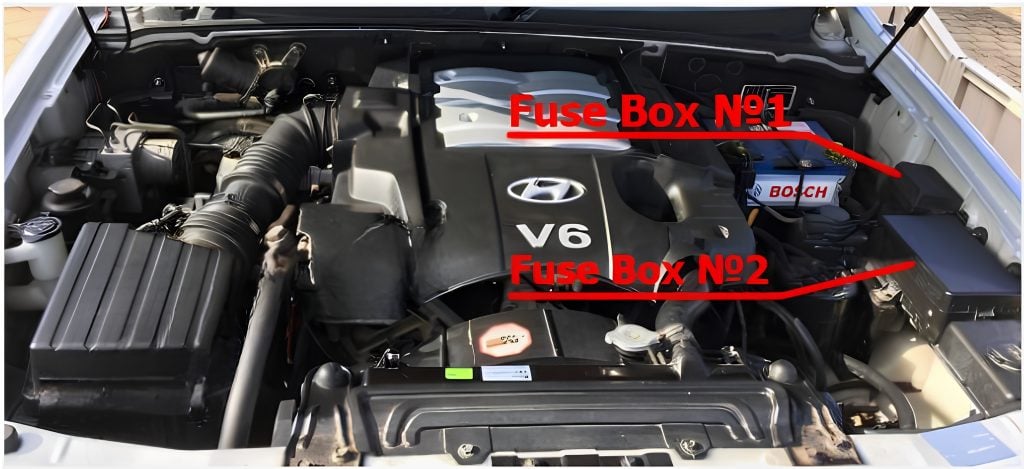

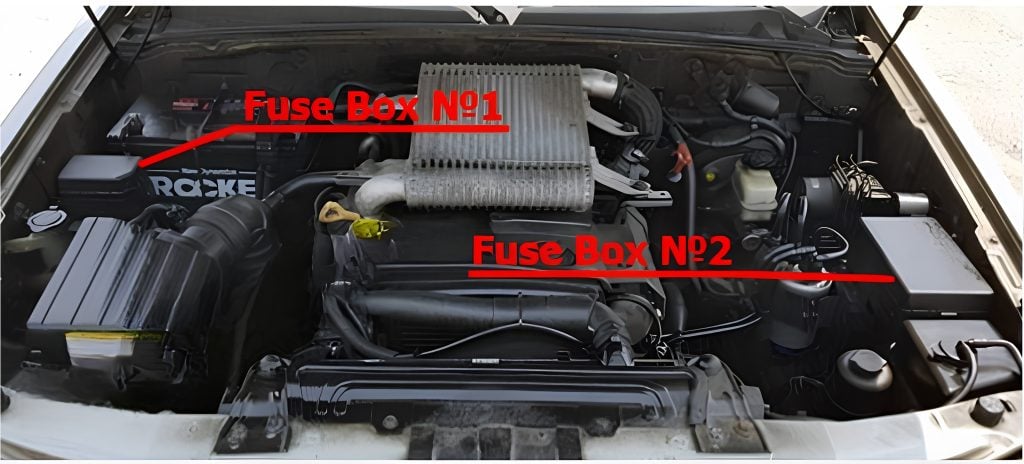

Engine Compartment Fuse Box
The fuse box is located in the engine compartment.
Or
Fuse Box Diagrams

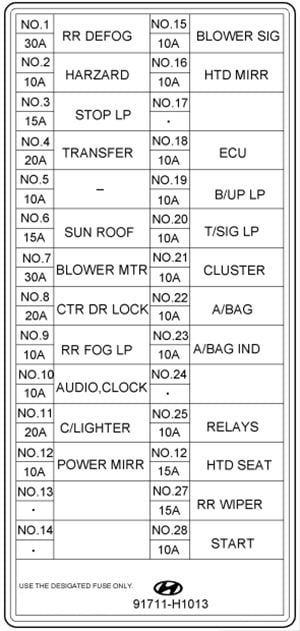

Passenger Compartment Fuse Box
| NO. | AMPERAGES | CIRCUIT PROTECTED |
|---|---|---|
| 1 | 30A | Defogger Relay |
| 2 | 10A | Hazard Relay, Hazard Switch |
| 3 | 15A | Stop Lamp Switch |
| 4 | 20A | TOD, EST Control Module |
| 5 | 10A | – |
| 6 | 15A | Sunroof Controller |
| 7 | 30A | Blower Relay |
| 8 | 20A | Power Door Locks |
| 9 | 10A | Rear Fog Lamp Relay |
| 10 | 10A | Audio, Map Lamp |
| 11 | 20A | Cigar Lighter, Power Outlet relay, ACC Socket |
| 12 | 10A | Power Outside Mirror Switch |
| 13 | – | – |
| 14 | – | – |
| 15 | 10A | A/C Switch |
| 16 | 10A | Left/Right Outside Mirror & Defogger |
| 17 | – | – |
| 18 | 10A | TCM, ECM(COVEC-F), TCCS(TOD, EST), Immobiliser |
| 19 | 10A | Back-up Lamp Switch, Inside Rearview Mirror, Transmission Range Switch |
| 20 | 10A | Hazard Switch |
| 21 | 10A | Instrument Cluster, ETACM, Vehicle Speed Sensor, DRL Control Module |
| 22 | 10A | Airbag |
| 23 | 10A | Airbag Indicator |
| 24 | – | – |
| 25 | 10A | Blower & A/C, ETACM, Defogger Relay |
| 26 | 15A | Seat Warmer |
| 27 | 15A | Sunroof, Rear Wiper & Washer, Cruise Switch, Rear Intermittent Wiper Relay |
| 28 | 10A | Start Relay, Theft-Alarm Relay |
Engine Compartment Fuse Box
Fuse Box #1
| DESCRIPTION | AMPERAGES | CIRCUIT PROTECTED |
|---|---|---|
| FUSIBLE LINK: | ||
| NO.1 | 100A | Glow Relay (COVEC-F/EGR), Air Heater Relay (Diesel Engine) |
| NO. 2 | 120A (DIESEL) | Engine Compartment Fuse & Relay Box #2, |
| NO. 2 | 140A (PETROL) | Generator |
| NO. 3 | 50A | Inner Panel Fuse Box (Fuse 1,2,3,4,5) |
| NO. 3 | 50A | Engine Compartment Fuse & Relay Box #1 (Fuse 8,9) |
| NO. 3 | 50A | Fuel Heater Control Module (COVEC-F/EGR) |
| NO.4 | 30A | Generator, Ignition Switch |
| NO.5 | – | – |
| NO. 6 | – | – |
| NO. 7 | 20A | Engine Control Relay (Diesel Engine), Main Control Relay (Petrol Engine) |
| FUSE: | ||
| NO. 8 | 10A | Horn Relay |
| NO. 9 | 15A | Front Fog Lamp Relay |
| NO. 10 | – | – |
| NO. 11 | 10A | ECM (Diesel Engine), EGR Control Module |
| NO. 12 | 10A | ECM (Diesel Engine) |
Fuse Box #2
| DESCRIPTION | AMPERAGES | CIRCUIT PROTECTED |
|---|---|---|
| FUSIBLE LINK: | ||
| NO. 1 | 50A | Power Connector(A,B), Engine Compartment Fuse and Relay #2 (Fuse 28,29), Inner Panel Fuse Box(Fuse 6,7,8, 9) |
| NO. 2 | 30A | Start Relay, Ignition Switch |
| NO. 3 | 40A | Condenser Fan Relay, Engine Compartment Fuse and Relay Box #2 (Fuse 14,15) |
| NO. 4 | 40A | ABS Control Module |
| NO. 5 | 30A | Power Window Relay |
| NO. 6 | 40A | Tail Lamp Relay, Engine Compartment Fuse and Relay Box #2 (Fuse 11,12) |
| NO. 7 | 20A | ABS Control Module |
| NO. 8 | – | – |
| NO. 9 | 20A | Fuel Pump Relay, ECM, Ignition Failure Sensor |
| NO. 30 | 10A | A/CON, TCM, ETACM, Data Link Connector, Siren, Immobiliser Control Module |
| NO. 31 | 15A | Interior Lamp, Map Lamp, Audio, Instrument Cluster, Front Door Edge Warning Lamp |
| FUSE: | ||
| NO. 10 | 15A | Fuel Heater and Sensor(Diesel Engine) |
| NO. 11 | 15A | Headlamp(Low beam) |
| NO. 12 | 15A | Headlamp(High beam) |
| NO. 13 | – | – |
| NO. 14 | 10A | A/C Compressor Relay, Triple Switch |
| NO. 15 | 10A | TCI Fan Relay(COVEC-F/EGR) |
| NO. 16 | – | – |
| NO. 17 | 15A | – |
| NO. 18 | 15A | ECM(Diesel Engine) |
| NO. 19 | 15A | ECM(Diesel Engine) |
| NO. 20 | 15A | ECM(Diesel Engine), Air Heater Relay(Diesel Engine), EGR Solenoid(Diesel Engine) |
| NO. 21 | 10A | Illuminations, Combination Lamp |
| NO. 22 | 10A | License Lamp, Combination Lamp |
| NO. 23 | 10A | ABS Control Module, ABS Relay, EBD Relay |
| NO. 24 | 10A | ECM(Diesel Engine), Headlamp Relay, Condenser Fan Relay (Petrol/COVEC-F), EGR Solenoid(COVEC-F) |
| NO. 25 | 10A | ABS Control Module |
| NO. 26 | 10A | Cruise Control Module |
| NO. 27 | 15A | Front Wiper and Washer |
| NO. 28 | 25A | Power Seat Switch |
| NO. 29 | 20A | Power Outlet Relay |
