This Guide covers the layout, controls, and important features of the 2023 RAM 1500 instrument panel to help you navigate and use your truck’s dashboard in confidence.

2023 RAM 1500 Specs, Price, Features, Mileage (Brochure)

Video: 2023 RAM 1500 Dashboard Warning Indicators

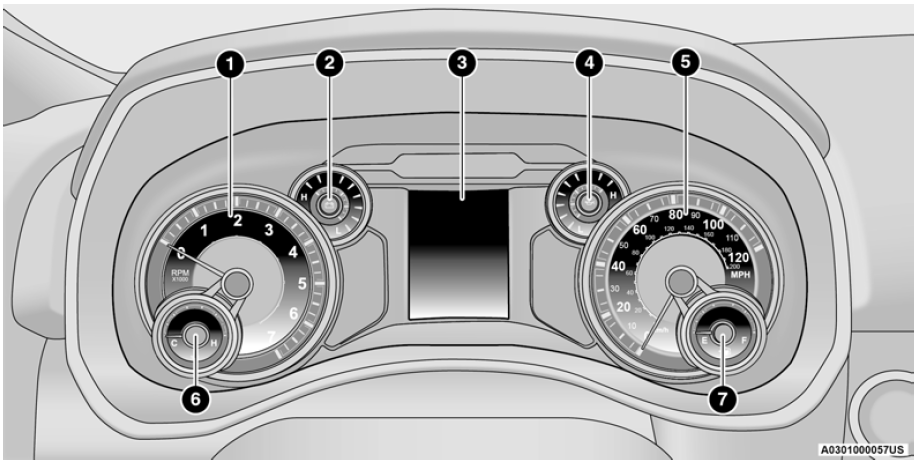

MIDLINE INSTRUMENT CLUSTER — GASOLINE

MIDLINE INSTRUMENT CLUSTER DESCRIPTIONS — GASOLINE

Use this QR code to access your digital experience.

1. Tachometer
   1. Indicates the engine speed in revolutions per minute (RPM x 1000).
2. Voltmeter
   1. When the vehicle is in the RUN state, the gauge indicates the electrical system voltage. The pointer should stay within the normal range if the battery is charged. If the pointer moves to either extreme left or right and remains there during normal driving, the electrical system should be serviced.
      NOTE:
      In vehicles equipped with Stop/Start, a reduced voltage may be present during an Autostop.
3. Instrument Cluster Display
   1. When the appropriate conditions exist, this display shows the instrument cluster display messages
   2. The display always shows one of the main menu items after ignition on.
4. Oil Pressure Gauge
   1. The pointer should always indicate the oil pressure when the engine is running. A continuous high or low reading under normal driving condi-tions may indicate a lubrication system malfunc-tion. Immediate service should be obtained from an authorized dealer.
      NOTE:
      In vehicles equipped with Stop/Start, an oil pressure indication of zero is normal during an Autostop.
5. Speedometer
   1. Indicates vehicle speed.
6. Temperature Gauge
   1. The pointer shows engine coolant temperature. The pointer positioned within the normal range indicates that the engine cooling system is operating satisfactorily.
   2. The pointer will likely indicate a higher temperature when driving in hot weather, up mountain grades, or when towing a trailer. It should not be allowed to exceed the upper limits of the normal operating range.
      WARNING
      A hot engine cooling system is dangerous. You or others could be badly burned by steam or boiling coolant. You may want to call an authorized dealer for service if your vehicle overheats Ú page 348.
      CAUTION
      Driving with a hot engine cooling system could damage your vehicle. If the temperature gauge reads “H,” pull over and stop the vehicle. Idle the vehicle with the air conditioner turned off until the pointer drops back into the normal range. If the pointer remains on the “H,” turn the engine off immediately and call an authorized dealer for service.
7. Fuel Gauge
   1. The pointer shows the level of fuel in the fuel tank when the ignition is in the ON/RUN position.
   2. The fuel pump symbol points to the side of the vehicle where the fuel door is located.

HIGHLINE INSTRUMENT CLUSTER — GASOLINE

HIGHLINE INSTRUMENT CLUSTER DESCRIPTIONS — GASOLINE

1. Tachometer
   1. Indicates the engine speed in revolutions per minute (RPM x 1000).
2. Instrument Cluster Display
   1. When the appropriate conditions exist, this display shows the instrument cluster display messages
   2. The display always shows one of the main menu items after ignition on.
3. Speedometer
   1. Indicates vehicle speed.
4. Temperature Gauge
   1. The pointer shows engine coolant temperature. The pointer positioned within the normal range indicates that the engine cooling system is operating satisfactorily.
   2. The pointer will likely indicate a higher temperature when driving in hot weather, up mountain grades, or when towing a trailer. It should not be allowed to exceed the upper limits of the normal operating range.
      WARNING
      A hot engine cooling system is dangerous. You or others could be badly burned by steam or boiling coolant. You may want to call an authorized dealer for service if your vehicle overheats.
      CAUTION
      Driving with a hot engine cooling system could damage your vehicle. If the temperature gauge reads “H,” pull over and stop the vehicle. Idle the vehicle with the air conditioner turned off until the pointer drops back into the normal range. If the pointer remains on the “H,” turn the engine off immediately and call an authorized dealer for service.
5. Fuel Gauge
   1. The pointer shows the level of fuel in the fuel tank when the ignition is in the ON/RUN position.
   2. The fuel pump symbol points to the side of the vehicle where the fuel door is located.

PREMIUM INSTRUMENT CLUSTER — GASOLINE

Holding the OK button on the Instrument Cluster Display controls located on the steering wheel will allow you to change your display from Digital to Analog.

PREMIUM INSTRUMENT CLUSTER DESCRIPTIONS — GASOLINE

1. Temperature Gauge
   1. The temperature gauge shows engine coolant temperature. Any reading within 203°F – 230°F (95°C – 110°C) indicates that the engine cooling system is operating satisfactorily.
   2. The pointer will likely indicate a higher temperature when driving in hot weather, up mountain grades, or when towing a trailer. It should not be allowed to exceed the upper limits of the normal operating range.
      WARNING
      A hot engine cooling system is dangerous. You or others could be badly burned by steam or boiling coolant. You may want to call an authorized dealer for service if your vehicle overheats Ú page 348.
      CAUTION
      Driving with a hot engine cooling system could damage your vehicle. If the temperature gauge reads “H,” pull over and stop the vehicle. Idle the vehicle with the air conditioner turned off until the pointer drops back into the normal range. If the pointer remains on the “H,” turn the engine off immediately and call an authorized dealer for service.
2. Speedometer
   1. Indicates vehicle speed.
3. Fuel Gauge
   1. The pointer shows the level of fuel in the fuel tank when the Keyless Push Button Ignition is in the ON/RUN position.
   2. The fuel pump symbol points to the side of the vehicle where the fuel door is located.
4. Tachometer
   1. Indicates the engine speed in revolutions per minute (RPM x 1000).
5. Instrument Cluster Display
6. The instrument cluster display features a driver interactive display.

NOTE:
The hard telltales will illuminate for a bulb check when the ignition is first cycled.
