Passenger Compartment Fuse Box
If any electrical component does not work, check the condition of the fuses. Fuses in passenger compartment.
2 main blocks with fuses can be installed in the cabin: on the left and right sides of the instrument panel (from the end, behind the protective cover.)
Fuses in passenger compartment A on the Left-hand side of the vehicle In the passenger compartment, components labeled “A” on the left-hand side are located near the A-pillar, beside the dashboard and front door frame.
Fuse Box Diagram
| Type | No. | Description |
|---|---|---|
| Fuse MINI20A | 1 | SPARE |
| Fuse MINI15A | 2 | SPARE |
| Fuse MINI5A | 4 | IMOB |
| Fuse MINI10A | 5 | SPARE |
| Fuse MINI5A | 6 | SPARE |
| Fuse MINI20A | 7 | BLOWER |
| Fuse MINI20A | 8 | BLOWER |
| Fuse MINI15A | 9 | 2ND POWER SOCKET |
| Fuse MINI10A | 10 | VDC |
| Fuse MINI20A | 11 | POWER WINDOW |
| Fuse MINI20A | 12 | EC AUTO ACC RR VIEW |
| Fuse MINI10A | 13 | STOP LAMP |
| Fuse MINI10A | 14 | ELEC B2 |
| Fuse MINI15A | 16 | RR DEF |
| Fuse MINI15A | 17 | RR DEF |
| Fuse MINI10A | 18 | H/MIRR |
| Fuse MINI10A | 21 | WASH MTR |
| Fuse MINI10A | 22 | HEAT STEER WHEEL |
| Fuse MINI15A | 23 | REAR WIPER |
| Fuse MINI15A | 24 | TURN HAZARD |
| Fuse MINI20A | 26 | POWER DR LOCK2 |
| Fuse MINI10A | 28 | BCM |
| Fuse MINI20A | 29 | POWER DR LOCK |
| Fuse MINI20A | 30 | AUDIO |
| Fuse MINI5A | 31 | ELEC B |
| Fuse MINI20A | 32 | BOSE |
| Fuse MINI10A | 35 | ACC RADIO |
| Fuse MINI20A | 36 | CIGAR LIGHTER |
| Fuse MINI15A | 37 | HEATER SEAT |
| Fuse MINI10A | 38 | B+ |
| Fuse MINI10A | 39 | B+ |
| Fuse Puller | Extraction tool for fuse replacemen |

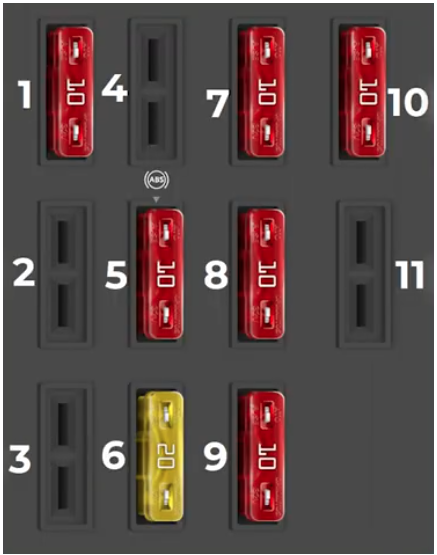

Passenger Compartment B Fuse Box
The passenger compartment B fuse box is typically located near the B- pillar or under the dashboard and contains fuses that protect various interior electrical components like power windows, interior lights, and infotainment systems.
Fuse Box Diagram
| Type | No. | Description |
|---|---|---|
| Fuse ATO10A | 1 | GEAR BOX OIL PUMP |
| Fuse ATO10A | 5 | ABS/EPS |
| Fuse ATO20A | 6 | MEDIA |
| Fuse ATO10A | 7 | SEAT BELT WARNING |
| Fuse ATO10A | 8 | AIR CON |
| Fuse ATO10A | 9 | JUNCTION MODULE |
| Fuse ATO10A | 10 | STRG WHEEL ANGLE |
If a fuse is fitted where the rating is too high, it may cause the electrical circuit to overheat (risk of fire) in the event of an item of equipment using an excessive amount of current.
