Toggle2024 Subaru Outback Instrument Cluster and Indicator Guide
The 2024 Subaru Outback instrument cluster and indicators include improved visibility for safety and convenience, and keeping drivers informed about performance measures and alerts to improve the driving experience.
2024 Subaru Outback Specs, Price, Features, Mileage (Brochure)
Video: 2024 Subaru Outback Dashboard Warning Indicators
Combination Meter

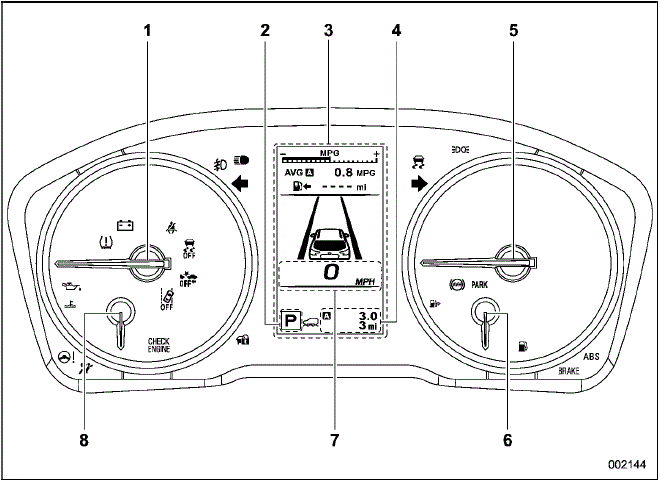

U.S.-Spec. Models

- Tachometer
- Select lever/gear position indicator
- Combination meter display (colour LCD)
- Trip meter and odometer
- Speedometer
- Fuel gauge
- Digital speed screen
- Engine coolant temperature gauge

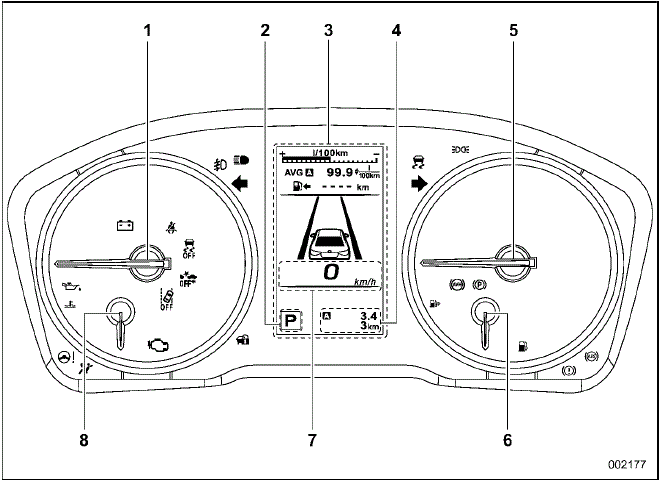

Except U.S.-Spec. Models

- Tachometer
- Select lever/gear position indicator
- Combination meter display (colour LCD)
- Trip meter and odometer
- Speedometer
- Fuel gauge
- Digital speed screen
- Engine coolant temperature gauge
Warning and Indicator Lights

Seatbelt warning light
Front passenger’s seatbelt warning light
Rear seatbelt warning light
SRS airbag system warning light
CHECK ENGINE warning light/Malfunction indicator light
Charge warning light
Oil pressure warning light
Engine low oil level warning light

AT OIL TEMP warning light
ABS warning light

The brake system warning light
Electronic parking brake indicator light
Door open indicator
Engine hood open warning light
Low fuel warning light
All-wheel drive warning light
Power steering warning light
Auto Vehicle Hold indicator light

Vehicle Dynamics Control warning light/Vehi-cle
Dynamics Control operation indicator light
Vehicle Dynamics Control OFF indicator light

Access key warning indicator
Security indicator light
Turn signal indicator lights
High beam indicator light
High beam assist indi-cator
Automatic headlight beam leveller warning light
LED headlight warning light
Steering Responsive Headlight OFF indicator light

Steering Responsive Headlight warning light
Front fog light indicator light

X-MODE indicator (Outback/Subaru Outback Wilderness)
Hill descent control indicator (Outback/Subaru Outback Wilderness)
Headlight indicator light
Low tyre pressure warning light (U.S.-spec. models)
Front passenger’s frontal airbag ON indicator light
The front passenger’s front airbag OFF indicator light
Windshield washer fluid warning light

Auto Start-Stop OFF indicator light
Auto Start-Stop indicator light (green)
Auto Start-Stop warning light (yellow)

Auto Start-Stop No Activity Detected indicator light
BSD/RCTA warning indicator
BSD/RCTA OFF indicator
Intelligent (I) mode indicator
Sport Sharp (S#) mode indicator
Icy road surface warning indicator
RAB warning indicator
RAB OFF indicator

Sonar audible alarm OFF indicator
Driver Monitoring Sys-tem operation indicator light (green)
Driver Monitoring Sys-tem warning light (yellow)

Driver Monitoring System OFF indicator light
Driver Monitoring System temporary stop indicator light
FAQ’s
The instrument cluster in the 2024 Subaru Outback is the dashboard panel that displays essential vehicle information, including speed, fuel level, and engine status.
You can customize the display settings through the vehicle’s infotainment system or the steering wheel controls, allowing you to choose which information is shown.
The ABS warning light indicates a malfunction in the Anti-lock Braking System, which may affect the vehicle’s braking performance.
You can change the units of measurement (e.g., miles to kilometres) through the settings menu in the instrument cluster or infotainment system.
The digital speedometer can be accessed through the instrument cluster menu, usually by using the steering wheel controls to navigate the display options.
