Subaru Tribeca B9 (2006 & 2007) Fuse Box Diagrams & Location
The Subaru Tribeca B9 (2006 & 2007) features multiple fuse boxes that protect essential electrical systems throughout the vehicle. This blog provides clear fuse box locations and diagrams to help you identify fuse positions, ratings, and protected components for easier electrical troubleshooting and maintenance.
Fuse Box Location

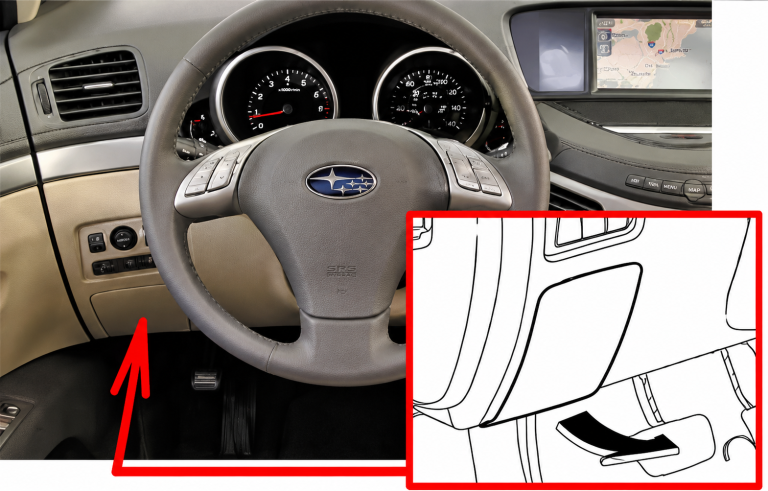

Passenger Compartment Fuse Box
It is located behind the cover to the left of the steering wheel.

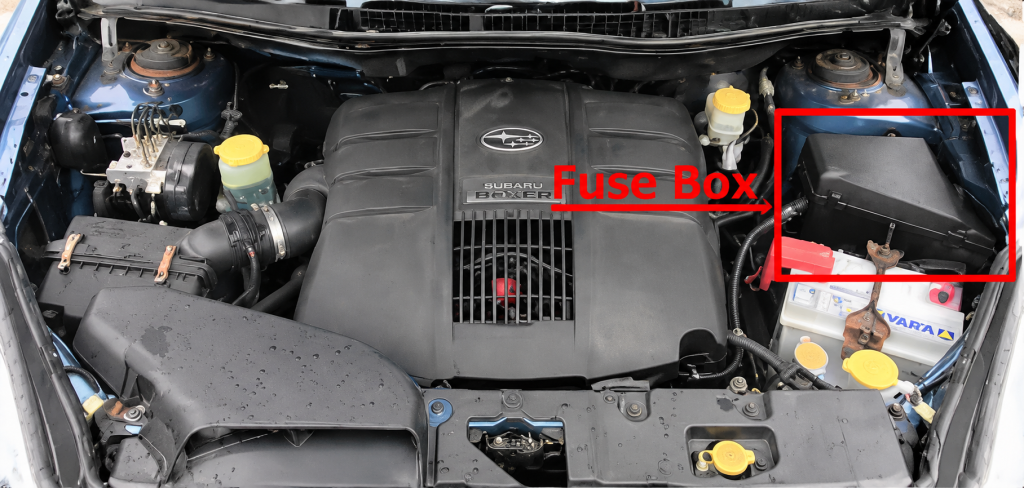

Engine Compartment Fuse Box
Fuse Box Diagrams

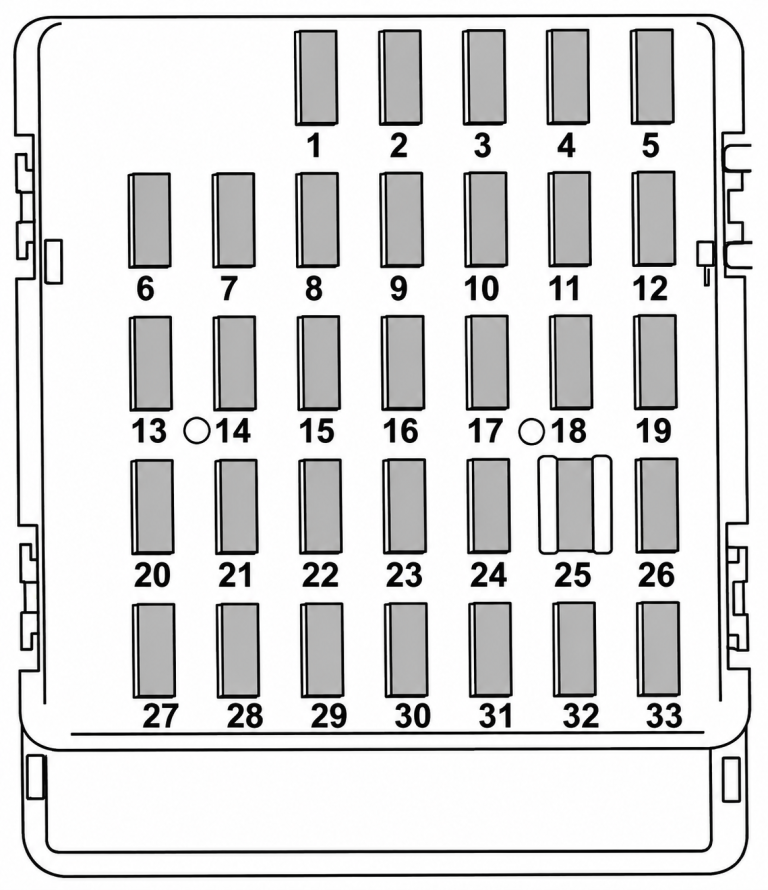

Passenger Compartment Fuse Box
| № | Amp rating | Circuit |
|---|---|---|
| 1 | 20A | Trailer hitch connector |
| 2 | Empty | |
| 3 | 15A | Door locking |
| 4 | 7.5A | Front wiper deicer relay, Moonroof |
| 5 | 7.5A | Combination meter |
| 6 | 7.5A | Remote control rear view mirrors, Seat heater relay |
| 7 | 15A | Combination meter, Integrated unit |
| 8 | 20A | Stop light |
| 9 | 20A | Mirror heater, Front wiper deicer |
| 10 | 7.5A | Power supply (Battery) |
| 11 | 7.5A | Turn signal unit |
| 12 | 15A | Automatic transmission unit, SRS airbag system (Sub), Engine control unit, Integrated unit |
| 13 | 20A | Cargo socket |
| 14 | 15A | Position light, Tail light, Rear combination light |
| 15 | 20A | Console socket |
| 16 | 10A | Illumination |
| 17 | 15A | Seat heaters |
| 18 | 10A | Backup light |
| 19 | 7.5A | Headlight right side relay |
| 20 | Empty | |
| 21 | 7.5A | Starter relay |
| 22 | 15A | Air conditioner, Rear window defogger relay coil |
| 23 | 15A | Rear wiper, Rear window washer |
| 24 | 15A | Audio unit |
| 25 | 15A | SRS airbag system (Main) |
| 26 | 7.5A | Power window relay |
| 27 | 15A | Rear blower fan |
| 28 | 15A | Rear blower fan |
| 29 | 15A | Fog light |
| 30 | 30A | Front wiper |
| 31 | 7.5A | Auto air conditioner unit, Integrated unit |
| 32 | 7.5A | Headlight left side relay |
| 33 | 7.5A | Vehicle dynamics control unit |

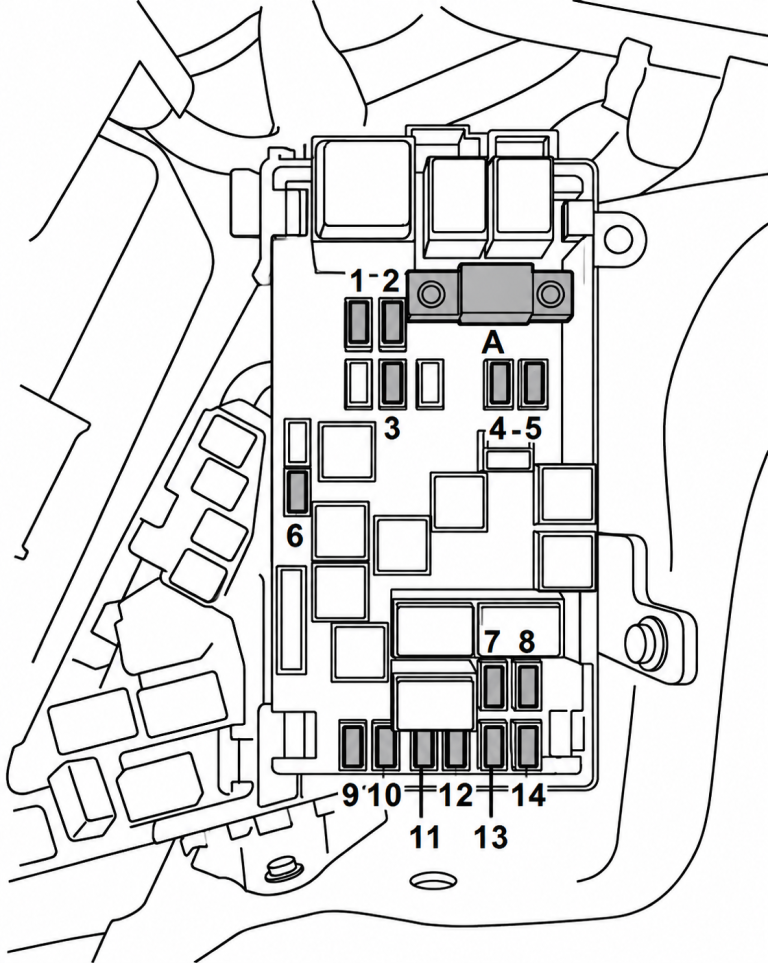

Engine Compartment Fuse Box
| № | Amp rating | Circuit |
|---|---|---|
| A | Main fuse | |
| 1 | 30A | Vehicle dynamics control unit |
| 2 | 25A | Main fan |
| 3 | 25A | Main fan |
| 4 | 15A | Headlight (right side) |
| 5 | 15A | Headlight (left side) |
| 6 | 20A | Backup |
| 7 | 15A | Horn |
| 8 | 25A | Rear window defogger |
| 9 | 15A | Fuel pump |
| 10 | 15A | Automatic transmission control unit |
| 11 | 7.5A | Engine control unit |
| 12 | 15A | Turn and hazard warning flasher |
| 13 | 20A | Parking switch |
| 14 | 7.5A | Alternator |
