2025 Toyota Tundra Display User Guide
The sophisticated 2025 Toyota Tundra Display will be covered in this tutorial, along with an examination of its features, capabilities, and personalization choices. Learn how the user-friendly controls and smooth connectivity of this cutting-edge technologies improve your driving experience.
2023 – 2024 Toyota Tundra Review Specs, Price And Mileage (Brochure)
Video: 2025 Toyota Tundra Dashboard Indicators
Toyota Multi-information Display Guide
The multi-information dis-play is used to display fuel efficiency related informa-tion and various types of driving-related information. The multi-information dis-play can also be used to change the display settings and other settings.
Display and menu icons
Display
4.2-inch display type
- Driving support system status display area
Displays an image when the follow-ing systems are operating and a menu icon other than is selected:- LTA (Lane Tracing Assist) (if equipped)
- Dynamic radar cruise control with full-speed range (if equipped)
- RSA (Road Sign Assist) (if equipped)
- Content display area
By selecting menu icons on the multi-information display, a variety of driving-related information can be displayed. The multi information display can also be used to change display settings and other vehicle settings. Warning or advice pop-up displays are also displayed in certain situa-tions.
Full LCD type
- Content display area
By selecting menu icons on the multi-information display, a variety of driving-related information can be displayed. The multi information display can also be used to change display settings and other vehicle settings. Warning or advice pop-up displays are also displayed in certain situa-tions. - Driving support system status display area
- LTA (Lane Tracing Assist)
- Dynamic radar cruise control with full-speed range
- RSA (Road Sign Assist) (if equipped)
Menu icons
The menu icons will be dis-played by pressing the or meter control switch.
4.2-inch display type
Driving information display
Driving support system information display
Audio system-linked display
Vehicle information display
Settings display
Warning message display
Full LCD type
Driving information display
Navigation system-linked display
Audio system-linked display
Vehicle information display
Settings display
Warning message display
Changing the display
The multi-information display is operated using the meter control switches.
- Scroll the screen*/switch the display*/move the cursor
- Press: Enter/Set Press and hold: Reset/Dis-play customizable items
- Return to the previous screen
- Call sending/receiving and history display
Linked with the hands-free system, sending or receiving call is dis-played. For details regarding the hands-free system, refer to the
“MULTIMEDIA OWNER’S MAN-UAL”.
On screens where the screen can be scrolled and the display can be switched, a scroll bar or a round icon that shows the num-ber of registered screens is dis-played.
WARNING
Caution for use while driving
For safety, avoid operating the meter control switch while driving as much as possible, and do not look continuously at the multi-information display while driving. Stop the vehicle and operate the meter control switch. Failure to do so may cause a steering wheel operation error, resulting in an unexpected accident.
Content of driving infor-mation
Select to display fuel consump-tion data in various forms.
Speedometer display/Dis-tance to empty (4.2-inch display type only)
- Speedometer display Displays the vehicle speed.
- Distance to empty
Displays the driving range with remaining fuel.

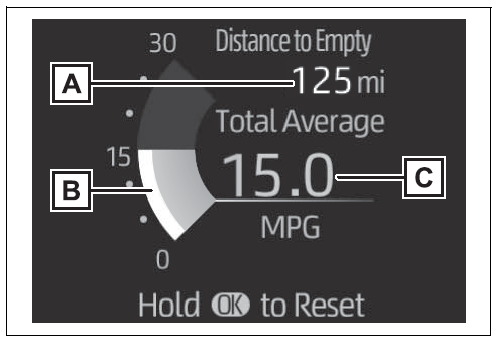

Fuel economy
Use the displayed values as a ref-erence only.
- Distance to empty
Displays the driving range with remaining fuel. - Current fuel consumption Displays instantaneous current fuel consumption.
- Average fuel economy (after reset)
To reset the average fuel economy display, press and hold the
meter control switch. The average fuel economy display can be changed in .
- Average fuel economy (after start)
Displays the average fuel con-sumption since engine start. - Average fuel economy (after refuel)
Displays the average fuel con-sumption since the vehicle was refueled.
Eco Driving Indicator/Dis-tance to empty
Eco Driving Indicator
- Eco Driving Indicator Zone Display
Suggests the Zone of Eco driving with current Eco driving ratio based on acceleration. - Eco driving ratio based on acceleration
If the acceleration exceeds the Zone of Eco driving, the right side of the Eco Driving Indicator Zone Display will illuminate. - Zone of Eco driving
- Distance to empty
Displays the driving range with remaining fuel.
Distance to empty
- This distance is computed based on your average fuel consump-tion. As a result, the actual dis-tance that can be driven may differ from that displayed.
- When only a small amount of fuel is added to the tank, the display may not be updated. When refuel-ing, turn the engine switch to OFF. If the vehicle is refueled without turning the engine switch to OFF, the display may not be updated.
- When “Refuel” is displayed, the remaining fuel amount is low and the distance that can be driven with the remaining fuel cannot be calculated. Refuel immediately.
Driving support system information display (4.2-inch display type only)
Driving support system information
Select to display the operational status of the following systems:
- LTA (Lane Tracing Assist) (if equipped)
- Dynamic radar cruise control with full-speed range (if equipped)
Navigation system-linked display
Select to display the following navigation system-linked infor-mation:
- Route guidance to destination
- Compass display (heading-up display)
Navigation system-linked display (full LCD type only)
Select to display the following navigation system-linked infor-mation:
- Route guidance to destination
- Compass display (heading-up display)
Audio system-linked dis-play
The operating conditions of the audio system can be displayed on the multi-information display.
Vehicle information dis-play
Trailer brake
Displays trailer brake control status and trailer type To select the. trailer, press and hold the meter control switch
Trailer Mode BSM
Displays trailer length* and trailer blind spot status To select the trailer, press and hold the meter control switch.
Pitch and roll gauges (4.2-inch display type only)
Displays the longitudinal and lat-eral inclination of the vehicle
Drive information
2 items that are selected using the “Drive Info Items” setting
(average speed, distance and total time) can be displayed ver-tically. The displayed information changes according to the “Drive Info Type” setting (since the sys-tem was started or between resets). Use the displayed information as a reference only. Following items will be displayed.
“Trip”
- “Average Speed”: Displays the average vehicle speed since engine start*
- “Distance”: Displays the distance driven since engine start*
- “Total Time”: Displays the elapsed time since engine start*
These items are reset each time the engine stops.
2023 – 2024 Toyota Tundra Review Specs, Price And Mileage (Brochure)
“Total”
- “Average Speed”: Displays the average vehicle speed since the display was reset*
- “Distance”: Displays the distance driven since the display was reset*
- “Total Time”: Displays the elapsed time since the display was reset*
To reset, display the desired item and press and hold the meter control switch.
Tire inflation pressure
Displays inflation pressure of each tire.
Settings display
Meter display settings that can be changed
- Language
Select to change the language dis-played. - Units
Select to change the units of mea-sure displayed. - Meter Type (full LCD type only)
Select to change the main dial type to speedometer or tachometer. - (Driving information display settings)
- Fuel economy display
Select to change the average fuel consumption display between after start/after reset/after refuel. - (Audio settings)
Select to display/not display the audio system linked display. - (Vehicle information display settings)
Select to change the displayed con-tent of the following: - Drive information type
Select to change the drive informa-tion type display between after start/after reset. - Drive information items
Select to set the first and second items of the drive information dis-play to any of the following: average vehicle speed/distance/elapsed time. - Pop-up display
Select to enable/disable pop-up displays for each relevant system. - Multi-information display off
Select to turn the multi-information display off. To turn the multi-information display on again, press any of the meter control switches. - Default setting
Select to reset the meter display settings to the default setting.
Changing settings of the trailer type

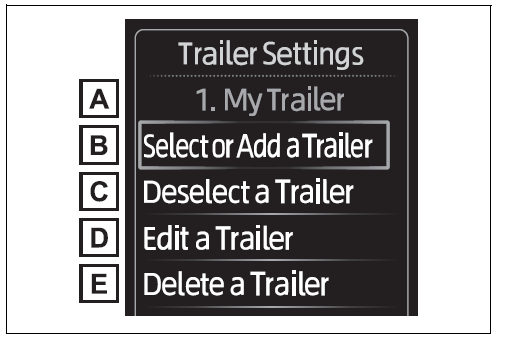

Trailer settings screen
- Displays the name of the cur-rently selected trailer or “No Trailer Selected” if a trailer has not yet been selected
- Add a new trailer or select an existing saved trailer
- Maximum of 10 trailers can be saved.
- Select the trailer name, length, hitch type, brake type and num-ber of axles.
- The parameters which can be set depend on which of the trailer systems are installed on the vehi-cle. (Trailer Brake Controller, Trailer Backup Guide and Trailer Mode BSM)
- Deselect the currently selected trailer
- Used when a 4-pin trailer connec-tor has been disconnected. (4-pin trailer connector disconnection cannot be automatically detected by Trailer Brake Controller)
- Edit the parameters of a saved trailer (name, length, hitch type, brake type and number of axles)
- The parameters which can be edited depend on which of the trailer systems are installed on the vehicle (Trailer Brake Control-ler, Trailer Backup Guide and Trailer Mode BSM)
- Delete a saved trailer
- Trailer detail screen
- Displays the name of the cur-rent trailer which is being added or edited.
- Change the name of the trailer.
- Change the hitch type of the trailer between ball hitch (conventional), gooseneck or fifth wheel. Note that goose-neck and fifth wheel trailers are not supported for some features (Trailer Backup Guide and Trailer Mode BSM)
- Change the length of the trailer. If the exact length is not listed, round up the actual length of the trailer to the closest available value.
“Auto” length detection can also be selected. - Change the number of axles.
- Change the brake type (elec-tric or electric over hydraulic) and weight of the trailer, or turn trailer brakes off for that trailer.
- Save the trailer information
If there are any errors with the trailer values, re-select the value or delete and re-save the trailer. If the error continues, contact your Toy-ota dealer.
Vehicle functions and set-tings that can be changed
Suspension of the settings dis-play
- Some settings cannot be changed while driving. When changing set-tings, park the vehicle in a safe place.
- If a warning message is displayed, operation of the settings display will be suspended.
WARNING
Cautions during setting up the display
If the engine is running when changing the display settings, ensure that the vehicle is parked in a place with adequate ventila-tion. In a closed area such as a garage, exhaust gases including harmful carbon monoxide (CO) may collect and enter the vehicle. This may lead to death or a seri-ous health hazard.
NOTICE
During setting up the display
To prevent battery discharge, ensure that the engine is running while setting up the display fea-tures.
Warning message display
Select to display warning mes-sages and measures to be taken if a malfunction is detected.
Stop & Start system infor-mation
- Stop & Start system opera-tion time (after start)/status notification Displays the current amount of time the engine has been stopped by the operation of the Stop & Start sys-tem. Also shows the status of the Stop & Start system with a pop-up display.
- Stop & Start system settings
The length of time of the Stop & Start system will operate when the “A/C” switch of the air conditioning system is on can be set to 2 different levels in of the multi-information display.
