Chery Tiggo 7 T15 (2016 – 2020) Fuse Box Diagrams & Location

Find the fuse box locations and fuse diagrams for the Chery Tiggo 7 T15 (2016–2020). Quickly identify fuse and relay assignments to troubleshoot electrical issues and replace blown fuses with confidence.

Fuse Box Location

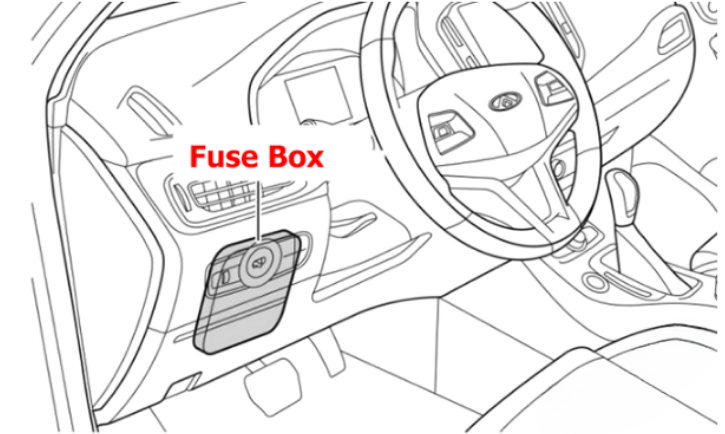

Passenger Compartment Fuse Box

The fuses are located on the lower left side of instrument panel.

Passenger-Compartment-Fuse-Box-Location-2

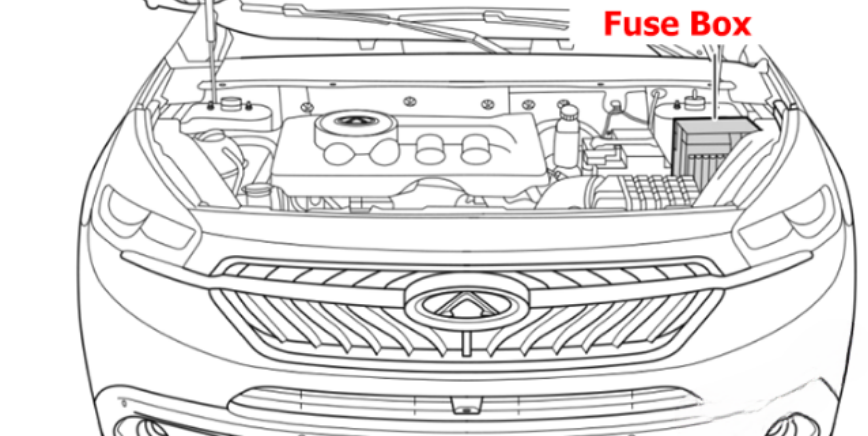

Engine Compartment Fuse Box

The fuse box is located on the left side of engine compartment and the rear side of left headlight.

Engine-Compartment-Fuse-Box-Location-1

Fuse Box Diagrams

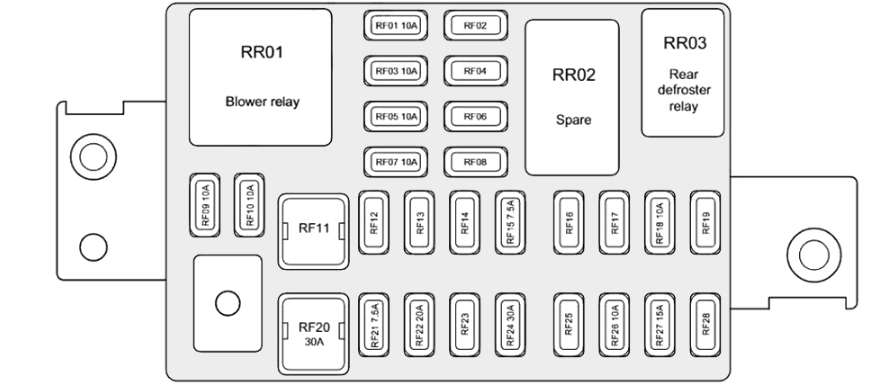

Passenger Compartment Fuse Box

Passenger-Compartment-Fuse-Box-Diagram-1

№ Description
RF01 BCM
RF02 –
RF03 Steering Wheel Rotation Angle Sensor, EPS
RF04 Main Blind Spot Monitor Radar, Auxiliary Blind Spot Monitor Radar
RF05 Airbag Module
RF06 –
RF07 A/C Wire Harness Interface, Audio Head Unit, Automatic A/C Panel, Headlight Adjustment Switch, DCT Shift Mechanism
RF08 –
RF09 A/C Wire Harness Interface, Audio Head Unit, Audio Head Unit, Automatic A/C Panel
RF10 Instrument Cluster, Rain Sensor
RF11 –
RF12 –
RF13 –
RF14 –
RF15 Around View Monitor
RF16 –
RF17 –
RF18 A/C Panel, Left/Right Outside Rear View Mirror, A/C Wire Harness Interface
RF19 –
RF20 Power Supply of Blower Relay Output Terminal
RF21 –
RF22 –
RF23 –
RF24 Power Supply of Rear DEF Relay Output Terminal
RF25 –
RF26 Mirror Adjustment Switch, BCM, Sunroof
RF27 Cigarette Lighter
RF28 –

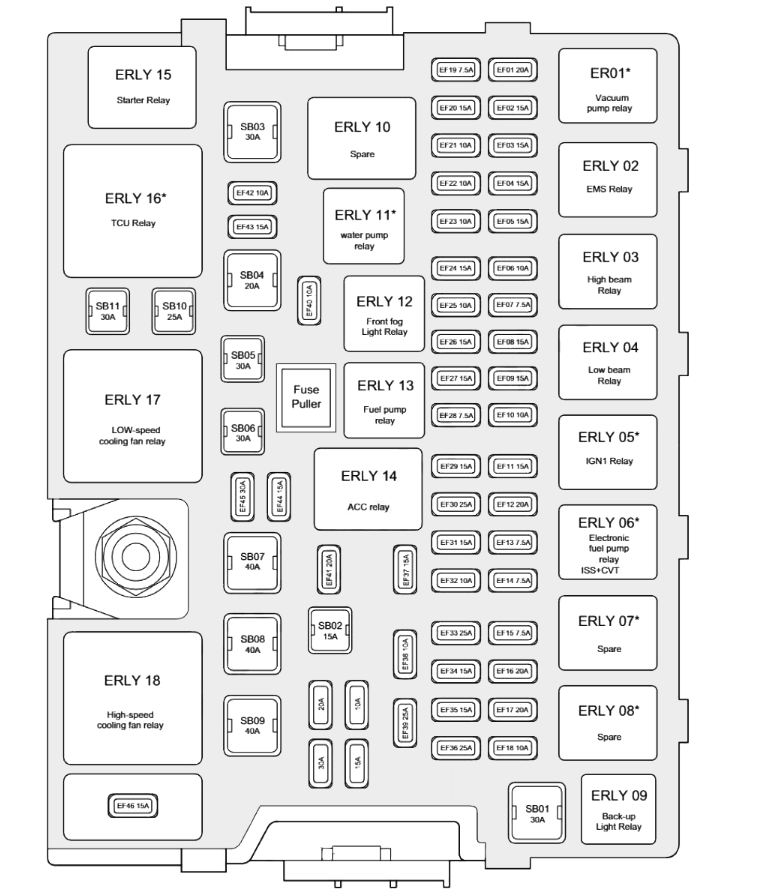

Engine Compartment Fuse Box

Main Fuse

Engine-Compartment-Fuse-Box-Diagram-1

№ Description
SB01 Reserve
SB02 ACC
SB03 Starter/drive chain
SB04 TCU/DCT
SB05 BCM 2
SB06 BCM 1
SB07 ESP/ABS
SB08 EPB
SB09 ACM/EPB
SB10 ESP/ABS
SB11 Seat adjustment SEAT
EF01 Vacuum pump
EF02 Oxygen sensor
EF03 Ignition coil 3
EF04 ECU solenoid valve
EF05 PPD& HVH
EF06 Reserve
EF07 Right headlight high beam
EF08 Left headlight low beam
EF09 Reserve
EF10 ECU & fan controller with hybrid system
EF11 PEPS
EF12 LT & PTC water pump
EF13 ECU & TCU brake switch 15+ Sreversing sensor & IPU with hybridsystem
EF14 Inner mirror & A/C pressure switch& reversing radar
EF15 PEPS & 4WD
EF16 Electronic oil pump
EF17 Reserve
EF18 Back-up light
EF19 Alternator excitation
EF20 Injector
EF21 Reserve
EF22 Water pump
EF23 POD & PPD & EAC
EF24 Horn
EF25 Left headlight high beam
EF26 Right headlight low beam
EF27 Front fog light
EF28 ESP & ABS & ACM
EF29 Fuel pump
EF30 BCM 6
EF31 IGN 1
EF32 Brake switch & PEPS & DOT 30+
EF33 ACM
EF34 BCM 5
EF35 BCM 3
EF36 Reserve
EF37 Spare power 2
EF38 ECU & TCU 30+
EF39 Wiper
EF40 4WD & IPU
EF41 Seat heating
EF42 Air conditioning compressor
EF43 Reserve
EF44 BCM 4
EF45 Sunroof
EF46 Marine insurance
EF51 –

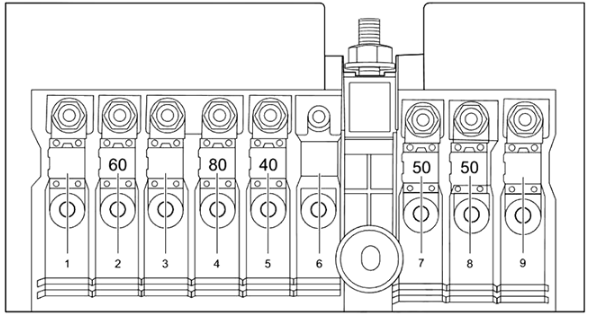

Power fuses

Engine-Compartment-Fuse-Box-Power-fuses

№ Amps Description
1 – –
2 60A Instrument Panel Fuse and Relay Box
3 – –
4 80A EPS
5 40A Low-speed Cooling Fan
6 – –
7 150A Alternator
8 50A High-speed Cooling Fan
9 – –
