Fiat Doblo (2000 – 2010) Fuse Box Diagrams & Location
The Fiat Doblo (2000 – 2010) fuse box location and diagrams provide essential information for identifying fuse panels, understanding fuse assignments, and troubleshooting electrical issues. This guide helps owners and technicians quickly locate fuse boxes and review detailed layouts for proper maintenance, repairs, and electrical system checks.
Fuse Box Location

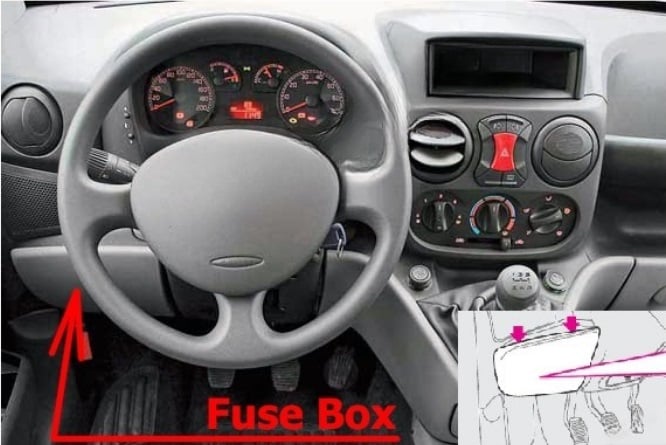

Passenger Compartment Fuse Box
Press in the points to remove the cover and reach the fuses.

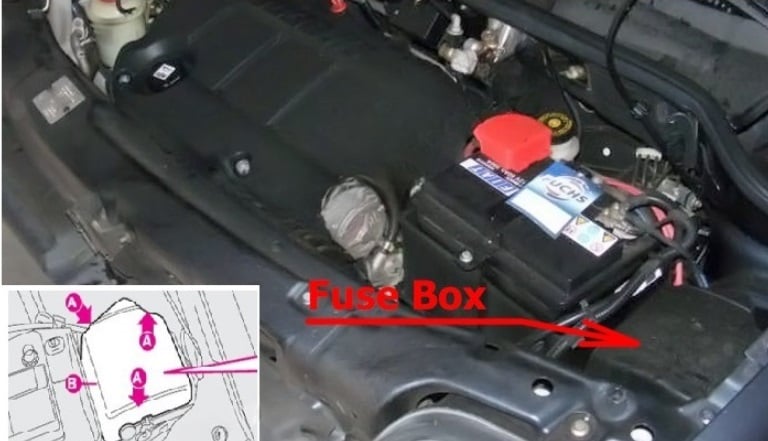

Engine Compartment Fuse Box
The fuses in the Fiat Doblo are grouped in two fuseboxes, one located in the dashboard and the other in the engine compartment.
Fuse Box Diagrams

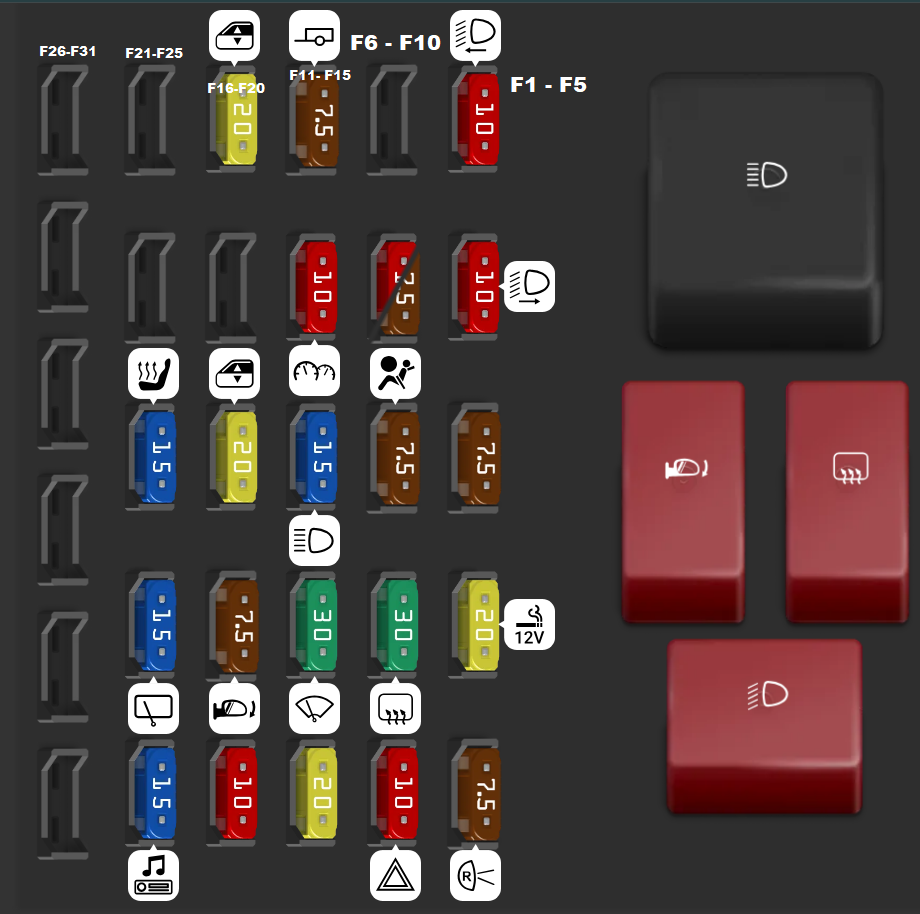

Passenger Compartment Fuse Box
| Type | No. | Description | |
|---|---|---|---|
|
Fuse MINI
10A |
F1 |
Left-hand dipped beam, headlight beam adjuster
View problems with the headlight fuse…
|
|
|
Fuse MINI
10A |
F2 |
Right-hand dipped beam
View problems with the headlight fuse…
|
|
|
Fuse MINI
7.5A |
F3 |
Dashboard instrument lights, number plate light
|
|
|
Fuse MINI
20A |
F4 |
Cigar lighter, supplementary power socket
View problems with the cigarette lighter fuse…
|
|
|
Fuse MINI
7.5A |
F5 |
Pump system relay, fan system relay passenger compartment heater, manual climate control enable control, reversing light
|
|
|
Fuse MINI
10A |
F7 |
Boot, ceiling light, ABS control unit (ignition switch powered)
|
|
|
Fuse MINI
7.5A |
F7 |
Boot, ceiling light, ABS control unit (ignition switch powered)
|
|
|
Fuse MINI
7.5A |
F8 |
Air bag
|
|
|
Fuse MINI
30A |
F9 |
Heated rear window
|
|
|
Fuse MINI
10A |
F10 |
Direction indicators, hazard lights, instrument panel and warning lights (battery powered)
|
|
|
Fuse MINI
7.5A |
F11 |
Sound system, cellular telephone, dashboard control lighting electrical mirrors, trailer, heated seat control lighting (+15 services), safet belt buzzer muting relay
|
|
|
Fuse MINI
10A |
F12 |
Brake lights, instrument panel and warning lights (ignition switch powered), additional brake light (third stop light)
|
|
|
Fuse MINI
15A |
F13 |
Light system
View problems with the headlight fuse…
|
|
|
Fuse MINI
30A |
F14 |
Windscreen wiper, windscreen-rear window washer pump
|
|
|
Fuse MINI
20A |
F15 |
Door locking system
|
|
|
Fuse MINI
20A |
F16 |
Right front power window
|
|
|
Fuse MINI
20A |
F18 |
Left front power window
|
|
|
Fuse MINI
7.5A |
F19 |
Heated rear view mirrors
|
|
|
Fuse MINI
10A |
F20 |
Sound system, cellular telephone, diagnostic socket (+ 30 services)
|
|
|
Fuse MINI
15A |
F23 |
Heated seats
|
|
|
Fuse MINI
15A |
F24 |
Rear window wiper
|
|
|
Fuse MINI
15A |
F25 |
Subwoofer system
|
|
|
Relay
|
R1 |
Headlamp relay
|
|
|
Relay
|
R2 |
Heated rear view mirrors relay
|
|
|
Relay
|
R3 |
Heated rear window relay
|
|
|
Relay
|
R4 |
Low beam relay
|

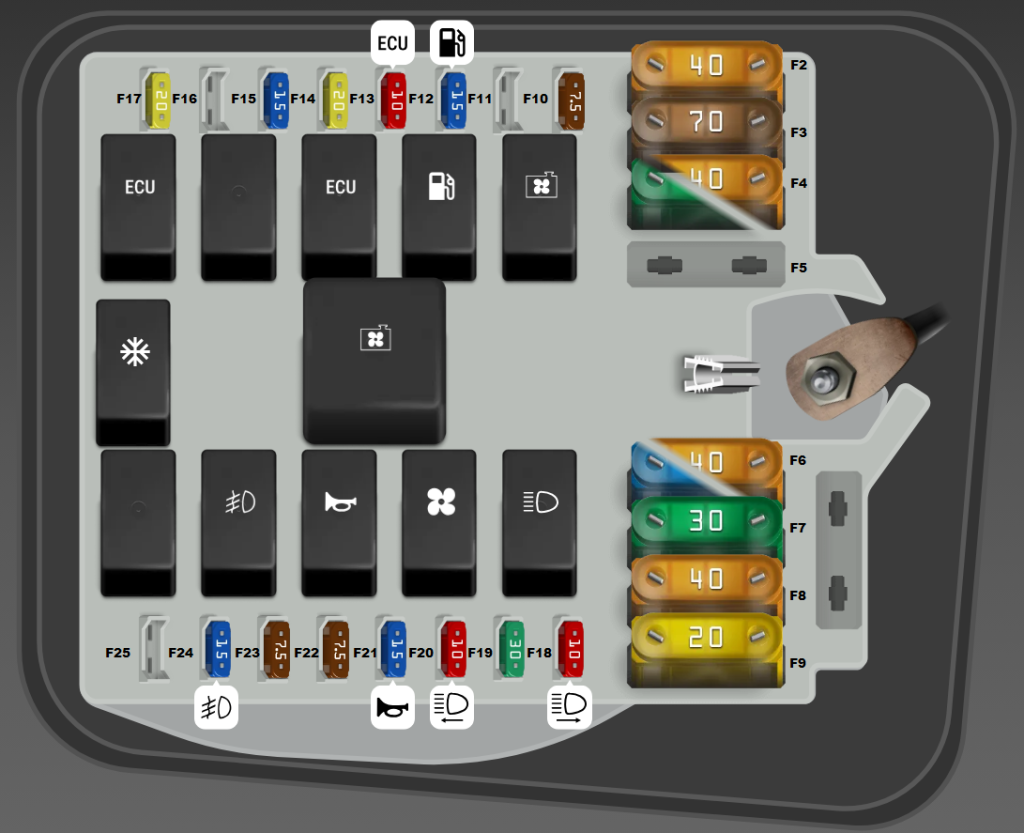

Engine Compartment Fuse Box
| Type | Fuse/Relay | Description |
|---|---|---|
| Fuse MAXI 40A | F2 | Dashboard control unit power optional functions |
| Fuse MAXI 70A | F3 | Dashboard control unit power standard functions |
| Fuse MAXI 30A | F4 | One-speed radiator fan, Radiator fan first speed (versions with manual climate control system) |
| Fuse MAXI 40A | F4 | Radiator fan first speed (1.3 – 1.9 Multijet versions) |
| Fuse MAXI 60A | F6 | Radiator fan second speed (1.4 – 1.6 versions with manual climate control system) |
| Fuse MAXI 40A | F6 | Radiator fan second speed (1.3 – 1.9 Multijet versions) |
| Fuse MAXI 30A | F7 | ABS power (valve) |
| Fuse MAXI 40A | F8 | ABS power (pump) |
| Fuse MAXI 20A | F9 | Ignition switch |
| Fuse MINI 7.5A | F10 | Engine cooling system relay, engine control unit (+battery) |
| Fuse MINI | F11 | Not used |
| Fuse MINI 15A | F12 | Fuel pump |
| Fuse MINI 10A | F13 | Engine control unit (power) |
| Fuse MINI 20A | F14 | Ignition coils, injectors, fuel pump |
| Fuse MINI 15A | F15 | Engine control system secondary loads, petrol fume recirculation solenoid valve, glow plug control unit, tachometer generator, lambda sensors (oxygen sensors) |
| Fuse MINI | F16 | Not used |
| Fuse MINI 20A | F17 | Fuel filter heater |
| Fuse MINI 10A | F18 | Right-hand main beam |
| Fuse MINI 30A | F19 | Passenger compartment fan |
| Fuse MINI 10A | F20 | Left-hand main beam |
| Fuse MINI 15A | F21 | Horn |
| Fuse MINI 7.5A | F22 | Manual climate control compressor |
| Fuse MINI 7.5A | F23 | Engine control unit (ignition switch powered), engine cooling system relay |
| Fuse MINI 15A | F24 | Front fog lights |
| Fuse MINI | F25 | Not used |
| Fuse Puller | Fusepuller1 | Extraction tool for fuse replacement |
| Relay | R1 | Cooling fan relay |
| Relay | R2 | Cooling fan relay |
| Relay | R3 | Fuel pump relay |
| Relay | R4 | Engine control relay |
| Relay | R6 | Engine control relay |
| Relay | R7 | A/C relay |
| Relay | R9 | Fog lamp relay |
| Relay | R10 | Horn relay |
| Relay | R11 | Blower relay |
| Relay | R12 | High beam relay |
