GAC Empow (2021 – 2023) Fuse Box Diagrams & Location
Looking for the fuse box in your GAC Empow (2021–2023)? This guide shows the fuse box locations, detailed fuse diagrams, and relay assignments to help you quickly identify fuses and troubleshoot electrical problems.
Fuse Box Location

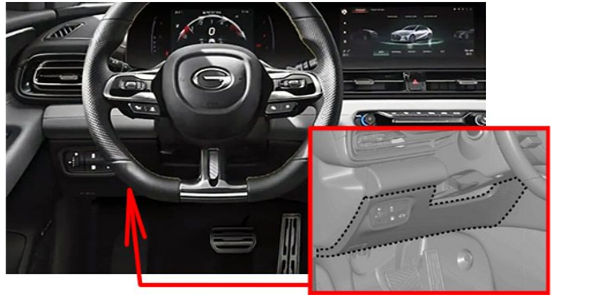

Passenger Compartment Fuse Box
Remove the left lower guard panel (dotted shaded part) of the instrument panel.

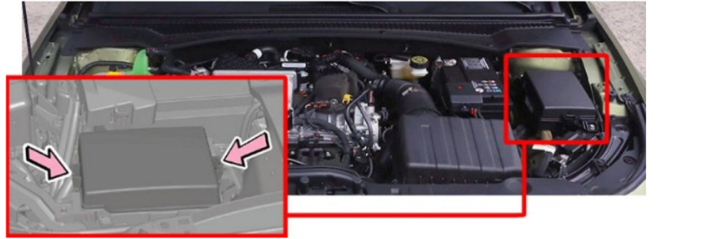

Engine Compartment Fuse Box
Press the fixing clip in the direction of arrow to release the cover of the PDU.
Fuse Box Diagrams

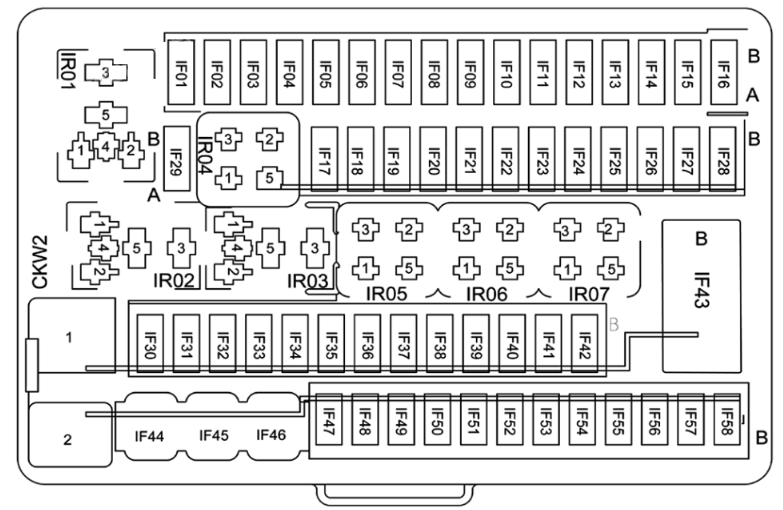

Passenger Compartment Fuse Box
| № | Amps | Function |
|---|---|---|
| IF01 | 20A | Front 12V power outlet |
| IF02 | 7.5A | BCM |
| IF03 | 7.5A | ACU / DSM ECU |
| IF04 | 7.5A | USB charging port / Mobile phone WCM / DVR USB port |
| IF05 | — | — |
| IF06 | — | — |
| IF07 | — | — |
| IF08 | 7.5A | T-BOX ECU |
| IF09 | 7.5A | HVAC control unit / Mobile phone WCM / RF receiver module / RLS / Smart Bluetooth module |
| IF10 | 10A | AV display (10.25-inch) / HCP / IAL |
| IF11 | 7.5A | OBU / GSM / SVM ECU / Left rear BSD ECU / Right rear BSD ECU / DSM ECU |
| IF12 | — | — |
| IF13 | 7.5A | Electronic anti-dazzling interior rearview mirror / defogger relay (ER07) |
| IF14 | 7.5A | BCM |
| IF15 | — | — |
| IF16 | — | — |
| IF17 | 10A | SRS ECU |
| IF18 | 7.5A | ECM / 7WDCT TCU / Electronic P gear actuator |
| IF19 | 7.5A | GWM/BCM |
| IF20 | — | — |
| IF21 | 7.5A | Brake switch / ESPI |
| IF22 | 7.5A | EPS ECU / GSM |
| IF23 | 7.5A | On-board ETC unit / Power sunroof ECU / Left front seat connector A (HVSM power supply) / HCP / HVAC control unit |
| IF24 | — | — |
| IF25 | 7.5A | Plasma generator / ALS switch / front combination lamp ( ALS motor power supply) |
| IF26 | T.5A | LDW / MRR module / instrument cluster / ACU / T-BOX control unit / RPA ECU / AVM ECU |
| IF27 | — | — |
| IF28 | — | — |
| IF29 | — | — |
| IF30 | — | — |
| IF31 | 20A | BCM (door lock power supply) |
| IF32 | 20A | BCM |
| IF33 | 20A | BCM (wiper power supply) |
| IF34 | — | — |
| IF35 | 7.5A | GWM |
| IF36 | 15A | BCM (turn signal lamp power supply) |
| IF37 | — | — |
| IF38 | — | — |
| IF39 | 7.5A | Instrument cluster / instrument cluster display (10.25-inch) |
| IF40 | 7.5A | Fuel filler cap lock motor / fuel filler cap lock relay (IR05) |
| IF41 | 7.5A | OBD DLC |
| IF42 | — | — |
| IF43 | Dark current switch | T-BOX ECU / HVAC control unit / mobile phone WCM / RF receiver module / RLS / smart Bluetooth module / AV system display (10.25-inch) / HCP / IAL / on-board ETC unit / GSM / AVM ECU / left rear BSD ECU / right rear BSD ECU / driver status monitoring ECU |
| IF44 | — | — |
| IF45 | 30A | Right front door control module |
| IF46 | 30A | Left front door control module |
| IF47 | 20A | BCM (main lighting power supply 2) |
| IF48 | 20A | BCM (main lighting power supply 1) |
| IF49 | 10A | Left front seat connector A (HVSM power supply) |
| IF50 | 15A | IG2 power supply |
| IF51 | 20A | Left front seat connector A (seat controller power supply) |
| IF52 | 20A | Right front seat connector A (seat adjusting switch power supply) |
| IF53 | 15A | BCM (windshield washer motor power supply) |
| IF54 | 20A | ACU |
| IF55 | 20A | Power sunroof ECU |
| IF56 | — | — |
| IF57 | — | — |
| IF58 | — | — |
| IR01 | — | ACC relay |
| IR02 | — | — |
| IR03 | — | — |
| IR04 | — | IG1 relay |
| IR05 | — | Fuel filler cap lock relay |
| IR06 | — | — |
| IR07 | — | IG2 relay |

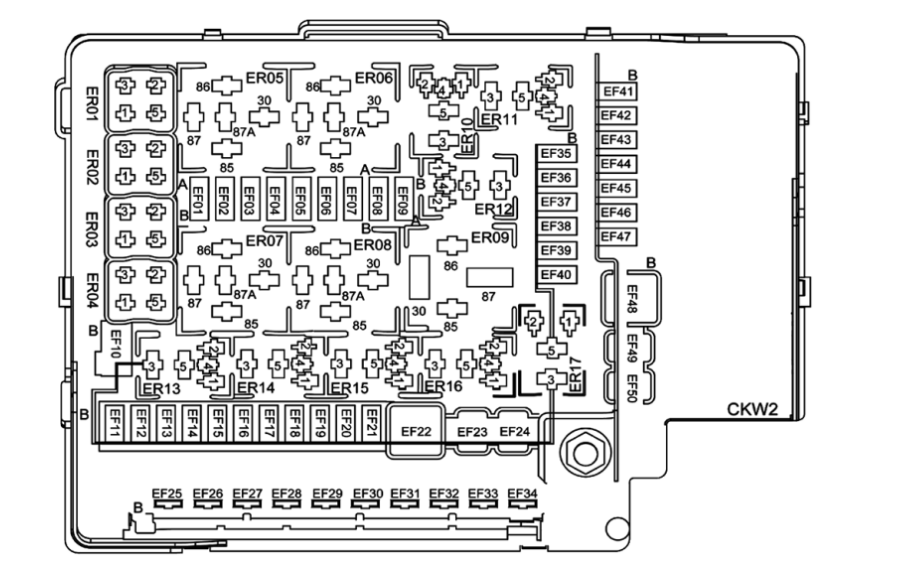

Engine Compartment Fuse Box
| № | Amps | Function |
|---|---|---|
| EF01 | — | — |
| EF02 | — | — |
| EF03 | — | — |
| EF04 | 7.5A | ECM |
| EF05 | — | — |
| EF06 | — | — |
| EF07 | 7.5A | Exterior rearview mirror heater |
| EF08 | — | — |
| EF09 | — | — |
| EF10 | 30A | 7WDCT TCU |
| EF11 | 30A | 7WDCT TCU |
| EF12 | 15A | Horn relay (ER03) / horn |
| EF13 | 30A | 7WDCT TCU |
| EF14 | 7.5A | MRR module / LDW ECU |
| EF15 | — | — |
| EF16 | 20A | Fuel pump |
| EF17 | 20A | Wiper/wiper speed control relay (ER11) / wiper relay (ER12) |
| EF18 | 7.5A | Brake switch |
| EF19 | 7.5A | Main relay (ER17) / ECM |
| EF20 | — | — |
| EF21 | — | — |
| EF22 | 60A | To instrument panel PDU |
| EF23 | 40A | ESPI |
| EF24 | 30A | IG1 On |
| EF25 | 30A | Starter |
| EF26 | 40A | ACC power supply |
| EF27 | 40A | Blower |
| EF28 | 40A | Rear windshield defogger heater + exterior rearview mirror heater |
| EF29 | — | — |
| EF30 | 50A | Cooling fan (low gear) |
| EF31 | — | — |
| EF32 | 60A | To instrument panel PDU |
| EF33 | 60A | Cooling fan (high gear) |
| EF34 | — | — |
| EF35 | 10A | Low speed fan relay (ER06) / high speed fan relay (ER09) / Fuel pump relay (ER14) / water pump relay (ER02) |
| EF36 | 15A | Ignition coil 1 / ignition coil 2 / ignition coil 3 / ignition coil 4 |
| EF37 | 15A | ECM / Starter relay 1(ER15) / Starter relay 2(ER16) |
| EF38 | 10A | Upstream oxygen sensor / Downstream oxygen sensor / Compressor relay (ER04) |
| EF39 | 10A | PCV heater relay (ER10) / PCV heater / Canister vent valve / Relief valve / Canister solenoid valve / Oil pump solenoid valve / Oil control valve (intake end) / Oil control valve (exhaust end) |
| EF40 | 10A | Left EAV valve / Right EAV valve |
| EF41 | — | — |
| EF42 | — | — |
| EF43 | 10A | Electric water pump |
| EF44 | — | — |
| EF45 | 7.5A | A/C compressor |
| EF46 | 20 A | Left front seat connector A (HVSM and seat controller power supply) |
| EF47 | — | — |
| EF48 | 40A | ESPI |
| EF49 | 30A | Electronic P gear actuator |
| EF50 | — | — |
| ER01 | — | — |
| ER02 | — | Water pump relay |
| ER03 | — | Horn relay |
| ER04 | — | Compressor relay |
| ER05 | — | Blower relay |
| ER06 | — | Low speed fan relay |
| ER07 | — | Defogger relay |
| ER08 | — | — |
| ER09 | — | High speed fan relay |
| ER10 | — | PCV heater relay |
| ER11 | — | Wiper speed control relay |
| ER12 | — | Wiper relay |
| ER13 | — | — |
| ER14 | — | Fuel pump relay |
| ER15 | — | Starter relay 1 |
| ER16 | — | Starter relay 2 |
| ER17 | — | Main relay |

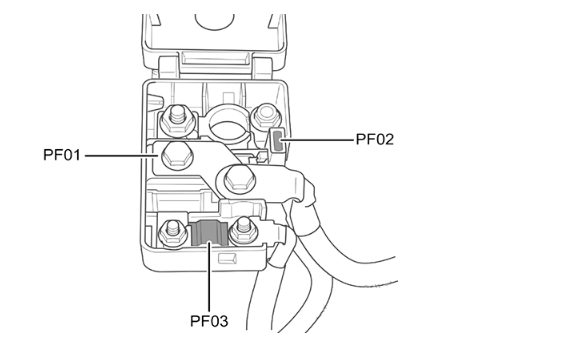

Fuse in PFB
| № | Amps | Function |
|---|---|---|
| PF01 | 300A | Starter / Engine compartment PDU / Alternator |
| PF02 | 7.5A | EBS |
| PF03 | 80A | EPS ECU |
