Hyundai Kona (2018 – 2023) Fuse Box Diagrams & Location
The Hyundai Kona (2018–2023) fuse box location and diagrams help you quickly identify every fuse and relay in your vehicle. This blog makes troubleshooting electrical issues, replacing blown fuses, and understanding fuse assignments easier, ensuring safe maintenance and reliable vehicle performance.
Fuse Box Location

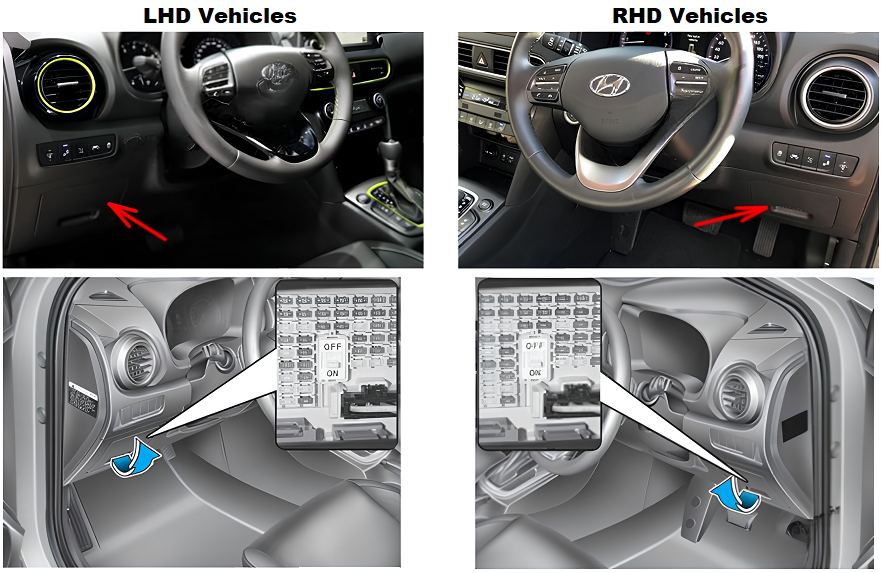

Passenger Compartment Fuse Box
The fuse box is located on the driver’s side of the instrument panel behind the cover.

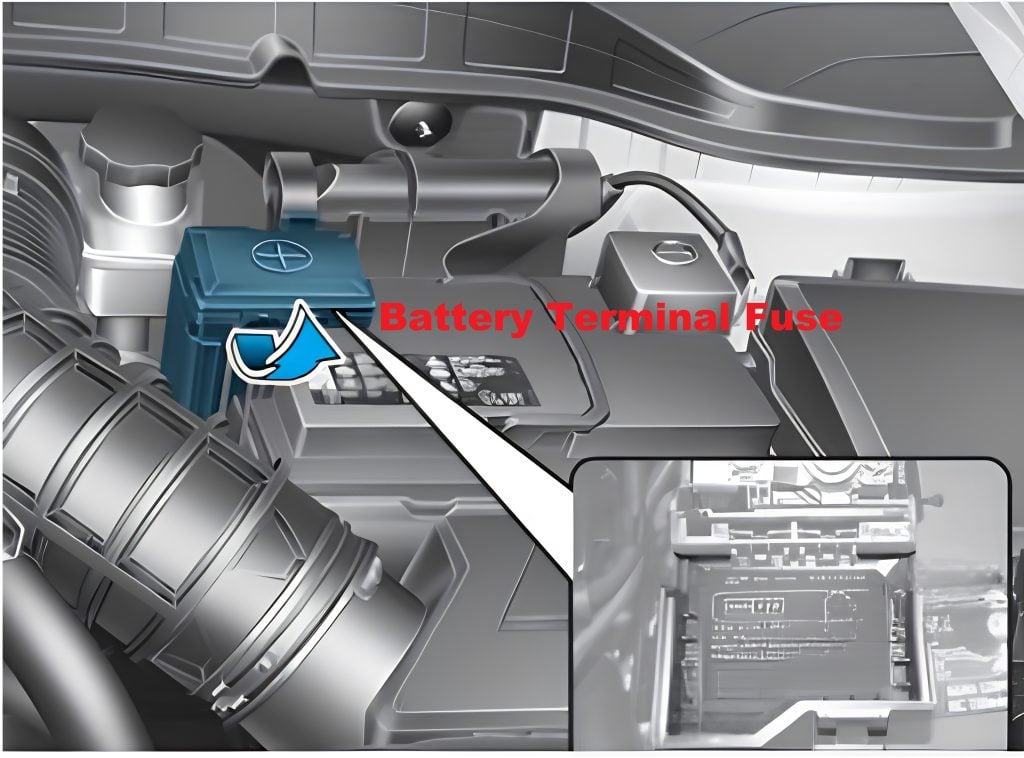

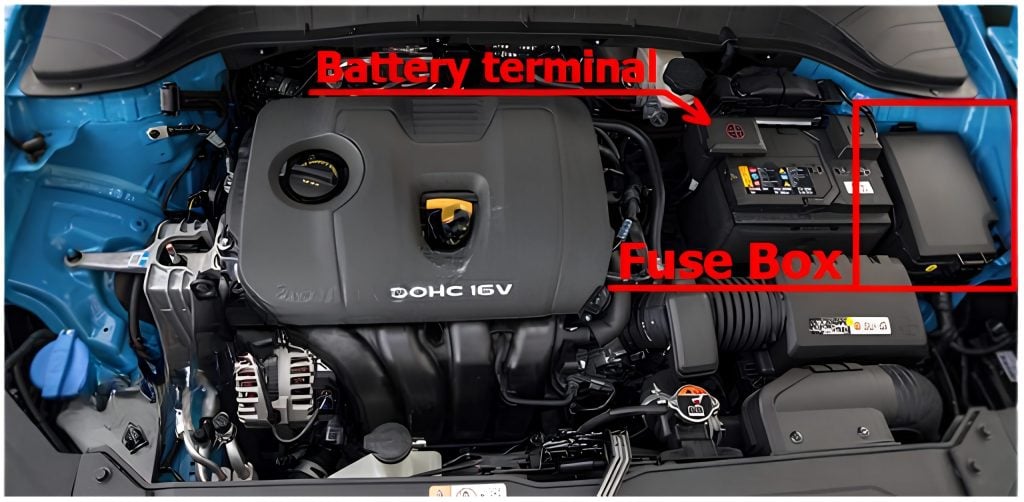

Engine Compartment Fuse Box
The fuse box is located in the engine compartment (left side)
Fuse Box Diagrams

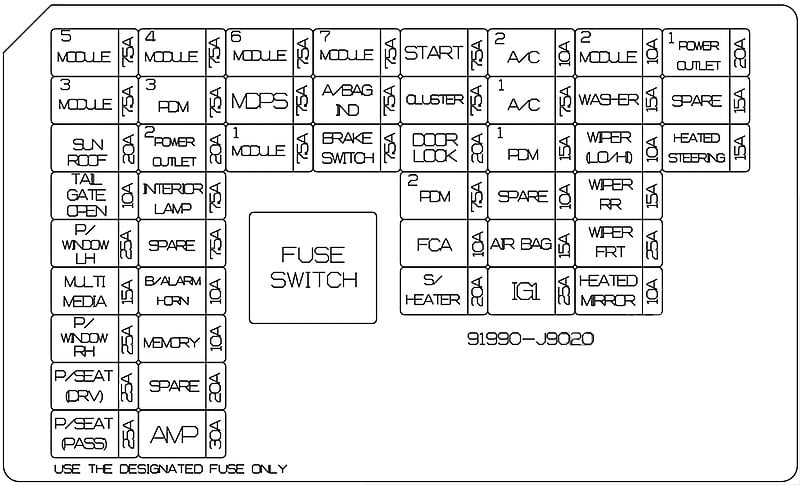

Passenger Compartment Fuse Box
Hyundai Kona (2018 – 2021)
| Name | Amp Rating | Protected Component |
|---|---|---|
| MODULE 5 | 7.5A | ATM Shift Lever IND. Electrochromic Mirror, AMR A/V & Navigation Head Unit, A/C Control Module, Front Air Ventilation Seat Module, Front Seat Warmer Module |
| MODULE 3 | 7.5A | Stop Lamp Switch, BCM, ATM Shift Lever |
| SUNROOF | 20A | Sunroof Unit |
| TAIL GATE OPEN | 10A | Tail Gate Relay |
| P/WINDOW LH | 25A | Power Window LH Relay, Driver Safety Power Window Module |
| MULTI MEDIA | 15A | A/V & Navigation Head Unit |
| P/WINDOW RH | 25A | Power Window RH Relay, Passenger Safety Power Window Module |
| P/SEAT (DRV) | 25A | Driver Seat Manual Switch |
| P/SEAT (PASS) | 25A | Passenger Seat Manual Switch |
| MODULE 4 | 7.5A | Blind-Spot Collision Warning Unit LH/RH, Active Air Flap, BCM, Parking Distance Warning Buzzer, Lane Keeping Assist Unit (Line), 4WD ECM |
| PDM3 | 7.5A | Smart Key Control Module, Immobilizer Module |
| POWER OUTLET 2 | 20A | ICM Relay Box(Power Outlet Relay) |
| INTERIOR LAMP | 7.5A | Glove Box Lamp, Vanity Lamp LH/RH, Room Lamp, Overhead Console Lamp, Wiresess Charger Unit, Driver Console Switch, Luggage Lamp |
| B/ALARM HORN | 10A | ICM Relay Box(Burglar Alarm Horn Relay) |
| MEMORY | 10A | A/C Control Module, Head Up Display, Instrument Cluster, Electro Chromic Mirror |
| AMP | 30A | AMP |
| MODULE 6 | 7.5A | Smart Key Control Module, BCM |
| MDPS | 7.5A | MDPS Unit |
| MODULE 1 | 7.5A | Active Air Flap, Ignition key Interlock Switch, BCM, Hazard Switch, Data Link Connector, Rain sensor |
| MODULE 7 | 7.5A | Front Air Ventilation Seat Module, Front Seat Warmer Module |
| A/BAG IND | 7.5A | Instrument Cluster, A/C Control Modulee |
| BRAKE SWITCH | 7.5A | Stop Lamp Switch, Smart Key Control Module |
| START | 7.5A | Transaxle Range Switch(A/T), ECM, ICM Relay Box(Burglar Alarm Relay) |
| CLUSTER | 7.5A | Head Up Display, Instrument Cluster |
| DOOR LOCK | 20A | Door Lock Relay, Door Unlock Relay, ICM Relay Box(Two Turn Unlock Relay) |
| PDM 2 | 7.5A | Start/Stop Button Switch, Immobilizer Module |
| FCA | 10A | Forward Collision Avoidance Assist Unit |
| S/HEATER | 20A | Front Seat Warmer Module, Front Air Ventilation Seat Module |
| A/C 2 | 20A | A/C Control Module, Blower Motor, Blower Resistor, E/R Junction Block (Blower Relay) |
| A/C 1 | 7.5A | A/C Control Module, E/R Junction Block(PTC Heater #2 Relay, Blower Relay, PTC Heater #1 Relay) |
| PDM 1 | 15A | Smart Key Control Module |
| AIR BAG | 15A | SRS Control Module, Passenger Occupant Detection Sensor |
| IG1 | 25A | PCB Block(FUSE : ABS 3, ECU 5, SENSOR 4, TCU 2) |
| MODULE2 | 10A | Wiresess Charger Unit, Smart Key Control Module, BCM, A/V & Navigation Head Unit, ICM Relay Box(Power Outlet Relay), Power Outside Mirror Switch, AMP |
| WASHER | 15A | Muntifunction Switch |
| WIPER (LO/HI) | 10A | BCM, PCB Block (Front Wiper (Low) Relay), Front Wiper Motor |
| WIPER RR | 15A | Rear Wiper Relay, Rear Wiper Motor |
| WIPER FRT | 25A | Front Wiper Motor, PCB Block(Front Wiper(Low) Relay) |
| HEATED MIRROR | 10A | Driver/Passenger Power Outside Mirror, A/C Control Module, ECM |
| POWER OUTLET 1 | 20A | Cigarette Lighter |
| HEATED STEERING | 15A | BCM |

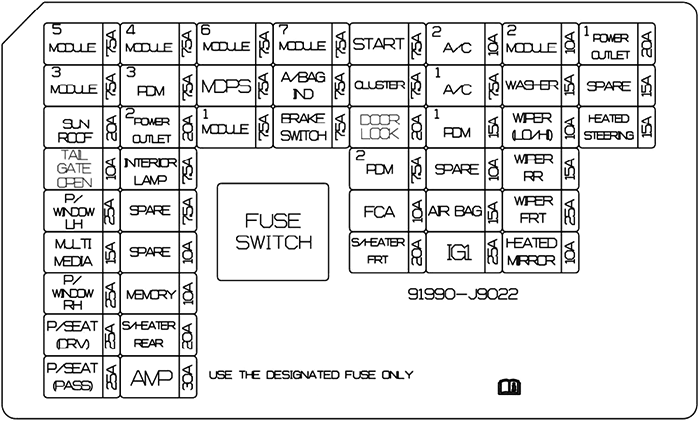

Hyundai Kona (2022 & 2023)
| Fuse Name | Amp | Circuit Protected |
|---|---|---|
| MODULE5 | 7.5A | ATM Shift Lever IND., A/V & Navigation Head Unit, Audio, Electro Chromic Mirror, A/C Control Module, Front Air Ventilation Control Module, Low DC-DC Converter Driver Console Switch, Wireless Charger Unit, Data Link Connector, Front/Rear Seat Warmer Control Module |
| MODULE3 | 7.5A | Stop Lamp Switch, BCM, ATM Shift Lever, IAU |
| SUNROOF | 20A | Sunroof Unit |
| TAILGATE OPEN | 10A | Tailgate Relay |
| P/WINDOW LH | 25A | Power Window LH Relay, Driver Safety Power Window Module |
| MULTIMEDIA | 15A | Low DC-DC Converter |
| P/WINDOW RH | 25A | Power Window RH Relay, Passenger Safety Power Window Module |
| P/SEAT (DRV) | 25A | Driver Seat Manual Switch, Driver Reclining Switch |
| MODULE4 | 7.5A | EPB Switch, BCM, Front View Camera, AWD ECM |
| PDM3 | 7.5A | Smart Key Control Module, Immobilizer Module |
| POWER OUTLET2 | 20A | ICM Relay Box(Power Outlet Relay) |
| INTERIOR LAMP | 7.5A | Glove Box Lamp, Vanity Lamp LH/RH, Room Lamp, Overhead Console Lamp, Luggage Lamp, Foot Lamp LH/RH |
| MEMORY | 10A | A/C Control Module, Head Up Display, BCM, Driver Console Switch, Wireless Charger Unit, Rain Sensor |
| S/HEATER REAR | 20A | Rear Seat Warmer Control Module |
| AMP | 30A | Low DC-DC Converter |
| MODULE6 | 7.5A | Smart Key Control Module, BCM, IAU |
| MDPS | 7.5A | MDPS Unit |
| MODULE1 | 7.5A | key Interlock, BCM, Hazard Switch, Data Link Connector, Rain sensor |
| MODULE7 | 7.5A | Front Air Ventilation Control Module, Front/Rear Seat Warmer Control Module |
| A/BAG IND | 7.5A | Instrument Cluster, A/C Control Module |
| BRAKE SWITCH | 7.5A | Stop Lamp Switch, Smart Key Control Module |
| START | 7.5A | Transaxle Range Switch(A/T), Inhibitor Switch |
| CLUSTER | 7.5A | Head Up Display, Instrument Cluster |
| DOOR LOCK | 20A | Door Lock Relay, Door Unlock Relay, ICM Relay Box(Two Turn Unlock Relay) |
| PDM2 | 7.5A | Immobilizer Module, BLE Unit, IAU |
| FCA | 10A | Driver/Passenger Smart Key Outside Handle Front Radar Unit |
| S/HEATER FRT | 20A | Front Seat Warmer Control Module, Front Air Ventilation Control Module |
| A/C1 | 7.5A | A/C Control Module, E/R Junction Block(PTC Heater #2 Relay, Blower Relay, PTC Heater #1 Relay) |
| PDM1 | 15A | Smart Key Control Module, Start/Stop Button Switch |
| AIRBAG | 15A | SRS Control Module, Passenger Occupant Detection Sensor |
| IG1 | 25A | PCB Block(FUSE : ABS 3, ECU 5, SENSOR 4, TCU 2) |
| MODULE2 | 10A | Front USB Charger, Smart Key Control Module, BCM, ICM Relay Box(Power Outlet Relay), IAU |
| WASHER | 15A | Muntifunction Switch |
| WIPER (LO/HI) | 10A | BCM |
| WIPER RR | 15A | Rear Wiper Relay, Rear Wiper Motor |
| WIPER FRT | 25A | Front Wiper Motor, PCB Block(Front Wiper(Low) Relay) |
| HEATED MIRROR | 10A | Driver/Passenger Power Outside Mirror, A/C Control Module, ECM |
| POWER OUTLET1 | 20A | Power Outlet #2 |
| HEATED STEERING | 15A | BCM |

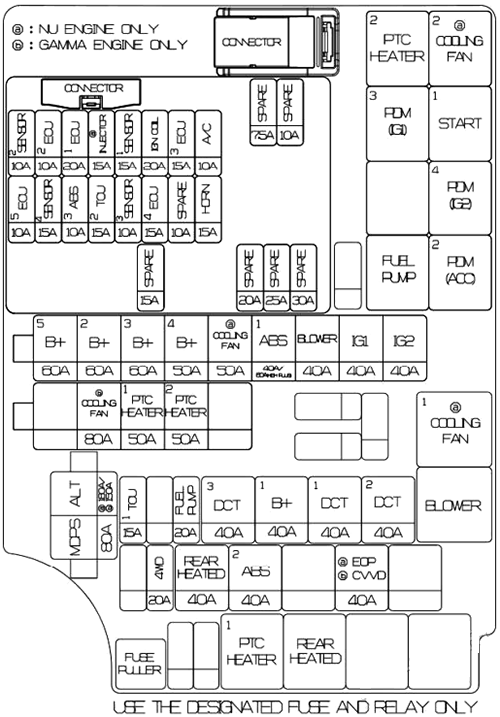

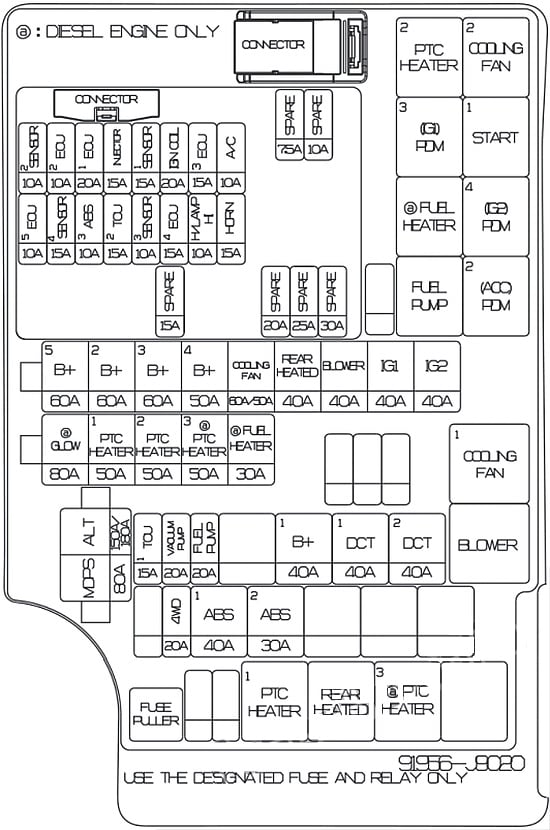

Engine Compartment Fuse Box
Hyundai Kona (2018 – 2021)
Main Fuse Box
| Name | Amp Rating | Protected Component |
| ALT | 150A | E/R Junction Block (Fuse – ABS 1, ABS 2, 4WD), Alternator |
| MDPS | 80A | MDPS Unit |
| B+ 5 | 60A | PCB Block ((Fuse – HORN, H/LAMP HI, A/C, ECU 4, ECU 3), Engine Control Relay) |
| B+ 2 | 60A | IGPM ((Fuse – S/HEATER), IPSO, IPS1, IPS2) |
| B+ 3 | 60A | IGPM (IPS3, IPS4, IPS5, IPS6, IPS7, IPS8) |
| B+ 4 | 50A | IGPM (Fuse – P/WINDOW LH, P/WINDOW RH, TAIL GATE OPEN, SUNROOF, B/ALARM HORN, POWER OUTLET 2, AMP, P/SEAT (PASS),P/SEAT (DRV)) |
| COOLING FAN | 60A/50A | E/R Junction Block (Cooling Fan #2 Relay, Cooling Fan #1 Relay) |
| REAR HEATED | 40A | E/R Junction Block (Rear Defogger Relay) |
| BLOWER | 40A | E/R Junction Block (Blower Relay) |
| IG1 | 40A | W/O Smark Key: Ignition Switch With Smark Key: E/R Junction Block (PDM #3 (IG1) Relay, PDM #2 (ACC) Relay) |
| IG2 | 40A | W/O Smark Key: Ignition Switch, E/R Junction Block (Srart #1 Relay) With Smark Key: E/R Junction Block (PDM #4 (IG2) Relay, Srart #1 Relay) |
| PTC HEATER 1 | 50A | E/R Junction Block (PTC Heater #1 Relay) |
| PTC HEATER 2 | 50A | E/R Junction Block (PTC Heater #2 Relay) |
| TCU 1 | 15A | TCM |
| VACUUM PUMP | 20A | Vacuum Pump |
| FUEL PUMP | 20A | E/R Junction Block (Fuel Pump Relay) |
| B+ 1 | 40A | IGPM ((Fuse – BRAKE SWITCH, PDM 1, DOOR LOCK, MODULE 1, PDM 2), Leak Current Autocut Device) |
| DCT1 | 40A | TCM |
| DCT2 | 40A | TCM |
| 4WD | 20A | 4WD ECM |
| ABS 1 | 40A | ESC Control Module, Multipurpose Check Connector |
| ABS 2 | 30A | ESC Control Module |
| GAMMA 1.6L T-GDI | ||
| SENSOR 2 | 10A | PCB Block (A/CON Relay), E/R Junction Block (Cooling Fan #1 Relay), Purge Control Solenoid Valve, RCV Control Solenoid Valve, Oil Control Valve #1~#2, Canister Close Valve |
| ECU 2 | 10A | ECM |
| ECU 1 | 20A | ECM |
| INJECTOR | 15A | – |
| SENSOR 1 | 15A | Oxygen Sensor (Up), Oxygen Sensor (Down) |
| IGN COIL | 20A | Ignition Coil #1~#4 |
| ECU 3 | 15A | ECM |
| A/C | 10A | PCB Block (A/CON Relay) |
| ECU 5 | 10A | ECM |
| SENSOR 4 | 15A | Vacuum Pump |
| ABS 3 | 10A | ESC Control Module, Multipurpose Check Connector |
| TCU 2 | 15A | TCM, Transaxle Range Switch |
| SENSOR 3 | 10A | E/R Junction Block (Fuel Pump Relay) |
| ECU 4 | 15A | ECM |
| H/LAMP HI | 10A | PCB Block (Head Lamp(High) Relay) |
| HORN | 15A | PCB Block (Horn Relay) |
| NU 2.0L MPI | ||
| SENSOR 2 | 10A | PCB Block (A/CON Relay), E/R Junction Block (Cooling Fan #2 Relay, Cooling Fan #1 Relay), Purge Control Solenoid Valve, Electronic Thermostat, Variable Intake Solenoid Valve, Oil Control Valve #1~#3, Canister Close Valve |
| ECU 2 | 10A | – |
| ECU 1 | 20A | PCM |
| INJECTOR | 15A | Injector #1~#4 |
| SENSOR 1 | 15A | Oxygen Sensor (Up), Oxygen Sensor (Down) |
| IGN COIL | 20A | Ignition Coil #1~#4 |
| ECU 3 | 15A | PCM |
| A/C | 10A | PCB Block (A/CON Relay) |
| ECU 5 | 10A | PCM |
| SENSOR 4 | 15A | – |
| ABS 3 | 10A | Multipurpose Check Connector, ESC Control Module |
| TCU 2 | 15A | Transaxle Range Switch |
| SENSOR 3 | 10A | E/R Junction Block (Fuel Pump Relay) |
| ECU 4 | 15A | PCM |
| H/LAMP HI | 10A | PCB Block (Head Lamp(High) Relay) |
| HORN | 15A | PCB Block (Horn Relay) |

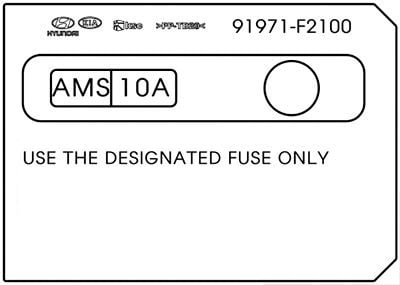

Battery Terminal Box
| Name | Amp Rating | Circuit Protected |
| AMS | 10A | Alternator Management System |
Hyundai Kona (2022 & 2023)
| Fuse Name | Amp | Circuit Protected |
| ALT | 180A(G4NS) 150A(G4FP) |
E/R Junction Block (Fuse – ABS 2, REAR HEATED, EOP, CVVD, 4WD), Alternator |
| MDPS | 80A | MDPS Unit |
| B+5 | 60A | PCB Block ((Fuse – HORN, A/C, ECU 4, ECU 3), Engine Control Relay) |
| B+2 | 60A | IGPM ((Fuse – S/HEATER FRT), IPSO, IPS1, IPS2) |
| B+3 | 60A | IGPM (IPS3, IPS4, IPS5, IPS6, IPS7, IPS8) |
| B+4 | 50A | IGPM (Fuse – P/WINDOW LH, P/WINDOW RH, TAILGATE OPEN, SUNROOF, POWER OUTLET 2, S/HEATER REAR AMP, P/SEAT (PASS), P/SEAT (DRV)) |
| COOLING FAN | 50A | E/R Junction Block (Cooling Fan #1 Relay, Cooling Fan #2 Relay) |
| ABS1 | 40A(W/O EPB) 60A(With EPB) |
ESC Module |
| BLOWER | 40A | E/R Junction Block (Blower Relay) |
| IG1 | 40A | W/O Smart Key: Ignition Switch With Smart Key: E/R Junction Block (PDM #3 (IG1) Relay, PDM #2 (ACC) Relay) |
| IG2 | 40A | W/O Smart Key: Ignition Switch, E/R Junction Block (Srart #1 Relay) With Smart Key: E/R Junction Block (PDM #4 (IG2) Relay, Srart #1 Relay) |
| COOLING FAN | 80A | Cooling Fan Controller |
| PTC HEATER 1 | 15A | E/R Junction Block (PTC Heater #1 Relay) |
| PTC HEATER 2 | 15A | E/R Junction Block (PTC Heater #2 Relay) |
| TCU 1 | 20A | TCM |
| FUEL PUMP | 20A | E/R Junction Block (Fuel Pump Relay) |
| DCT3 | 40A | SGA |
| B+1 | 40A | IGPM ((Fuse – BRAKE SWITCH, PDM 1, DOOR LOCK, MODULE 1, PDM 2), Leak Current Autocut Device) |
| DCT1 | 40A | TCM |
| DCT2 | 40A | TCM |
| 4WD | 20A | AWD ECM |
| REAR HEATED | 40A | E/R Junction Block (Rear Defogger Relay) |
| ABS 2 | 40A | ESC Module, Multipurpose Check Connector |
| EOP (G4NS) CVVD (G4FP) |
40A | G4NS: Electronic Oil Pump G4FP: CVVD Actuator |
| PCB Block – G4FP (G4FIII 1.6 T-GDI): | ||
| SENSOR2 | 10A | PCB Block (A/C Comp Relay), Variable Oil Pump Solenoid, Purge Control Solenoid Valve, RCV Control Solenoid Valve, Oil Control Valve #1 (Intake), Oil Control Valve #2 (Exhaust), Canister Close Valve |
| ECU2 | 10A | ECM |
| ECU1 | 20A | ECM |
| INJECTOR | 15A | – |
| SENSOR1 | 15A | Oxygen Sensor (Up), Oxygen Sensor (Down) |
| IGN COIL | 20A | Ignition Coil #1~#4 |
| ECU3 | 15A | ECM |
| A/C | 10A | PCB Block (A/C Comp Relay) |
| ECU5 | 10A | ECM, CVVD Actuator |
| SENSOR4 | 15A | – |
| ABS3 | 10A | ESC Module, Multipurpose Check Connector |
| TCU2 | 15A | TCM, Transaxle Range Switch |
| SENSOR3 | 10A | E/R Junction Block (Fuel Pump Relay) |
| ECU4 | 15A | ECM |
| HORN | 15A | PCB Block (Horn Relay) |
| PCB Block – G4NS (G4NII 2.0L MPI ATKINSON): | ||
| OOS090046N | 10A | PCB Block (A/C Comp Relay), E/R Junction Block (Cooling Fan #2 Relay, Cooling Fan #1 Relay), Purge Control Solenoid Valve, Variable Intake Solenoid Valve, Oil Control Valve #1 (Intake), Oil Control Valve #2 (Exhaust), Canister Close Valve, Oil Pressure Solenoid Valve |
| ECU2 | 10A | – |
| ECU1 | 20A | PCM |
| INJECTOR | 15A | Injector #1~#4 |
| SENSOR1 | 15A | Oxygen Sensor (Up), Oxygen Sensor (Down) |
| IGN COIL | 20A | Ignition Coil #1~#4 |
| ECU3 | 15A | PCM |
| A/C | 10A | PCB Block (A/C Comp Relay) |
| ECU5 | 10A | PCM |
| SENSOR4 | 15A | Electronic Oil Pump |
| ABS3 | 10A | Multipurpose Check Connector, ESC Module |
| TCU2 | 15A | Inhibitor Switch |
| SENSOR3 | 10A | E/R Junction Block (Fuel Pump Relay) |
| ECU4 | 15A | PCM |
| HORN | 15A | PCB Block (Horn Relay) |
| Relay No. | Relay Name | Type |
| E61 | PTC Heater #2 Relay | MICRO |
| E62 | Cooling Fan #2 Relay | MICRO |
| E63 | PDM #3 (IG1) Relay | MICRO |
| E64 | Start #1 Relay | MICRO |
| E66 | PDM #4 (IG2) Relay | MICRO |
| E67 | Fuel Pump Relay | MICRO |
| E68 | PDM #2 (ACC) Relay | MICRO |
| E69 | Cooling Fan #1 Relay | MINI |
| E70 | Blower Relay | MINI |
| E71 | PTC Heater #1 Relay | MICRO |
| E72 | Rear Defogger Relay | MICRO |
