MINI Countryman U25 (2025 & 2026) Fuse Box Diagrams & Location
The MINI Countryman U25 (2025 & 2026) features multiple fuse boxes that protect essential electrical systems and components. Knowing their locations and fuse assignments makes it easier to identify electrical issues, check blown fuses, and understand the vehicle’s power distribution. This blog provides clear fuse box locations and diagrams for these models.
Fuse Box Location
Passenger Compartment Fuse Box
The MINI Countryman U25 has three fuse boxes, and all three of these fuse panels are located inside the passenger cabin.
Fuse Box Diagrams
Passenger Compartment Fuse Box

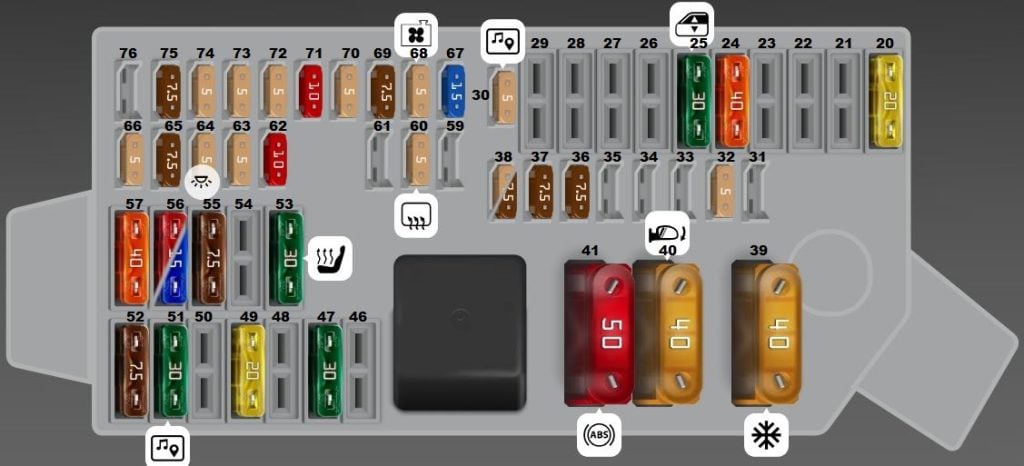

Front Left Fuse Box
| Type | No. | Description |
| Fuse ATO 40A |
24 | Sound system |
| Fuse ATO
30A |
25 | Electric windows, Electric mirrors |
| Fuse MINI 5A |
30 | Infotainment, START-STOP system |
| Fuse MINI 7.5A |
36 | Door module; Automatic soft closing |
| Fuse MINI
7.5A |
37 | [Electric, Plugin-Hybrid] |
| Fuse MINI
5A |
38 | 48V |
| Fuse MINI 7.5A |
38 | 48V [Electric, Plugin-Hybrid] |
| Fuse MAXI
40A |
39 | Air Conditioning System, Heating / Independent aux. heater |
| Fuse MAXI
40A |
40 | Electric mirrors [Combustion engine] |
| Fuse MAXI 50A |
41 | ABS (Anti-lock Brake System), DSC (Dynamic Stability Control), Parking brake, START-STOP system |
| Fuse ATO
30A |
47 | Seat adjustment |
| Fuse ATO
20A |
49 | [Electric, Plugin-Hybrid] DME – Digital Motor Electronics / Integrated Voltage Module – IVM |
| Fuse ATO 30A |
51 | Sound system, Infotainment |
| Fuse ATO
7.5A |
52 | DME – Digital Motor Electronics / Integrated Voltage Module – IVM |
| Fuse ATO
30A |
53 | Heated seats |
| Fuse ATO 7.5A |
55 | [Electric, Plugin-Hybrid] DME – Digital Motor Electronics / Integrated Voltage Module – IVM |
| Fuse ATO
10A |
56 | DME – Digital Motor Electronics / Integrated Voltage Module – IVM |
| Fuse ATO
15A |
56 | [Electric, Plugin-Hybrid] DME – Digital Motor Electronics / Integrated Voltage Module – IVM |
| Fuse ATO 40A |
57 | [Combustion engine] Replacement top module; Alternating relay. |
| Fuse MINI
5A |
60 | Rear window defroster (defogger), Steering column function control module |
| Fuse MINI
10A |
62 | Driving assistance |
| Fuse MINI 5A |
63 | Sound system |
| Fuse MINI
5A |
64 | Interior lights |
| Fuse MINI
5A |
66 | Seat adjustment |
| Fuse MINI 15A |
67 | [Electric, Plugin-Hybrid] Hybrid system |
| Fuse MINI
5A |
68 | Electric fan, Parking sensors / Home link (garage door opener), Driving assistance, Hybrid system |
| Fuse MINI
7.5A |
69 | NFC |
| Fuse MINI 5A |
70 | DME – Digital Motor Electronics / Integrated Voltage Module – IVM, Hybrid system |
| Fuse MINI
10A |
71 | Gear Indicator / DSC – Dynamic Stability Control / SMG – Sequential Manual Gearbox |
| Fuse MINI
5A |
72 | Driving assistance |
| Fuse MINI 5A |
74 | 48V, Hybrid system |

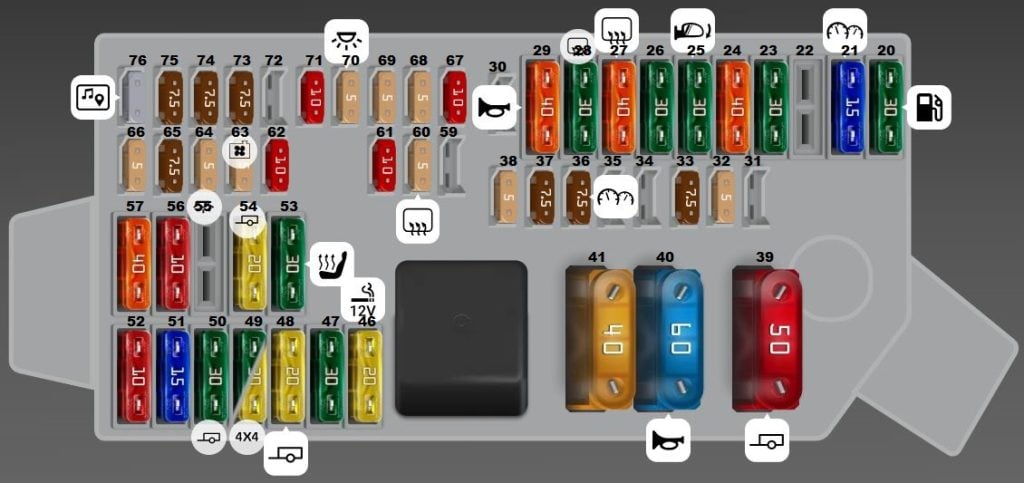

Front Right Fuse Box
| Type | No. | Description |
| Fuse ATO
30A |
20 | Fuel pump |
| Fuse ATO
15A |
21 | Instrument cluster, Head-Up Display (HUD), Infotainment |
| Fuse ATO 30A |
23 | Replacement top module; Alternating relay, Replacement top module; Alternating relay |
| Fuse ATO
40A |
24 | Trunk lid (tailgate) lock; Automatic tailgate closing |
| Fuse ATO
30A |
25 | Electric mirrors |
| Fuse ATO 30A |
26 | Fuel Injection & similar electronics [Combustion engine] |
| Fuse ATO
40A |
27 | Rear window defroster (defogger), Steering column function control module |
| Fuse ATO
30A |
28 | Rear window defroster (defogger), Steering column function control module |
| Fuse ATO 40A |
29 | Horn, On-Board Diagnostics (OBD), Infotainment, BCP, Main headlights / Rain sensor / Light sensor / Electronic ride height control |
| Fuse MINI
5A |
32 | Alarm |
| Fuse MINI
7.5A |
33 | Door module / Automatic soft-close, Sound system |
| Fuse MINI 7.5A |
36 | Instrument cluster, Parking sensors / Home link (garage door opener), Head-Up Display (HUD), Infotainment |
| Fuse MINI
7.5A |
37 | [Hybrid system] |
| Fuse MINI
5A |
38 | Replacement top module; Alternating relay |
| Fuse MAXI 50A |
39 | Trailer module |
| Fuse MAXI
60A |
40 | Horn, On-Board Diagnostics (OBD), Infotainment, BCP, Main headlights / Rain sensor / Light sensor / Electronic ride height control |
| Fuse MAXI
40A |
41 | [Combustion engine] Sound system |
| Fuse ATO 20A |
46 | Front & rear cigarette lighter, 12V socket / Glove box charging socket (12V) |
| Fuse ATO
30A |
47 | Seat adjustment |
| Fuse ATO
20A |
48 | Trailer module |
| Fuse ATO 30A |
49 | [Combustion engine] Indicator Cutie Viteze Automata, Sistem EDC, Sistemul de tractiune integrala / Gear indicator, EDC, Gear Automatic Transmission Control, AWD, Fuel Injection & similar electronics |
| Fuse ATO
20A |
49 | [Hybrid system] Indicator Cutie Viteze Automata, Sistem EDC, Sistemul de tractiune integrala / Gear indicator, EDC, Gear Automatic Transmission Control, AWD, Fuel Injection & similar electronics |
| Fuse ATO
30A |
50 | Trailer module |
| Fuse ATO 15A |
51 | [Combustion engine] Fuel Injection & similar electronics |
| Fuse ATO
10A |
52 | [Combustion engine] Fuel Injection & similar electronics |
| Fuse ATO
30A |
53 | Heated seats |
| Fuse ATO 20A |
54 | Trailer module |
| Fuse ATO
10A |
56 | [Combustion engine] Fuel Injection & similar electronics |
| Fuse ATO
40A |
57 | [Combustion engine] Replacement top module; Alternating relay |
| Fuse MINI 5A |
60 | Rear window defroster (defogger), Steering column function control module |
| Fuse MINI
10A |
61 | Steering column function control module |
| Fuse MINI
10A |
62 | Driving assistance |
| Fuse MINI 5A |
63 | Electric fan |
| Fuse MINI
5A |
64 | Interior lights |
| Fuse MINI
7.5A |
65 | Parking sensors / Home link (garage door opener), Head-Up Display (HUD) |
| Fuse MINI 5A |
66 | Seat adjustment |
| Fuse MINI
10A |
67 | Driving assistance |
| Fuse MINI
5A |
68 | Parking sensors / Home link (garage door opener) |
| Fuse MINI 5A |
69 | Driving assistance |
| Fuse MINI
5A |
70 | Trunk lid (tailgate) lock; Automatic tailgate closing, interior lights |
| Fuse MINI
10A |
71 | Seatbelts |
| Fuse MINI 7.5A |
73 | Replacement top module; Alternating relay, Electrochromic rear view mirror |
| Fuse MINI
7.5A |
74 | Fuel Injection & similar electronics, Hybrid system |
| Fuse MINI | 76 | Parking sensors / Home link (garage door opener), Infotainment |
Body Domain Controller
| Type | No. | Description |
| Fuse MINI
5A |
F1 | Steering column function control module, Driving assistance, Main headlights / Rain sensor / Light sensor / Electronic ride height control, Interior lights |
| Fuse MINI 7.5A |
F2 | On-board diagnostics (OBD), Hybrid system |
| Fuse MINI
7.5A |
F3 | Air conditioning system, Tailgate |
| Fuse MINI
5A |
F4 | Front & rear cigarette lighter, 12V socket / Glove box charging socket (12V), Infotainment, Tailgate, Door module / Automatic soft-close, STAR-STOP system |
| Fuse MINI 20A |
F5 | Door module / Automatic soft-close |
| Fuse MINI
20A |
F6 | Door module / Automatic soft-close |
