2025 Toyota Tacoma Parking Assist Sensors User Guide
The 2025 Toyota Tacoma Parking Assist Sensors, their features, advantages, and how they improve your parking experience will all be covered in this article. Find important information and upkeep advice to increase their effectiveness.
2024 Toyota Tacoma Specs, Price, Features, Mileage and Review
Toyota Intuitive Parking Assist Guide
The intuitive parking assist function detects the approx-imate distance from the vehicle and an object such as a wall using ultrasonic sensors and informs the driver with the multimedia display distance display and buzzer.
System components
Type of sensors
- Front corner sensors
- Front center sensors
- Rear corner sensors
- Rear center sensors
Display
When the sensors detect an object, such as a wall, a graphic is shown on the multimedia dis-play depending on the position and distance to the object. Vehicles without multimedia display or rear camera: When detecting a stationary object, the intuitive parking assist detection indicator illuminates.
Multimedia display
- Front corner sensor detection
- Front center sensor detection
- Rear corner sensor detection
- Rear center sensor detection
Turning the intuitive park-ing assist function ON/OFF
The intuitive parking assist func-tion can be enabled/disabled through a customize setting. When the intuitive parking assist function is disabled, the intuitive parking assist OFF indicator illuminates on the multi-information display. If the sys-tem switches to OFF (disabled) and the intuitive parking assist is stopped, the intuitive parking assist will not be re-enabled until ON (enabled) is selected again from the customize setting (P.644). (It remains off even if the engine switch is turned to ON again after the engine switch has been turned off.) Vehicles without the multimedia display or rear camera: How-ever, the system will automati-cally turn on (enabled) and the intuitive parking assist OFF indi-cator will turn off if the shift posi-tion is changed to R.
When the shift position is R, the intuitive parking assist cannot be turned on or off. The setting of intuitive parking assist itself will not change.
When towing a trailer
- When Auto Trailer Detection
(ATD) is activated, the rear sensor automatically turns off. - When the shift position is in R, the intuitive parking assist OFF indica-tor turns ON and a mes-sage is displayed in the multi-information display.
- If a camera malfunction occurs while the trailer is connected, there may be cases where the notification message that indicate Intuitive Parking Assist, RCD, or PKSB is OFF may not be dis-played.
- When Trailer brake controller
(TBC) detects 7-pin trailer brake connectors, or when other types of trailers are detected by the Blind Spot Monitor sensor and approved by the driver, the Intui-tive Parking Assist turns off in the rear only.
WARNING
Cautions regarding the use of the system
There is a limit to the degree of recognition accuracy and control performance that this system can provide, do not overly rely on this system. The driver is always responsible for paying attention to the vehicle’s surroundings and driving safely.
To ensure the system can operate properly
Make sure to observe the follow-ing precautions. The system may not operate properly and may lead to an unexpected accident. When these precautions cannot be observed, turn the system off.
- Do not damage the sensors, and always keep them clean.
- Do not attach a sticker or install an electronic component, such as a backlit license plate (espe-cially fluorescent type), fog lights, fender pole or wireless antenna near a radar sensor.
- Do not subject the surrounding area of the sensor to a strong impact. If subjected to an impact, have the vehicle inspected by your Toyota dealer. If the front or rear bumper needs to be removed/installed or replaced, contact your Toyota dealer.
- Do not modify, disassemble or paint the sensors.
- Do not attach a license plate cover.
- Keep your tires properly inflated.
- Do not install a suspension other than a genuine suspen-sion.
WARNING
Notes when washing the vehi-cle
- When using a high pressure washer to wash the vehicle, do not spray the sensors directly, as doing so may cause a sensor to malfunction.
- When using steam to clean the vehicle, do not direct steam too close to the sensors as doing so may cause a sensor to malfunc-tion.
The system can be operated when
- The engine switch is in ON.
- The intuitive parking assist is on.
- The vehicle speed is less than about 6 mph (10 km/h).
- A shift position other than P is selected.
Vehicles without the multimedia display or rear camera: The system will automatically turn on (enabled) and the intuitive parking assist OFF indicator will turn off if the shift position is changed to R. The setting of intuitive parking assist itself will not change.
Sensor detection information
- The sensor’s detection areas are limited to the areas around the vehicle’s front and rear bumpers.
- Certain vehicle conditions and the surrounding environment may affect the ability of a sensor to cor-rectly detect an object.
- Objects may not be detected if they are too close to the sensor.
- There will be a short delay between object detection and dis-play.
Even at low speeds, there is a possibility that the object will come within the sensor’s detection areas before the display is shown and the warning beep sounds.
- It might be difficult to hear the buzzer due to the volume of the audio system or air flow noise of the air conditioning system.
- It may be difficult to hear the sound of this system due to the buzzers of other systems.
- If the meter malfunctions, the buzzer may not sound.
Objects which the system may not be properly detected
The shape of the object may pre-vent the sensor from detecting it. Pay particular attention to the follow-ing objects:
- Wires, fences, ropes, etc.
- Cotton, snow and other materials that absorb sound waves
- Sharply-angled objects
- Low objects
- Tall objects with upper sections projecting outwards in the direction of your vehicle
People may not be detected if they are wearing certain types of clothing.
Situations in which the system may not operate properly
Certain vehicle conditions and the surrounding environment may affect the ability of a sensor to correctly detect objects. Particular instances where this may occur are listed below.
- There is dirt, snow, water drops or ice on a sensor. (Cleaning the sensors will resolve this problem.)
- A sensor is frozen. (Thawing the area will resolve this problem.) In especially cold weather, if a sensor is frozen the sensor dis-play may be displayed abnormally, or objects, such as a wall, may not be detected.

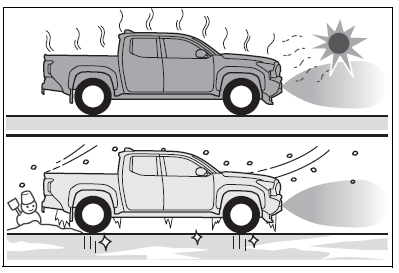

- When a sensor or the area around a sensor is extremely hot or cold.

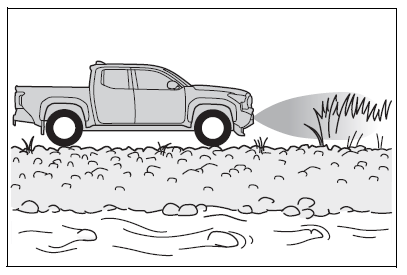

- On an extremely bumpy road, on an incline, on gravel, or on grass.
- When vehicle horns, vehicle detectors, motorcycle engines, air brakes of large vehicles, the clear-ance sonar of other vehicles or other devices which produce ultra-sonic waves are near the vehicle
- A sensor is coated with a sheet of spray or heavy rain.
- If objects draw too close to the sensor.
- When a pedestrian is wearing clothing that does not reflect ultra-sonic waves (ex. skirts with gath-ers or frills).
- When objects that are not perpen-dicular to the ground, not perpen-dicular to the vehicle traveling direction, uneven, or waving are in the detection range.
- When strong winds are blowing
- When driving in inclement weather such as fog, snow or a sandstorm
- When an object that cannot be detected is between the vehicle and a detected object
- If an object such as a vehicle, motorcycle, bicycle or pedestrian cuts in front of the vehicle or runs out from the side of the vehicle
- If the orientation of a sensor has been changed due to a collision or other impact
- When equipment such as a towing eyelet, transport hook, bumper protector, bumper trim, bicycle carrier or snow-removal device (snow plow) is installed near the sensor
- If the front of the vehicle is raised or lowered due to the carried load
- If the vehicle cannot be driven in a stable manner, such as when the vehicle has been in an accident or is malfunctioning
- When a tire chains, compact spare tire or an emergency tire puncture repair kit is used
- When the tailgate is opened
- When your vehicle is towing a trailer or during emergency towing
Situations in which the system may operate even if there is no possibility of a collision
In some situations, such as the fol-lowing, the system may operate even though there is no possibility of a collision.
- When driving on a narrow road
- When driving toward a banner, flag, low-hanging branch or boom barrier (such as those used at rail-road crossings, toll gates and parking lots)
- When there is a rut or hole in the surface of the road
- When driving on a metal cover
(grating), such as those used for drainage ditches - When driving up or down a steep slope
- If a sensor is hit by a large amount of water, such as when driving on a flooded road
- There is dirt, snow, water drops or ice on a sensor. (Cleaning the sensors will resolve this problem.)
- A sensor is coated with a sheet of spray or heavy rain
- When driving in inclement weather such as fog, snow or a sandstorm
- When strong winds are blowing
- When vehicle horns, vehicle detectors, motorcycle engines, air brakes of large vehicles, the clear-ance sonar of other vehicles or other devices which produce ultra-sonic waves are near the vehicle
- If the front of the vehicle is raised or lowered due to the carried load
- If the orientation of a sensor has been changed due to a collision or other impact
- The vehicle is approaching a tall or curved curb
- Driving close to columns (H-shaped steel beams, etc.) in multi-story parking garages, construc-tion sites, etc.
- If the vehicle cannot be driven in a stable manner, such as when the vehicle has been in an accident or is malfunctioning
- On an extremely bumpy road, on an incline, on gravel, or on grass
- When tire chains, compact spare tire or an emergency tire puncture repair kit are used
- When towing with the vehicle
When towing a trailer
Rear sensors turn off when the trailer connection is detected.
When reversing, the rear sensors turn off, but the front corner sensors operate.
2024 Toyota Tacoma Specs, Price, Features, Mileage and Review
Certification
Sensor detection display, object distance
Detection range of the sensors
- Approximately 3.3 ft. (100 cm)
- Approximately 4.9 ft. (150 cm)
- Approximately 2.0 ft. (60 cm)
The diagram shows the detection range of the sensors. Note that the sensors cannot detect objects that are extremely close to the vehicle.
The range of the sensors may the object, etc.change depending on the shape of.
The distance and buzzer
| Approximate distance to obstacle | Buzzer |
| Front center sensor: Approximately 3.3 ft. (100 cm) to 2.0 ft. (60 cm) Approximately 4.9 ft. (150 cm) to 2.0 |
Slow |
| Approximately 2.0 ft. (60 cm) to 1.5 ft. (45 cm) |
Medium |
| Approximately 1.5 ft. (45 cm) to 1.0 ft. (30 cm) |
Fast |
| Approximately less than 1.0 ft. (30 cm) | Continuous |
Automatic buzzer mute function is enabled.
Intuitive parking assist buzzer
A buzzer sounds when the sen-sors are operating.
- The buzzer beeps faster as the vehicle approaches a static object.
When the vehicle comes within the approximately 1.0 ft. (30 cm) of the object, the buzzer will sound continu-ously. - When 2 or more sensors simultaneously detect a static object, the buzzer sounds for the nearest object.
- After a buzzer begins sounding, if the distance between the vehicle and the detected a static object does not become shorter, the buzzer will be muted automatically. (auto-matic buzzer mute function)
Adjusting the buzzer volume
The buzzer volume of the intuitive parking assist, RCTA, and RCD can all be changed at once from the cus-tomize settings.
Muting a buzzer
When the temporary mute switch is displayed on the multimedia display, this switch can be pressed to tem-porarily mute the buzzer.
Select the switch to mute a buzzer of the intuitive parking assist, RCTA, and RCD all together.
- Mute will be automatically canceled in the following situations: When the shift position is changed.
- When the vehicle speed exceeds a certain speed.
- When there is a malfunction in a sensor or the system is temporar-ily unavailable.
- When the operating function is disabled manually.
- When the engine switch is turned off.
