Volvo EX40 (2025 – 2027) Fuse Box Diagrams & Location
The Volvo EX40 (2025–2027) features multiple fuse boxes that protect its electrical circuits and vehicle systems. Knowing their locations and fuse assignments helps identify electrical faults, replace blown fuses, and maintain essential components such as lighting, power windows, climate control, and infotainment systems.
Fuse Box Location
Passenger Compartment Fuse Box

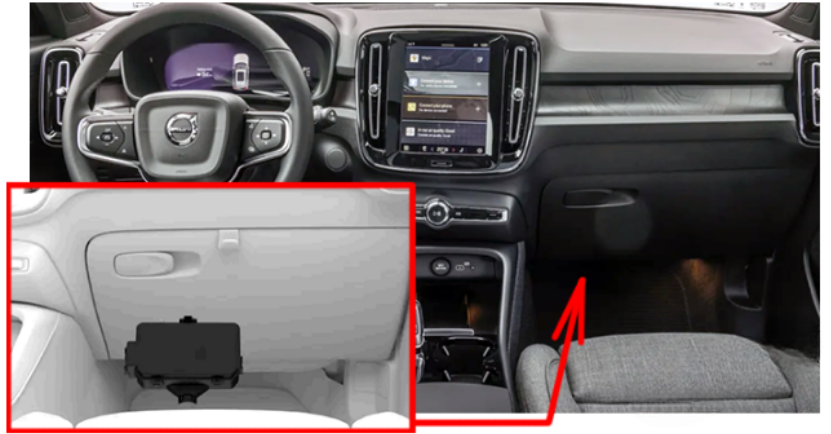

To access the fuse box you need to pull back the floor mat underneath the glove box.
Engine Compartment Fuse Box

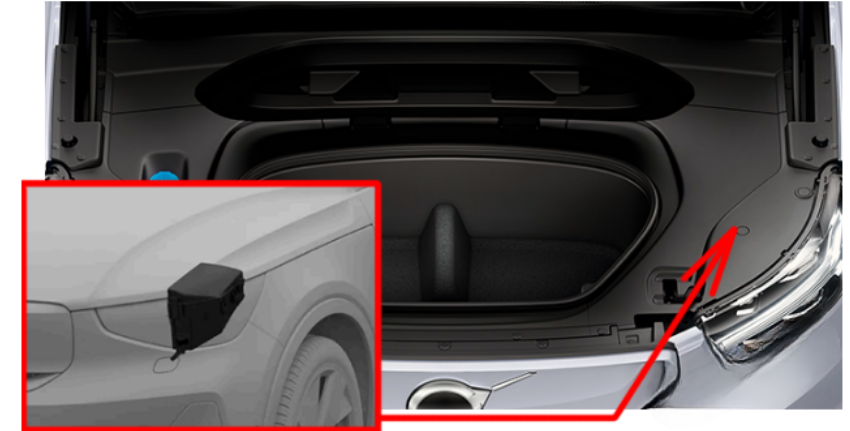

To access the fuses you need to unclip the box lid.
Removing panels under the bonnet
The panels overlap one another so you need to remove and install them in a certain order.
- Panel A Provides access to the negative battery terminal for jump starting your car.
- Panel B
- Panel C
- Panel D Provides access to the positive battery terminal for jump starting your car and to fuses under the bonnet.
- Panel E
- Panel F Cover for storage compartment under the bonnet.
- Washer fluid reservoir cap.
The panels are held in place with plugs. To remove these plugs, use a screwdriver or similar tool to press in the locking pin in the middle of the plug. When the pin is pressed in far enough, you can pull the plug out. Avoid pushing the pin all the way through the plug, as this could cause it to dislodge and fall down between components.
Fuse Box Diagram

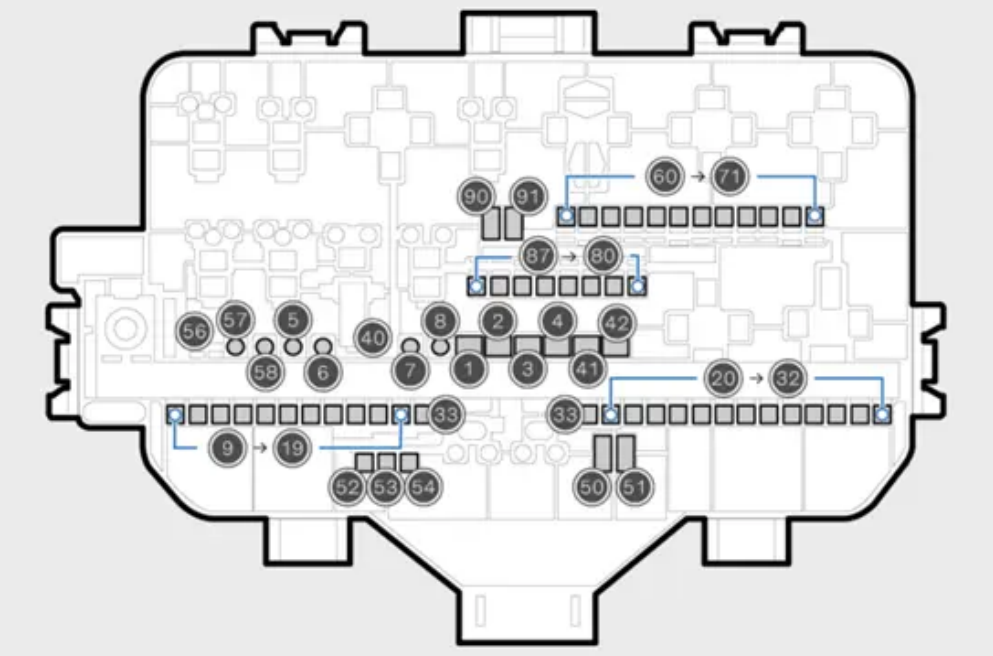

Passenger Compartment Fuse Box
| Fuse No. | Amp Rating | Function (Year Differences) |
|---|---|---|
| 1 | 40A | Audio amplifier (2025: Audio control device/amplifier; 2026–2027: Audio amplifier) |
| 2 | 40A | Central Electronic Module (CEM) A |
| 3 | 40A | Central Electronic Module (CEM) B |
| 4 | 40A | Front climate control fan |
| 5 | 25A | Power operated tailgate |
| 6 | 20A | Power operated front left seat |
| 7 | 20A | Power operated front right seat |
| 8 | — | Reserved / Not used |
| 9 | 20A | Rear right door module (2025: Door module, right rear; 2026–2027: Rear right door) |
| 10 | 20A | Rear left door module (2025: Door module, left rear; 2026–2027: Rear left door) |
| 11 | 20A | Front left door module (2025: Door module, left front; 2026–2027: Front left door) |
| 12 | — | Reserved / Not used |
| 13 | 20A | Right door module (2025: Door module, right front; 2026–2027: Right doors) |
| 14 | 15A | Rear seat heating |
| 15 | 5A | Safety module (ASDM/ADSM), rear electric motor converter |
| 16 | 5A | Calculation module |
| 17 | 5A | Sun sensor and toll collection transponder |
| 18 | 7.5A | Steering wheel lock |
| 19 | 7.5A | Climate control module |
| 20 | 5A | Interior motion sensors / movement detectors |
| 21 | 5A | Driver display |
| 22 | 5A | Centre stack buttons / centre console keypad |
| 23 | 5A | Steering wheel module |
| 24 | 5A | Electronic gear selector / shifting module |
| 25 | 5A | Centre display |
| 26 | 5A | Connected services / online car module |
| 27 | 5A | TCAM antenna module |
| 28 | 5A | Relay coils |
| 29 | 5A | Foot movement boot/tailgate opening |
| 30 | 15A | Infotainment control module |
| 31 | 10A | OBDII diagnostic port |
| 32 | 5A | Alcohol lock |
| 33 | 15A | Rear left headrest lowering |
| 34 | 15A | Rear right headrest lowering |
| 40 | 30A | Heated rear windscreen (2025: Rear window defroster) |
| 41 | 40A | Left seatbelt pretensioner |
| 42 | 40A | Right seatbelt pretensioner |
| 50 | — | Reserved / Not used |
| 51 | — | Reserved / Not used |
| 52 | 7.5A | Cooling fluid pump (2025: Coolant pump) |
| 53 | 15A | Heated steering wheel module |
| 54 | 5A | Air humidity sensor and air particle sensor (2025: APMS and extra air heater/PTC) |
| 55 | 25A | Headlamp washers |
| 56 | 25A | Windscreen washers (2025: Windscreen and rear window washers) |
| 57 | — | Reserved / Not used |
| 58 | — | Reserved / Not used |
| 60 | — | Reserved / Not used |
| 61 | — | Reserved / Not used |
| 62 | — | Reserved / Not used |
| 63 | — | Reserved / Not used |
| 64 | 5A | Blind Spot Information System (BLIS) |
| 65 | — | Reserved / Not used |
| 66 | — | Reserved / Not used |
| 67 | 5A | Front radar control module |
| 68 | — | Reserved / Not used |
| 69 | — | Reserved / Not used |
| 70 | — | Reserved / Not used (2025: Prepared fuse, special chassis — 5A) |
| 71 | 5A | Air bags and seatbelt pretensioners (2025: Collision module SRS) |
| 80 | 15A | Rear windscreen wiper |
| 81 | 5A | Electronic gear shift, roof console indicator light, wide angle vision, 360° parking camera |
| 82 | 20A | Panorama roof |
| 83 | 7.5A | Interior lights, rear-view mirror, rain/light sensors, rear doors and boot panels |
| 84 | 5A | Wireless charging plate |
| 85 | 5A | Front camera |
| 86 | 5A | Alcohol lock |
| 87 | 5A | USB ports |
| 90 | — | Reserved / Not used |
| 91 | — | Reserved / Not used |

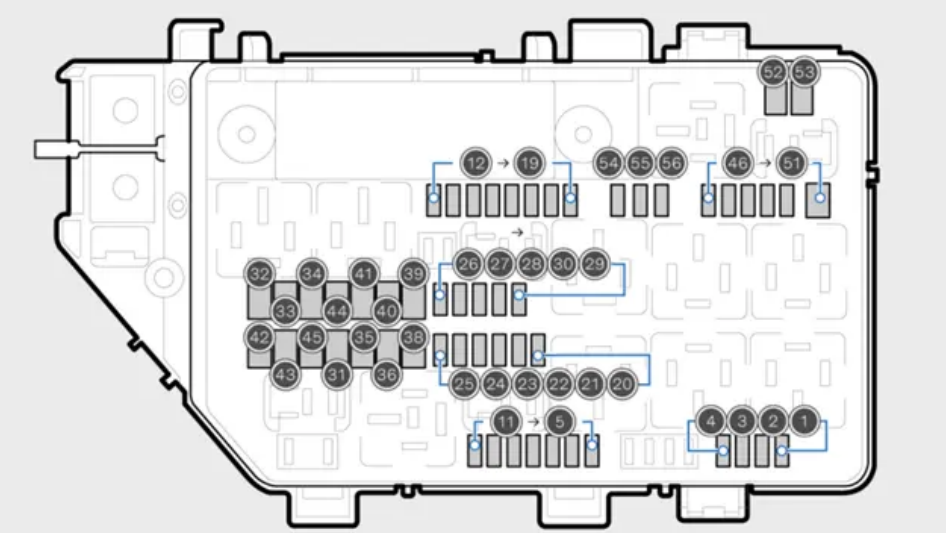

Engine Compartment Fuse Box
| Fuse No. | Amp Rating | Function |
|---|---|---|
| 1 | 7.5A | USB ports in rear of tunnel console (2025: Double USB ports, tunnel console, rear) |
| 2 | 15A | Front 12V socket in tunnel console |
| 3 | — | Not Used |
| 4 | — | Not Used (2025: 12V socket cargo area, 15A) |
| 5 | 10A | Engine Control Module (ECM) |
| 6 | 15A | Traction battery cooling valve (2025: Cooling valve block; 2026–2027: Shut-off valve for traction battery cooling) |
| 7 | 5A | Traction battery coolant pump (2025: Battery cooling valve; 2026–2027: Coolant pump for traction battery) |
| 8 | 10A | Spoiler damper and radiator damper |
| 9 | — | Not Used |
| 10 | — | Not Used |
| 11 | — | Not Used |
| 12 | 20A | Right headlight |
| 13 | 20A | Left headlight |
| 14 | 5A | Collision module (SRS), Capacitive Occupant Sensor (COS) (2025: Collision module SRS only) |
| 15 | 5A | Accelerator pedal sensor |
| 16 | 5A | Ignition switched power supply for engine, transmission, electric steering servo, central electronics, brake system |
| 17 | 5A | Exterior car noise (2025: Exterior sound module; 2026: Diagnostic port firewall + exterior car noise) |
| 18 | 5A | Alcohol lock (2025: Not Used) |
| 19 | — | Not Used |
| 20 | 5A | Relay coils |
| 21 | — | Not Used |
| 22 | 5A | Brake pedal sensor (2025: Brake pedal sensor) |
| 23 | 5A | Calculation unit |
| 24 | 5A | Traction battery (2025: High voltage battery control module) |
| 25 | — | Not Used |
| 26 | 5A | Engine Control Module (ECM) |
| 27 | 5A | Charging unit |
| 28 | 5A | Front motor converter |
| 29 | 20A | Horn |
| 30 | 5A | Alarm siren (2025: Siren) |
| 31 | 30A | Windscreen wipers / Wipers |
| 32 | — | Not Used |
| 33 | — | Not Used |
| 34 | — | Not Used |
| 35 | 30A | Brakes / Brake control module |
| 36 | — | Not Used |
| 37 | — | Not Used (2025: Headlamps 30A) |
| 38 | 30A | Headlights (2025: Fuse 37 contained headlamps; 2026–2027: Fuse 38) |
| 39 | — | Not Used |
| 40 | — | Not Used |
| 41 | 25A | Towbar control module |
| 42 | 40A | Towbar control module |
| 43 | — | Not Used |
| 44 | — | Not Used |
| 45 | — | Not Used |
| 46 | 5A | Outer heat exchanger |
| 47 | 5A | High-voltage converter, air conditioning compressor, switching valve, surveillance unit |
| 48 | 15A | Traction battery, front and rear motor converter |
| 49 | 20A | Traction battery cooling pump |
| 50 | 20A | Traction battery cooling pump / Electric drive system coolant pump (2025 wording) |
| 51 | — | Not Used |
| 52 | 40A | (2025: Heated windscreen right) |
| 53 | 40A | (2025: Heated windscreen left) |
| 54 | — | Not Used |
| 55 | 20A | Left headlight |
| 56 | 20A | Right headlight |
