Volvo XC90 (2016 – 2027) Fuse Box Diagrams & Location
The Volvo XC90 (2016–2027) features multiple fuse boxes that protect its electrical circuits and vehicle systems. Knowing their locations and fuse assignments helps identify electrical faults, replace blown fuses, and maintain essential components such as lighting, power windows, climate control, and infotainment systems.
Fuse Box Location

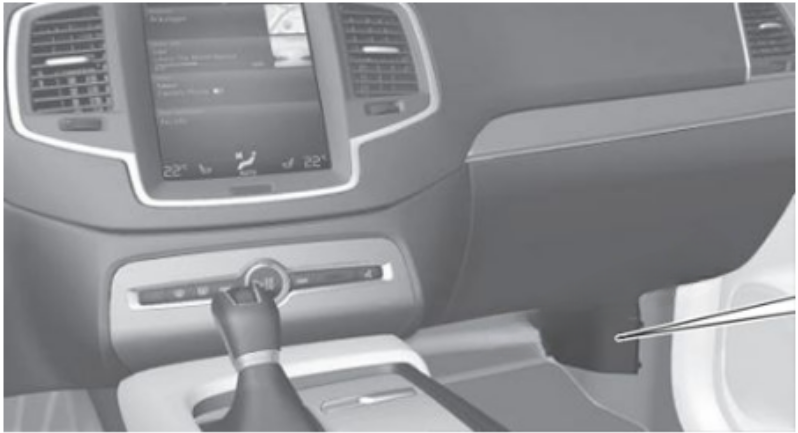

Passenger Compartment Fuse Box
To access the fuse box you need to pull back the floor mat underneath the glove box.

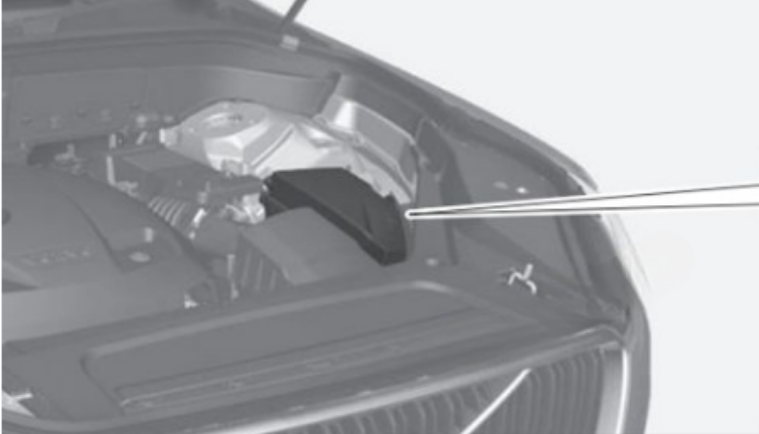

Engine Compartment Fuse Box

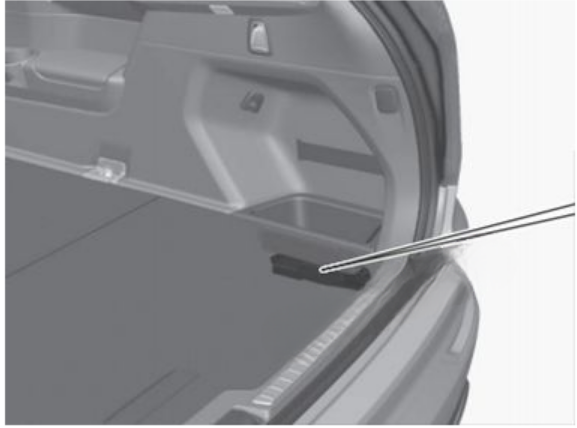

Luggage Compartment Fuse Box
The fuse box is under the storage compartment on the right side.
Fuse Box Diagram
Passenger Compartment Fuse Box
| Fuse No. | Function | Amp (A) |
| 1 | 48 V battery (2021–2027: Control module, 48 V battery / Medium voltage module) | 10A (2021–2027) |
| 2 | 110-volt socket (2016); 120-volt socket on rear side of tunnel console (2017); 230 V socket in tunnel console by legroom for second seat row (2018); Electrical outlet/socket in tunnel console between/by rear seats (2019–2020) | 30A (2016–2020) |
| 3 | Not used (2016–2027) | — |
| 4 | Alarm system movement sensor (2016–2017); Movement detector (2018–2019); Movement sensor (2020–2021); Interior motion sensor (2024–2027) | 5A (2016–2027) |
| 5 | Media player (2016–2020); Not used (2021–2027) | 5A (2016–2020) |
| 6 | Instrument panel (2016–2017); Driver display (2018–2021); Driver display (2022–2027) | 5A (2016–2027) |
| 7 | Center console buttons (2016–2017); Keypad in centre console (2018–2021); Centre console keypad (2022–2027) | 5A (2016–2027) |
| 8 | Sun sensor (2016–2017); Sun sensor / Toll collection transponder (2020–2027) | 5A (2016–2027) |
| 9 | Not used (2016–2022); Sensus control module (2019); Not used (2023–2027) | 20A (2019) |
| 10 | Not used (2016–2018); Infotainment module/system (2019–2027) | 15A (2019–2027) |
| 11 | Steering wheel module (2016–2027) | 5A (2016–2027) |
| 12 | Module for start knob and parking brake (2016–2018); Module for start knob and parking brake controls (2019–2027) | 5A (2016–2027) |
| 13 | Heated steering wheel module (2016–2017); Steering wheel module for heated steering wheel (2018); Heated steering wheel module (2019–2021); Heated steering wheel (2022–2027) | 15A (2016–2027) |
| 14 | Not used (2016–2022); Airborne Particulate Matter Sensor (APMS) (2023–2024) | 5A (2023–2024) |
| 15 | Not used (2016–2027) | — |
| 16 | Not used (2016–2027) | — |
| 17 | Not used (2016–2027) | — |
| 18 | Climate system control module (2016–2017); Control module for climate control system (2018–2027) | 10A (2016–2027) |
| 19 | Not used (2016–2017); Steering lock (2018–2020); Not used (2021–2023); Steering lock (2024) | 7.5A (2018–2020, 2024) |
| 20 | On-board diagnostics (OBDII) (2016–2017); Diagnostic socket OBDII / Data link connector OBD-II (2018–2027) | 5A (2016–2018); 10A (2017–2027) |
| 21 | Center display / Centre display (2016–2027) | 5A (2016–2027) |
| 22 | Climate system blower module (front) / Fan module for climate control system, front (2016–2027) | 40A (2016–2027) |
| 23 | USB HUB / USB hub (2018–2027) | 5A (2018–2027) |
| 24 | Instrument lighting; Courtesy lighting; Rearview mirror auto-dim function; Rain and light sensor; Rear tunnel console keypad; Power front seats (2016–2017) / Controls lighting; Interior lighting; Dimming of interior rearview mirror; Rain and light sensors; Keypad in tunnel console; Power front seats; Rear door control panels; Climate system blower module; Ioniser (2018–2027) | 7.5A (2016–2027) |
| 25 | Control module for driver support functions (2016–2022); Camera, front / Forward looking camera (2023–2027) | 5A (2016–2027) |
| 26 | Panorama roof and sun shade (2016–2017); Panorama roof with sun blind (2018–2021); Panoramic roof with sun curtain (2022–2023); Roof console (2024–2027) | 20A (2016–2027) |
| 27 | Head-up display (2016–2023); Not used (2024–2027) | 5A (2016–2023) |
| 28 | Courtesy lighting / Passenger compartment lighting / Interior lighting (2016–2027) | 5A (2016–2027) |
| 29 | Not used (2016–2020); Wireless charging pad / Wireless charging plate (2021–2027) | 5A (2021–2027) |
| 30 | Ceiling console display (seat belt reminder, front passenger side airbag indicator) (2016–2017); Display in roof console (2018–2021); Display roof console / Camera wide-angle (2022–2027) | 5A (2016–2027) |
| 31 | Not used (2016–2027) | — |
| 32 | Humidity sensor (2016–2020); Not used (2021–2027) | 5A (2016–2020) |
| 33 | Rear passenger-side door module / Door module in right-hand rear door (2016–2020); Not used (2021–2027) | 20A (2016–2020) |
| 34 | Fuses in cargo compartment / Fuses in cargo area / Fuse box, cargo area (2016–2027) | 10A (2016–2027) |
| 35 | Internet connection control module; Volvo On Call control module (2016–2017); Control module for online connected car; Volvo On Call (2018–2021); Control module, online car; Volvo Services (2022–2027) | 5A (2016–2027) |
| 36 | Rear driver-side door module / Door module in left-hand rear door (2016–2020); Not used (2021–2027) | 20A (2016–2020) |
| 37 | Infotainment control module (amplifier) / Audio control module (amplifier) / Audio control device (amplifier) (2016–2027) | 40A (2016–2027) |
| 38 | Climate system blower module (rear) / Fan module for climate control system, rear (2016–2027) | 40A (2016–2027) |
| 39 | Multi-band antenna module / Multi-band antenna (TCAM) / Antenna module (TCAM) (2016–2027) | 5A (2016–2027) |
| 40 | Front seat massage function / Modules for seat comfort (massage) front / Control module, seat comfort, front (2017–2027) | 5A (2017–2027) |
| 41 | Not used (2016–2018); Alcohol lock (2019–2027) | 5A (2019–2027) |
| 42 | Tailgate window wiper / Rear window wiper / Rear windscreen wiper (2016–2027) | 15A (2016–2027) |
| 43 | Fuel pump control module / Control module for fuel pump / Fuel pump (2016–2027) | 15A (2016–2027) |
| 44 | Not used (2016–2018); Twin Engine: Relay windings for distribution box in engine compartment; Relay windings for transmission oil pump (2019); Twin Engine: Relay coils in fuse box in engine compartment; Relay coil for transmission oil pump; Medium voltage converter; Integrated dynamo (2020); Converter 48 V; Engine start module (2021–2027) | 5A (2019–2027) |
| 45 | Not used (2016–2019); Opening the boot lid/tailgate with foot motion (2020–2027); Control module, Intellisafe / Driver support features (2020–2027) | 5A (2020–2027) |
| 46 | Driver side seat heating / Driver’s seat heating (2016–2027) | 15A (2016–2027) |
| 47 | Passenger side seat heating / Front passenger’s seat heating (2016–2027) | 15A (2016–2027) |
| 48 | Coolant pump (2016–2027) | 10A (2016–2017); 7.5A (2018–2027) |
| 49 | Not used (2016–2022); Air cleaner (2023–2027) | 5A (2023–2027) |
| 50 | Front driver-side door module / Door module in left-hand front door (2016–2021); Power driver’s seat (2022–2027) | 20A (2016–2027) |
| 51 | Active chassis (option) / Control module for suspension (active chassis) / Active chassis control module / Module, active damping (2016–2027) | 20A (2016–2027) |
| 52 | Not used (2016–2021); Opening the boot lid/tailgate with foot motion (2022–2027) | 5A (2022–2027) |
| 53 | Sensus control module (2016–2021); Infotainment module/system (2022–2025) | 10A (2016–2025) |
| 54 | Not used (2016–2027) | — |
| 55 | Not used (2016–2027) | — |
| 56 | Front passenger-side door module / Door module in right-hand front door (2016–2021); Electrically operated front passenger seat / Passenger seat (2022–2027) | 20A (2016–2027) |
| 57 | Not used (2016–2021); Twin Engine (Excellence): Display for rear seat comfort functions; OBD-II connector; Extra movement detectors (2022); Not used (2023–2027) | 5A (2022) |
| 58 | Not used (2016–2021); TV (certain markets) (2022–2024); Not used (2025–2027) | 5A (2022–2024) |
| 59 | Circuit breaker for fuses 53 and 58 (2016–2018); Primary fuse for fuses 9, 53 and 58 (2019); Primary fuse for fuses 52, 53, 57 and 58 (2020–2024); Infotainment system (2025–2026); Foot movement opening tailgate (2027) | 15A (2016–2024); — (2025–2026); 15A (2027) |

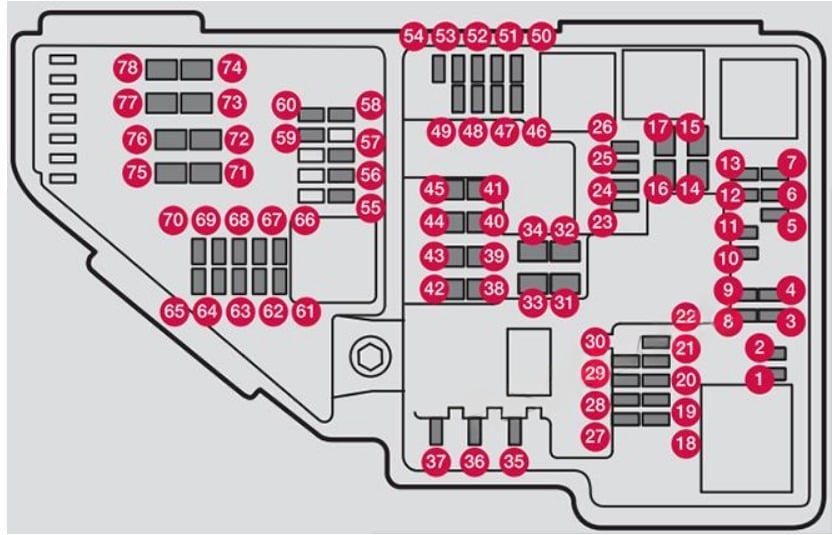

Engine Compartment Fuse Box
| Fuse No. | Function | Amp (A) |
| 1 | Not used(2016–2027) | – |
| 2 | Not used (2016–2027) | – |
| 3 | Not used (2018–2019 models)Charge pressure module, turbo (petrol); Lambda probe group (petrol) (2020–2027 models) | 15A (2020–2027 models) |
| 4 | Ignition coils (petrol); Spark plugs (petrol) (2018–2020 models)Spark plugs/ignition coils (petrol); Exhaust sensor group, diesel particulate/nitrous oxides (diesel) (2021–2027 models) | 15A (2018–2027 models) |
| 5 | Solenoid engine oil pump; Solenoid clutch A/C; Lambda probe, centre (petrol); Lambda probe, rear (diesel) (2018–2019 models)Solenoid engine oil pump; Lambda probe group; Solenoid air conditioning compressor (2020–2027 models) | 15A (2018–2027 models) |
| 6 | Vacuum regulators; Valve; Valve for output pulse (diesel) (2018–2019 models)Oil level and temperature sensors; Glow plug module (diesel); Engine component group 1 (2020–2027 models) | 7.5A (2018–2027 models) |
| 7 | Engine control module; Actuator; Throttle unit; EGR valve (diesel); Position sensor for turbo (diesel); Valve for turbocharger (petrol) (2018–2020 models)Engine Control Module (ECM); Throttle control module; Engine component group 2 (2021–2027 models) | 20A (2018–2027 models) |
| 8 | Engine Control Module (ECM) (2018–2027 models) | 5A (2018–2027 models) |
| 9 | Not used (2018–2019 models)Fuel evaporation pump (EVAP) (2020–2027 models) | 10A (2020–2027 models) |
| 10 | Solenoids (petrol); Valve; Thermostat for engine cooling system (petrol); EGR cooling pump (diesel); Glow control module (diesel) (2018–2019 models)Engine component group 3; Glow plug module (diesel) (2020–2027 models) | 10A (2018–2027 models) |
| 11 | Control module for spoiler roller cover; Control module for radiator roller cover; Relay coils for output pulse (diesel) (2018–2020 models)Spoiler damper control module; Cooler damper control module; Relay coils for output pulse (diesel); Coolant valve; Fuel leakage detection (gasoline) (2021 models)Control module, spoiler damper; Control module, radiator damper; Relay coils power pulse (PowerPulse) (diesel); Switching valve, coolant (2022–2025 models)Spoiler damper; Radiator damper; Switching valve for coolant (2026–2027 models) | 5A (2018–2027 models) |
| 12 | Lambda probe, front; Lambda probe, rear (petrol) (2018–2019 models)Coolant pump (2020–2027 models) | 15A (2018–2027 models) |
| 13 | Engine Control Module (ECM) (2018–2027 models) | 20A (2018–2027 models) |
| 14 | Starter motor (2018–2027 models) | 40A (2018–2027 models) |
| 15 | Starter motor (2018–2027 models) | Shunt (2018–2027 models) |
| 16 | Fuel filter heater (diesel) (2018–2021 models)Fuel filter heater (diesel); Oil pump (petrol); Transmission control module (petrol) (2022–2025 models)Oil pump; Transmission; Turbo configuration medium performance (2026–2027 models) | 30A (2018–2027 models) |
| 17 | Not used (2018–2021 models)Transmission control module (2022 models)Not used (2023–2027 models) | 25A (2022 models) |
| 18 | fuse chartsCalculation unit / Calculation module (2018–2027 models) | 5A (2018–2027 models) |
| 19 | Not used (2018–2027 models) | – |
| 20 | Not used (2016–2027 models) | – |
| 21 | Not used (2016–2020 models)ECM camera (2021 models)Not used (2022–2027 models) | 15A (2021 models) |
| 22 | Not used (2016–2027 models) | – |
| 23 | USB socket (option) (2016 models)Front USB socket (option) (2017 models)Not used (2018–2020 models)USB port, tunnel console, rear (2021–2027 models) | 5A (2016–2017 models)7.5A (2021–2027 models) |
| 24 | 12-volt socket in the front tunnel console (2016–2017 models)12 V socket in tunnel console, front (2018–2027 models) | 15A (2016–2027 models) |
| 25 | 12-volt socket on the rear side of the tunnel console; 12-volt socket in the tunnel console between the rear seats (2016–2017 models)12 V socket in tunnel console, by legroom for second seat row; 230 V socket in tunnel console, by legroom for second seat row (2020 models)Not used (2018–2019 models; 2021–2027 models) | 15A (2016–2017 models)15A (2020 models) |
| 26 | 12-volt socket in the cargo compartment (2016–2017 models)12 V socket in cargo area (2018–2027 models) | 15A (2016–2027 models) |
| 27 | Not used (2016–2027 models) | – |
| 28 | Left-side headlight, some models with LED (2019 models)Left-hand headlamp, LED (2020–2021 models)Headlamp, left (2022–2027 models) | 15A (2019–2027 models) |
| 29 | Right-side headlight, some models with LED (2019 models)Right-hand headlamp, LED (2020–2021 models)Headlamp, right (2022–2027 models) | 15A (2019–2027 models) |
| 30 | Not used (2016–2027 models) | – |
| 31 | Heated windshield, driver side (option) (2016–2017 models)Heated windscreen, left side (2018–2020 models)Not used (2021–2027 models) | Shunt (2016–2020 models) |
| 32 | Heated windshield, driver side (option) (2016–2017 models)Heated windscreen, left side (2018–2020 models)Not used (2021–2027 models) | 40A (2016–2020 models) |
| 33 | Headlight washers (option) (2016–2017 models)Headlamp washers (2018–2027 models) | 25A (2016–2027 models) |
| 34 | Windshield washer (2016–2017 models)Windscreen washers (2018–2019 models)Washer fluid pump, front (2020–2027 models) | 25A (2016–2027 models) |
| 35 | Transmission control module (2018–2019 models)Transmission control unit; Electric gear selector (2020–2023 models)Electric gear selector (2024 models)Not used (2025–2027 models) | 15A (2018–2024 models) |
| 36 | Horn (2016–2017 models) Horn (honk) (2018–2027 models) | 20A (2016–2027 models) |
| 37 | Alarm siren (option) (2016–2017 models)Siren (option) (2018–2027 models) | 5A (2016–2027 models) |
| 38 | Brake system control module (valves, parking brake) (2016–2019 models)Control module for brake system (valves, parking brake) (2020–2027 models)Brake control with 48V battery (2020–2023 models) | 40A (2016–2019 models)40A (2020–2027 models)30A (2020–2023 models) |
| 39 | Windshield wipers (2016 models)Windscreen wipers (2017–2027 models) | 30A (2016–2027 models) |
| 40 | Tailgate window washer (2016 models)Rear window washer (2017–2023 models)Washer fluid pump, rear (2024 models)Not used (2025–2027 models) | 25A (2016–2024 models) |
| 41 | Heated windshield, passenger side (option) (2016–2017 models)Heated windscreen, right side (2018–2027 models) | 40A (2016–2027 models) |
| 42 | Not used (2016–2018 models)Parking heater (2019–2024 models)Not used (2025–2027 models) | 20A (2019–2024 models) |
| 43 | Brake system control module (ABS pump) (2016–2023 models)Central Electronic Module (CEM) (2024–2027 models) | 40A (2016–2023 models)30A (2024–2027 models) |
| 44 | Not used (2016–2027 models) | – |
| 45 | Heated windshield, passenger side (option) (2016–2017 models)Heated windscreen, right side (2018–2027 models) | Shunt (2016–2027 models) |
| 46 | Feed when ignition is switched on to: engine control module; transmission components; electrical power steering; central electrical module; brake system control module (2016–2027 models) | 5A (2016–2027 models) |
| 47 | Not used (2016–2022 models)Radar, front (2023–2027 models) | 5A (2023–2027 models) |
| 48 | Passenger side headlight (2016–2017 models)Right-hand headlamp (2018–2027 models) | 7.5A (2016–2018 models)15A (2019–2027 models) |
| 49 | Not used (2016–2022 models) Alcohol lock (2023–2027 models) | 5A (2023–2027 models) |
| 50 | Not used (2016–2019 models)Transmission control module (2020–2027 models) | 10A (2020–2027 models) |
| 51 | Battery connections control module (2016–2017 models)Module for controlling battery engagement (2018–2023 models)Control module, battery engagement (diesel) (2024–2027 models) | 5A (2016–2027 models) |
| 52 | Air bags; Occupant Weight Sensor (OWS) (2016–2017 models)Airbags (2018–2019 models)Airbags; Passenger weight sensor (2020–2021 models)Collision module (SRS) (2022–2027 models) | 5A (2016–2027 models) |
| 53 | Driver side headlight (2016–2017 models)Left-hand headlamp (2018–2027 models) | 7.5A (2016–2018 models)15A (2019–2027 models) |
| 54 | Accelerator pedal sensor (2016–2027 models) | 5A (2016–2027 models) |
| 55 | Transmission control module (2016–2017 models) | 15A (2016–2017 models) |
| 56 | Engine control module (2016–2017 models) | 5A (2016–2017 models) |
| 57 | Not used (2016–2017 models) | – |
| 58 | Not used (2016–2017 models) | – |
| 59 | Not used (2016–2017 models) | – |
| 60 | Not used (2016–2017 models) | – |
| 61 | Engine control module; Turbocharger valve (2016–2017 models) | 20A (2016–2017 models) |
| 62 | Solenoids; Valves; Engine cooling system thermostat (2016–2017 models) | 10A (2016–2017 models) |
| 63 | Vacuum regulators; Coolant fan relay winding; Valve (2016–2017 models) | 7.5A (2016–2017 models) |
| 64 | Spoiler shutter control module; Radiator shutter control module; Fuel leakage detection (2016–2017 models) | 5A (2016–2017 models) |
| 65 | Not used (2016–2017 models) | – |
| 66 | Heated oxygen sensors (front and rear) (2016–2017 models) | 15A (2016–2017 models) |
| 67 | Oil pump solenoid; A/C magnetic coupling; Heated oxygen sensor (center) (2016–2017 models) | 15A (2016–2017 models) |
| 68 | Crankcase ventilation heater (2016–2017 models) | 7.5A (2016–2017 models) |
| 69 | Engine control module (2016–2017 models) | 20A (2016–2017 models) |
| 70 | Ignition coil; Spark plugs (2016–2017 models) | 15A (2016–2017 models) |
| 71 | Not used (2016–2017 models) | – |
| 72 | Not used (2016–2017 models) | – |
| 73 | Not used (2016–2017 models) | – |
| 74 | Not used (2016–2017 models) | – |
| 75 | Not used (2016–2017 models) | – |
| 76 | Not used (2016–2017 models) | – |
| 77 | Starter motor (2016–2017 models) | Shunt (2016 models)40A (2017 models) |
| 78 | Starter motor (2016–2017 models) | Shunt (2016 models)40A (2017 models) |

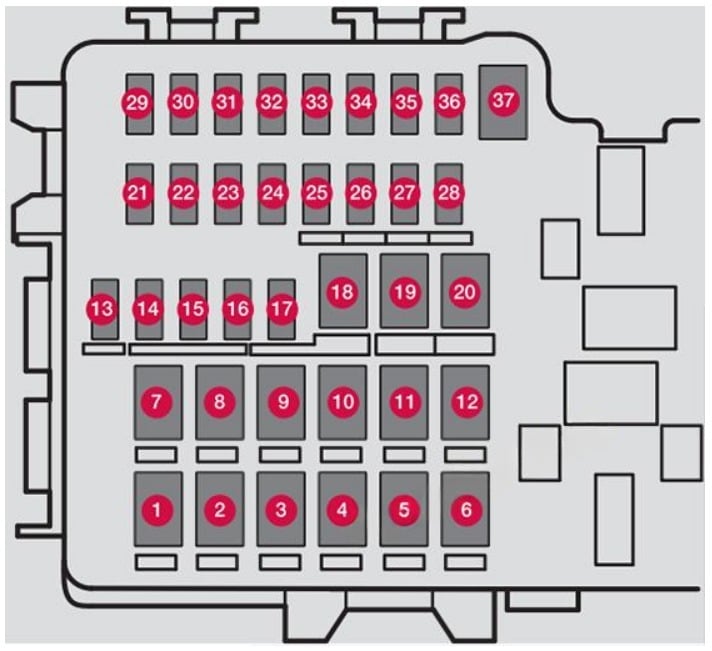

Luggage Compartment Fuse Box
| Fuse No. | Function | Amp (A) |
| 1 | Heated tailgate window (2016–2017) / Rear window defroster (2018–2026) / Rear windscreen defroster (2027) | 30A (2016–2026) / 30A (2027) |
| 2 | Not used (2016–2017) / Twin-engine: Central electrical module (2018–2020) / Recharge PHEV: Central electrical module (2021) / Central Electronic Module (CEM) (2022–2026) / Central Electronic Module (CEM) (2027) | Not used (2016–2017) / 40A (2018–2021) / 40A (2022–2026) / 30A (2027) |
| 3 | Pneumatic suspension compressor (2016–2017) / Compressor for air suspension (2018–2026) / Air suspension compressor (2027) | 40A (2016–2027) |
| 4 | Heated rear seat (passenger side) (option) (2016–2017) / Electric additional heater, right-hand side rear (2018–2020) / Rear auxiliary electric heater (right-hand side) (2021) / Electric additional heater, right rear (2022–2023) / Electric additional heater, right rear (2024–2026) / Heater right (2027) | 30A (2016–2027) |
| 5 | Not used (2016–2027) | Not used (2016–2027) |
| 6 | Heated rear seat (driver side) (option) (2016–2017) / Electric additional heater, left-hand side rear (2018–2020) / Rear auxiliary electric heater (left-hand side) (2021) / Electric additional heater, left rear (2022–2023) / Electric additional heater, left rear (2024–2026) / Heater left (2027) | 30A (2016–2027) |
| 7 | Not used (2016–2017) / Twin-engine: Door module right side, rear (2018–2019) / Door module, right rear (2020–2027) | Not used (2016–2017) / 20A (2018–2027) |
| 8 | Not used (2016–2017) / Control module for reduction of nitrogen oxides (diesel) (2018–2020) / Not used (2021) / Control module for reduction of nitrogen oxides (diesel) (2022–2023) / Control module for reduction of nitrogen oxides (diesel) (2024–2026) / Not used (2027) | Not used (2016–2017) / 30A (2018–2020) / Not used (2021) / 30A (2022–2026) / Not used (2027) |
| 9 | Power tailgate (option) (2016–2017) / Power operated tailgate (2018–2027) | 25A (2016–2027) |
| 10 | Power passenger seat module (option) (2016–2017) / Electrically operated front passenger seat (option) (2018–2020) / Door module, right front (2021–2027) | 20A (2016–2027) |
| 11 | Trailer hitch control module (option) (2016–2017) / Towbar control module (option) (2018–2027) / Towbar (2027) | 40A (2016–2027) |
| 12 | Seat belt tensioner module (passenger side) (2016–2017) / Seatbelt pretensioner module, right-hand side (2018–2020) / Seat belt tensioner module (right side) (2021) / Seatbelt pretensioner, right (2022–2027) | 40A (2016–2027) |
| 13 | Internal relay windings (2016–2017) / Internal relay coils (2018–2027) | 5A (2016–2027) |
| 14 | Not used (2016–2017) / Control module for reduction of nitrogen oxides (diesel) (2018–2020) / Not used (2021) / Control module for reduction of nitrogen oxides (diesel) (2022–2026) / Not used (2027) | Not used (2016–2017) / 15A (2018–2020) / Not used (2021) / 15A (2022–2026) / Not used (2027) |
| 15 | Foot movement detection module for opening the power tailgate (option) (2016–2017) / Module for detecting foot movement (option) (for opening the power operated tailgate) (2018) / Door module, left rear (2019–2027) | 5A (2016–2018) / 20A (2019–2027) |
| 16 | Not used (2016–2017) / Alcohol lock (2018–2027) / USB hub/accessory port (2020–2023) / Alcohol lock, USB hub/accessory port (2020) | Not used (2016–2017) / 5A (2018–2027) |
| 17 | Folding third row seats backrest module (option) (2016–2017) / Module for lowering the backrest in the third seat row (2018–2019) / Module for electrically folding third-row seats (2020–2021) / Not used (2022–2027) | 20A (2016–2021) / Not used (2022–2027) |
| 18 | Trailer hitch control module (option) (2016–2017) / Towbar control module (option) (2018–2021) / Towbar, Accessory module (2022–2027) | 25A (2016–2027) / 25A–40A (2022–2027) |
| 19 | Power driver seat module (option) (2016–2017) / Power driver seat (option) (2018) / Power driver seat; Door module left side, front (2019–2021) / Door module, left front (2022–2027) | 20A (2016–2027) |
| 20 | Seat belt tensioner module (driver side) (2016–2017) / Seatbelt pretensioner module, left-hand side (2018–2020) / Seat belt tensioner module (left side) (2021) / Seatbelt pretensioner, left (2022–2027) | 40A (2016–2027) |
| 21 | Parking camera (option) (2016–2020) / Park Assist Camera (2018–2021) / Parking camera (option) (2022–2023) / Not used (2024–2027) | 5A (2016–2023) / Not used (2024–2027) |
| 22 | Not used (2016–2027) | Not used (2016–2027) |
| 23 | Not used (2016–2027) | Not used (2016–2027) |
| 24 | Not used (2016–2027) | Not used (2016–2027) |
| 25 | Not used (2016–2020) / Twin Engine: Feed when ignition is on (2018–2020) / Recharge PHEV: Feed when ignition is on (2021) / 2025–2026: Ignition extended busbar 1 (2025–2026) / Ignition extended busbar 1 (2027) | Not used (2016–2020) / 10A (2018–2021) / 10A (2025–2027) |
| 26 | Airbag and seat belt tensioner modules (2016–2019) / Not used (2020–2027) | 5A (2016–2019) / Not used (2020–2027) |
| 27 | Not used (2016–2017) / Twin Engine, Excellence: Cooler; Heated/cooled cup holder (rear) (2018–2019) / Twin Engine: Accessory module (2019) / Not used (2020–2027) | Not used (2016–2017) / 10A (2018–2019) / 5A (2019) / Not used (2020–2027) |
| 28 | Heated rear seat (driver side) (option) (2016–2017) / Seat heating left-hand side rear (2018–2019) / Heated rear seat (left side) (2020–2021) / Seat heating, left rear (option) (2022–2023) / Seat heating and ventilation, left rear (option) (2024–2027) | 15A (2016–2027) |
| 29 | Not used (2016–2019) / Not used (2020–2027) / Exhaust system actuator (2024–2027) | Not used (2016–2023) / 5A (2024–2027) |
| 30 | BLIS (option) (2016–2017) / Blind Spot Information (BLIS) control module, exterior reversing sound (option) (2018–2020) / Blind Spot Information (BLIS) (2021–2027) | 5A (2016–2027) |
| 31 | Not used (2016–2027) | Not used (2016–2027) |
| 32 | Seat belt tensioner modules (2016–2017) / Seatbelt pretensioner modules (2018–2019) / Seat belt tensioner module, left (2020–2021) / Seatbelt pretensioner, left (2022–2023) / Not used (2024–2027) | 5A (2016–2023) / Not used (2024–2027) |
| 33 | Emission system actuator (2016–2017) / Actuator for exhaust gases (petrol, certain engine variants) (2018–2021) / Emissions system actuator (gasoline, certain engine variants) (2020–2023) / Actuator, exhaust system (petrol) (2022–2027) | 5A (2016–2027) |
| 34 | Not used (2016–2027) | Not used (2016–2027) |
| 35 | All Wheel Drive control module (2016–2017) / All Wheel Drive (AWD) control module (option) (2018–2027) / Control module for four-wheel drive (2027) | 15A (2016–2027) |
| 36 | Heated rear seat (passenger side) (option) (2016–2017) / Seat heating right-hand side rear (2018–2019) / Heated rear seat (right side) (2020–2021) / Seat heating, right rear (option) (2022–2023) / Seat heating and ventilation, right rear (option) (2024–2027) | 15A (2016–2027) |
| 37 | Not used (2016–2027) | Not used (2016–2027) |
Related Posts:
