BAIC EU5 2024 Fuse Box Diagrams & Location
The BAIC EU5 2024 uses fuse boxes to protect important electrical circuits and components. Knowing the correct fuse locations and assignments makes troubleshooting electrical problems easier. This guide covers fuse box locations, diagrams, fuse ratings, and protected components for the BAIC EU5.
Fuse Box Location

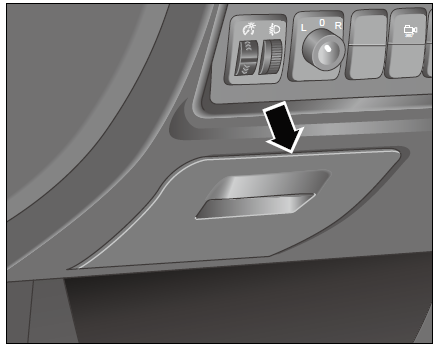

Passenger Compartment Fuse Box
The dashboard electrical box is located inside the storage box at the lower left of the dashboard.
Engine Compartment Fuse Box

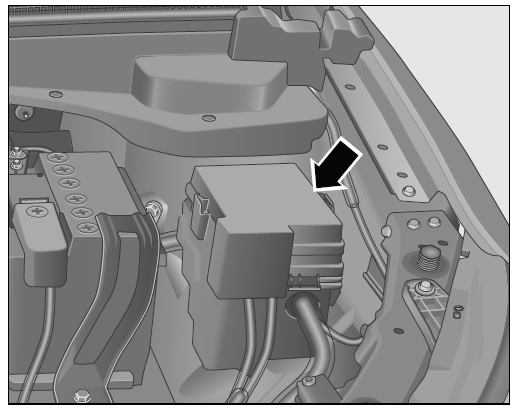

Electronic Box 1
The front compartment electronic box 1 is located on the left side of the battery.

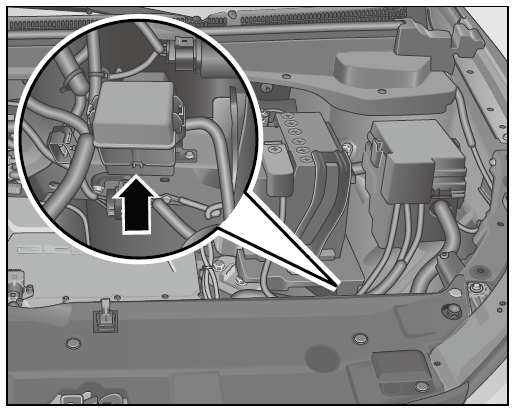

Electronic Box 2
The front engine room electrical box 2 is located in front of the battery.
Fuse Box Diagrams

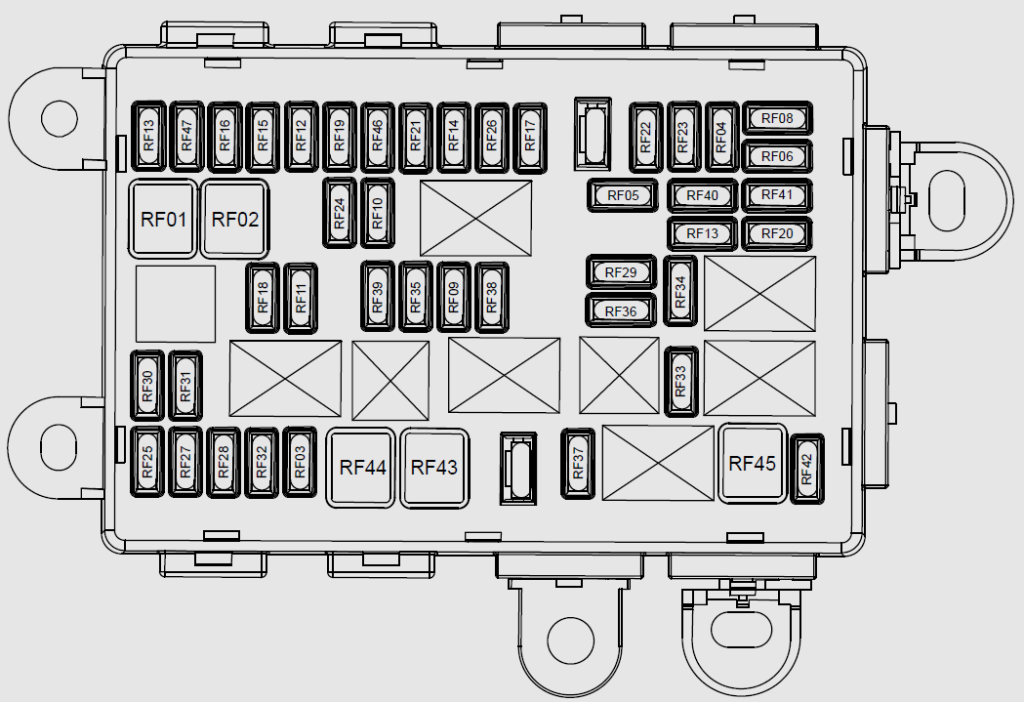

Passenger Compartment Fuse Box
| No. | Specification | Name |
|---|---|---|
| RF01 | 30A | Left front/rear right window power + |
| RF02 | 30A | Front right/Left rear window power |
| RF03 | 20A | BCM door lock power |
| RF04 | 5A | Hybrid fan power supply |
| RF05 | 15A | POWER-C-LIGHTING2 |
| RF06 | 30A | — |
| RF07 | 25A | — |
| RF08 | 5A | — |
| RF09 | 10A | — |
| RF10 | 7.5A | Pedestrian warning switch |
| RF11 | 10A | — |
| RF12 | 7.5A | BMS IG |
| RF13 | 5A | Electronic knob shift |
| RF14 | 5A | TPMS/Gateway/BCM/Instrument/P gear IG Power |
| RF15 | 5A | Front-view camera ⊙ |
| RF16 | 7.5A | Brake switch |
| RF17 | 15A | — |
| RF18 | 7.5A | Pedestrian warning switch # |
| RF19 | 7.5A | Rain sensor # |
| RF20 | 7.5A | Rain sensor & |
| RF21 | 10A | — |
| RF22 | 5A | BCM ACC power |
| RF23 | 15A | Cigar lighter |
| RF24 | 10A | Anti-theft alarm ACC* |
| RF25 | 15A | Constant electricity of Central Control System |
| RF26 | 20A | Sunroof motor |
| RF27 | 15A | BCM horn power |
| RF28 | 7.5A | Trunk light |
| RF29 | 7.5A | ESCL IMMO |
| RF30 | 7.5A | PEPS KL30-1 |
| RF31 | 10A | PEPS KL30-2 |
| RF32 | 10A | KL30 |
| RF33 | 5A | — |
| RF34 | 30A | — |
| RF35 | 7.5A | — |
| RF36 | 7.5A | — |
| RF37 | 10A | — |
| RF38 | 10A | — |
| RF39 | 15A | — |
| RF40 | 10A | Driver seat heating |
| RF41 | 10A | Constant electricity of anti-theft alarm |
| RF41 | 10A | Inner ambient light controller ⊙ |
| RF42 | 5A | Air conditioning feedback |
| RF43 | 20A | Electric adjustment of driver |
| RF44 | 30A | EPB ◎ |
| RF45 | 20A | P-gear controllers |
| RF46 | 10A | T-BOX |
| RF47 | 10A | Airbag SRS IG1 |
Mark*:
- ” ⊙ ” indicates the R600 model with multilink ambient light configuration
- “*” indicates R400 and R500 car-hailing models
- “&” indicates torsion beam model
- “#” indicates multi-link models
- ” ◎ ” indicates the model with EPB controller configuration
Engine Compartment Fuse Box

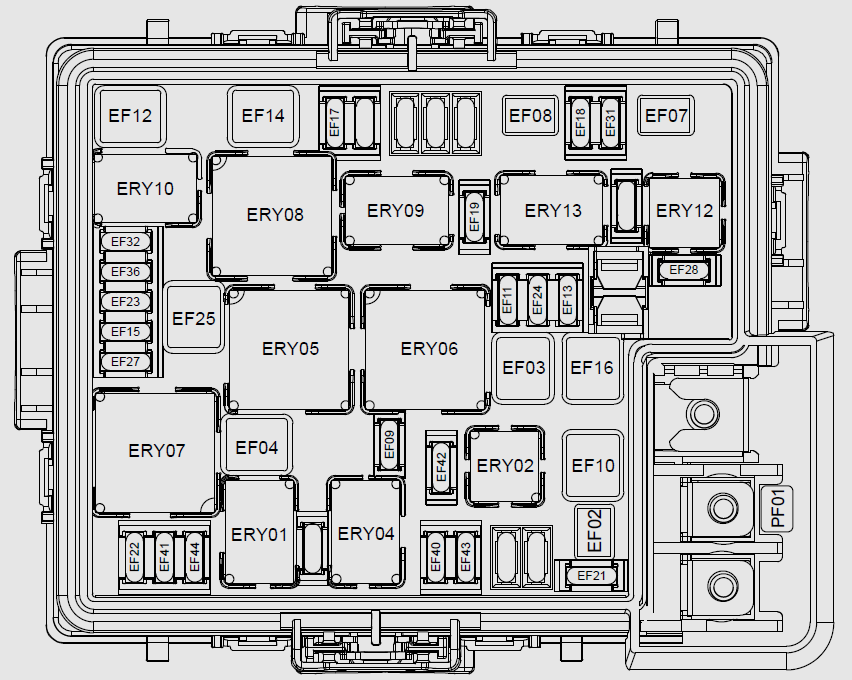

Electronic Box 1 (UEC1)
| No. | Specification | Name |
|---|---|---|
| ERY01 | — | Reserve relay |
| ERY02 | — | Daytime running light relay |
| ERY04 | — | Water pump relay |
| ERY05 | — | Low speed fan relay |
| ERY06 | — | High speed fan relay |
| ERY07 | — | Blower relay |
| ERY08 | — | Front wiper relay |
| ERY09 | — | 2 root of front wiper relay |
| ERY10 | — | Low-beam headlight relay |
| ERY12 | — | Wake up CMU/OBC relay |
| ERY13 | — | ACC relay |
| PF01 | 175A | PEU |
| EF02 | 20A | Water pump |
| EF03 | 20A | Low-speed fan & |
| EF03 | 40A | Low-speed fan # |
| EF04 | 40A | Air blower |
| EF07 | 20A | High-speed fan & |
| EF07 | 30A | High-speed fan # |
| EF08 | 40A | ABS motor ◎ |
| EF08 | 40A | ESC Motor ⊙ |
| EF09 | 5A | Atmosphere light |
| EF10 | 30A | EPB ◎ |
| EF10 | 40A | ESC valve ⊙ |
| EF11 | 15A | Horn |
| EF12 | 40A | Constant electricity 2 of ignition switch |
| EF13 | 10A | IG2 & |
| EF13 | — | Reserved |
| EF14 | 50A | Constant electricity 1 of ignition switch |
| EF15 | 10A | UEC2 |
| EF16 | 60A | EPS |
| EF17 | 10A | Slow charge |
| EF18 | 5A | Air blower |
| EF19 | 20A | Front Wiper |
| EF21 | 20A | A/C compressor |
| EF22 | 10A | Wake up CMU/OBC |
| EF23 | 10A | BMS |
| EF24 | 25A | ABS valve ◎ |
| EF24 | — | Reserve ⊙ |
| EF25 | 30A | Vacuum pump |
| EF27 | 10A | High beam light |
| EF28 | 10A | PEU |
| EF31 | 10A | Brake switch |
| EF32 | 10A | Left low-beam light |
| EF36 | 10A | Right low-beam light |
| EF40 | 20A | IG1 & |
| EF40 | 25A | IG1 # |
| EF41 | 5A | Quick charge wake-up |
| EF42 | 7.5A | Daytime running light |
| EF43 | 20A | ACC |
| EF44 | 30A | Rear windshield heating |
Mark*:
- “&” indicates torsion beam model
- “#” indicates multi-link models
- ” ◎ ” Indicates ABS configuration model
- ⊙ ” indicates ESP configuration model

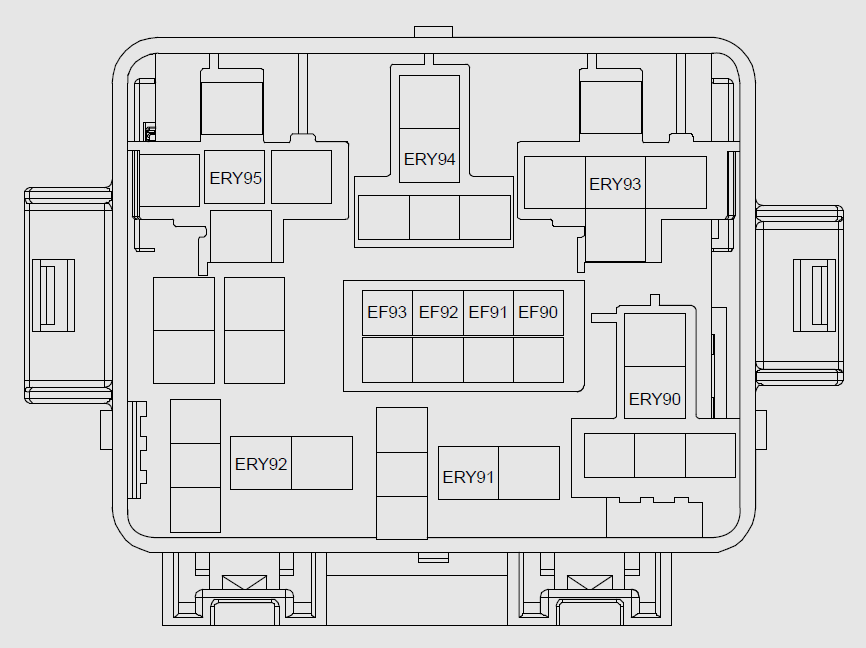

Electronic Box 2 (UEC2)
| No. | Specification | Name |
|---|---|---|
| FRY-90 | — | Rear fog light relay |
| FRY-91 | — | Rear defroster relay |
| FRY-92 | — | Reversing light relay |
| FRY-93 | — | IG1 relay |
| FRY-94 | — | IG2 relay & |
| FRY-94 | — | Reserve # |
| FRY-95 | — | Quick charge wake-up relay |
| EF-90 | 5A | Quick charge relay |
| EF-91 | 10A | Reverse light |
| EF-92 | 10A | PTC EAS |
| EF-93 | 5A | Rear view mirror heating |
| EF-94 | — | Reserve |
| EF-95 | — | Reserve |
Mark*:
- “&” indicates torsion beam model
- “#” indicates multi-link models
