Fiat Punto (2000 – 2011) Fuse Box Diagrams & Location
The Fiat Punto (2000–2011) fuse box guide provides detailed fuse box locations, fuse assignments, and clear diagrams for every major electrical system. Whether you’re troubleshooting a blown fuse or identifying a specific circuit, this reference helps you maintain and repair your Punto quickly and safely.
Fuse Box Location

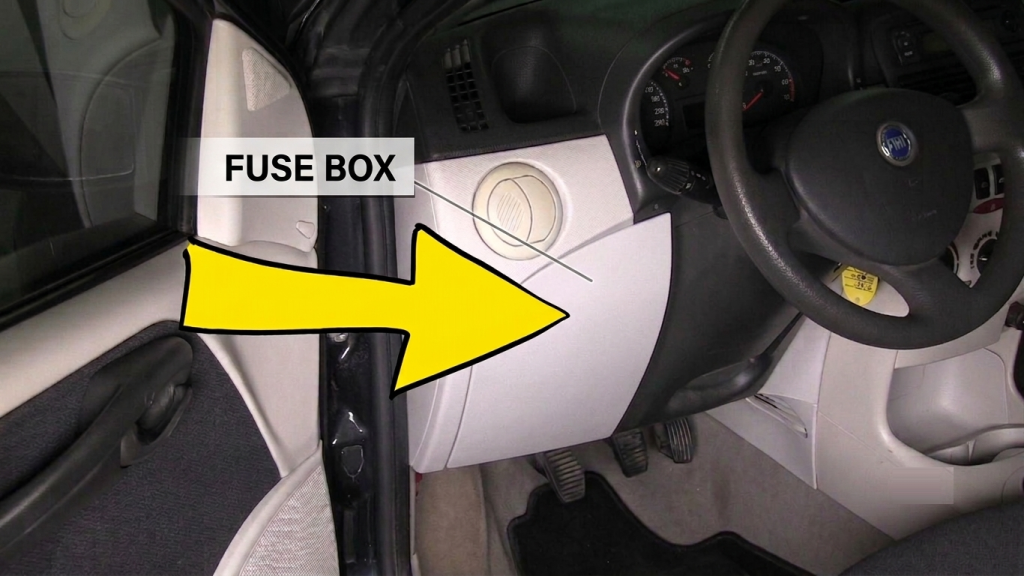

Passenger Compartment Fuse Box
Located under the driver’s side dashboard near the steering wheel column, behind the lower facia panel.

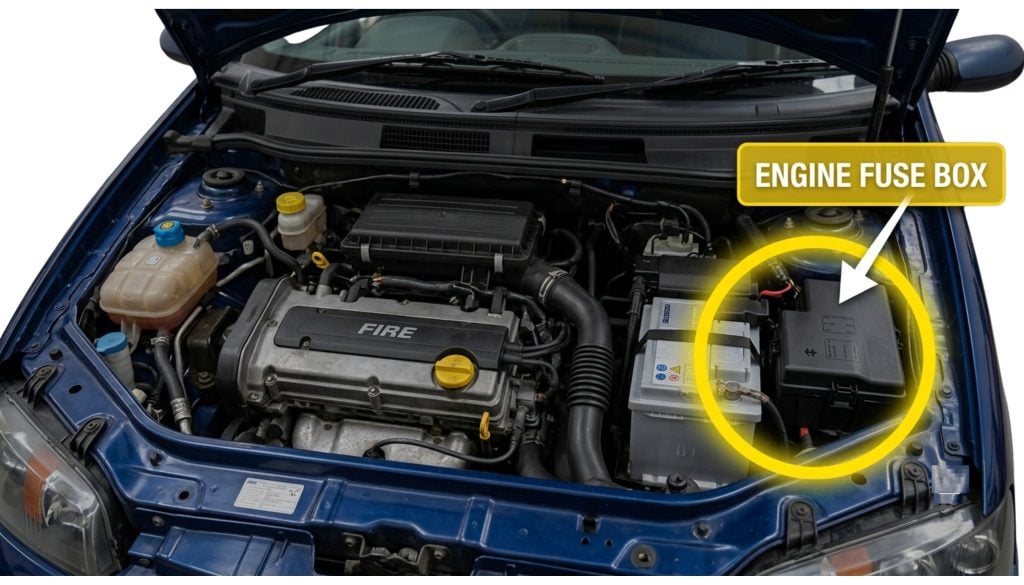

Engine Compartment Fuse Box
Located on the left-hand side of the engine bay (near the battery/fluid reservoirs).
Fuse Box Diagrams
Passenger Compartment Fuse Box

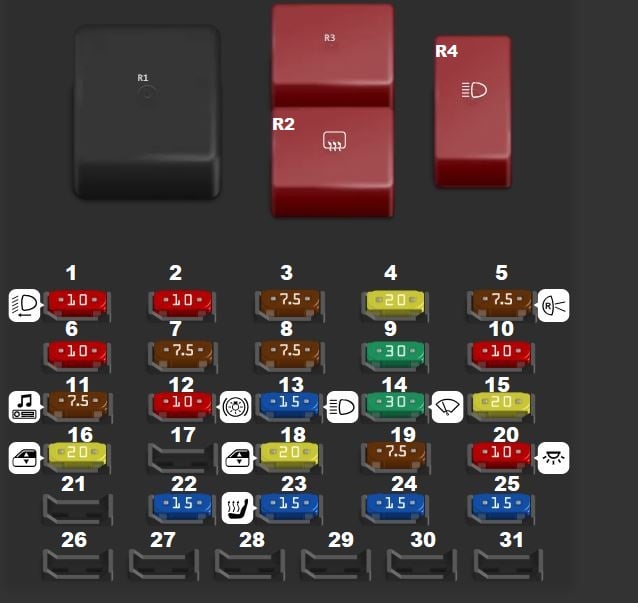

Fiat Punto (2000 – 2003)
| Type | No. | Description |
| Fuse MINI
10A |
F1 | Left dipped beam headlamp and headlamp tilt adjuster |
| Fuse MINI 10A |
F2 | Right dipped beam headlight |
| Fuse MINI 7.5A |
F3 | License plate lighting, instrument panel lighting |
| Fuse MINI
20A |
F4 | Cigarette lighter fuse Fiat Punto 2 |
| Fuse MINI
7.5A |
F5 | Reverse lights, idle speed regulator stepper motor, air conditioner, heater relay |
| Fuse MINI 10A |
F6 | Power Steering Motor |
| Fuse MINI
7.5A |
F7 | ABS control unit |
| Fuse MINI
7.5A |
F8 | Safety Airbags |
| Fuse MINI 30A |
F9 | Rear window heater |
| Fuse MINI
10A |
F10 | Turn indicators, hazard warning lights, instrument panel lighting |
| Fuse MINI
7.5A |
F11 | Radio, telephone, lights, rear view mirror switch tow hitch socket |
| Fuse MINI 10A |
F12 | Stop lamps, instrument panel lighting/ signal lamps |
| Fuse MINI
15A |
F13 | Lighting |
| Fuse MINI
30A |
F14 | Windscreen wiper, washer pump |
| Fuse MINI 20A |
F15 | central locking system |
| Fuse MINI
20A |
F16 | Front right door power window |
| Fuse MINI
20A |
F18 | Front left door power window |
| Fuse MINI 7.5A |
F19 | Exterior mirror heater |
| Fuse MINI
10A |
F20 | Interior lighting, trunk light, radio, telephone, security alarm horn (siren), interior sensors, diagnostic connector |
| Fuse MINI
15A |
F22 | Electric sunroof |
| Fuse MINI 15A |
F23 | Seat heater |
| Fuse MINI
15A |
F24 | Rear window cleaner |
| Fuse MINI
15A |
F25 | Speaker (subwoofer) |
| Relay | R1 | Battery power circuit (special) |
| Relay | R2 | Heated rear window relay |
| Relay | R3 | Battery power circuit (main) |
| Relay | R4 | High Beam Relay |

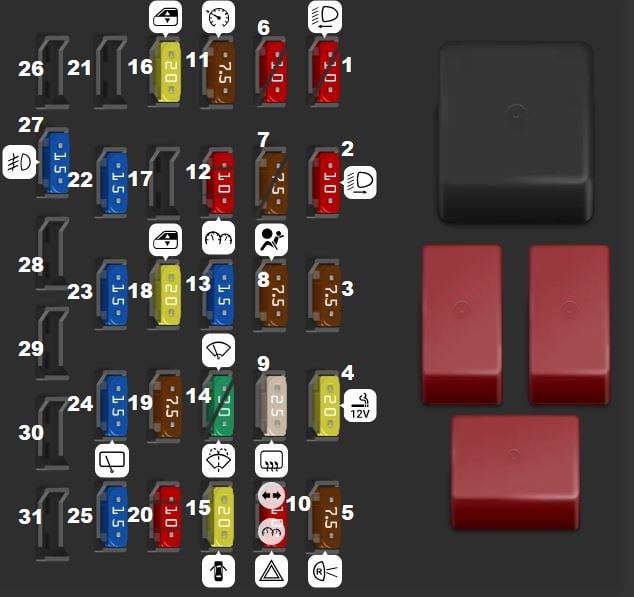

Fiat Punto Classic (2004 – 2011)
| Type | No. | Description |
| Fuse MINI 10A |
F1 | Left low beam, headlight leveling system |
| Fuse MINI
10A |
F1 | Headlight orientation adjustment |
| Fuse MINI
10A |
F2 | Right low beam |
| Fuse MINI 7.5A |
F3 | License plate lighting, instrument panel lighting |
| Fuse MINI
20A |
F4 | Cigarette lighter |
| Fuse MINI
7.5A |
F5 | Reverse lights |
| Fuse MINI 7.5A |
F5 | Manual climate control switch power supply |
| Fuse MINI
7.5A |
F5 | Engine compartment control unit relay coils |
| Fuse MINI
7.5A |
F5 | Parking assist control unit |
| Fuse MINI 10A |
F6 | Water-in-fuel sensor [diesel versions] |
| Fuse MINI
10A |
F6 | Electric power steering |
| Fuse MINI
7.5A |
F7 | ABS control unit (switched power) |
| Fuse MINI 7.5A |
F7 | Brake pedal switch |
| Fuse MINI
7.5A |
F8 | Airbag |
| Fuse MINI
25A |
F9 | Heated rear window |
| Fuse MINI 10A |
F10 | Hazard lights |
| Fuse MINI
10A |
F10 | Turn signals |
| Fuse MINI
10A |
F10 | Instrument cluster and warning lights (battery power) |
| Fuse MINI 7.5A |
F11 | Service +15 (car radio, automatic climate control switch, Cruise Control, ASR system exclusion control, mobile phone pre-installation, dashboard control lighting, heated seat switch, ESP system sensors, rain sensors, seat belt warning lights) |
| Fuse MINI
10A |
F12 | Instrument cluster and warning lights (switched power) |
| Fuse MINI
10A |
F12 | Brake lights (stop lights) |
| Fuse MINI 10A |
F12 | Third brake light (additional stop light) |
| Fuse MINI
15A |
F13 | Lighting system |
| Fuse MINI
30A |
F14 | Windshield washer pump, rear window washer |
| Fuse MINI 30A |
F14 | Windshield wipers |
| Fuse MINI
20A |
F15 | Door locking |
| Fuse MINI
20A |
F16 | Front right power window |
| Fuse MINI | F17 | Available |
| Fuse MINI 20A |
F18 | Front left power window |
| Fuse MINI
7.5A |
F19 | Heated electric mirrors |
| Fuse MINI
10A |
F20 | Trunk |
| Fuse MINI 10A |
F20 | Ceiling light |
| Fuse MINI
10A |
F20 | Services +30 (car radio, automatic climate control unit, mobile phone pre-installation, EOBD system diagnostic socket) |
| Fuse MINI | F21 | Available |
| Fuse MINI
15A |
F22 | Sunroof |
| Fuse MINI 15A |
F23 | Heated front seats |
| Fuse MINI
15A |
F24 | Rear window wiper |
| Fuse MINI
15A |
F25 | Subwoofer installation |
| Fuse MINI 15A |
F27 | Fog lights |
Engine Compartment Fuse Box

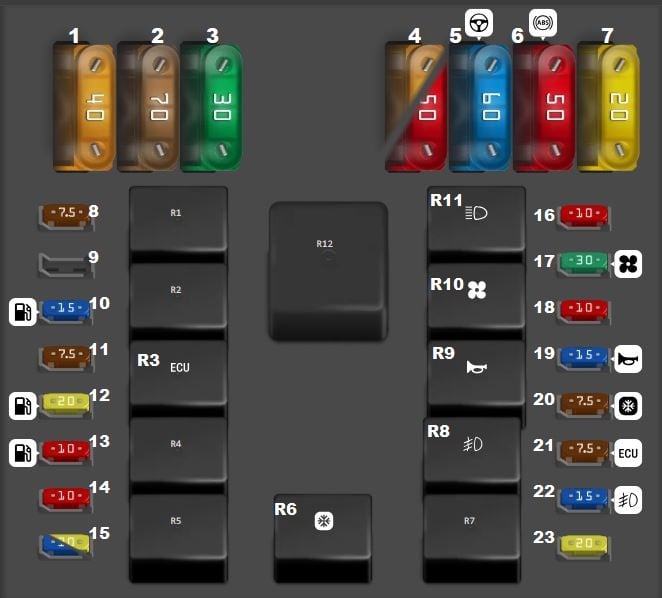

Fiat Punto (2000 – 2003)
| Type | No. | Description |
| Fuse MAXI
40A |
F1 | Battery circuit (special) |
| Fuse MAXI
70A |
F2 | Battery Power Circuit (Basic) |
| Fuse MAXI 30A |
F3 | Radiator fan (1st speed) |
| Fuse MAXI
40A |
F4 | Radiator fan (2nd speed) |
| Fuse MAXI
50A |
F4 | Radiator fan (2nd speed) |
| Fuse MAXI 60A |
F5 | power steering |
| Fuse MAXI
50A |
F6 | ABS system |
| Fuse MAXI
20A |
F7 | Ignition lock |
| Fuse MINI 7.5A |
F8 | The engine control unit |
| Fuse MINI
15A |
F10 | Fuel pump, fuel cut-off valve (diesel engine vehicles) |
| Fuse MINI
7.5A |
F11 | Power supply of the engine control unit |
| Fuse MINI 20A |
F12 | Ignition Coils, Fuel Injectors, Fuel Pump Fuse (Vehicles with 1.2L 8-Valve Engine) |
| Fuse MINI
10A |
F13 | Lambda probe, tachometer, fuel pump, preheating control unit (diesel engine vehicles) |
| Fuse MINI
10A |
F14 | Automatic transmission control unit |
| Fuse MINI 15A |
F15 | Camshaft position controller (cars with 1.8L engine), diesel engine fuel filter heater |
| Fuse MINI
20A |
F15 | Camshaft position controller (cars with 1.8L engine), diesel engine fuel filter heater |
| Fuse MINI
10A |
F16 | Right high beam headlight |
| Fuse MINI 30A |
F17 | heater fan |
| Fuse MINI
10A |
F18 | Left high beam headlight |
| Fuse MINI
15A |
F19 | Horn (beep) |
| Fuse MINI 7.5A |
F20 | Air conditioning compressor |
| Fuse MINI
7.5A |
F21 | Engine control unit, radiator fan relay |
| Fuse MINI
15A |
F22 | Fog lights |
| Fuse MINI 20A |
F23 | headlight washer |
| Relay | R1 | Radiator fan (1st speed) |
| Relay | R2 | Fuel module (fuel pump relay Fiat Punto 2) |
| Relay | R3 | Engine control module |
| Relay | R4 | Automatic transmission control unit |
| Relay | R5 | Fuel Filter Heater (Diesel Vehicles) |
| Relay | R6 | Air conditioning compressor |
| Relay | R7 | headlight washer |
| Relay | R8 | Fog lights |
| Relay | R9 | Horn (beep) relay |
| Relay | R10 | heater fan |
| Relay | R11 | high beam |
| Relay | R12 | Radiator fan (2nd speed) |

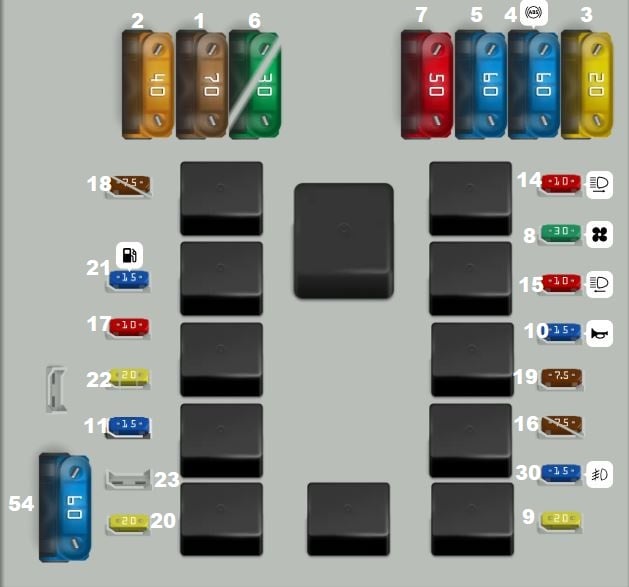

Fiat Punto Classic (2004 – 2011)
| Type | No. | Description |
| Fuse MINI
10A |
F14 | Right high beam |
| Fuse MINI
10A |
F15 | Left high beam |
| Fuse MINI 15A |
F30 | Fog lights |
| Fuse MAXI
40A |
F02 | Dashboard control unit power supply, optional functions |
| Fuse MAXI
70A |
F01 | Dashboard control unit power supply, standard functions |
| Fuse MAXI 60A |
F04 | ABS/ESP system power supply |
| Fuse MINI
20A |
F22 | Ignition coils |
| Fuse MINI
20A |
F22 | Injectors |
| Fuse MINI 20A |
F22 | Fuel pump [1.2 8V versions] |
| Fuse MINI
15A |
F11 | Engine control system secondary loads |
| Fuse MINI
15A |
F11 | Glow plug preheating control unit |
| Fuse MINI 15A |
F11 | Fuel vapor recirculation solenoid valve |
| Fuse MINI
15A |
F11 | Speedometer generator |
| Fuse MINI
15A |
F11 | Lambda sensor |
| Fuse MINI 7.5A |
F18 | Engine control unit (+ battery) |
| Fuse MINI
7.5A |
F18 | Engine cooling system switch |
| Fuse MINI
10A |
F17 | Engine control unit (power supply) |
| Fuse MINI 7.5A |
F16 | Engine control unit (ignition-switched) |
| Fuse MINI
7.5A |
F16 | Engine control system relay |
| Fuse MINI
7.5A |
F19 | Manual climate control compressor |
| Fuse MAXI 20A |
F03 | Ignition switch |
| Fuse MINI
20A |
F20 | Heated diesel filter |
| Fuse MAXI
60A |
F54 | Glow plug preheating system |
| Fuse MINI 20A |
F09 | Headlight washers |
| Fuse MAXI
30A |
F06 | Single speed radiator fan [1.2 8V versions with heater] |
| Fuse MAXI
30A |
F06 | First speed radiator fan [1.2 8V versions with manual climate control] |
| Fuse MINI 15A |
F21 | Fuel pump |
| Fuse MAXI
50A |
F07 | Second speed radiator fan [1.2 8V versions with manual climate control] |
| Fuse MAXI
60A |
F05 | Electric power steering |
| Fuse MINI 30A |
F08 | Passenger compartment fan |
| Fuse MINI
15A |
F10 | Horn |
