Ford Fiesta (2011 – 2013) Fuse Box Diagrams & Location User Guide
This Blog shows 2011–2013 Ford Fiesta fuse box diagrams and locations. Understanding each fuse’s layout and purpose is essential to fixing electrical difficulties, whether you’re fixing a blown fuse or performing routine maintenance.
Fuse Box Locations
Passenger compartment fuse panel

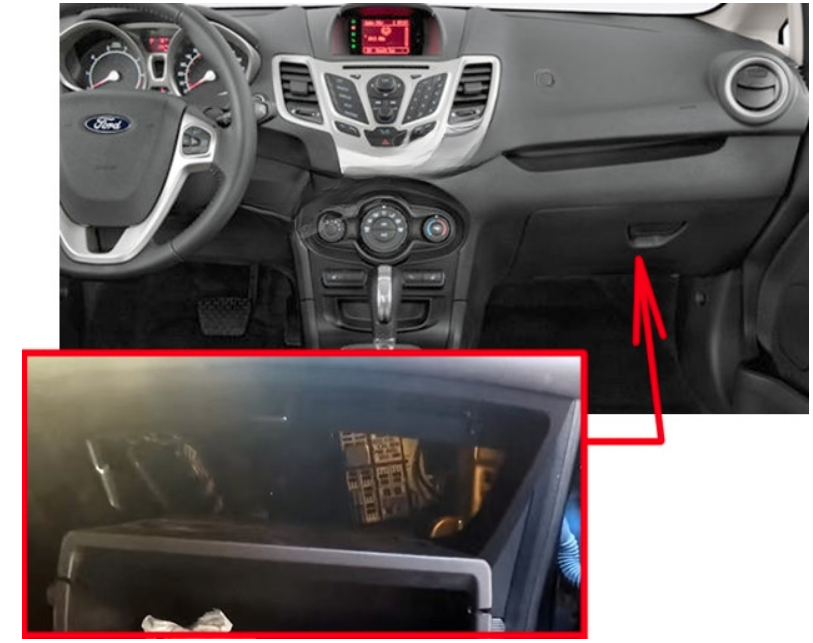

The fuse panel is located behind the glove box. Open the glove box, press the sides inward and swing the glove box down.
Power distribution box

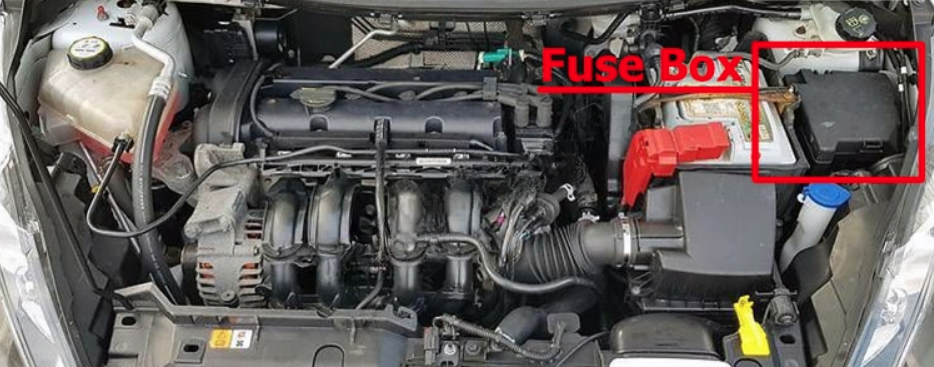

The power distribution box is located in the engine compartment. The power distribution box contains high-current fuses that protect your vehicle’s main electrical systems from overloads.
To remove a fuse, use the fuse puller tool provided on the inside of the passenger compartment fuse panel cover.
Passenger Compartment Fuse Box Diagram
Ford Fiesta (2011, 2012 and 2013)
The fuses are coded as follows:
| Fuse/Relay Location | Fuse Amp Rating | Protected circuits |
| F1 | 15A | Ignition switch, Keyless entry ignition relay, Keyless entry accessory relay |
| F2 | 10A | Electronic mirror, A/C clutch,
Engine compartment fuse panel |
| F3 | 7.5A | Instrument cluster |
| F4 | 7.5A | Passenger airbag deactivation indicator, Occupant classification
system |
| F5 | 15A | Diagnostic connector |
| F6 | 10A | Backup lamp |
| F7 | 7.5A | Instrument panel display, Intelligent access (IA) antenna, Manual climate controls |
| F8 | —
7.5A |
Not used (2011)
Front dome lamp, Moon roof switch (2012 and 2013) |
| F9 | 20A | Keyless vehicle module |
| F10 | 15A | Radio, SYNC® module |
| F11 | 20A | Front wipers, Body control module (BCM) |
| F12 | 20A | Tire pressure monitoring system
(TPMS) |
| F13 | 15A | Rear wiper, BCM |
| F14 | 20A | IA module |
| F15 | 15A | Washer pump |
| F16 | 15A
7.5A |
Global positioning system (GPS) module (2011) Power mirror switch, Driver window switch (2012 and 2013) |
| F17 | 7.5A | Heated seat relay |
| F18 | 10A | Stop lamps, Turn signals |
| F19 | 7.5A | Radio, Instrument cluster |
| F20 | 10A | Airbag module |
| Fuse/Relay Location | Fuse Amp Rating | Protected circuits |
| F21 | 10A | BCM, Climate control, Passive anti-theft system transceiver,
Electronic power steering module, Instrument cluster, Engine compartment fuse panel |
| F22 | 7.5A | Accelerator pedal position sensor, Powertrain control module (PCM), Gear shifter, Anti-lock
brake system (ABS) ignition feed |
| F23 | 10A | Transmission control unit ignition feed, TPMS ignition feed |
| F24 | 7.5A
— |
Front dome lamp, Moon roof switch (2011)
Not used (2012 and 2013) |
| F25 | 7.5A | Exterior mirrors |
| F26 | 7.5A | TPMS |
| F27 | — | Not used |
| F28 | — | Not used |
| F29 | — | Not used |
| F30 | — | Not used |
| F31 | 30A | Driver and rear power window switches |
| F32 | 20A | Passenger compartment fuse
panel battery saver relay |
| F33 | 20A | Power points |
| F34 | 30A | Driver and passenger power
window switches |
| F35 | 20A | Moon roof |
| F36 | — | Not used |
| R1 | — | Ignition relay |
| R2 | — | Left rear stop/turn lamp relay |
| R3 | — | Right rear stop/turn lamp relay |
| R4 | — | Driver heated seat relay |
| Fuse/Relay Location | Fuse Amp Rating | Protected circuits |
| R5 | — | Passenger heated seat relay |
| R6 | — | IA module – accessory relay |
| R7 | — | IA module – ignition relay |
| R8 | — | Battery saver relay |
| R9 | — | Not used |
Engine Compartment Fuse Box Diagram
Ford Fiesta (2011)
The high-current fuses are coded as follows:
| Fuse/Relay Location | Fuse Amp Rating | Protected circuits |
| F1 | 40A* | Anti-lock brake system (ABS)
pump |
| F2 | 50A* | Transmission control module
(TCM) |
| F3 | 40A* | Engine cooling fan relay |
| F4 | 40A* | Heater blower relay, Climate controls |
| F5 | 60A* | Passenger compartment fuse
panel |
| F6 | 30A* | Body control module (BCM) –
door locks |
| F7 | 60A* | Passenger compartment fuse panel |
| Fuse/Relay Location | Fuse Amp Rating | Protected circuits |
| F8 | 30A* | Fuel pump |
| F9 | 20A* | ABS module valve |
| F10 | — | Not used |
| F11 | 30A* | Starter inhibit relay, Starter motor |
| F12 | 10A** | Left headlamp (high beam) |
| F13 | 10A** | Right headlamp (high beam) |
| F14 | 10A** | Left headlamp (low beam) |
| F15 | 10A** | Right headlamp (low beam) |
| F16 | 15A** | A/C clutch relay, Mass air flow (MAF) sensor, Powertrain control module (PCM), Fuel injectors, Vehicle speed sensor (VSS), Variable camshaft timing, Canister
purge |
| F17 | 15A** | Heated exhaust gas oxygen
sensor, Catalyst module sensor |
| F18 | 15A** | Ignition coil |
| F19 | — | Not used |
| F20 | — | Not used |
| F21 | — | Not used |
| F22 | 15A** | BCM – exterior lighting |
| F23 | 7.5A** | Low beam relay |
| F24 | 15A** | BCM – turn signals |
| F25 | 15A** | Low beam relay, Daytime running lights |
| F26 | 7.5A** | Power mirror switch, Driver
window switch |
| F27 | 7.5A** | TCM, PCM, Natural vacuum leak
detection |
| F28 | — | Not used |
| F29 | 10A** | A/C clutch solenoid and relay |
| F30 | — | Not used |
| Fuse/Relay Location | Fuse Amp Rating | Protected circuits |
| F31 | 20A** | Low beam relay |
| F32 | 20A** | BCM – battery saver, horn |
| F33 | 30A** | BCM – rear window defroster |
| F34 | — | Not used |
| F35 | — | Not used |
| F36 | — | Not used |
| F37 | — | Not used |
| F38 | — | Not used |
| F39 | — | Not used |
| F40 | — | Not used |
| R1 | — | Not used |
| R2 | — | Not used |
| R3 | — | Not used |
| R4 | — | High beam relay |
| R5 | — | PCM relay |
| R6 | — | Daytime running lamp |
| R7 | — | Engine cooling fan relay |
| R8 | — | Starter inhibit relay |
| R9 | — | A/C clutch relay |
| R10 | — | Reverse light relay |
| R11 | — | Coil pack relay |
| R12 | — | Low beam relay |
| R13 | — | Heater blower relay |
| *Cartridge fuses **Mini fuses | ||
Ford Fiesta (2012 and 2013)
The high-current fuses are coded as follows:
| Fuse/Relay Location | Fuse Amp Rating | Protected circuits |
| F1 | 40A* | Anti-lock brake system (ABS) pump |
| F2 | 50A* | Transmission control module (TCM) |
| F3 | 40A* | Engine cooling fan relay and motor |
| F4 | 40A* | Heater blower relay and motor |
| F5 | 60A* | Passenger compartment fuse panel |
| F6 | 30A* | Body control module (BCM) – door locks |
| F7 | 60A* | Passenger compartment fuse panel |
| F8 | 40A* | Powertrain control module (PCM), Power distribution box |
| F9 | 20A* | ABS module valve |
| Fuse/Relay Location | Fuse Amp Rating | Protected circuits |
| F10 | 30A* | Starter inhibit relay, Starter motor |
| F11 | 30A* | Electronic fuel pump relay, Fuel tank, Ignition coil |
| F12 | — | Not used |
| F13 | — | Not used |
| F14 | — | Not used |
| F15 | — | Not used |
| F16 | — | Not used |
| F17 | 20A** | High beam relay |
| F18 | — | Not used |
| F19 | 20A** | Low beam relay |
| F20 | 15A** | Heated exhaust gas oxygen sensor, Catalyst module sensor |
| F21 | 7.5A** | Low and High beams coil relay control |
| F22 | 15A** | Mass air flow (MAF) sensor, Powertrain control module (PCM), Fuel injectors, Vehicle speed sensor (VSS), Variable camshaft timing, Canister purge |
| F23 | 15A** | Daytime running lights |
| F24 | — | Not used |
| F25 | 15A** | BCM – exterior lighting |
| F26 | 20A** | BCM – battery saver, horn |
| F27 | — | Not used |
| F28 | 15A** | BCM – turn signals |
| F29 | — | Not used |
| F30 | 10A** | A/C clutch solenoid and relay |
| F31 | — | Not used |
| F32 | 7.5A** | TCM, PCM |
| F33 | 15A** | Ignition coil |
| F34 | 30A** | BCM – rear window defroster |
| Fuse/Relay Location | Fuse Amp Rating | Protected circuits |
| F35 | 10A** | Left headlamp (low beam) |
| F36 | 10A** | Right headlamp (low beam) |
| F37 | 10A** | Left headlamp (high beam) |
| F38 | 10A** | Right headlamp (high beam) |
| F39 | 2A** | Natural vacuum leak detection |
| F40 | — | Not used |
| F41 | — | Not used |
| F42 | — | Not used |
| F43 | — | Not used |
| F44 | — | Not used |
| F45 | — | Not used |
| F46 | — | Not used |
| R1 | — | Not used |
| R2 | — | Not used |
| R3 | — | PCM relay |
| R4 | — | Heater blower relay |
| R5 | — | Engine cooling fan relay |
| R6 | — | A/C clutch relay |
| R7 | — | Not used |
| R8 | — | Daytime running lamp |
| R9 | — | Starter inhibit relay |
| R10 | — | High beam relay |
| R11 | — | Low beam relay |
| R12 | — | Reverse lamp relay |
| R13 | —
— |
Not used (2011)
Coil pack relay (Mexico only) (2012) |
| R14 | — | Not used |
| R15 | — | Not used |
| *Cartridge fuses **Mini fuses | ||
