Hyundai Accent (2011 – 2017) Fuse Box Diagrams & Location
Locate the fuse boxes and explore detailed fuse diagrams for the Hyundai Accent (2011–2017) with this helpful blog. Find the correct fuse for electrical components, understand fuse layouts, and simplify troubleshooting or replacement to keep your vehicle’s electrical systems operating safely and efficiently.
Fuse Box Location

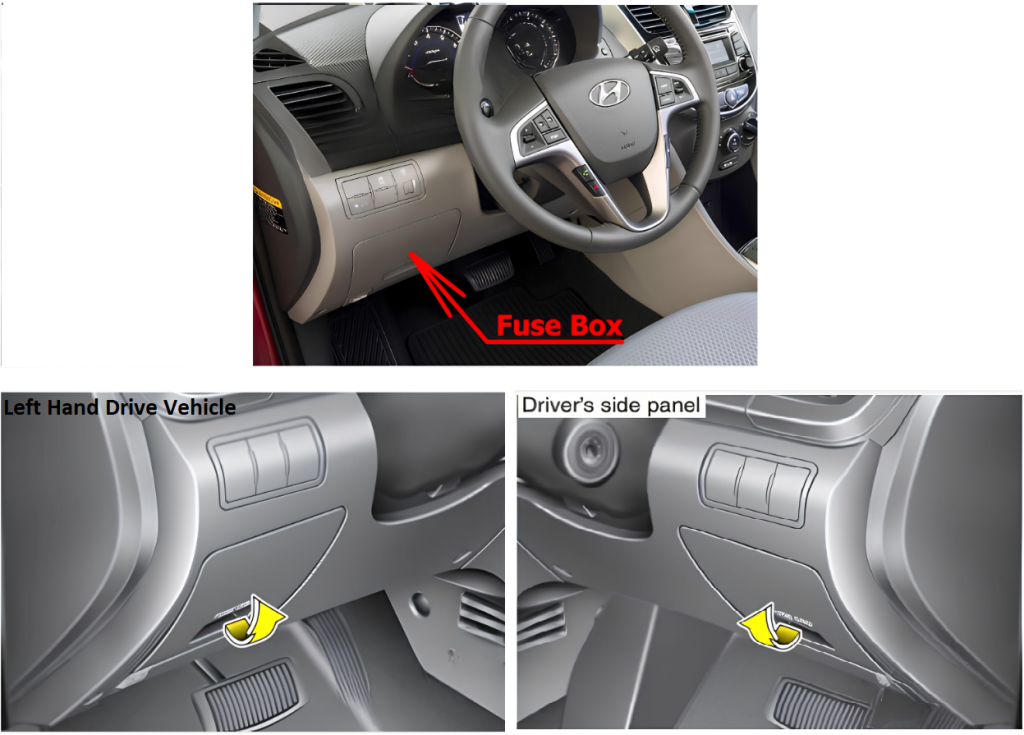

Passenger Compartment Fuse Box
The fuse box is located on the driver’s side of the instrument panel behind the cover.
Engine Compartment Fuse Box
The fuse box is located in the engine compartment (left side).
Fuse Box Diagrams

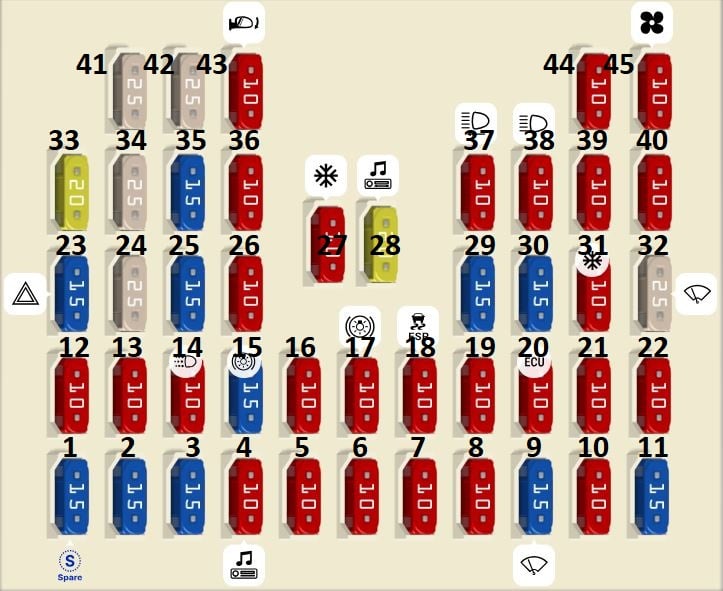

Passenger Compartment Fuse Box
| Type | No. | Description |
| Fuse MINI
15A |
2 | (POWER OUTLET) Cigarette Lighter & Power Outlet (Power Outlet) |
| Fuse MINI 15A |
3 | (C/LIGHTER) Cigarette Lighter & Power Outlet (Cigarette Lighter) |
| Fuse MINI
10A |
4 | (ACC) Audio, Power Outside Mirror Switch |
| Fuse MINI
10A |
5 | (A/BAG IND) Instrument Cluster (Air Bag IND.) |
| Fuse MINI 10A |
6 | (A/BAG) SRS Control Module, Telltale, Passenger Occupant Detection Sensor |
| Fuse MINI
10A |
7 | (T/SIG) Hazard Switch |
| Fuse MINI
10A 15A |
8
9 |
(MDPS) EPS Control Module
2016-2017: (WIPER RR) Multifunction Switch (Wiper), Rear Wiper Motor |
| Fuse MINI 15A |
10 | 2016- 2017: Not Used
(WIPER RR) Multifunction Switch (Wiper), Rear Wiper Motor |
| Fuse MINI
15A |
11 | (SPARE6) Not Used |
| Fuse MINI 10A |
12 | (SPARE1) Not Used |
| Fuse MINI
10A |
13 | (FOG LAMP FRT) Front Fog Lamp Relay |
| Fuse MINI
10A |
14 | (DRL) DRL (Daytime Running Light) Relay |
| Fuse MINI 15A |
15 | (STOP LAMP) Stop Lamp Switch, Battery Sensor, Stop Lamp Relay, E/R Fuse & Relay Box (HAC Relay), Data Link Connector |
| Fuse MINI
10A |
16 | (CLUSTER) Instrument Cluster (MICOM, IND.), BCM |
| Fuse MINI
10A |
17 | (IG1) Stop Lamp Switch, ECO Switch, Driver/Passenger Seat Heater Module, Tire Pressure Monitoring Module, ATM Shift Lever Switch ILL. EPS Control Module, Rheostat |
| Fuse MINI 10A |
18 | (ABS) ABS Control Module, ESC Control Module, ESC Off Switch, E/R Fuse & Relay Box (Multipurpose Check Connector, HAC Relay) |
| Fuse MINI
10A |
19 | (B/UP LAMP) Back-Up Lamp Switch |
| Fuse MINI
10A |
20 | (ECU) ECM, PCM |
| Fuse MINI 10A |
21 | (SPARE7) Not Used |
| Fuse MINI
10A |
22 | (IG2_2) A/C Control Module, BCM, SMK Unit, Wiper Control Unit |
| Fuse MINI
15A |
23 | (HAZARD) Hazard Relay, Hazard Switch |
| Fuse MINI 25A |
24 | (SPARE2) Not Used |
| Fuse MINI
15A |
25 | (SUNROOF) Sunroof Motor |
| Fuse MINI
10A |
26 | (SPARE3) Not Used |
| Fuse MINI 10A |
27 | (ROOM LP 1) Instrument Cluster (IND.,ILL.), Tire Pressure Monitoring Module, BCM, A/C Control Module, Luggage Room Lamp, Trunk Room Lamp, Center Room Lamp, Overhead Console Lamp, Map Lamp |
| Fuse MINI
20A |
28 | (AUDIO) Audio |
| Fuse MINI
15A |
29 | (TCU) Vehicle Speed Sensor, Transaxle Range Switch |
| Fuse MINI 15A |
30 | (SPARE4) Not used |
| Fuse MINI
10A |
31 | (IG2) Power Window Relay, A/C Control Module, Instrument Cluster (MICOM), BCM, Sunroof Motor, E/R Fuse & Relay Box (Blower Relay) |
| Fuse MINI
25A |
32 | (WIPER FRT) Multifunction Switch (Wiper), Front Wiper Motor |
| Fuse MINI 20A |
33 | (DR LOCK) Door Lock/Unlock Relay, Two Turn Unlock Relay, Driver Door Lock Actuator |
| Fuse MINI
25A |
34 | (SAFETY POWER WINDOW) Safety Power Window Module |
| Fuse MINI
15A |
35 | (S/HEATER) Driver/Passenger Seat Heater Module |
| Fuse MINI 10A |
36 | (SPARE5) Not Used |
| Fuse MINI
10A |
37 | (TAIL LAMP LH) Rear Combination Lamp LH, Head Lamp LH, Front Turn Signal Lamp LH, License Lamp LH/RH (4Door), License Lamp (5Door) |
| Fuse MINI
10A |
38 | (TAIL LAMP RH) Head Lamp RH, Rear Combination Lamp RH, Rheostat, Audio, Front Turn Signal Lamp RH, Hazard Switch, Instrument Cluster (ILL.+), AUX & USB Jack, ESC Off Switch, A/C Switch, ECO Switch, Multifunction Switch (Remote Control), A/C Control Module, Rear Defogger Switch, Front Deicer Switch, ATM Shift Lever Switch ILL. |
| Fuse MINI 10A |
39 | (START) Transaxle Range Switch, Ignition Lock Switch |
| Fuse MINI
10A |
40 | (H/LAMP) Instrument Cluster, Engine Compartment Fuse & Relay Box (Head Lamp Relay) |
| Fuse MINI
25A |
41 | (P/WDW LH) Power Window Main Switch, Rear Power Window Switch LH |
| Fuse MINI 25A |
42 | (P/WDW RH) Power Window Main Switch, Rear Power Window Switch RH, Passenger Power Window Switch |
| Fuse MINI
10A |
43 | (HTD MIRR) ECM, PCM, Rear Defogger Switch, Driver Power Outside Mirror, Passenger Power Outside Mirror |
| Fuse MINI
10A |
44 | (A/CON) A/C Control Module (Auto A/C) |
| Fuse MINI 10A |
45 | (BLOWER) ECM, PCM, Blower Switch, Blower Resistor, A/C Control Module (Manual A/C) |

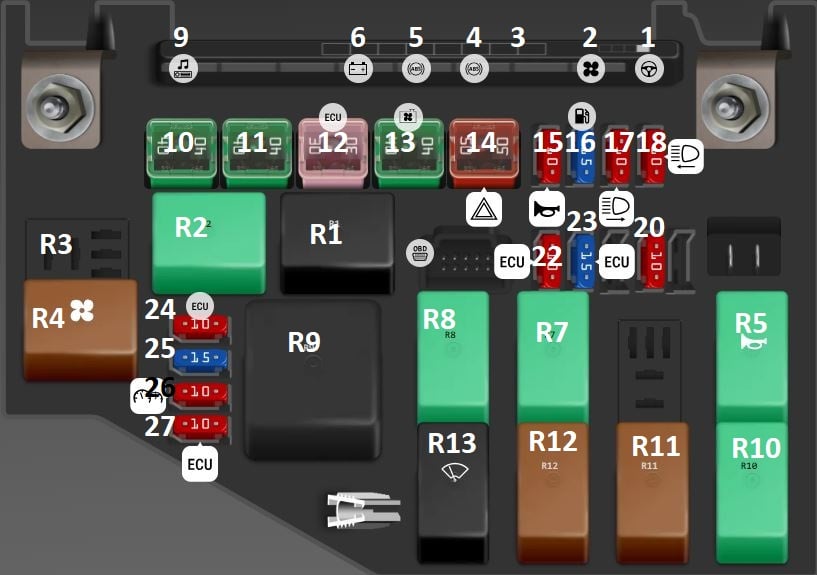

Engine Compartment Fuse Box
| Type | Description |
| Multi fuse block MUSB | 1
(MDPS) EPS Control Module |
| Multi fuse block MUSB | 2
(BLOWER) Blower Relay |
| Multi fuse block MUSB | 3 (RR HTD) I/P Junction Box (Rear Defogger Relay) |
| Multi fuse block MUSB | 4
(ABS 2) ABS Control Module, ESC Control Module |
| Multi fuse block MUSB | 5
(ABS 1) ABS Control Module, ESC Control Module, Multipurpose Check Connector |
| Multi fuse block MUSB | 6 (ALT) Alternator, E/R Fuse & Relay Box (Multi Fuse : ABS 1, ABS 2, MDPS, RR HTD, BLOWER, Fuse : A/CON) |
| Multi fuse block MUSB | 9
(B+1) I/P Junction Box (Power Connector Fuse : ROOM LP 1, AUDIO, Fuse : FOG LP ROOM LP 2, STOP LP, Relay : Tail Lamp) |
| Fuse FMX/JCase
40A |
10 (IG2) Start Relay, Ignition Switch |
| Fuse FMX/JCase
40A |
11
(IG1) Ignition Switch |
| Fuse FMX/JCase 30A |
12
(ECU 1) Fuse : ECU 2, Engine Control Relay |
| Fuse FMX/JCase
40A |
13 (C/FAN) Cooling Fan (High) Relay, Cooling Fan (Low) Relay |
| Fuse FMX/JCase
50A |
14
(B+2) I/P Junction Box (Fuse : S/HEATER, SUNROOF, DR LOCK, HAZARD, Relay : Power) |
| Fuse MINI 10A |
15
(HORN) Horn Relay |
| Fuse MINI
15A |
16 (F/PUMP) Fuel Pump Relay |
| Fuse MINI
10A |
17
(H/LAMP RH) Head Lamp RH |
| Fuse MINI 10A |
18
(H/LAMP LH) Head Lamp LH |
| Fuse MINI
10A |
20 (H/LAMP) Engine Compartment Fuse & Relay Box (Head Lamp Relay) |
| Fuse MINI
15A |
22
(INJECTOR) ECM, PCM, Oil Control Valve #1/#2, Oxygen Sensor (Up)/(Down), Fuel Pump Relay |
| Fuse MINI 10A |
23
(SENSOR) ECM, PCM, Canister Purge Control Solenoid Valve, Variable Intake Solenoid Valve, Canister Valve, Immobilizer Module, A/CON Relay, Cooling Fan (High) Relay, Cooling Fan (Low) |
| Fuse MINI
10A |
24 (ECU 2) ECM, PCM |
| Fuse MINI
15A |
25
(IGN COIL) Ignition Coil #1 – #4, Condenser |
| Fuse MINI 10A |
26
(B/UP LAMP) PCM, Transaxle Range Switch, Instrument Cluster, Rear Combination Lamp LH/RH, ATM Shift Lever Switch ILL. |
| Fuse MINI
10A |
27 (WIPER) ECM, PCM, Multifunction Switch (Wiper), Front Wiper Motor |
| Connector | DIAGNOSIS
DIAGNOSIS_R |
| Fuse puller | Fuse Puller
Extraction tool for fuse replacement. |
| Relay | R1 WIPER FRT_R |
| Relay | R2
F/PUMP_R |
| Relay | R4
BLOWER_R |
| Relay | R5 HORN_R |
| Relay | R7
C/FAN1_R |
| Relay | R8
R/LAMP HI_R |
| Relay | R9 MAIN RELAY |
| Relay | R10
H/LAMP_R |
| Relay | R11
START |
| Relay | R12 C/FAN2_R |
| Relay | R13
WIPER RR_R |
