Genesis G80 (2017 – 2020) Fuse Box Diagrams & Location
Finding the correct fuse box and identifying each fuse is essential for diagnosing electrical problems in your Genesis G80. This blog provides fuse box locations, detailed fuse diagrams, and fuse assignments for Genesis G80 models from 2017 to 2020, making maintenance and troubleshooting easier.
Fuse Box Location
Passenger Compartment Fuse Box

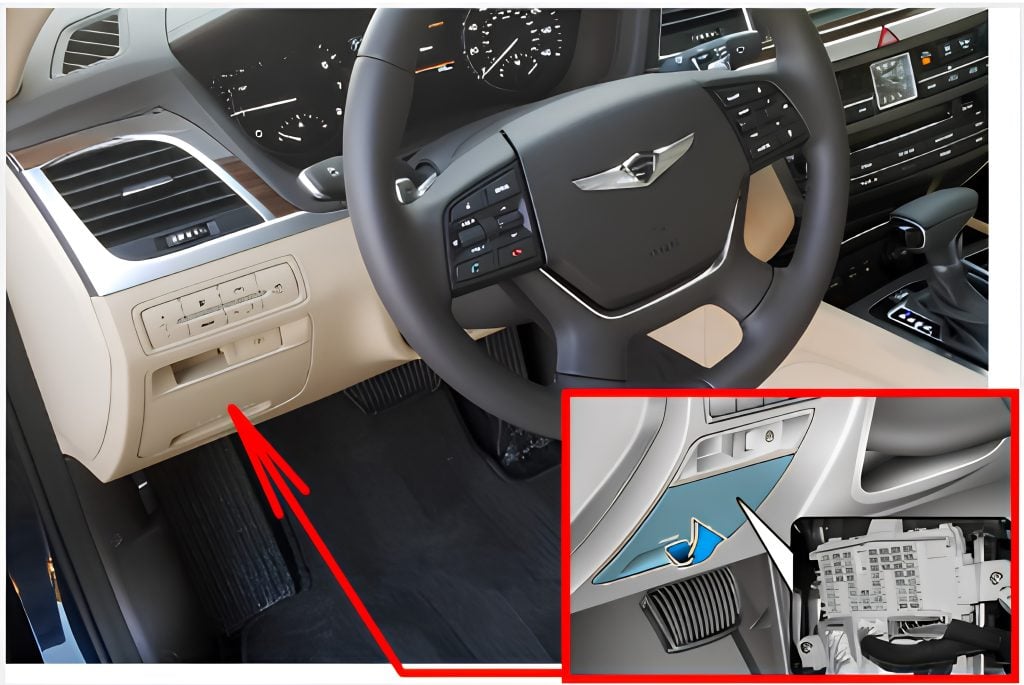

The fuse panel is located in the driver’s side panel bolster. Open the fuse panel cover to access.

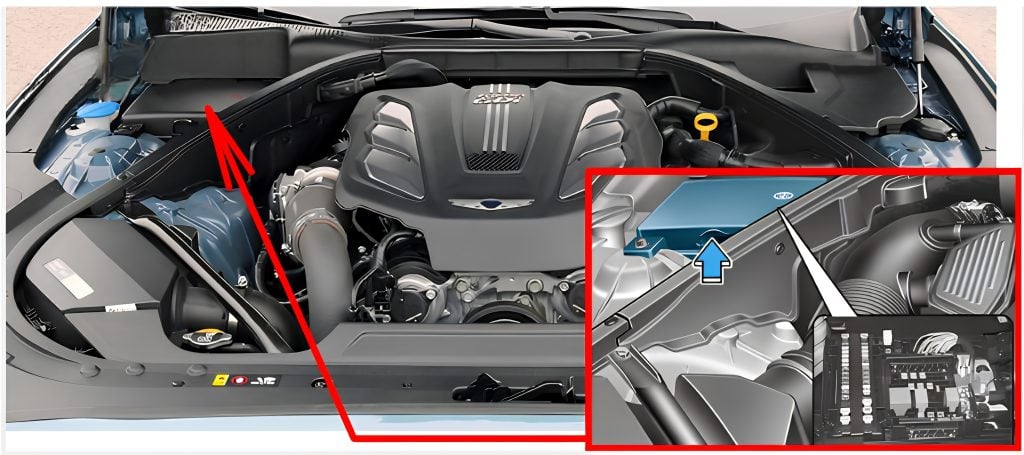

Engine Compartment Fuse Box
Remove the fuse panel cover by pressing the tap and pulling up.

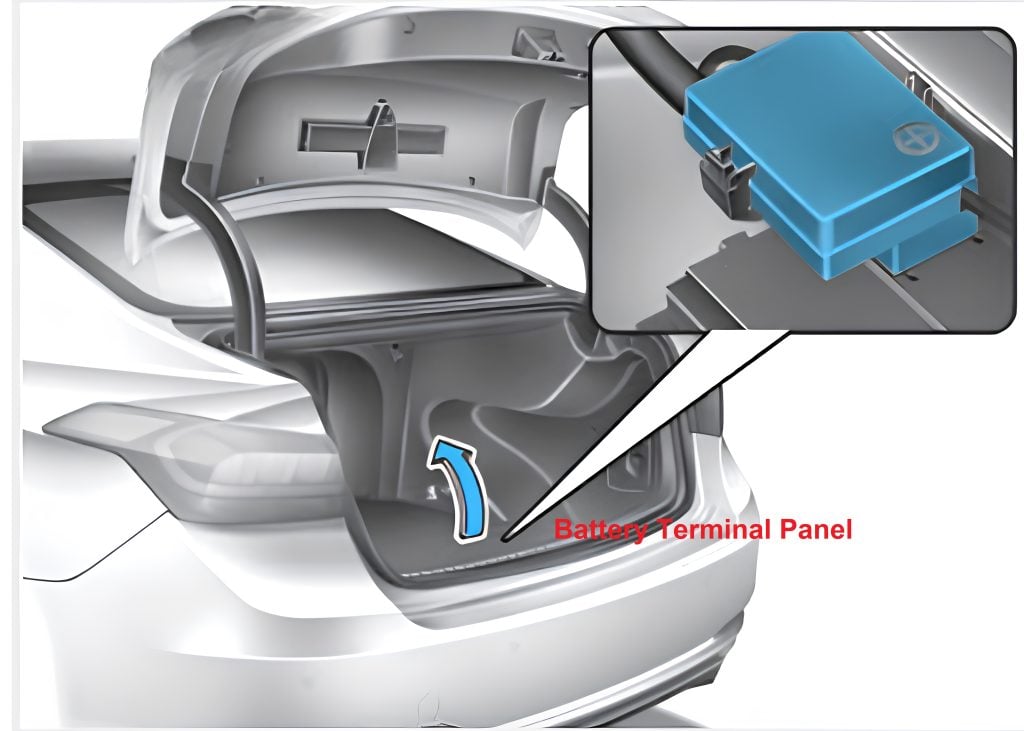

Luggage Compartment Fuse Box

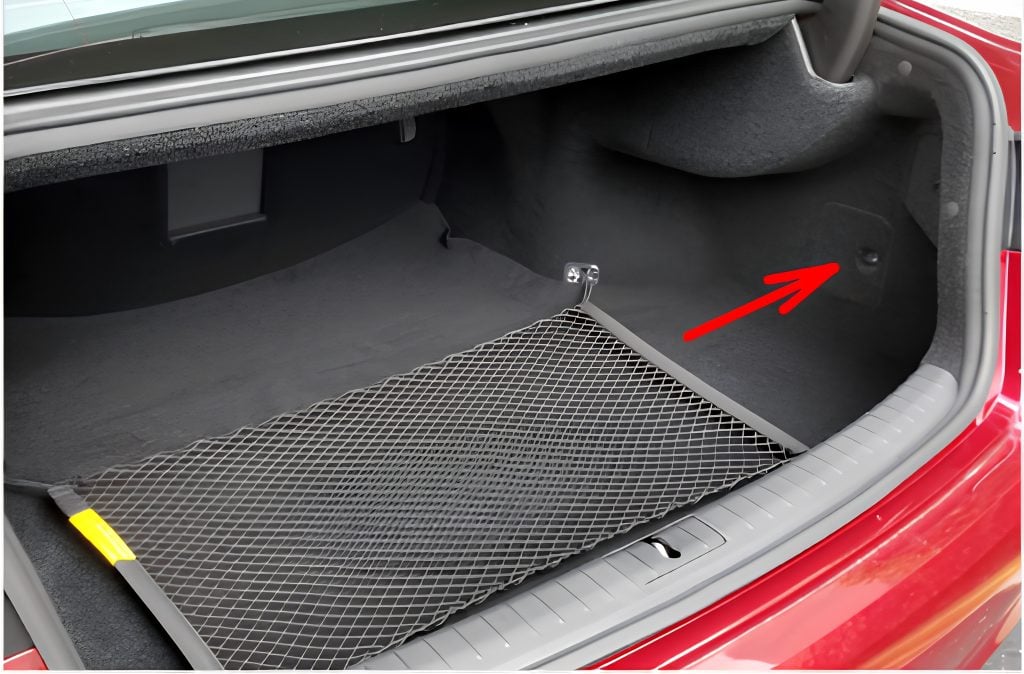

It’s on the right side, behind the panel.
Fuse Box Diagrams
Passenger Compartment Fuse Box

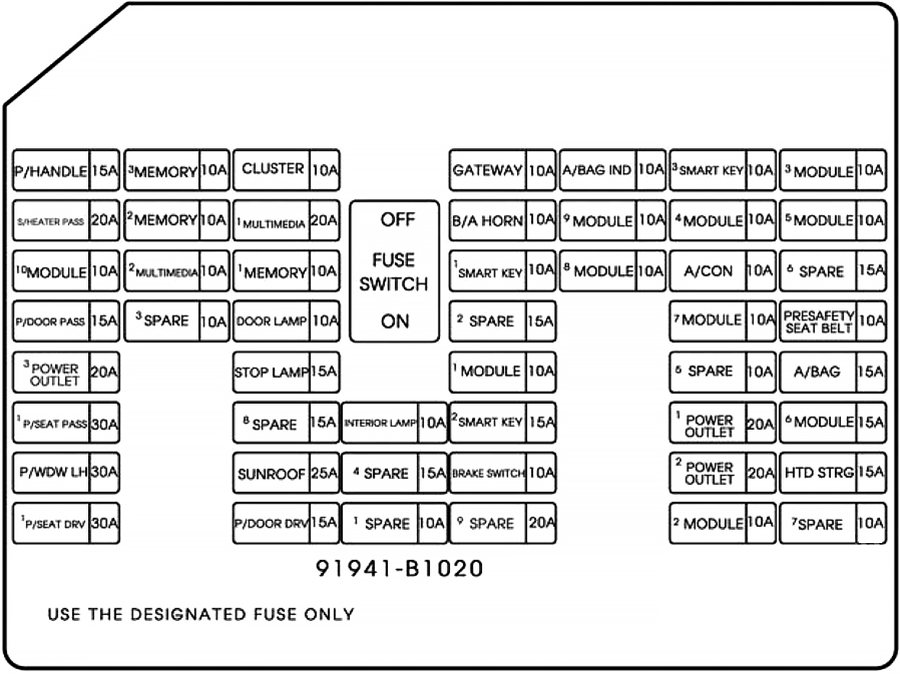

Genesis G80 (2017)
| Fuse Name | Amps | Circuit Protected |
|---|---|---|
| P/HANDLE | 15A | Steering Tilt & Telescopic Module |
| MEMORY 3 | 10A | Passenger Power Outside Mirror |
| CLUSTER | 10A | Instrument Cluster, Head-Up Display |
| GATEWAY | 10A | Gateway (IG1 (MCU)) |
| A/BAG IND | 10A | Instrument Cluster, A/C Control Module |
| SMART KEY 3 | 10A | Smart Key Control Module |
| MODULE 3 | 10A | BCM, Sport Mode Switch, Stop Lamp Switch, Driver/Passenger Door Module, Rear Door Module LH/RH |
| S/HEATER PASS | 20A | Passenger CCS Module, Passenger Seat Warmer Control Module |
| MEMORY 2 | 10A | Driver Power Outside Mirror |
| MULTIMEDIA 1 | 20A | Fuse – MULTIMEDIA 2, A/V & Navigation Head Unit |
| B/A HORN | 10A | Burglar Alarm Horn Relay |
| MODULE 9 | 10A | Multifunction Switch |
| MODULE 4 | 10A | Steering Tilt & Telescopic Module, Blind Spot Detection Radar LH/RH Crash Pad Switch, Tire Pressure Monitoring Module, Console Switch LH/RH, Front Parking Assist Sensor LH/RH, Front Parking Assist Sensor (Center), ECS Unit, Electronic Parking Brake Switch, Rear Parking Assist Sensor LH/RH, Rear Parking Assist Sensor (Center), LKAS Module |
| MODULE 5 | 10A | Multipurpose Check Connector, A/V & Navigation Head Unit, Electro Chromic Mirror, A/C Control Module, l-Box, AMP, Driver/Passenger CCS Module, Driver Power Seat Switch, Driver/Passenger Seat Warmer Control Module, Rear Seat Warmer Control Module LH/RH, Driver IMS Control Module |
| MODULE 10 | 10A | BCM |
| MULTIMEDIA 2 | 10A | Keyboard, l-Box, Front Monitor |
| MEMORY 1 | 10A | Steering Tilt & Telescopic Module, External Buzzer, BCM, Analog Clock, A/C Control Module, Tire Pressure Monitoring Module, Security Indicator, Head-Up Display, Instrument Cluster, Driver/Passenger Door Module, Rear Door Module LH/RH, Power Trunk Lid Control Module |
| SMART KEY 1 | 10A | Start/Stop Button Switch |
| MODULE 8 | 10A | BCM, Smart Key Control Module |
| A/CON | 10A | Metal Core Block (PCB #1 – Blower Relay), Ionizer CO2 Sensor, A/C Control Module |
| P/DOOR PASS | 15A | Passenger Door Latch |
| DOOR LAMP | 10A | Driver/Passenger Door Module, Rear Door Module LH/RH |
| MODULE 7 | 10A | Parking Guide Unit, Head-Up Display Sunroof, Passenger Lumbar Support Unit, Clock Spring (Steering Wheel Remote Control Switch) |
| PRESAFETY SEAT BELT | 10A | Pre-Active Seat Belt Module |
| POWER OUTLET 3 | 20A | Not Used |
| STOP LAMP | 15A | Stop Signal Electronic Module |
| MODULE 1 | 10A | Gateway (B+ (MCU)), Rain Sensor, Hazard Switch Trunk Lid Main Switch, Electronic Parking Brake Switch |
| A/BAG | 15A | SRS Control Module |
| P/SEAT PASS 1 | 30A | Passenger Power Seat Relay Box |
| INTERIOR LAMP | 10A | Room Lamp, Room Lamp LH/RH, Overhead Console Lamp, Glove Box, Front Vanity Lamp LH/RH, Driver/Passenger Foot Lamp, Trunk Room Lamp LH/RH |
| SMART KEY 2 | 15A | Smart Key Control Module |
| POWER OUTLET 1 | 20A | Front Power Outlet & Cigarette Lighter |
| MODULE 6 | 15A | Head Lamp LH/RH, Auto Hold & Drive Mode Switch, Auto Head Lamp Leveling Device Module, A/T Shift Lever IND. |
| P/WDW LH | 30A | Driver Power Window Module, Rear Door Module LH, Rear Power Window Module LH |
| SUNROOF | 25 A | Sunroof Motor |
| BRAKE SWITCH | 10A | Stop Lamp Switch, Smart Key Control Module |
| POWER OUTLET 2 | 20A | Front Power Outlet & Cigarette Lighter |
| HTD STRG | 15A | Clock Spring (Steering Wheel Heated Module) |
| P/SEAT DRV 1 | 30A | Driver IMS Control Module, Driver Power Seat Relay Box |
| P/DOOR DRV | 15A | Driver Door Latch |
| MODULE 2 | 10A | BCM, Smart Key Control Module, Overhead Console Lamp, Analog Clock, A/V & Navigation Head Unit, Keyboard, l-Box, Front Monitor, Parking Guide Unit |

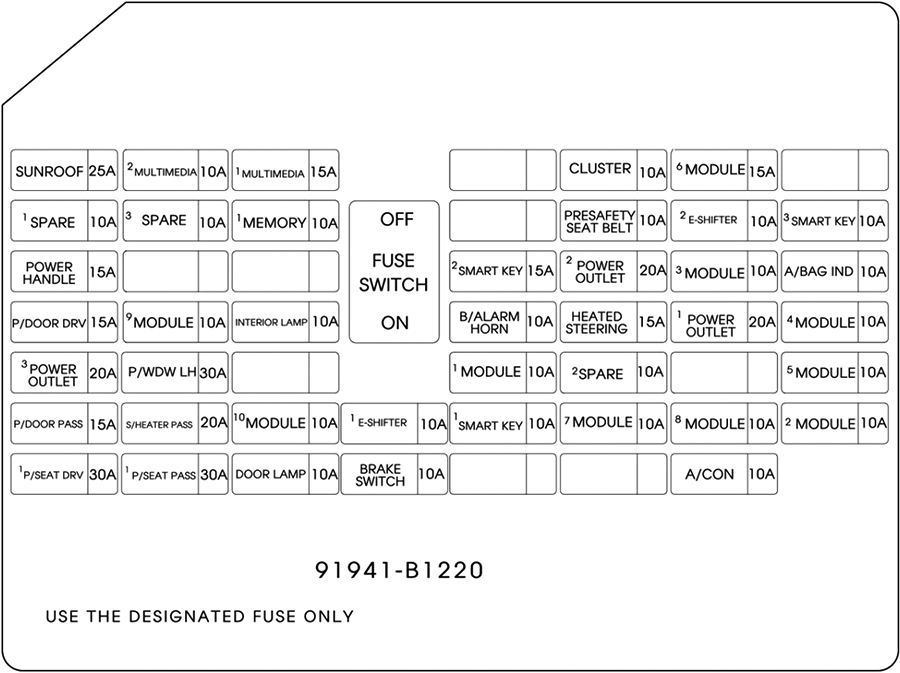

Genesis G80 (2018 – 2020)
| Fuse Name | Amps | Circuit Protected |
|---|---|---|
| SUNROOF | 25A | Sunroof Motor |
| MULTIMEDIA 2 | 10A | A/V & Navigation Head Unit, Keyboard, Front Monitor, l-BOX |
| MULTIMEDIA 1 | 15A | A/V & Navigation Head Unit |
| CLUSTER | 10A | Instrument Cluster, Head-Up Display |
| MODULE 6 | 15A | Head Lamp LH/RH, Adaptive Front Lighting Module, A/T Shift Lever IND, Auto Head Lamp Leveling Device Module, Auto Hold & Driver Mode Switch |
| MEMORY 1 | 10A | Steering Tilt & Telescopic Module, External Buzzer, BCM, Tire Pressure Monitoring Module, Security Indicator, A/C Control Module, Digital Clock, Head-Up Display, Instrument Cluster, Driver Lumbar Support Unit, Driver IMS Control Module, Power Trunk Lid Control Module |
| PRESAFETY SEAT BELT | 10A | Pre-Active Seat Belt Module |
| E-SHIFTER 2 | 10A | Electronic ATM Shift Lever |
| SMART KEY 3 | 10A | Smart Key Control Module |
| POWER HANDLE | 15A | Steering Tilt & Telescopic Module |
| SMART KEY 2 | 15A | Smart Key Control Module |
| POWER OUTLET 2 | 20A | Front Power Outlet & Cigarette Lighter |
| MODULE 3 | 10A | Multifunction Switch, BCM, Sport Mode Switch, Stop Lamp Switch, Driver/Passenger Door Module, Rear Door Module LH/RH |
| A/BAG IND | 10A | A/C Control Module, Instrument Cluster |
| P/DOOR DRV | 15A | Driver Door Latch |
| MODULE 9 | 10A | BCM |
| INTERIOR LAMP | 10A | Front Vanity Lamp LH/RH, Room Lamp, Room Lamp LH/RH, Overhead Console Lamp |
| B/ALARM HORN | 10A | Burglar Alarm Horn |
| HEATED STEERING | 15A | BCM |
| POWER OUTLET | 120A | Front Power Outlet & Cigarette Lighter |
| MODULE 4 | 10A | Blind Spot Detection Radar LH/RH, Crash Pad Switch, ECS Unit, Front Parking Assist Sensor (Center) LH/RH, Console Switch, Tire Pressure Monitoring Module, Console Switch LH/RH, Steering Tilt & Telescopic Module, Rear Parking Asssist Sensor LH/RH, Rear Parking Assist Sensor (Center) LH/RH, Electric Parking Brake Module, Lane Keeping Assist Module, Front Parking Asssist Sensor LH/RH |
| POWER OUTLET 3 | 20A | Metal Core Block (PCB #1 – Power Outlet Relay) |
| P/WDW LH | 30A | Driver Power Window Module, Rear Power Window Module LH |
| MODULE 1 | 10A | Electronic Parking Brake Switch, Hazard Switch, Rain Sensor, Data Link Connector, Driver/Passenger Door Module, Rear Door Module LH/RH |
| MODULE 5 | 10A | Head Lamp LH/RH, A/V Navigation Head Unit, Module, A/C Control Module, Electro Chromic Mirror, l-BOX, Driver/Passenger CCS Module, Driver/Passenger Seat Warmer Control Module, AMP, Rear CCS Module LH/RH, Rear Seat Warmer Control Module LH/RH, Driver IMS Control Module, Driver Power Seat Switch |
| P/DOOR PASS | 15A | Passenger Door Latch |
| S/HEATER PASS | 20A | Passenger CCS Module, Passenger Seat Warmer Control Module |
| MODULE 10 | 10A | Driver/Passenger Power side view Mirror |
| E-SHIFTER 1 | 10A | Electronic ATM Shift Lever |
| SMART KEY 1 | 10A | Start/Stop Button Switch |
| MODULE 7 | 10A | Multi-View Camera Module, Sunroof Motor, Head-Up Display, Cooling Fan Controller, Passenger Lumbar Support Unit |
| MODULE 8 | 10A | Smart Key Control Module, BCM |
| MODULE 2 | 20A | Smart Key Control Module, Overhead Console Lamp, BCM, AMP Digital Clock, Keyboard, l-BOX, A/V & Navigation Head Unit, Front Monitor, Electronic ATM Shift Lever, Front Wireless Charger, Front Power Outlet & Cigarette Lighter, Multi-View Camera Module, Metal Core Block (PCB #1 – Power Outlet Relay) |
| P/SEAT DRV 1 | 30A | Driver IMS Control Module, Driver Power Seat Relay Box |
| P/SEAT PASS 1 | 30A | Passenger Power Seat Relay Box |
| DOOR LAMP | 10A | Driver/Passenger Door Module, Rear Door Module LH/RH |
| BRAKE SWITCH | 10A | Smart Key Control Module, Stop Lamp Switch |
| A/CON | 20A | Metal Core Block (PCB #1 – Blower Relay), Ionizer, C02 Sensor, A/C Control Module |
Engine Compartment Fuse Box

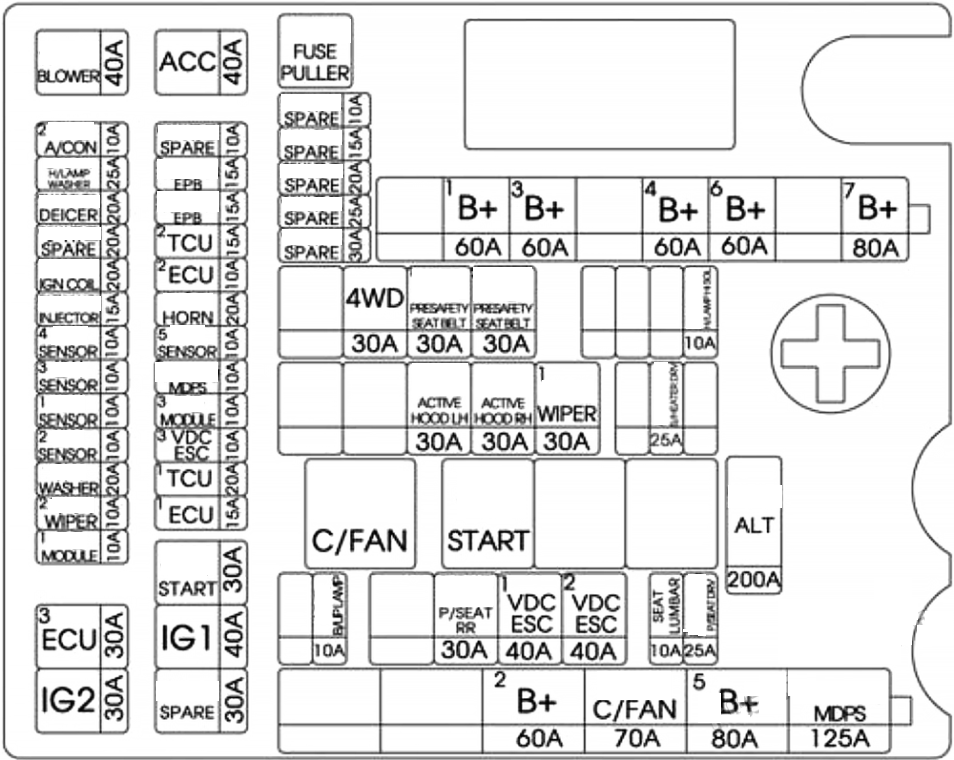

Genesis G80 (2017)
| Fuse Name | Amps | Circuit Protected |
|---|---|---|
| ALT | 200A | Alternator, Multifuse (BATT) – B+2/ B+5/ MDPS 1/ C/FAN, Fuse – P/SEAT DRV 2/ P/SEAT RR/ SEAT LUMBAR/ ESC 1/ ESC 2 |
| B+ 1 | 60A | IGPM (Fuse – BRAKE SWITCH, Leak Current Autocut Device (Fuse – INTERIOR LAMP / MULTI MEDIA 1 / MEMORY 1 / MEMORY 2 / MEMORY 3), IPS 1) |
| B+ 3 | 60A | IGPM (Fuse – SMART KEY 1/ SMART KEY 2/ MODULE 1/ B/A HORN, IPS 2/IPS 3/IPS 5/IPS 7) |
| B+ 4 | 60A | IGPM (Fuse – DOOR LAMP/ STOP LAMP, IPS 4/IPS 6) |
| B+ 6 | 60A | Metal Core Block (PCB #1 Fuse – ECU 3/ IG2/ MODULE 1) |
| B+ 7 | 80A | Metal Core Block (PCB #2 Fuse – HORN/ ACC/ EPB 1/ EPB 2) |
| B+ 2 | 60A | IGPM (Fuse – P/HANDLE/ P/WDW LH/ P/SEAT PASS 1/ S/HEATER PASS/ MODULE 10/ SUNROOF/ P/DOOR DRV/ P/DOOR PASS) |
| C/FAN | 70 A | RLY. 1 (C/Fan Relay) |
| B+ 5 | 80A | Metal Core Block (PCB #1 Fuse – BLOWER/ DEICER/ H/LAMP WASHER) |
| MDPS 1 | 125A | MDPS Unit |
| B/UP LAMP | 10A | TCM, Transmission Range Switch, Rear Combination Lamp (IN) LH/RH, Electro Chromic Mirror, A/V & Navigation Head Unit |
| P/SEAT RR | 30A | Not Used |
| ESC 1 | 40A | ESC Module, Multipurpose Check Connector |
| ESC 2 | 40A | ESC Module, Multipurpose Check Connector |
| SEAT LUMBAR | 10A | Driver/Passenger Power Seat Relay Box, Driver/Passenger Lumbar Support Unit |
| P/SEAT DRV 2 | 25A | Driver IMS Control Module, Driver Power Seat Switch, Driver Power Seat Relay Box |
| ACTIVE HOOD LH | 30A | Not Used |
| ACTIVE HOOD RH | 30A | Not Used |
| WIPER | 30A | Wiper Motor |
| S/HEATER DRV | 25A | Driver CCS Module, Driver Seat Warmer Control Module |
| 4WD | 30A | 4WD ECM |
| PRESAFETY SEAT BELT 1 | 30A | Pre-Active Seat Belt Module |
| PRESAFETY SEAT BELT 2 | 30A | Pre-Active Seat Belt Module |
| H/LAMP HI SOL | 10A | Metal Core Block (PCB #2 – Head Lamp High Solenoid Relay) |
| IG2 | 30A | IG2 Relay |
| ECU 3 | 30A | Engine Control Relay |
| MODULE 1 | 10A | 4WD ECM, Smart Cruise Control Radar, Active Air Flap |
| WIPER 2 | 10A | Metal Core Block (PCB #2 – Wiper Relay) |
| WASHER | 20A | Washer Relay |
| SENSOR 2 | 10A | ECM, Oxygen Sensor #1/#2/#3/#4 |
| SENSOR 1 | 10A | ECM, Oil Control Valve #1/#2/#3/#4, Canister Close Valve, Purge Control Solenoid Valve, Variable Intake Solenoid Valve #1/#2 |
| SENSOR 3 | 10A | ECM, Rear Junction Block (Fuel Pump Relay) |
| SENSOR 4 | 10A | C/Fan Relay, Camshaft Position Valve (G8BE) |
| INJECTOR | 15A | Injector Drive Box |
| IGN COIL | 20A | G6DJ : Condenser, Ignition Coil #1/#2/#3/#4/#5/#6, G8BE : Condenser #1/#2, Ignition Coil #1 /#2/#3/#4/#5/#6/#7/#8 |
| DEICER | 20A | Metal Core Block (PCB #2 – Front Deicer Relay) |
| H/LAMP WASHER | 25A | Head Lamp Washer Relay |
| A/CON 2 | 10A | A/C Control Module |
| BLOWER | 40A | Blower Relay |
| IG1 | 40A | IG1 Relay |
| START | 30A | E/R Junction Block (RLY. 2 – Start Relay) |
| ECU 1 | 15A | ECM, Injector Drive Box |
| TCU 1 | 20A | TCM |
| ESC 3 | 10A | ESC Module, Steering Angle Sensor |
| MODULE 3 | 10A | Smart Cruise Control Radar, Active Air Flap |
| MDPS 2 | 10A | MDPS Unit |
| SENSOR 1 | 10A | G6DJ : Oil Pressure Solenoid Velve |
| HORN | 20A | Horn Relay |
| ECU 2 | 10A | ECM, Injector Drive Box, Alternator (G8BE) |
| TCU 2 | 15A | TCM, Transmission Range Switch, 4WD ECM |
| EPB 2 | 15A | Electronic Parking Brake Module |
| EPB 1 | 15A | Electronic Parking Brake Module |
| ACC | 40A | ACC Relay |

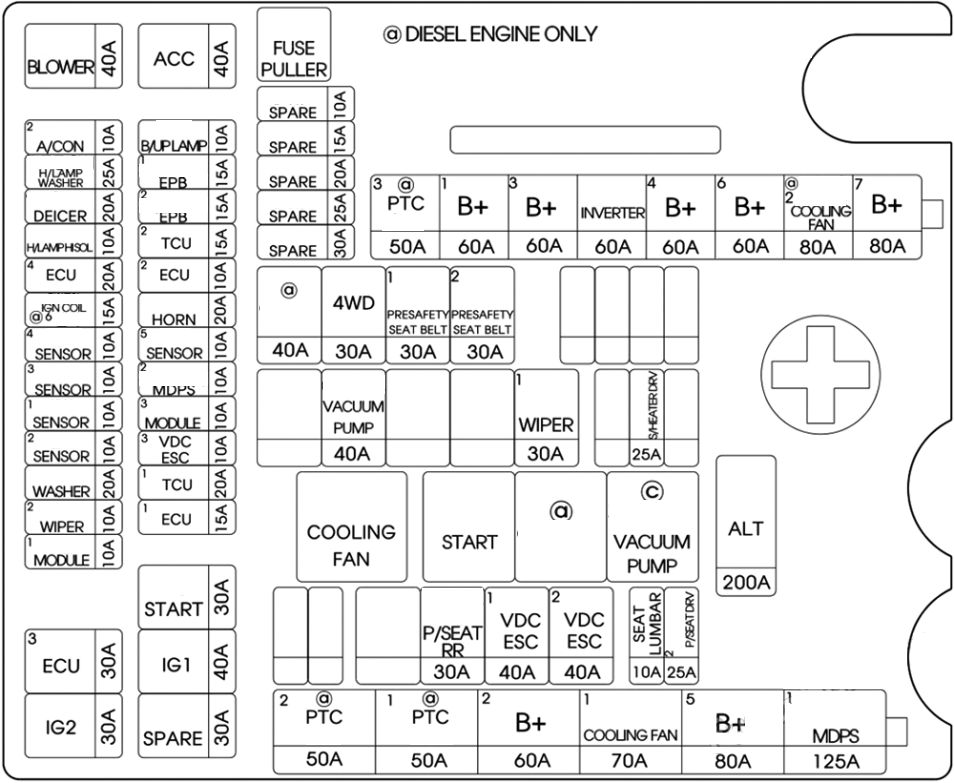

Genesis G80 (2018 – 2020)
| Fuse Name | Amps | Circuit Protected |
|---|---|---|
| ALT | 200A | Alternator, Multifuse (BATT) – B+2/ B+5/ MDPS 1, Fuse – P/SEAT DRV 2/ P/SEAT RR/ SEAT LUMBAR/ ESC 1/ ESC 2 |
| B+ 1 | 60A | IGPM (Fuse – BRAKE SWITCH, E-SHIFTER 1 Leak Current Autocut Device (Fuse – INTERIOR LAMP/ MULTI MEDIA 1/ MEMORY 3), IPS 1) |
| B+ 3 | 60A | IGPM (Fuse – SMART KEY 1/ SMART KEY 2/ MODULE 1/ B/A HORN, IPS 2/IPS 3/IPS 5/IPS 7) |
| B+ 4 | 60A | IGPM (Fuse – DOOR LAMP/ MODULE 9/ MODULE 10, IPS 4/ IPS6/ IPS) |
| B+ 6 | 60A | Metal Core Block (PCB #1 Fuse – ECU 3/ IG2/ MODULE 1) |
| B+ 7 | 80A | Metal Core Block (PCB #2 Fuse – HORN/ ACC/ EPB 1/ EPB 2/ B/UP LAMP) |
| B+ 2 | 60A | IGPM (Fuse – P/HANDLE/ P/WDW LH/ P/SEAT DRV 1/ P/SEAT PASS 1/ S/HEATER PASS/ POWER OUTLET 3/ SUNROOF/ P/DOOR DRV/ P/DOOR PASS) |
| B+ 5 | 80A | Metal Core Block (PCB #1 Fuse – BLOWER/ DEICER/ H/LAMP WASHER/ H/LAMP HI SOL) |
| MDPS 1 | 125A | MDPS Unit |
| C/FAN | 80A | Cooling Fan Controller |
| P/SEAT RR | 30A | Not Used |
| ESC 2 | 40A | ESC Module, Multipurpose Check Connector |
| ESC 1 | 40A | ESC Module, Multipurpose Check Connector |
| P/SEAT DRV 2 | 25A | Driver IMS Control Module, Driver Power Seat Switch, Driver Power Seat Relay Box |
| VACUUM PUMP | 40A | Vacuum Pump Relay |
| WIPER 1 | 30A | Wiper Motor |
| S/HEATER DRV | 25A | Driver CCS Module, Driver Seat Warmer Control Module |
| 4WD | 30A | 4WD ECM |
| PRESAFETY SEAT BELT 1 | 30A | Pre-Active Seat Belt Module |
| PRESAFETY SEAT BELT 2 | 30A | Pre-Active Seat Belt Module |
| IG2 | 30A | IG2 Relay |
| ECU 3 | 30A | Engine Control Relay |
| MODULE 1 | 10A | 4WD ECM, Smart Cruise Control Radar, Active Air Flap |
| WIPER 2 | 10A | Metal Core Block (PCB #2 – Wiper Relay) |
| WASHER | 20A | Washer Relay |
| SENSOR 2 | 10A | G6DN : Oxygen Sensor #1/#2/#3/#4, Variable Intake Solenoid Valve #1/#2 G8BE : Oxygen Sensor #1/#2/#3/#4, Electronic Thermostat G6DP : Oxygen Sensor #1/#2/#3/#4, RCV Control Solenoid Valve |
| SENSOR 1 | 10A | Oil Control Valve #1/#2/#3/#4, Canister Close Valve, Purge Control Solenoid Valve |
| SENSOR 3 | 10A | Electronic Thermostat, Rear Junction Block (Fuel Pump Relay) |
| SENSOR 4 | 10A | G8BE : Camshaft Position Sensor #1/#2/#3/#4 |
| IGN COIL | 15A | G6DN : Ignition Coil #1/#2/#3/#4/#5/#6 G8BE : Ignition Coil #1/#2/#3/#4/#5/#6/#7/#8 G6DP : Ignition Coil #1/#2/#3/#4/#5/#6 |
| ECU 4 | 20A | ECM |
| H/LAMP HI SOL | 10A | H/LAMP HI SOL Relay |
| DEICER | 20A | Metal Core Block (PCB #2 – Front Deicer Relay) |
| H/LAMP WASHER | 25A | Head Lamp Washer Relay |
| A/CON 2 | 10A | A/C Control Module |
| BLOWER | 40A | Blower Relay |
| IG1 | 40A | IG1 Relay |
| START | 30A | E/R Junction Block (RLY. 2 – Start Relay) |
| ECU 1 | 15A | ECM |
| TCU 1 | 20A | TCM |
| ESC 3 | 10A | ESC Module |
| MODULE 3 | 10A | Smart Cruise Control Radar, Active Air Flap, 4WD ECM |
| MDPS 2 | 10A | MDPS Unit, Steering Angle Sensor |
| SENSOR 5 | 10A | G6DP : Brake Boost Vacuum Pressure Sensor Switch |
| HORN | 20A | Horn Relay |
| ECU 2 | 10A | ECM |
| TCU 2 | 15A | TCM, Transmission Range Switch, P/N Relay, B/UP Lamp Relay |
| EPB 2 | 15A | Electronic Parking Brake Module |
| EPB 1 | 15A | Electronic Parking Brake Module |
| B/UP LAMP | 10A | B/UP Lamp Relay |
| ACC | 40A | ACC Relay |
Luggage Compartment Fuse Box

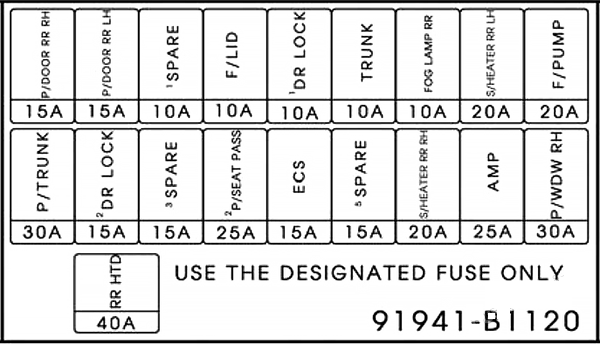

Genesis G80 (2017)

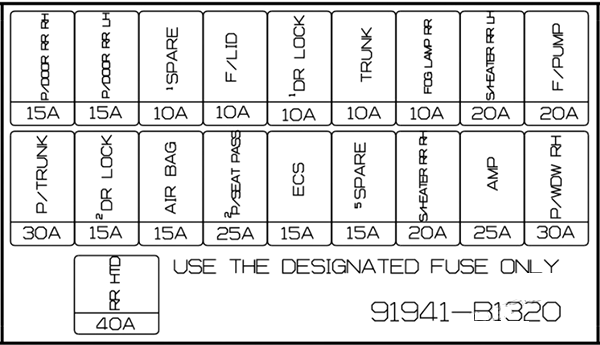

Main Fuse Box
| Fuse Name | Amps | Circuit Protected |
|---|---|---|
| P/TRUNK | 30A | Power Trunk Lid Control Module |
| P/DOOR RR RH | 15A | Rear Door Latch RH |
| DR LOCK 2 | 15A | Passenger Door Module |
| P/DOOR RR LH | 15A | Rear Door Latch LH |
| SPARE 3 | 15A | Spare Fuse |
| SPARE 1 | 10A | Spare Fuse |
| P/SEAT PASS 2 | 25A | Passenger Power Seat Relay Box |
| F/LID | 10A | Fuel Lid Open Relay, Crash Pad Switch |
| ECS | 15A | ECS Unit |
| DR LOCK 1 | 10A | Driver Door Module |
| SPARE 5 | 15A | Spare Fuse |
| TRUNK | 10A | Trunk Lid Relay, Power Trunk Module Buzzer |
| S/HEATER RR RH | 20A | Rear Seat Warmer Control Module RH |
| FOG LAMP RR | 10A | Not Used |
| AMP | 25A | AMP |
| S/HEATER RR LH | 20A | Rear Seat Warmer Control Module LH |
| P/WDW RH | 30A | Passenger Power Window Module, Rear Power Window Module RH |
| F/PUMP | 20A | Fuel Pump Relay |
| RR HTD | 40A | Rear Defogger Relay |
Battery Terminal Fuse Panel
| Fuse Name | Fuse rating | Circuit Protected |
|---|---|---|
| B+ 9 | 100A | Rear Junction Block (Fuse – RR HTD/ P/TRUNK/ ECS/ F/LID/ P/DOOR RR RH/ DR LOCK 2/ P/DOOR RR LH/ AMP/ P/SEAT PASS 2/ DR LOCK 1/TRUNK/ S/HEATER RR RH/ S/HEATER RR LH/ P/WDW RH/ F/PUMP) |
| B+ 8 | 80A | Metal Core Block (PCB #2 Fuse – TCU/ ECU 1/ START/ IG 1) |
| AMS | 10A | Battery Sensor |
Genesis G80 (2018 – 2020)
Main Fuse Box
| Fuse Name | Amps | Circuit Protected |
|---|---|---|
| P/TRUNK | 30A | Power Trunk Lid Control Module |
| P/DOOR | 15A | Rear Door Latch RH RR RH |
| DOOR LOCK 2 | 15A | Passenger Door Module |
| P/DOOR RR LH | 15A | Rear Door Latch LH |
| AIR BAG | 15A | Air Bag Relay |
| SPARE 1 | 10A | Spare Fuse |
| P/SEAT PASS 2 | 25A | Passenger Power Seat Relay Box |
| F/LID | 10A | Fuel Lid Open Relay, Crash Pad Switch |
| ECS | 15A | ECS Unit |
| DOOR LOCK 1 | 10A | Driver Door Module |
| SPARE 6 | 15A | Spare Fuse |
| TRUNK | 10A | Trunk Lid Relay, Power Trunk Module Buzzer |
| S/H EATER RR RH | 20A | Rear Seat Warmer Control Module RH |
| FOG LAMP RR | 10A | Not Used |
| AMP | 25A | AMP |
| S/H EATER RR LH | 20A | Rear Seat Warmer Control Module LH |
| P/WDW RH | 30A | Passenger Power Window Module, Rear Power Window Module RH |
| F/PUMP | 20A | Fuel Pump Relay |
| RR HTD | 40A | Rear Defogger Relay |
Battery Terminal Fuse Panel
| Fuse Name | Amps | Circuit Protected |
|---|---|---|
| B+ 9 | 100A | Rear Junction Block (Fuse – RR HTD/ P/TRUNK/ ECS/ F/LID/ P/DOOR RR RH/ DR LOCK 2/ P/DOOR RR LH/ AMP/ P/SEAT PASS 2/ DR LOCK 1/TRUNK/ S/HEATER RR RH/ S/HEATER RR LH/ P/WDW RH/ F/PUMP/ AIR BAG) |
| B+ 8 | 80A | Metal Core Block (PCB #2 Fuse -TCU/ ECU 1/ START/ IG 1) |
| AMS | 10A | Battery Sensor |
Related Posts:
