Haval H6 (2017 – 2020) Fuse Box Diagrams & Location
The Haval H6 fuse box protects the vehicle’s electrical systems from overloads and short circuits. This guide covers the fuse box location and diagrams for Haval H6 models from 2017 to 2020, helping you identify fuse positions, ratings, and protected components quickly and easily.
Fuse Box Location

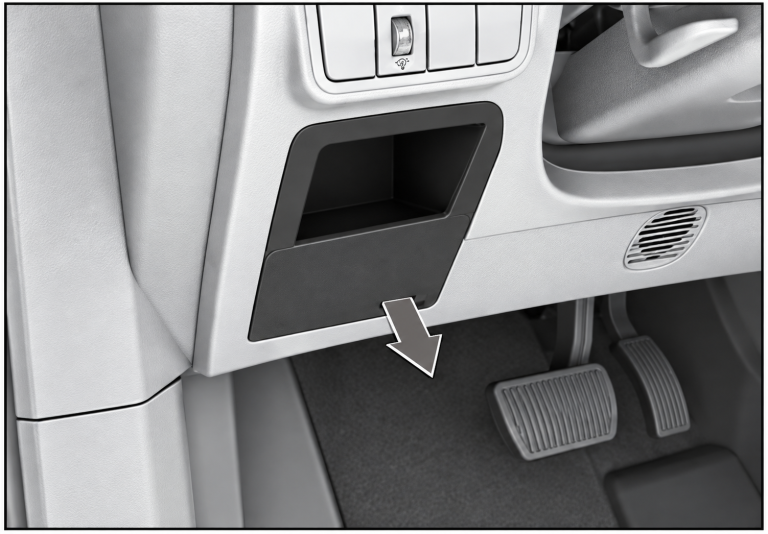

Passenger Compartment Fuse Box

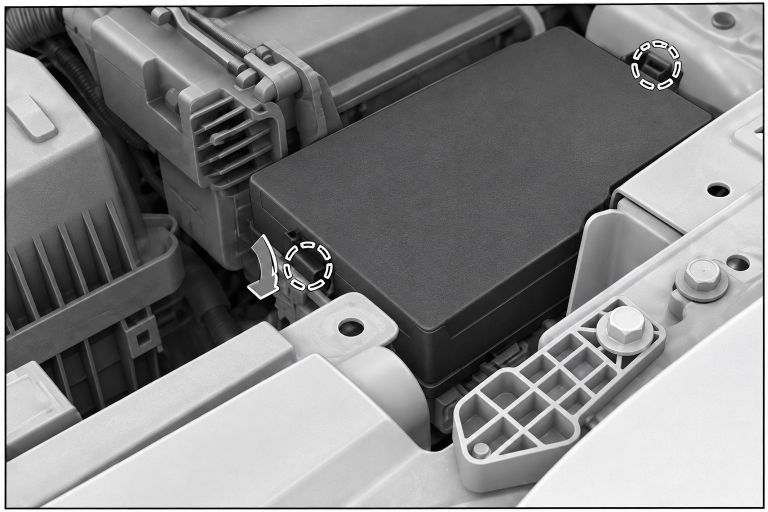

Engine Compartment Fuse Box
Fuse Box Diagrams

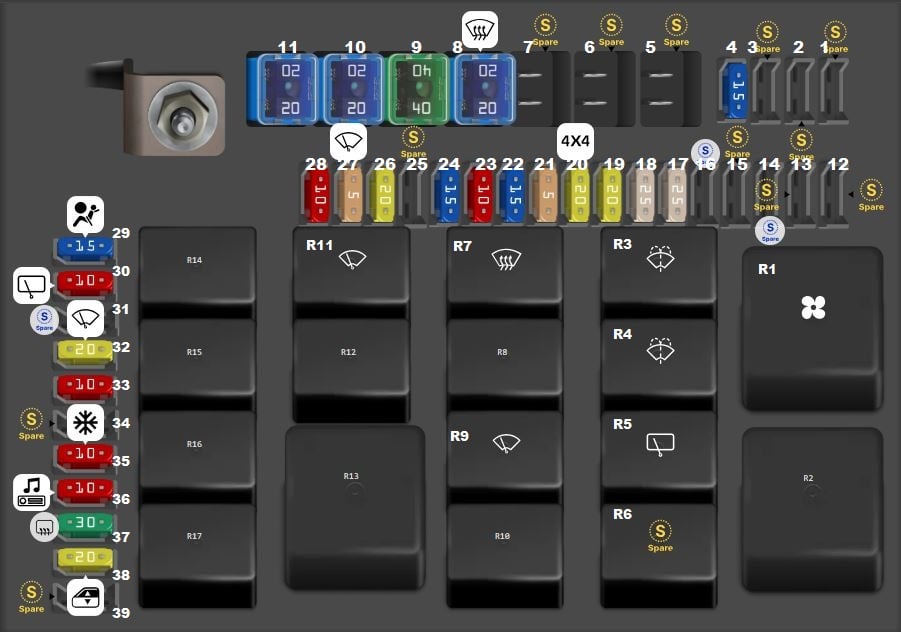

Passenger Compartment Fuse Box
| Type | No. | Description |
| Fuse MINI | 1 | Spare |
| Fuse MINI | 2 | Spare |
| Fuse MINI | 3 | Spare |
| Fuse MINI 15A | 4 | Tailgate lock |
| Fuse FMX/JCase | 5 | Spare |
| Fuse FMX/JCase | 6 | Spare |
| Fuse FMX/JCase | 7 | Spare |
| Fuse FMX/JCase 20A | 8 | DEF |
| Fuse FMX/JCase 40A | 9 | IG2 |
| Fuse FMX/JCase 20A | 10 | IG1 |
| Fuse FMX/JCase 20A | 11 | ACC |
| Fuse MINI | 12 | Spare |
| Fuse MINI | 13 | Spare |
| Fuse MINI | 14 | Spare |
| Fuse MINI | 15 | Spare |
| Fuse MINI | 16 | Spare |
| Fuse MINI 25A | 17 | BCM3 |
| Fuse MINI 25A | 18 | BCM2 |
| Fuse MINI 20A | 19 | Central Lock |
| Fuse MINI 20A | 20 | 4WD [subject to real vehicle configuration] |
| Fuse MINI 5A | 21 | Door Lamp |
| Fuse MINI 15A | 22 | BCM1 |
| Fuse MINI 10A | 23 | DEF RR View Mirror |
| Fuse MINI 15A | 24 | PEPS |
| Fuse MINI | 25 | Spare |
| Fuse MINI 20A | 26 | Sunroof [subject to real vehicle configuration] |
| Fuse MINI 5A | 27 | FR Wiper 2 |
| Fuse MINI 10A | 28 | Braking Lamp |
| Fuse MINI 15A | 29 | Airbag |
| Fuse MINI 10A | 30 | RR Wiper |
| Fuse MINI | 31 | Spare |
| Fuse MINI 20A | 32 | FR Wiper |
| Fuse MINI 10A | 33 | Instruments |
| Fuse MINI | 34 | Spare |
| Fuse MINI 10A | 35 | A/C |
| Fuse MINI 10A | 36 | Audio |
| Fuse MINI 30A | 37 | RR Window |
| Fuse MINI 20A | 38 | FR Window |
| Fuse MINI | 39 | Spare |
| Relay | R1 | Blower Relay |
| Relay | R2 | Blower Relay HI |
| Relay | R3 | FR Washer Relay |
| Relay | R4 | RR Washer Relay |
| Relay | R5 | RR Wiper Relay |
| Relay | R6 | Spare |
| Relay | R7 | DEF Relay |
| Relay | R8 | DEF RR View Mirror Relay |
| Relay | R9 | FR Wiper HI Relay |
| Relay | R10 | Tail Gate Lock Relay |
| Relay | R11 | FR Wiper Relay |
| Relay | R12 | Door Lamp Relay |
| Relay | R13 | IG2 Relay |
| Relay | R14 | ACC Relay |
| Relay | R15 | Unlock Relay |
| Relay | R16 | Lock Relay |
| Relay | R17 | IG1 Relay |
Engine Compartment Fuse Box

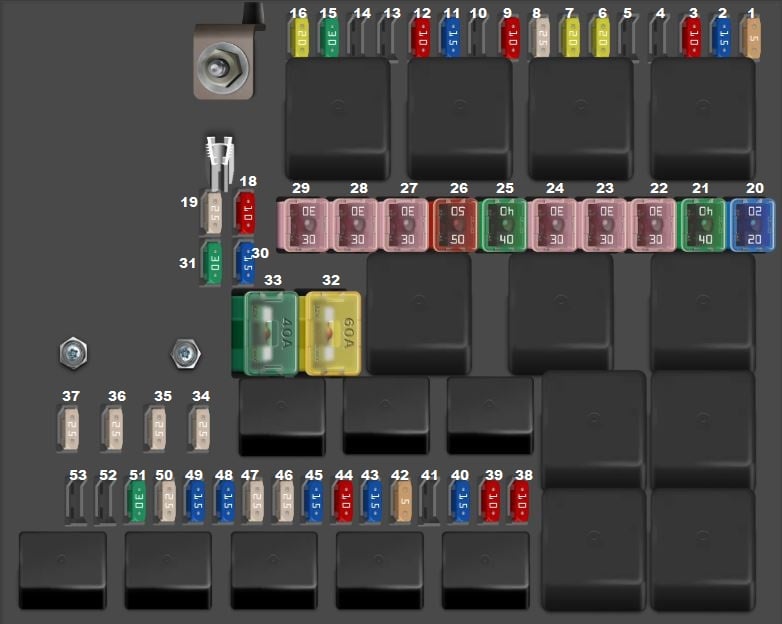

Engine Fuse Box [4D20 2.0L 143/156 hp]
| Type | No. | Description |
| Fuse MINI 5A | 1 | 143 hp: Door Light Relay, Left/Right Front Door Footrest Light |
| Fuse MINI 15A | 2 | 143 hp: PEPS ECU, driver side door handle, passenger side door handle, PEPS siren, ignition switch |
| Fuse MINI 10A | 3 | Air conditioning control unit, gateway, anti-theft device |
| Fuse MINI 20A | 6 | MP5 (multimedia player) |
| Fuse MINI 20A | 7 | 143 hp: Sunroof Motor Module, CPU, Left Front Door Anti-Intrusion Motor |
| Fuse MINI 25A | 8 | ABS anti-lock braking module |
| Fuse MINI 10A | 9 | Horn relay, horn |
| Fuse MINI 15A | 11 | Front Left/Right Fog Lamp Relay, Front Fog Lamps |
| Fuse MINI 10A | 12 | A/C Compressor Relay, A/C Compressor Clutch |
| Fuse MINI 30A | 15 | 143 hp: Fuel heating relay, heater |
| Fuse MINI 20A | 16 | Front Passenger Seat Power (Four Way Control Switch, Front Passenger Seat Level Adjustment Motor, Front Passenger Seat Back Angle Adjustment Motor) |
| Fuse puller | 17 | Extraction tool for fuse replacement. |
| Fuse MINI 10A | 18 | Spare |
| Fuse MINI 25A | 19 | Spare |
| Fuse FMX/JCase 20A | 20 | electronic vacuum pump, |
| Fuse FMX/JCase 40A | 21 | High speed fan relay 1, large fan |
| Fuse FMX/JCase 30A | 22 | High speed fan 2 relay, small fan |
| Fuse FMX/JCase 30A | 23 | Low speed fan relay, big fan, small fan |
| Fuse FMX/JCase 30A | 24 | Start relay, starter, vehicle-mounted power supply |
| Fuse FMX/JCase 40A | 25 | Heater relay , A/C controller |
| Fuse FMX/JCase 50A | 26 | Energy saving relay |
| Fuse FMX/JCase 30A | 27 | Eight direction control switch |
| Fuse FMX/JCase 30A | 28 | Ignition switch, body electronics module (BCM) |
| Fuse FMX/JCase 30A | 29 | IG2 Relay, Brake Light Fuse, Rear Wiper Fuse, Tailgate Lock Fuse, Front Wiper Fuse, Anti-trap Power Window Fuse |
| Fuse MINI 15A | 30 | Spare |
| Fuse MINI 30A | 31 | Spare |
| Fuse FLF/PAL 293 60A | 32 | Glow Plug Relay, Glow Plug 4G69: High Speed Fan Relay, Large Fan, Small Fan |
| Fuse FLF/PAL 293 40A | 33 | ABS anti-lock braking module |
| Fuse MINI 25A | 34 | Preheat relay, glow plug 1 |
| Fuse MINI 25A | 35 | Preheat relay, glow plug 2 |
| Fuse MINI 25A | 36 | Preheat relay, glow plug 3 |
| Fuse MINI 25A | 37 | Preheat relay, glow plug 4 |
| Fuse MINI 10A | 38 | Left low beam headlight |
| Fuse MINI 10A | 39 | Right low beam headlight |
| Fuse MINI 15A | 40 | Left/Right High Beam Headlight |
| Fuse MINI 5A | 42 | Reading light, middle top light, glove box light, rear top light, left/right rearview mirror downlight |
| Fuse MINI 15A | 43 | Cruise Control Switch, Engine ECU, Brake Switch, ABS Anti-Lock Brake Module, SAS, ESC Switch, 4/LHD Controller |
| Fuse MINI 10A | 44 | Reversing lamp switch, left/right reversing lamp, parking assist switch, ECU parking assist |
| Fuse MINI 15A | 45 | Driver/Front Passenger Seat Heating Switch, Heater |
| Fuse MINI 25A | 46 | Body electronics unit (BCM) |
| Fuse MINI 25A | 47 | Body electronics unit (BCM) |
| Fuse MINI 15A | 48 | cigarette lighter |
| Fuse MINI 15A | 49 | Vehicle power supply |
| Fuse MINI 25A | 50 | 220V Inverter |
| Fuse MINI 30A | 51 | Air mass meter, VGT, cruise control switch, electronic choke, water/oil separator, high pressure oil pump, Engine ECU |
Engine Fuse Box [4G15B 1.5L 143 HP/4G69 2.4L 147hp]
| Type | No. | Description |
| Fuse MINI 5A | 1 | 1.5L 143 HP: Door Light Relay, Left/Right Front Door Footrest Light |
| Fuse MINI 15A | 2 | 1.5L 143 HP: PEPS ECU, driver side door handle, passenger side door handle, PEPS siren, ignition switch |
| Fuse MINI 10A | 3 | Air conditioning control unit, gateway, anti-theft device |
| Fuse MINI 20A | 6 | MP5 (multimedia player) |
| Fuse MINI 20A | 7 | Sunroof Motor Module, CPU, Left Front Door Anti-Intrusion Motor |
| Fuse MINI 25A | 8 | ABS anti-lock braking module |
| Fuse MINI 10A | 9 | Horn relay, horn |
| Fuse MINI 15A | 11 | Front Left/Right Fog Lamp Relay Front Fog Lamps |
| Fuse MINI 10A | 12 | A/C Compressor Relay, A/C Compressor Clutch |
| Fuse MINI 15A | 13
14 |
Fuel pump relay, fuel pump 2.4L 147hp: TCU relay, TCU controller (transmission control unit) |
| Fuse MINI 20A | 16 | Front Passenger Seat Power (Four Way Control Switch, Front Passenger Seat Level Adjustment Motor, Front Passenger Seat Back Angle Adjustment Motor) |
| Fuse puller | 17 | Extraction tool for fuse replacement. |
| Fuse MINI 10A | 18 | Spare |
| Fuse MINI 25A | 19 | Spare |
| Fuse FMX/JCase 20A/30A | 20 | Electronic vacuum pump relay
2.4L 147hp: TCU controller (gearbox control unit) |
| Fuse FMX/JCase 40A | 21 | High speed fan relay 1, large fan |
| Fuse FMX/JCase 30A | 22 | High speed fan 2 relay, small fan |
| Fuse FMX/JCase 30A/40A | 23 | Low Speed Fan/High Speed Fan 2 (High Speed Fan 2 Relay, Low Speed Fan Relay, Large Fan, Small Fan) 2.4L 147hp: High speed fan relay 2, low speed fan relay, big fan, small fan |
| Fuse FMX/JCase 30A | 24 | Start relay, starter, vehicle-mounted power supply |
| Fuse FMX/JCase 40A | 25 | Heater relay , A/C controller |
| Fuse FMX/JCase 50A | 26 | Energy saving relay |
| Fuse FMX/JCase 30A | 27 | Eight direction control switch |
| Fuse FMX/JCase 30A | 28 | Ignition switch, body electronics module (BCM) |
| Fuse FMX/JCase 30A | 29 | IG2 Relay, Brake Light Fuse, Rear Wiper Fuse, Tailgate Lock Fuse, Front Wiper Fuse, Anti-trap Power Window Fuse |
| Fuse MINI 15A | 30 | Spare |
| Fuse MINI 30A/60A | 31 32 |
Spare
2.4L 147hp: High Speed Fan Relay, Large Fan, Small Fan |
| Fuse FLF/PAL 293 40A | 33 | anti-lock braking module |
| Fuse MINI 10A | 38 | Left low beam headlight |
| Fuse MINI 10A | 39 | Right low beam headlight |
| Fuse MINI 15A | 40 | Left/Right High Beam Headlight |
| Fuse MINI 5A | 42 | Reading light, middle top light, glove box light, rear top light, left/right rearview mirror downlight |
| Fuse MINI 15A | 43 | Cruise Control Switch, Engine ECU, Brake Switch, ABS Anti-Lock Brake Module, SAS, ESC Switch, 4/LHD Controller |
| Fuse MINI 10A | 44 | Reversing lamp switch, left/right reversing lamp, parking assist switch, ECU parking assist |
| Fuse MINI 15A | 45 | Driver/Front Passenger Seat Heating Switch, Heater |
| Fuse MINI 25A | 46 | Body electronics unit (BCM) |
| Fuse MINI 25A | 47 | Body electronics unit (BCM) |
| Fuse MINI 15A | 48 | cigarette lighter |
| Fuse MINI 15A | 49 | Vehicle power supply |
| Fuse MINI 25A | 50 | 220V Inverter |
| Fuse MINI 30A | 51 | 1.5L 143 HP: Air mass meter, VGT, cruise control switch, electronic throttle, water/oil separator, high-pressure oil pump pressure, engine ECU |
