The Holden Astra TS (1998–2005) fuse box protects essential electrical systems and helps prevent circuit damage. Knowing its location, fuse assignments, and diagram makes troubleshooting easier. This blog provides clear fuse box information to help identify, check, and replace the correct fuse when electrical problems occur.

Fuse Box Location

Passenger Compartment Fuse Box

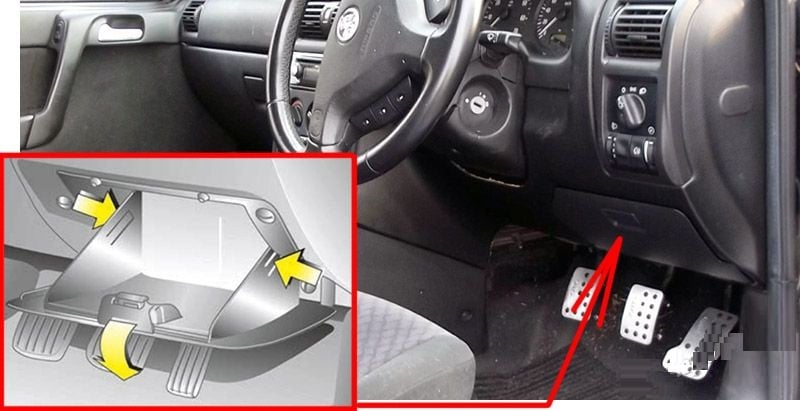

The fuses are located behind the storage compartment, to the right of the steering wheel.

1. Open the storage compartment.
2. Press the lugs at the side of the compartment lid, as illustrated.
3. Swivel the lid down to its full extent.
4. Detach and remove the lid.

Removing the storage compartment housing:
Loosen the screws and remove the storage compartment housing. Fuse numbering is listed on the back of the storage compartment housing.

Fuse Box Diagrams

Passenger Compartment Fuse Box

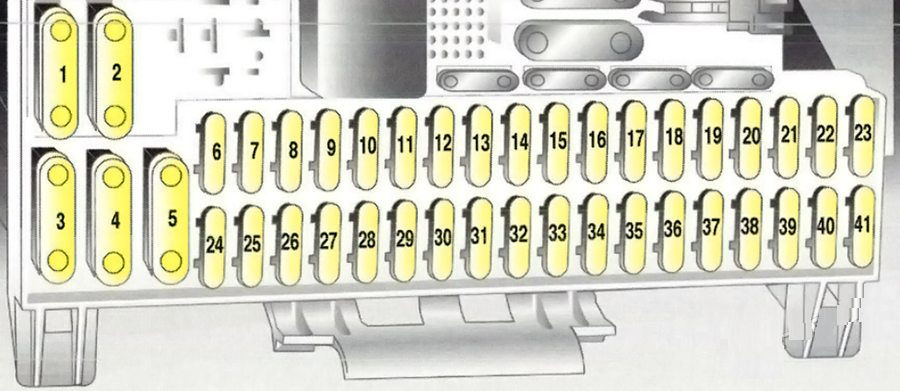

Holden Astra TS (1998 – 2002)

№	Amps	Description
1	–	–
2	30A	Fan
3	40A	Heated rear window
4	–	–
5	–	–
6	10A	Right low beam headlight, headlight range adjustment
7	10A	Park and tail lights (right), number plate light
8	10A	Right high beam
9		–
10	15A	Horn
11	20A	Central locking
12	15A	Fog lights
13	7.5A	Information display
14	30A	Windshield wipers
15	7.5A	Electric windows, electric mirrors
16	10A	Rear fog lamps
17	30A	Electric windows
18	7.5A	Headlight range adjust
19	–	–
20	30A	Electric windows
21	7.5A	Ignition lock, radio
22	15A	Hazard warning flashers, information display, control indicators
23	10A	ABS, power steering
24	10A	Left low beam, headlight range adjustment
25	10A	Park and tail lights (left), number plate lights
26	10A	Left high beam
27	–	–
28	7.5A	Courtesy light
29	10A	Hazard warning flasher, courtesy light, auto trans
30	–	–
31	–	–
32	10A	Headlight warning
33	–	–
34	20A	Information display, radio
35	10A	Automatic transmission, engine cooling, air cond.
36	20A	Cigarette lighter
37	–	–
38	10A	Brake lights, auto trans information display, cruise control
39	7.5A	Auto trans, engine cooling, air conditioning
40	7.5A	Engine cooling, air cond.
41	10A	Heated exterior mirrors

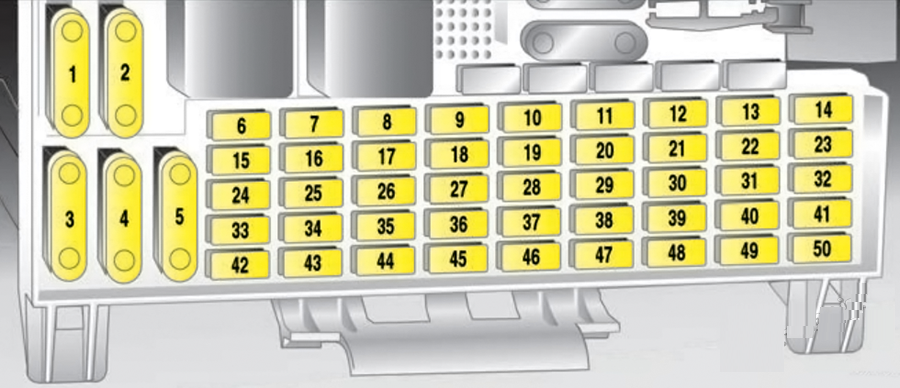

Holden Astra TS (2003 – 2005)

№	Amps	Description
1	40A	Convertible, folding top
2	30A	Fan
3	40A	Heated rear window
4	–	–
5	–	–
6	10A	Right low beam headlight, headlight range adjustment
7	10A	Park and tail lights (right), number plate light
8	10A	Right high beam
9	–	–
10	15A	Horn
11	20A	Central locking
12	15A	Fog lights
13	5A	Information display
14	30A	Windscreen wipers
15	5A	Electric windows, electric mirrors, interior lighting
16	10A	Rear fog lights
17	30A	Electric windows
18	5A	2003: Headlight range adjust 2004-2005: Number plate lamp, Headlight range adjustment, automatic transmission
19	10A	CD changer
20	30A	Electric windows
21	5A	Ignition lock, radio
22	15A	Hazard warning flashers, information display, trip computer, control indicators
23	10A	ABS, power steering
24	10A	2003: Left low beam, headlight range adjustment 2004-2005: Left low beam
25	10A	Park and tail lights (left), number plate light
26	10A	Left high beam
27	–	–
28	5A	Courtesy light
29	10A	2003: Hazard warning flasher, courtesy light, automatic transmission 2004-2005: Hazard warning flasher, automatic transmission
30	–	–
31	20A	Tailgate wiper
32	10A	Day time running lights
33	20A	Terminal 30: Constant current for caravan / trailer
34	20A	Information display, radio
35	10A	Automatic transmission, engine cooling, air cond.
36	15A	Cigarette lighter
37	20A	Heated front seats
38	10A	Brake lights, auto trans information display, cruise control, electronic air conditioning
39	5A	Auto trans, engine cooling, air conditioning
40	5A	Engine cooling, air cond.
41	10A	Heated exterior mirrors
42	5A	Courtesy light
43	–	–
44	–	–
45	5A	Seat heating
46	15A	Ignition system
47	20A	Stationary heater
48	2A	Convertible, folding top
49	2A	Convertible, folding top
50	–	–
