Holden Barina Sedan (2006 – 2008) Fuse Box Diagrams & Location
The Holden Barina Sedan (2006–2008) fuse box diagrams help you locate the fuse panels and identify the fuses protecting the vehicle’s electrical systems. Find fuse box locations, fuse assignments, and circuit details for the 2006–2008 Holden Barina Sedan.
Fuse Box Location

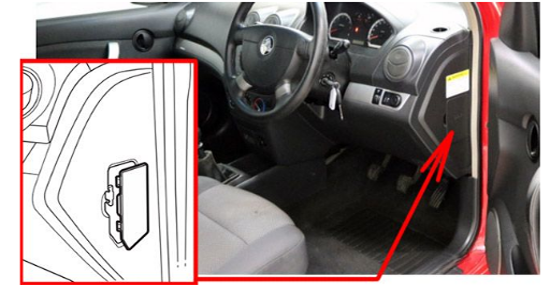

Passenger Compartment Fuse Box
The fuses are located on the driver’s side wall of the instrument panel. To open the fuse cover, open the driver’s side door, pull the top of the cover out.

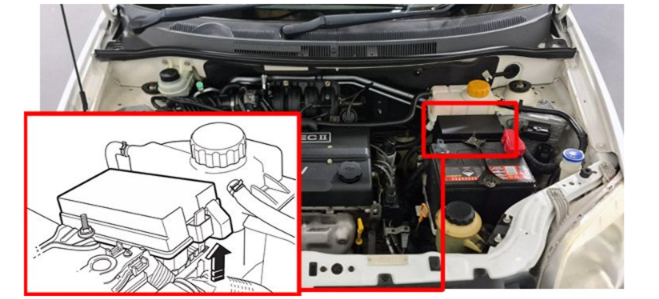

Engine Compartment Fuse Box
The fuse box is located in the engine compartment next to the coolant reservoir. To remove the cover, release the catch on the side of the fuse box towards the engine and release the two tabs at the opposite side.
Fuse Box Diagrams

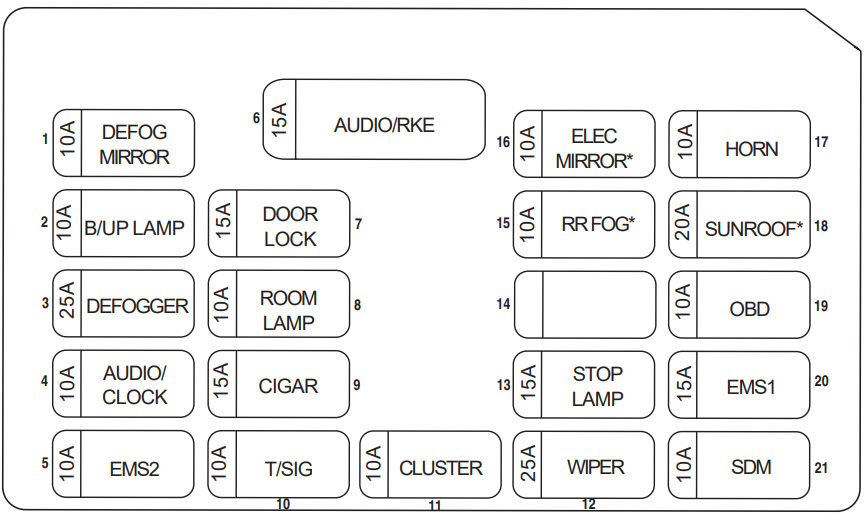

Passenger Compartment Fuse Box
| № | Amps | Circuts protected |
|---|---|---|
| 1 | 10A | Outside mirror demister |
| 2 | 10A | Backup lamp |
| 3 | 25A | Rear window demister |
| 4 | 10A | Audio / clock |
| 5 | 10A | EMS2 |
| 6 | 15A | Audio / RKE |
| 7 | 15A | Door lock |
| 8 | 10A | Room lamp |
| 9 | 15A | Cigarette lighter |
| 10 | 10A | Turn signals |
| 11 | 10A | Cluster |
| 12 | 25A | Wipers |
| 13 | 15A | Stop lamps |
| 14 | – | Spare |
| 15 | 10A | RR Fog (if fitted) |
| 16 | 10A | Electric mirrors |
| 17 | 10A | Horn |
| 18 | 20A | Sunroof (if fitted) |
| 19 | 10A | OBD |
| 20 | 15A | EMS1 |
| 21 | 10A | SDM |

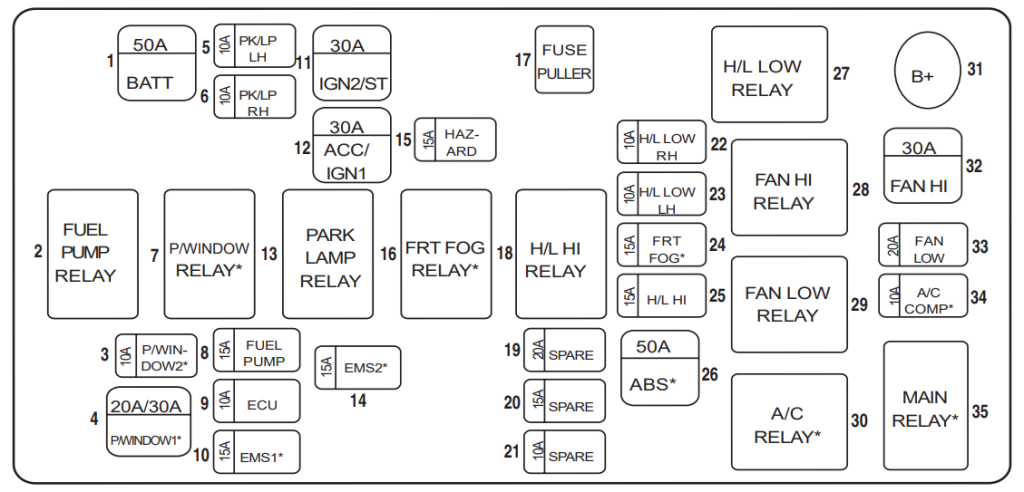

Engine Compartment Fuse Box
| № | Amps | Circuts protected |
|---|---|---|
| 1 | 50A | Battery |
| 2 | Fuel pump relay | |
| 3 | 10A | Power window 2 |
| 4 | 20A/30A | Power window 1 |
| 5 | 10A | Park lamp L/H |
| 6 | 10A | Park lamp R/H |
| 7 | Power window relay | |
| 8 | 15A | Fuel pump |
| 9 | 10A | ECU |
| 10 | 15A | EMS1 |
| 11 | 30A | lgnition2 / ST |
| 12 | 30A | lgnition1 / ACC |
| 13 | Park lamp relay | |
| 14 | 15A | EMS2 |
| 15 | 15A | Hazard |
| 16 | Front fog lamps relay (if fitted) | |
| 17 | Fuse puller | |
| 18 | Headlight Hi relay | |
| 19 | 20A | Spare |
| 20 | 15A | Spare |
| 21 | 10A | Spare |
| 22 | 10A | Headlight Low R/H |
| 23 | 10A | Headlight Low L/H |
| 24 | 15A | Front fog lights (if fitted) |
| 25 | 15A | Headlight Hi |
| 26 | 50A | ABS (if fitted) |
| 27 | Headlight Low (relay) | |
| 28 | Fan Hi (relay) | |
| 29 | Fan Low (relay) | |
| 30 | A/C (relay) | |
| 31 | Battery positive | |
| 32 | 30A | Fan Hi |
| 33 | 20A | Fan Low |
| 34 | 10A | A/C compressor |
| 35 | Main (relay) |
