The Hyundai Equus (2010–2016) fuse box location and diagrams help quickly identify fuses and relays for electrical components. This blog provides clear fuse box locations, detailed fuse layout diagrams, and fuse functions to simplify troubleshooting, maintenance, and safe replacement of blown fuses.

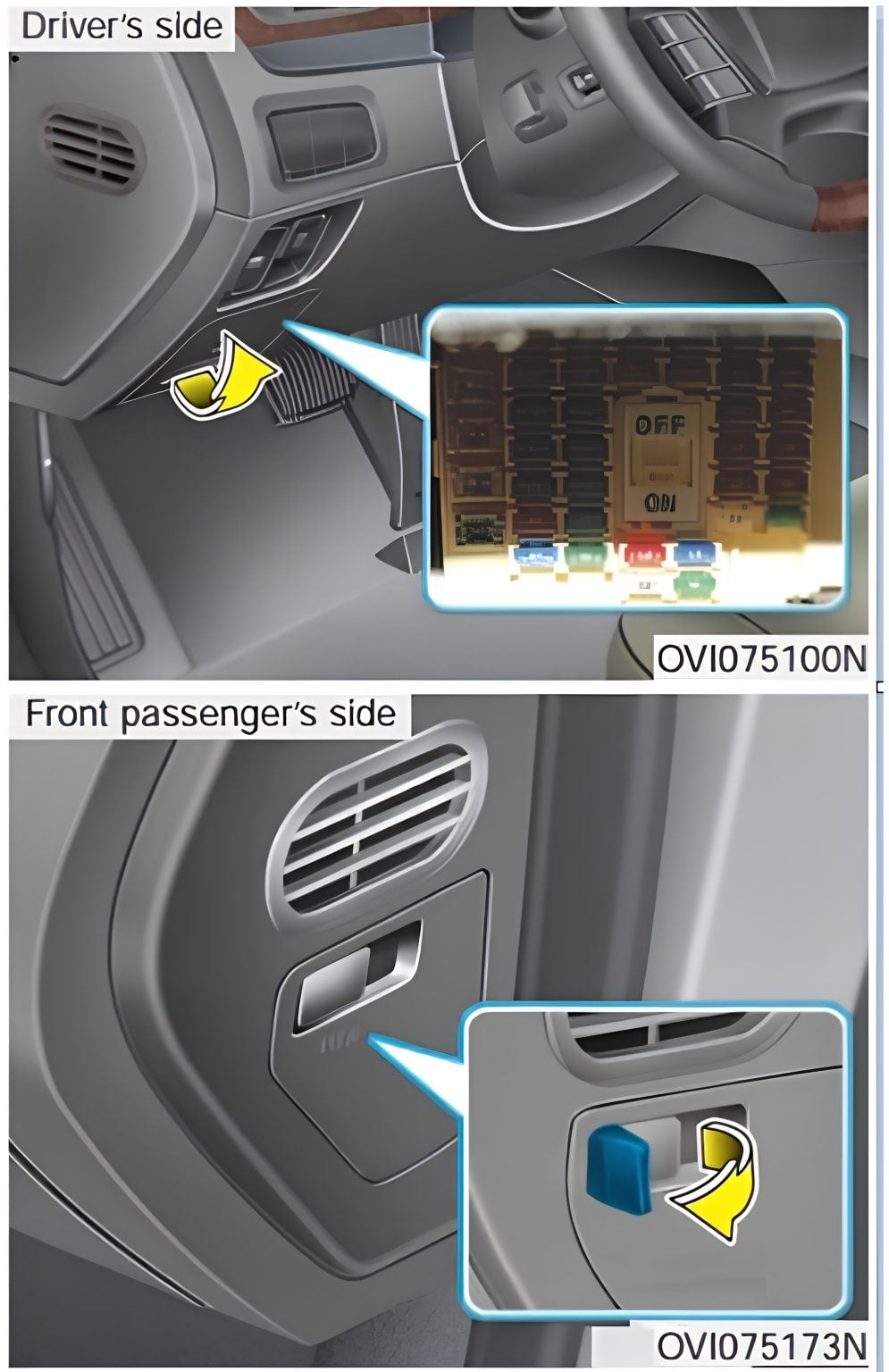

Fuse Box Location

Passenger Compartment Fuse Box

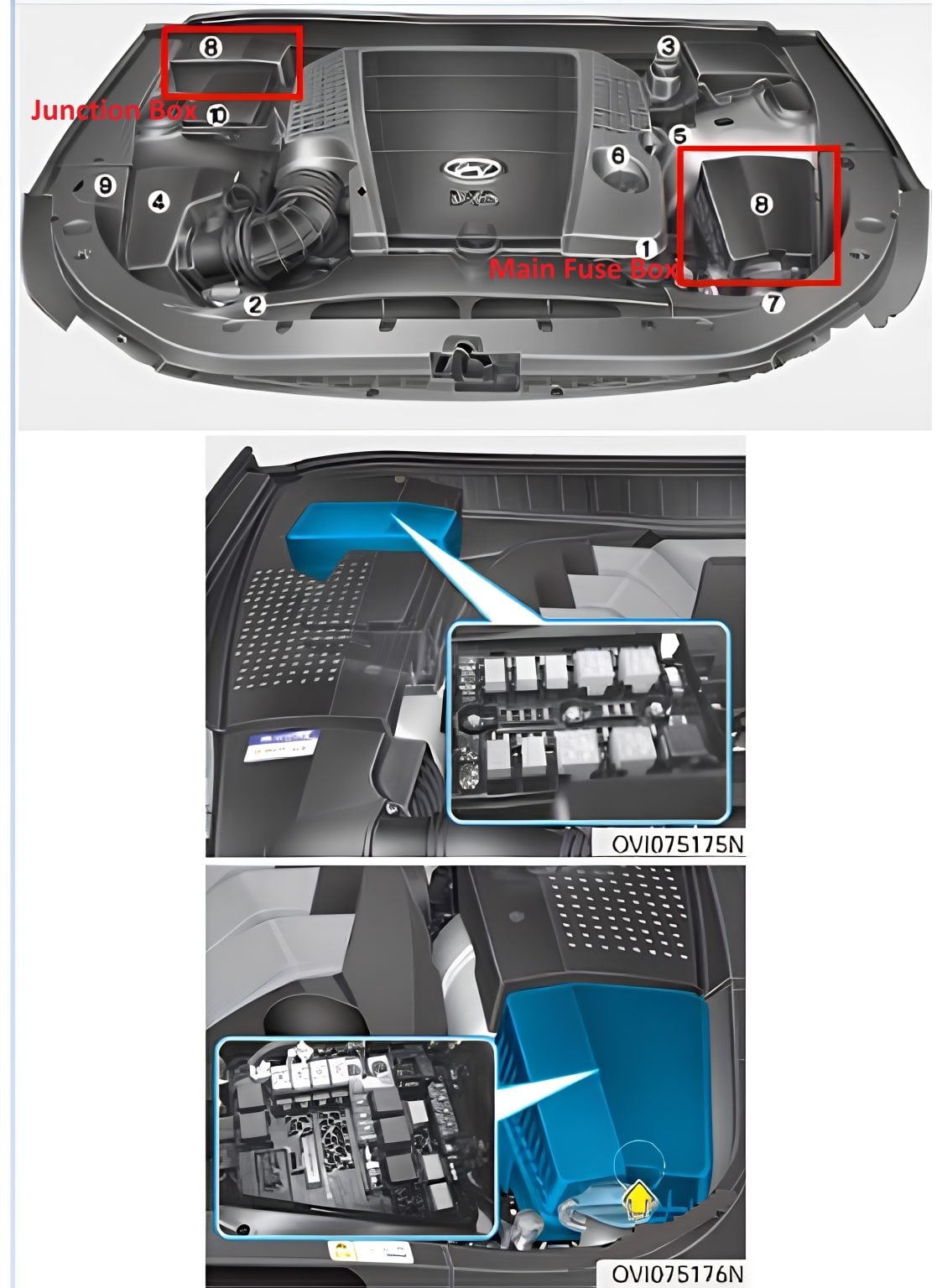

Engine Compartment Fuse Box

Fuse Box Diagrams

Passenger Compartment Fuse Box

Hyundai Equus (2010 – 2013)

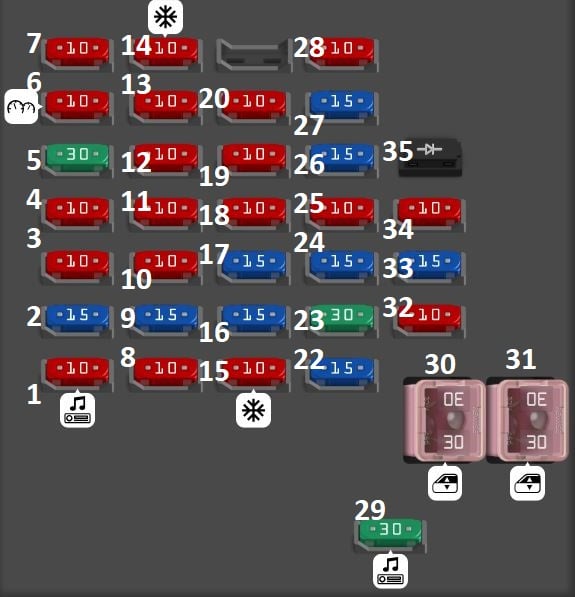

Driver Side Fuse Box

Type	No.	Description
Fuse MINI 10A	1	(AUDIO(IG1)) AV head module, audio, active headrest sensor module, camera module
Fuse MINI 15A	2	(A/BAG) SRS control module
Fuse MINI 10A	3	(BODY UNIT-2) Multifunction switch, tilt & telescopic module, driver/passenger door module, power trunk lid control module electro chromic mirror, LDWS camera, front & rear parking assist control module, EPB control module driver/passenger IMS control module, E/R junction box (FAM)
Fuse MINI 10A	4	(A/BAG IND) Instrument cluster (A/Bag IND.)
Fuse MINI 30A	5	(IG KEY SUPPLY(IG1)) E/R junction box (fuse EHPS 10A. ECU(IG1) 10A. TCU 15A. ESP 10A, STOP LP 10A, AFLS 10A, INHIBITOR SW 10A, CRUISE 10A)
Fuse MINI 10A	6	(CLUSTER) Instrument cluster
Fuse MINI 10A	7	(CHASSIS UNIT) Steering angle sensor, console switch LH/RH, ECS control module, pre-safe seat belt LH/RH, tire pressure monitoring module
Fuse MINI 10A	8	RR RECEIVER
Fuse MINI 15A	9	(AUDIO(B+)) Audio, front/rear monitor, AV head module, rear audio switch, media module, rear console switch
Fuse MINI 10A	10	(BODY UNIT-1) Multifunction switch, instrument cluster (IND.), power trunk lid control module, driver/passenger door module, rear curtain module E/R junction box (FAM), front smart outside handle LH/RH, front door lamp RH, passenger IMS control module front door mood lamp RH
Fuse MINI 10A	11	(AFLS) Auto head lamp leveling device sensor (W/O AFLS), adaptive front lighting module (with AFLS), head lamp LH/RH
Fuse MINI 10A	12	(ESCL-2) IPM, PDM
Fuse MINI 10A	13	(A/CON(IG1)) A/C control module
Fuse MINI 10A	14	(CRUISE SW) Multifunction switch (Remocon), crash pad switch, A/C control module, alternator, instrument cluster, vibrator module rear seat warmer module LH/RH, rear CCS control module LH/RH, driver/passenger CCS control module (with CCS) driver/passenger seat warmer module (W/O CCS), massage module, center facia switch
Fuse MINI 10A	15	(A/CON(B+)) Auto light sensor & security indicator, RF receiver, A/C control module, analog clock
Fuse MINI 15A	16	(S/HTD ECU(FL)) Driver CCS control module (with CCS), driver seat warmer module (with CCS), rear curtain module
Fuse MINI 15A	17	(P/HANDLE) Tilt & telescopic module
Fuse MINI 10A	18	(ESCL-1) PDM
Fuse MINI 10A	19	(DR LOCK(LH)) Driver door module
Fuse MINI 10A	20	(KEY ILLUMINATION) Start stop button switch, FOB holder
Fuse MINI 15A	22	(S/HTD ECU(RL)) Rear CCS control module LH (with CCS), rear seat warmer module LH (W/O CCS)
Fuse MINI 30A	23	(P/TRUNK) Power trunk lid control module
Fuse MINI 15A	24	(DR LOCK(RH)) Passenger door module
Fuse MINI 10A	25	(RR DOOR MDL) Data link connector, rear smart outside handle LH/RH, rear door lamp LH/RH, rear door module LH/RH
Fuse MINI 15A	26	(P/DOOR(FL)) Front door mood lamp LH, driver power seat switch, driver power door latch, front door lamp LH
Fuse MINI 15A	27	(P/DOOR(RL)) Rear power door latch LH, rear door window curtain LH
Fuse MINI 10A	28	(ESCL SW) FOB holder, start stop button switch
Fuse MINI 30A	29	(P/CONN) Fuse A/CON (B+) 10A, AUDIO (B+) 15A, BODY UNIT-1 10A
Fuse FMX/JCase 30A	30	(P/WDW(RH)) Rear power window module RH, passenger power window module
Fuse FMX/JCase 30A	31	(P/WDW(LH)) Rear power window module LH, driver power window module
Fuse MINI 10A	32	(F/LID OPEN) Fuel filler switch
Fuse MINI 15A	33	(ECS) ECS control module
Fuse MINI 10A	34	(RR CURTAIN MTR) Rear curtain module
Diode MINI	35	(DIODE) Stop lamps (SD927-1)

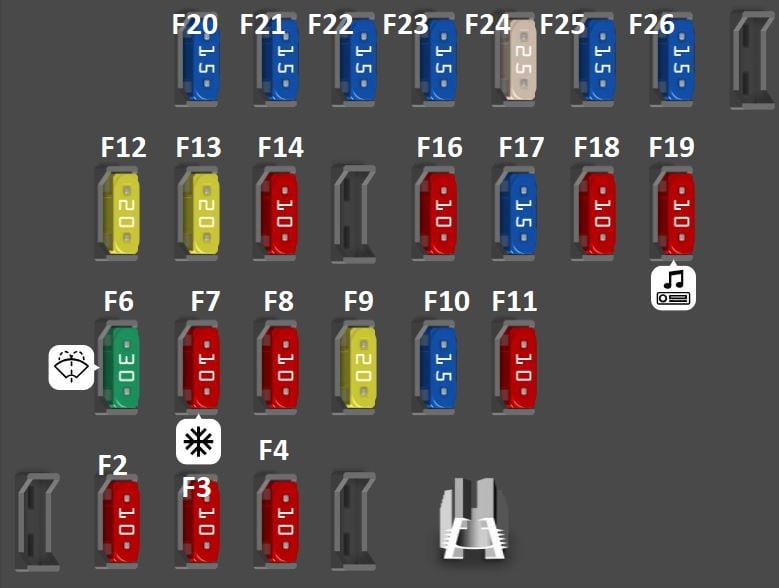

Passenger Side Fuse Box

Type

Description

Fuse MINI

10A

F2

(MIRROR) Driver/passenger door module

Fuse MINI

10A

F3

(CONSOLE SW) Console switch LH/RH, massage module, vibrator module

Fuse MINI

10A

F4

(TPMS) Rear CCS control module RH (with CCS), rear seat warmer module RH (W/O CCS)

Fuse MINI

30A

F6

(IG KEY SUPPLY(IG2)) E/R junction box (fuse : AQS 10A, WASHER 15A)

Fuse MINI

10A

F7

(A/CON(IG2)) Active incar sensor, ionizer, center facia switch, A/C control module, rear console switch console vent temperature actuator & switch

Fuse MINI

10A

F8

(BODY UNIT) Instrument cluster (MICOM), rheostat, driver/passenger CCS control module, passenger receiver rear CCS control module LH/RH, PDM, IPM

Fuse MINI

20A

F9

(P/SEAT(RR)) Rear power seat relay box LH

Fuse MINI

15A

F10

(P/OUTLET(RR)) Rear accessory socket

Fuse MINI

10A

F11

(A/CON(ACC)) A/C control module, IPM, PDM, center facia switch

Fuse MINI

20A

F12

(S/ROOF) Overhead console assembly (sunroof motor)

Fuse MINI

20A

F13

(P/SEAT(FR)) Passenger IMS control module (with IMS), passenger power seat relay box (W/O IMS)

Fuse MINI

10A

F14

(ECM) Overhead console assembly (sunroof motor), rain sensor, rear curtain module

Fuse MINI

10A

F16

(P/OUTLET(FR)) Overhead console assembly (front room lamp), E/R fuse & relay box (front power outlet relay)

Fuse MINI

15A

F17

(P/DOOR(RR)) Rear power door latch RH, rear door window curtain RH

Fuse MINI

10A

F18

(H/REST(FR)) Passenger power seat switch

Fuse MINI

10A

F19

(AUDIO(ACC)) Camera module, rear audio switch, audio, front monitor, media module, AV head module

Fuse MINI

15A

F20

(LEG SUPPORT(RR)) Rear power seat relay box RH

Fuse MINI

15A

F21

(S/HTD ECU(FR)) Passenger CCS control module (with CCS), passenger seat warmer module (W/O CCS)

Fuse MINI

15A

F22

(HTD STRG) Steering wheel heated

Fuse MINI

15A

F23

(ICE BOX) Rear console switch, cool box

Fuse MINI

25A

F24

(ESCL) PDM

Fuse MINI

15A

F25

(P/DOOR(FR)) Passenger power door latch

Fuse MINI

15A

F26

(S/HTD ECU(RR)) Tire pressure monitoring module, electro chromic mirror

Fuse puller

FusePuller

Extraction tool for fuse replacement.

Hyundai Equus (2014 – 2016)

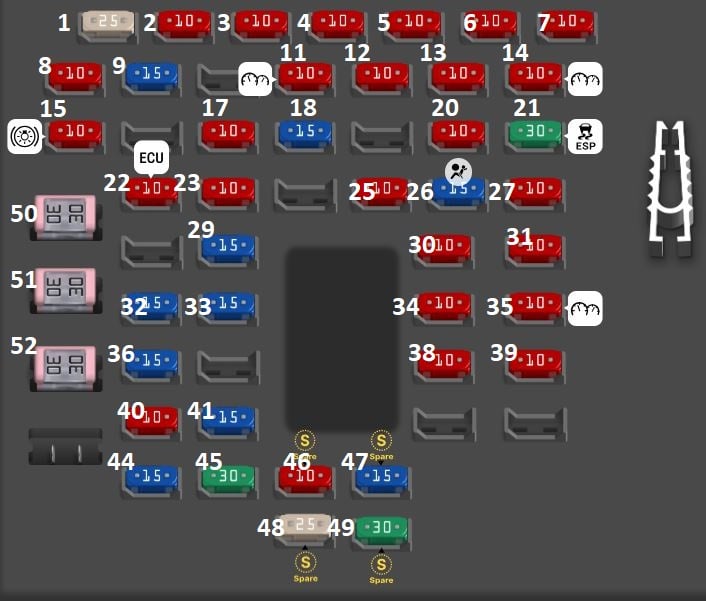

Driver Side Fuse Box

Type

Description

Fuse MICRO2

25A

1

(PDM B+) Smart Key Control Module

Fuse MICRO2

10A

2

(Hazard) Center Facia Switch

Fuse MICRO2

10A

3

(EPB) Electric Parking Brake Switch, Crash Pad Switch

Fuse MICRO2

10A

4

(RF Receiver) RF Receiver, Security Indicator

Fuse MICRO2

10A

5

(PDM IG1) Smart Key Control Module

Fuse MICRO2

10A

6

(Shift Lever IG1) Electric ATM Shift Lever, ATM Shift Lever IND.

Fuse MICRO2

10A

7

(Air Bag IND.) Instrument Cluster

Fuse MICRO2

10A

8

(Smart Key) Start/Stop Button Switch

Fuse MICRO2

15A

9

(Power Handle) Steering Tilt & Telescopic Module

Fuse MICRO2

10A

11

(Memory) Power Trunk Lid Control Module, Relax Module Driver/Passenger Door Module, Rear Door Module LH/RH, Passenger Door Lamp, Passenger Door Mood Lamp, Rear Door Lamp LH/RH, Rear Door Mood Lamp LH/RH, Instrument Cluster, Driver IMS Control Module, BCM, Analogue Clock, LCD Panel Switch, A/C Control Module, Data Link Connector

Fuse MICRO2

10A

12

(TPMS) Tire Pressure Monitoring Module

Fuse MICRO2

10A

13

(Active Head Rest) Active Head Rest Sensor Module

Fuse MICRO2

10A

14

(Cluster) Instrument Cluster, Head-Up Display

Fuse MICRO2

10A

15

(Stop Lamp) Stop Lamp Switch, Smart Key Control Module

Fuse MICRO2

10A

17

(Shift Lever B+) Electric ATM Shift Lever, Sport Mode Switch

Fuse MICRO2

15A

18

(Multi Media) A/V & Navigation Head Unit, Front Monitor, Split Unit, MTS Module, Front DIS Switch, Rear Monitor LH/RH, Rear Console Switch, Rear Audio Switch

Fuse MICRO2

10A

20

(BCM) BCM

Fuse MICRO2

30A

21

(IG1) E/R Junction Box (Fuse – B/UP LAMP, ESC, EHPS, AFLS, INJECTOR (IG1), CRUISE (IG1), ECU (IG1), TCU)

Fuse MICRO2

10A

22

(Module 1) Head-Up Display, Rain Sensor, Rear Power Seat Switch RH

Fuse MICRO2

10A

23

(Fuel Lid) Fuel Filler Door Switch, Front Console Switch

Fuse MICRO2

10A

25

(Folding Mirror) Driver/Passenger Door Module

Fuse MICRO2

15A

26

(Air Bag) SRS Control Module, Driver/Passenger Pre-Safe Seat Belt

Fuse MICRO2

10A

27

(Module 4) E/R Junction Box (FAM), Multifunction Switch, Driver/Passenger Door Module

Fuse MICRO2

15A

29

(ECS) ECS Control Module

Fuse MICRO2

10A

30

(Audio (IG1)) A/V & Navigation Head Unit, MTS Module

Fuse MICRO2

10A

31

(AFLS) Head Lamp LH/RH, Adaptive Front Lighting Module, Auto Head Lamp Leveling Device Module

Fuse MICRO2

15A

32

(P/Door Driver) Driver Power Door Latch, Driver Power Seat Switch, Driver Door Lamp, Driver Door Mood Lamp, Driver Smart Key Outside Handle

Fuse MICRO2

15A

33

(Rear LH S/Heater) Rear CCS Control Module LH, Rear Seat Warmer Module LH

Fuse MICRO2

10A

34

(Module 2) Power Trunk Lid Control Module, Electro Chromic Mirror, Electric Parking Brake Switch, A/T Console Switch

Fuse MICRO2

10A

35

(A/CON) A/C Control Module, AQS Sensor, Driver IMS Control Module, Relax Module, Driver/Passenger CCS Control Module, Driver/Passenger Seat Warmer Module, Rear CCS Control, Module LH/RH, Rear Seat Warmer Module LH/RH, Alternator Resistor (Alternator, Instrument Cluster, USB Jack, Driver/Passenger CCS Control Module, Rear Console Switch, Driver/Passenger Seat Warmer Module, Rear CCS Control Module LH/RH, Rear Seat Warmer Module LH/RH)

Fuse MICRO2

15A

36

(P/Door Rear LH) Rear Power Door Latch LH, Rear Door Window Curtain LH, Rear Smart Key Outside Handle LH

Fuse MICRO2

10A

38

(Module 3) ECS Control Module, Front Console Switch, Crash Pad Switch, Blind Spot Detection Radar LH/RH, Tire Pressure Monitoring Module, Stop Lamp Switch, Steering Tilt & Telescopic Module, LDWS Camera Module, Electric Parking Brake Module, Front/Rear Parking Assist Sensor LH/RH, Front/Rear Parking Assist Sensor LH/RH (Center)

Fuse MICRO2

10A

39

(IAP) Active Accel Pedal Module

Fuse MICRO2

10A

40

(Driver D/Lock) Driver Door Module

Fuse MICRO2

15A

41

(Driver S/Heater) Driver CCS Control Module, Driver Seat Warmer Module

Fuse MICRO2

15A

44

(Passenger D/Lock) Passenger Door Module

Fuse MICRO2

30A

45

(Power Trunk Lid) Power Trunk Lid Control Module

Fuse MICRO2

10A

46

Spare

Fuse MICRO2

15A

47

Spare

Fuse MICRO2

25A

48

Spare

Fuse MICRO2

30A

49

Spare

Fuse FMM/MCase

30A

50

(Passenger P/Seat) Relax Module

Fuse FMM/MCase

30A

51

(Safety Window RH) Passenger Power Window Module, Rear Power Window Module RH

Fuse FMM/MCase

30A

52

(Safety Window LH) Driver Power Window Module, Rear Power Window Module LH

Fuse puller

Fuse Puller

Extraction tool for fuse replacement.

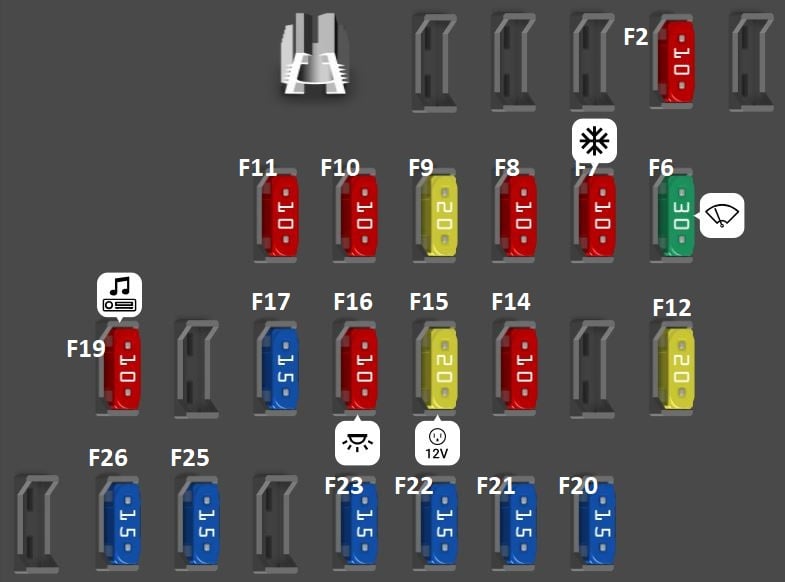

Passenger Side Fuse Box

Type

Description

Fuse MINI

10A

F2

(USB Charge) USB Jack (6:4 Seat)

Fuse MINI

30A

F6

(IG2) E/R Junction Box (Fuse – WIPER (IG2), WASHER)

Fuse MINI

10A

F7

(A/CON) E/R Junction Box (Blower Relay), A/C Control Module, lonizer, Active Incar Sensor, LCD Panel Switch

Fuse MINI

10A

F8

(Module) Smart Junction Box LH (IG2 Power), Around View Unit, Camera Module

Fuse MINI

20A

F9

(Rear P/Seat) Rear Power Seat Relay Box LH, Rear Seat Lumbar Support Control Module LH

Fuse MINI

10A

F10

(E-Shifter) USB Jack (6:4 Seat), Electric ATM Shift Lever

Fuse MINI

10A

F11

(PDM ACC) Smart Key Control Module, BCM

Fuse MINI

20A

F12

(Sunroof) Sunroof Motor

Fuse MINI

10A

F14

(PDM IG2) Smart Key Control Module, BCM

Fuse MINI

20A

F15

(Rear P/Outlet) 6:4 Seat – Rear Power Outlet #1/#2, 5:5 Seat – – Rear Power Outlet, Rear Accessory Socket

Fuse MINI

10A

F16

(Room Lamp) E/R Fuse & Relay Box (Power Outlet FRT Relay), Front Room Lamp

Fuse MINI

15A

F17

(Rear P/Door) Rear Power Door Latch RH, Rear Door Window Curtain RH, Rear Smart Key Outside Handle RH

Fuse MINI

10A

F19

(Audio) A/V & Navigation Head Unit, Analogue Clock, Split Unit, Front Monitor, AMP, MTS Module, Front DIS Switch, Camera Module, Around View Unit, Rear Monitor LH/RH, Rear Audio Switch, Rear Console Switch (6:4 Seat)

Fuse MINI

15A

F20

(Rear L/Support) Rear Power Seat Relay Box RH, Rear Seat Lumbar Support Control Module RH

Fuse MINI

15A

F21

(Passenger S/Heat) Passenger CCS Control Module, Passenger Seat Warmer Module

Fuse MINI

15A

F22

(Steering W/Heated) Clock Spring (Steering Wheel Remote Control – Steering Wheel Heated Module)

Fuse MINI

15A

F23

(Cool Box) Cool Box, Rear Console Swtich, Rear Seat Lumbar Support Control Module RH

Fuse MINI

15A

F25

(Passenger P/Door) Passenger Power Door Latch, Passenger Power Seat Switch, Passenger Smart Key Outside Handle

Fuse MINI

15A

F26

(Rear RH S/Heat) Rear CCS Control Module RH, Rear Seat Warmer Module RH

Fuse puller

FusePuller

Extraction tool for fuse replacement.

Engine Compartment Fuse Box

Hyundai Equus (2010 – 2013)

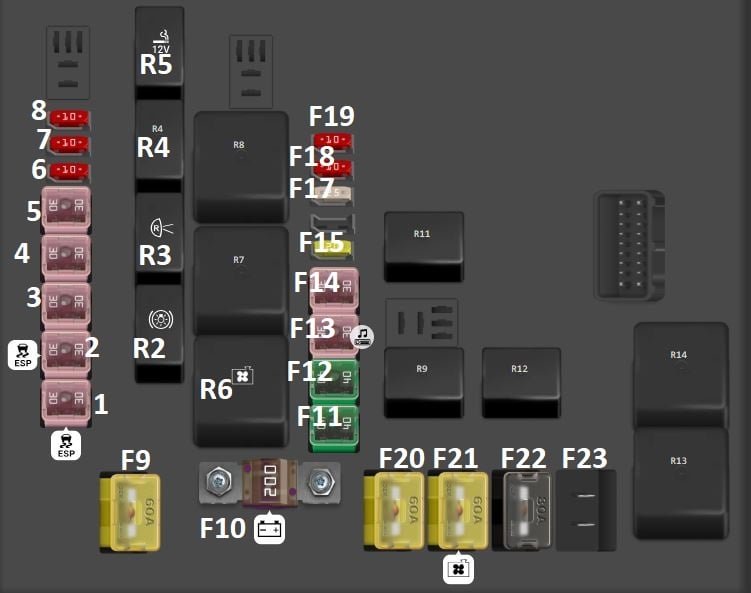

Main Fuse Box

Type	No.	Description
Fuse FMX/JCase 30A	F1	(ESP-1) ESP Control Module, Multipurpose Check Connector
Fuse FMX/JCase 30A	F2	(ESP-2) ESP Control Module, Multipurpose Check Connector
Fuse FMX/JCase 30A	F3	(ESCL(IGN1)) ESCL (IGN1) Relay
Fuse FMX/JCase 30A	F4	(ESCL(IGN2)) ESCL (IGN2) Relay
Fuse FMX/JCase 30A	F5	(P/SEAT(FR-LH)) Driver Lumbar Support Valve, Driver IMS Control Module, Driver Lumbar Support Switch
Fuse MINI 10A	F6	(STOP LP) Stop Lamp Relay, Stop Lamp Switch, IPM
Fuse MINI 10A	F7	(B/UP LP-1 (G8BA)) Back Up Lamp Relay
Fuse MINI 10A	F8	(B/UP LP-2 (G6DA)) Rear Combination Lamp LH/RH, Electro Chromic Mirror, Rear Curtain Module Audio, AV Head Module
Fuse FLF/PAL 293 60A	F9	(I/P POWER(LH)) I/P Junction Box LH
Fuse MIDI 200A	F10	(ALT) Alternator
Fuse FMX/JCase 40A	F11	(ECS) ECS Compressor Relay
Fuse FMX/JCase 40A	F12	(AMP-1) AV JBL AMP
Fuse FMX/JCase 30A	F13	(AMP-2) AMP
Fuse FMX/JCase 30A	F14	(ESCL(ACC)) ESCL (ACC) Relay
Fuse MINI 20A	F15	(H/LP WASHER) Head Lamp Washer Relay
Fuse MINI 25A	F17	(P/OUTLET(FR)) Front Power Outlet Relay
Fuse MINI 10A	F18	(TRUNK OPEN) Trunk Lid Open Relay
Fuse MINI 10A	F19	(IMS) IMS Relay
Fuse FLF/PAL 293 60A	F20	(I/P POWER(RH)) I/P Junction Box RH
Fuse FLF/PAL 293 60A	F21	(COOLING FAN) Cooling Fan Relay
Fuse FLF/PAL 293 80A	F22	(EHPS) EHPS Motor
Relay	R2	STOP LAMP RELAY
Relay	R3	BACK UP LAMP RELAY
Relay	R4	TRUNK LID OPEN RELAY
Relay	R5	FRONT POWER OUTLET RELAY
Relay	R6	COOLING FAN RELAY
Relay	R7	ECS COMPRESSOR RELAY
Relay	R8	ESCL(ACC) RELAY
Relay	R9	SUB START RELAY
Relay	R11	IMS RELAY
Relay	R12	HEAD LAMP WASHER RELAY
Relay	R13	ESCL(IGN1) RELAY
Relay	R14	ESCL(IGN2) RELAY

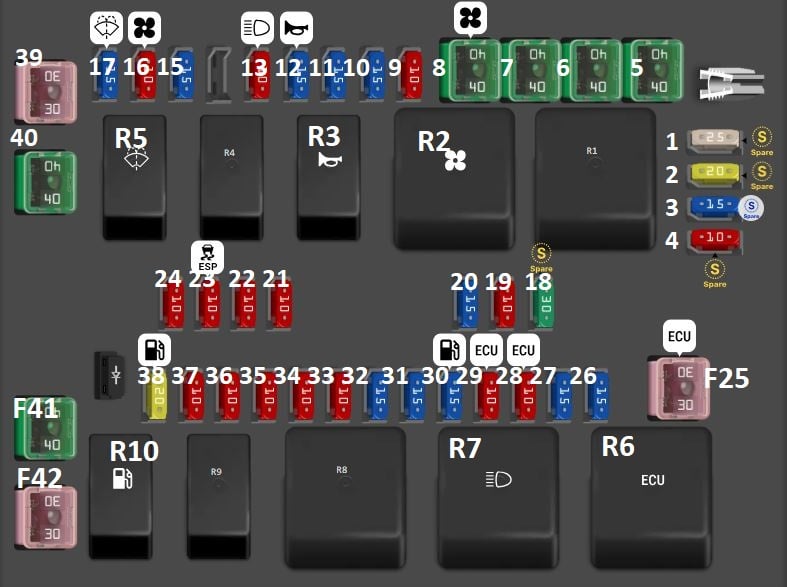

Junction Box

Type

Description

Diode MINI

DIODE

(DIODE) Courtesy & trunk lamps (SD929-2)

Fuse MINI

25A

F1

SPARE

Fuse MINI

20A

F2

SPARE

Fuse MINI

15A

F3

SPARE

Fuse MINI

10A

F4

SPARE

Fuse FMX/JCase

40A

F5

(PRESAFETY(RH)) Pre-safe seat belt RH

Fuse FMX/JCase

40A

F6

(HTD GLASS(RR)) HTD glass (RR) relay

Fuse FMX/JCase

40A

F7

(PRESAFETY(LH)) Pre-safe seat belt LH

Fuse FMX/JCase

40A

F8

(BLOWER MOTOR) Blower relay

Fuse MINI

10A

F9

(A/CON) A/C control module

Fuse MINI

15A

F10

(EPB-1) EPB control module

Fuse MINI

15A

F11

(EPB-2) EPB control module

Fuse MINI

15A

F12

(HORN) Horn relay

Fuse MINI

10A

F13

(IPM) IPM, H/LP (Low) relay

Fuse MINI

15A

F15

(HTD GLASS(FR)) HTD glass (FR) relay

Fuse MINI

10A

F16

(AQS) AQS sensor, blower relay, electronic control wiper module

Fuse MINI

15A

F17

(WASHER) Washer relay

Fuse MINI

30A

F18

SPARE

Fuse MINI

10A

F19

(MIRROR HTD) A/C control module, power outside mirror LH/RH

Fuse MINI

15A

F20

(TCU) TCM

Fuse MINI

10A

F21

(AFLS) Head lamp LH/RH

Fuse MINI

10A

F22

(EHPS) EHPS module

Fuse MINI

10A

F23

(ESP) ESP control module, E/R fuse & relay box (multipurpose check connector)

Fuse MINI

10A

F24

(ECU(IG1)) ECM

Fuse FMX/JCase

30A

F25

(ECU) Engine control relay

Fuse MINI

15A

F26

(IGN COIL-1) Ignition coil #2/4/6, ignition coil #8 (G8BA), condenser #2 (G8BA)

Fuse MINI

15A

F27

(IGN COIL-2) Condenser #1, condenser #2(G6DA), ignition coil #1/3/5, ignition coil #7(G8BA)

Fuse MINI

10A

F28

(ENG SNSR-1) Mass air flow sensor (G6DA), oxygen sensor #1 – 4, ECM, camshaft position sensor (G8BA)

Fuse MINI

10A

F29

(ENG SNSR-2) Canister purge control solenoid valve, oil control valve #1~4, variable intake manifold valve E/R fuse & relay box (cooling fan relay), ECM, mass air flow sensor (G8BA)

Fuse MINI

15A

F30

(ENG SNSR-3) ECM (G6DA), injector #1~ 6 (G6DA), fuel pump relay, injector #1~ 8 (G8BA)

Fuse MINI

15A

F31

(H/LP(LO-RH)) Head lamp RH

Fuse MINI

15A

F32

(H/LP(LO-LH)) Head lamp LH

Fuse MINI

10A

F33

(INHIBITOR SW) Alternator (G8BA), transmission range switch (G6DA)

Fuse MINI

10A

F34

(CRUISE) Smart cruise control module

Fuse MINI

10A

F35

(STOP LP) Stop lamp switch, alternator (G6DA), E/R fuse & relay box (stop lamp relay)

Fuse MINI

10A

F36

(ECU(B+)) ECM, TCM

Fuse MINI

10A

F37

(ROOM LP) Room LP relay

Fuse MINI

20A

F38

(FUEL PUMP) Fuel pump relay

Fuse FMX/JCase

30A

F39

(WIPER) Electronic control wiper module

Fuse FMX/JCase

40A

F40

(FAM POWER-2) FAM

Fuse FMX/JCase

40A

F41

(FAM POWER-1) FAM

Fuse FMX/JCase

30A

F42

(START) Start relay

Fuse puller

FUSE PULLER

Extraction tool for fuse replacement.

Relay

R1

Heated glass (RR) relay

Relay

R2

Blower relay

Relay

R3

Horn relay

Relay

R4

Heated glass (FR) relay

Relay

R5

Washer relay

Relay

R6

Engine control relay

Relay

R7

Headlamp (low) relay

Relay

R8

Start relay

Relay

R9

Room LP relay

Relay

R10

Fuel pump relay

Hyundai Equus (2014 – 2016)

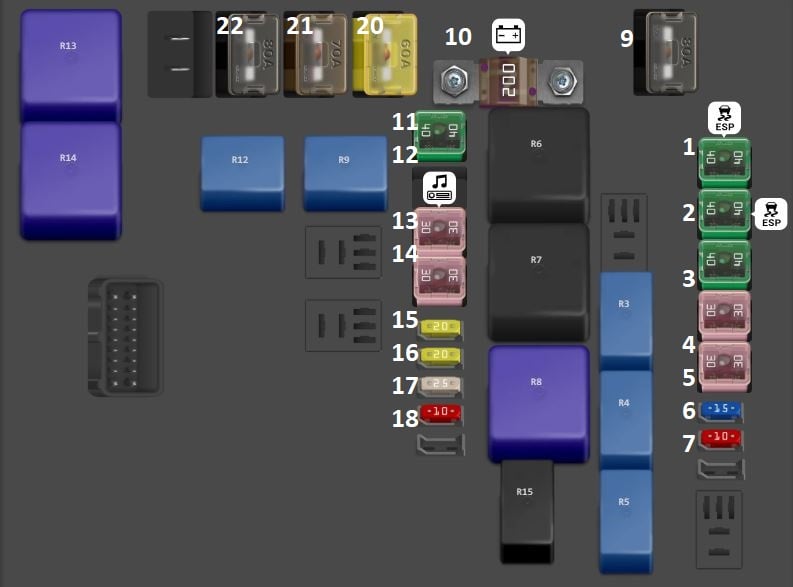

Main Fuse Box

Type (Rating)	No.	Description
Fuse (FMX/JCase, 40A)	F1	ESC 1 – ESC Module, Multipurpose Check Connector
Fuse (FMX/JCase, 40A)	F2	ESC 2 – ESC Module, Multipurpose Check Connector
Fuse (FMX/JCase, 40A)	F3	PDM (IG1) – PDM (IG1) Relay
Fuse (FMX/JCase, 30A)	F4	PDM (IG2) – PDM (IG2) Relay
Fuse (FMX/JCase, 30A)	F5	P/SEAT (DRV) – Driver IMS Control Module, Driver Lumbar Support Valve
Fuse (MINI, 15A)	F6	STOP LAMP – Stop Signal Electronic Module
Fuse (MINI, 10A)	F7	B/UP LAMP – B/UP LAMP Relay
Fuse (FLF/PAL 293, 80A)	F9	I/P POWER LH – Smart Junction Box LH (Fuse: F1, F2, F3, F4, F8, F9, F12, F15, F17, F18, F22, F23, F29, F32, F33, F36, F40, F41, F44, F45, F46, F47, F48, Leak Current Autocut Device)
Fuse (MIDI, 200A)	F10	ALT – Alternator, E/R Fuse & Relay Box (Fuse: I/P POWER RH, EHPS, C/FAN, PDM (ACC), ECS, TRUNK, AMP, H/LAMP WASHER, VACUUM PUMP, POWER OUTLET FRT)
Fuse (FMX/JCase, 40A)	F11	ECS – ECS Relay
Fuse (FMX/JCase, 30A)	F13	AMP – Amplifier
Fuse (FMX/JCase, 30A)	F14	PDM (ACC) – PDM (ACC) Relay
Fuse (MINI, 20A)	F15	H/LAMP WASHER – Headlamp Washer Relay
Fuse (MINI, 20A)	F16	VACUUM PUMP – Vacuum Pump Relay
Fuse (MINI, 25A)	F17	POWER OUTLET FRT – Front Power Outlet Relay
Fuse (MINI, 10A)	F18	TRUNK – Trunk Relay
Fuse (FLF/PAL 293, 60A)	F20	I/P POWER RH – I/P Junction Box RH (Fuse: F2, F9, F12, F17, F20, F21, F25, F26)
Fuse (FLF/PAL 293, 70A)	F21	C/FAN – Cooling Fan Relay
Fuse (FLF/PAL 293, 80A)	F22	EHPS – EHPS Module
Relay	R3	B/UP LAMP
Relay	R4	TRUNK
Relay	R5	POWER OUTLET FRT
Relay	R6	C/FAN
Relay	R7	ECS
Relay	R8	PDM (ACC)
Relay	R9	P/N RELAY
Relay	R12	H/LAMP WASHER
Relay	R13	PDM (IG1)
Relay	R14	PDM (IG2)
Relay	R15	VACUUM PUMP

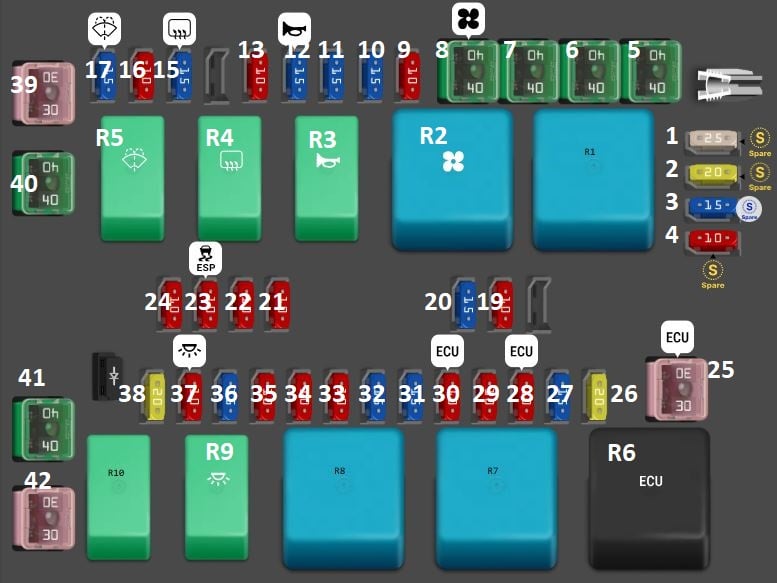

Junction Box

Type

Description

Fuse MINI

25A

F1

SPARE

Fuse MINI

20A

F2

SPARE

Fuse MINI

15A

F3

SPARE

Fuse MINI

10A

F4

SPARE

Fuse FMX/JCase

40A

F5

(PRESAFETY SEAT BELT RH) Passenger Pre-Safe Seat Belt

Fuse FMX/JCase

40A

F6

(RR HTD) RR HTD Relay

Fuse FMX/JCase

40A

F7

(PRESAFETY SEAT BELT LH) Driver Pre-Safe Seat Belt

Fuse FMX/JCase

40A

F8

(BLOWER) Blower Relay

Fuse MINI

10A

F9

(A/CON) A/C Control Module

Fuse MINI

15A

F10

(EPB 1) Electric Parking Brake Module

Fuse MINI

15A

F11

(EPB 2) Electric Parking Brake Module

Fuse MINI

15A

F12

(HORN) Horn Relay

Fuse MINI

10A

F13

(CRUISE (B+)) H/Lamp Relay, Smart Cruise Control Module

Fuse MINI

15A

F15

(DEICER) Deicer Relay

Fuse MINI

10A

F16

(WIPER (IG2)) Electronic Control Wiper Module

Fuse MINI

15A

F17

(WASHER) Washer Relay

Fuse MINI

10A

F19

(HTD MIRR) Driver/Passenger Power Outside Mirror

Fuse MINI

15A

F20

(TCU) TCM, Transmission Range Switch, Transmission Park Position Sensor & Switch

Fuse MINI

10A

F21

(AFLS) Head Lamp LH/RH

Fuse MINI

10A

F22

(EHPS) EHPS Module

Fuse MINI

10A

F23

(ESC) ESC Module, E/R Fuse & Relay Box (Multipurpose Check Connector)

Fuse MINI

10A

F24

(ECU (IG1)) ECM, Alternator (G8BE)

Fuse FMX/JCase

30A

F25

(ECU) ECU Relay

Fuse MINI

20A

F26

(IGN COIL) Condenser #1/#2, Ignition Coil #1 ~ #6 (G6DJ), Ignition Coil #1 ~ #8 (G8BE)

Fuse MINI

15A

F27

(INJECTOR (B+)) Injector Drive Box

Fuse MINI

10A

F28

(SENSOR 1) ECM, Oxygen Sensor #1 ~ #4

Fuse MINI

10A

F29

(SENSOR 2) ECM (G6DJ), Variable Intake Solenoid Valve (G6DJ), Canister Purge Solenoid Valve (G6DJ), Oil Control Valve #1 ~ #4 E/R Fuse & Relay Box (C/Fan Relay), Purge Control Solenoid Valve (G8BE)

Fuse MINI

10A

F30

(SENSOR 3) ECM, F/Pump Relay, Camshaft Position Sensor (BANK1/BANK2) (Intake/Exhaust) (G8BE)

Fuse MINI

15A

F31

(H/LAMP RH) Head Lamp RH

Fuse MINI

15A

F32

(H/LAMP LH) Head Lamp LH

Fuse MINI

10A

F33

(INJECTOR (IG1)) Injector Drive Box

Fuse MINI

10A

F34

(CRUISE (IG1)) Smart Cruise Control Module

Fuse MINI

10A

F35

(B/UP LAMP) Alternator (G6DJ), E/R Fuse & Relay Box (Vacuum Pump Relay (G6DJ), B/Up Lamp Relay, P/N Relay), Steering Angle Sensor, Brake Vacuum Switch (G6DJ)

Fuse MINI

15A

F36

(ECU (B+)) ECM/TCM, Injector Drive Box (G6DJ)

Fuse MINI

10A

F37

(ROOM LAMP) Room Lamp Relay

Fuse MINI

20A

F38

(F/PUMP) F/Pump Relay

Fuse FMX/JCase

30A

F39

(WIPER (B+)) Electronic Control Wiper Module

Fuse FMX/JCase

40A

F40

(FAM 2 (B+)) FAM

Fuse FMX/JCase

40A

F41

(FAM 1 (B+)) FAM

Fuse FMX/JCase

30A

F42

(START) Start Relay

Fuse puller

FUSE PULLER

Extraction tool for fuse replacement.

Relay

R1

RR HTD

Relay

R2

BLOWER

Relay

R3

HORN

Relay

R4

DEICER

Relay

R5

WASHER

Relay

R6

ECU

Relay

R7

H/LAMP

Relay

R8

START

Relay

R9

ROOM LAMP

Relay

R10

F/PUMP

Related Posts:
