Hyundai Genesis Coupe (2009 – 2016) Fuse Box Diagrams & Location
Locate the fuse boxes in the Hyundai Genesis Coupe (2009–2016) with clear diagrams and detailed fuse assignments. This blog helps identify each fuse and relay, making it easier to troubleshoot electrical issues, replace blown fuses safely, and maintain your vehicle’s electrical system with confidence.
Fuse Box Location

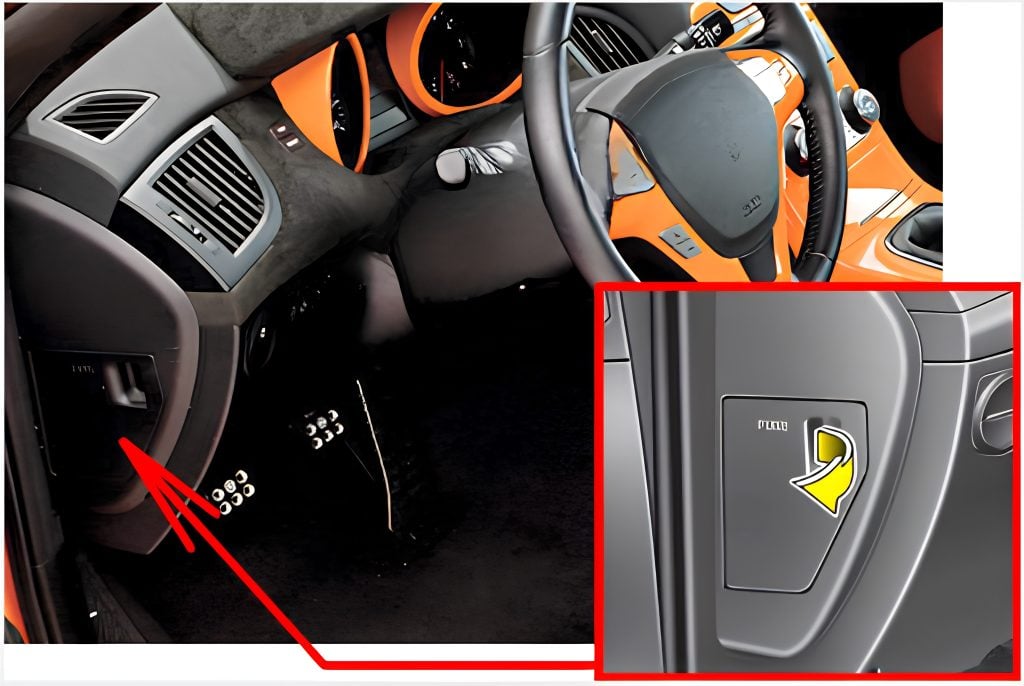

Passenger Compartment Fuse Box
The fuse box is located on the driver’s side of the instrument panel, behind the cover.

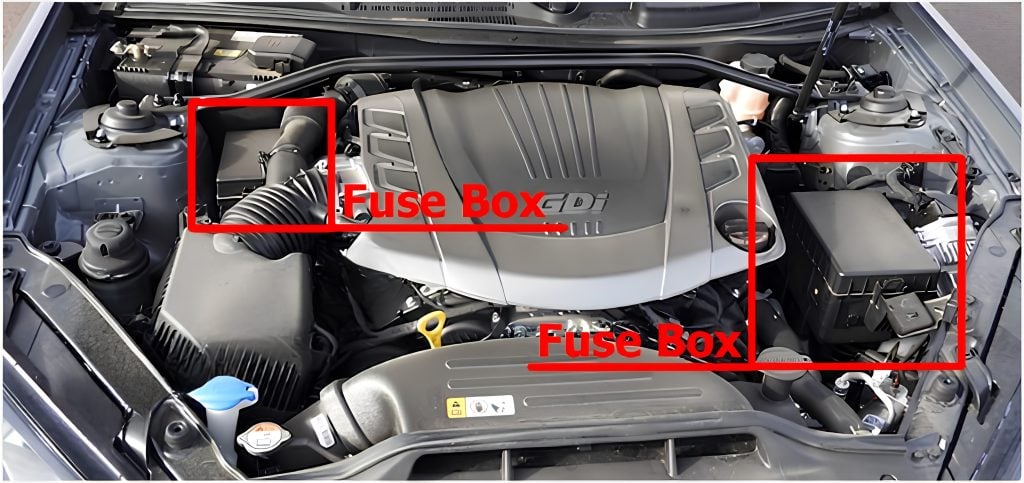

Engine Compartment Fuse Box
Fuse Box Diagrams
Passenger Compartment Fuse Box

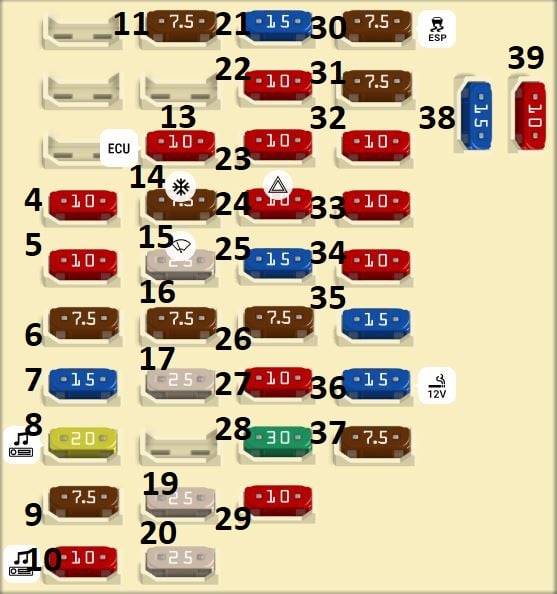

Hyundai Genesis Coupe (2009 – 2012)
| Type | No. | Description |
| Fuse MINI
10A |
4 | (SEAT HTR(DRI)) Driver seat warmer switch |
| Fuse MINI 10A |
5 | (SEAT HTR(ASS)) Passenger seat warmer switch |
| Fuse MINI 7.5A |
6 | (MIRROR) HTD |
| Fuse MINI
15A |
7 | (T/LID OPEN) Trunk lid & Fuel filler door switch. T/LID relay |
| Fuse MINI 20A |
8 | AMP |
| Fuse MINI
7.5A |
9 | (TAIL(LH)) Head lamp LH, Rear combination lamp LH, E/R box LH (FOG LP(FR) relay (NAS)) |
| Fuse MINI
10A |
10 | (TAIL(RH)) Head lamp RH, Rear combination lamp RH. License lamp, Glove box lamp, Rheostat, Driver/Passenger seat warmer switch, ESC & Rear fog switch, Head lamp leveling device switch, Multimonitor, hazard switch, Audio, Rear license lamp, Driver/Passenger power window switch, Sport mode switch, A/C control module, USB/AUX jack, Instrument cluster (ILL). Multifunction switch (Remocon) |
| Fuse MINI 7.5A |
11 | (A/BAG IND) Instrument cluster (Air bag IND.) |
| Fuse MINI
10A |
13 | (ECU) ECM, TCM, Stop lamp switch E/R box LH (SUB START relay (A/T(G4KF))), Cruise clutch pedal position switch (M/T(G6DA)) |
| Fuse MINI
7.5A |
14 | (A/CON) BCM, A/C control module. Incar temperature sensor, BLOWER relay |
| Fuse MINI 25A |
15 | (WIPER(FR)) Multifunction switch (Wiper). Front wiper motor, E/R junction box LH (WIPER (FR) relay) |
| Fuse MINI
7.5A |
16 | (IGN/ESCL) PDM, E/R box LH (H/LP(HI)/(LO) relay), Vacuum switch, Sunroof control module, Electro chromic mirror, Auto head lamp leveling device sensor, Auto head lamp leveling device actuator LH/RH, E/R box LH (Vacuum pump relay), E/R box LH (FOG LP (FR) relay (NAS)) |
| Fuse MINI
25A |
17 | (ESCL) PDM |
| Fuse MINI 25A |
19 | (P/WDW(LH)) Driver safety window module |
| Fuse MINI
25A |
20 | (P/WDW(RH)) Passenger safety window module |
| Fuse MINI
15A |
21 | (A/BAG) SRS control module. Tell tail lamp. PODS |
| Fuse MINI 10A |
22 | (T/SIG) Hazard switch |
| Fuse MINI
10A |
23 | (B/UP LP) Back-up lamp switch (M/T). E/R box LH (B/UP LP relay (A/T G4KF)) |
| Fuse MINI
10A |
24 | (HAZARD) Hazard switch, ICM Relay box (HAZARD relay) |
| Fuse MINI 15A |
25 | (STOP LP) Stop lamp switch |
| Fuse MINI
7.5A |
26 | (AUTO SHIFT LOCK) E/R box LH (Multipurpose check connector). Data link connector, Sport mode switch, Key solenoid |
| Fuse MINI
10A |
27 | (FOG LP(RR)) ICM relay box (Rear fog relay) |
| Fuse MINI 30A |
28 | (P/SEAT(LH)) Driver power seat switch |
| Fuse MINI
10A |
29 | (DR LOCK) DR LOCK/UNLOCK relay, ICM relay box (Two turn unlock relay) |
| Fuse MINI
7.5A |
30 | (ABS) ESC & Rear fog switch. ESC control module, ABS control module. Multipurpose check connector |
| Fuse MINI 7.5A |
31 | (CLUSTER/ESCL) Smart key control module, PDM. Sport mode switch (G4KF), BCM, Instrument cluster (IND.). Multifunction switch (Remocon). TPMS |
| Fuse MINI
10A |
32 | (ESCL) PDM, Smart key control module |
| Fuse MINI
10A |
33 | (ESCL SW) FOB holder. Start stop button switch |
| Fuse MINI 10A |
34 | (START) E/R box LH (Start relay). Ignition switch. Ignition lock switch. ICM relay box(B/Alarm relay) |
| Fuse MINI
15A |
35 | (P/OUTLET(FR)) Front power outlet |
| Fuse MINI
15A |
36 | (P/OUTLET) Console power outlet |
| Fuse MINI 7.5A |
37 | (AUDIO/ESCL) Audio, Multimonitor, Power outside mirror & Mirror folding switch. BCM, PDM, Smart key control module |
| Fuse MINI
15A |
38 | (P/CON) AUDIO |
| Fuse MINI
10A |
39 | (P/CON) MEMORY |

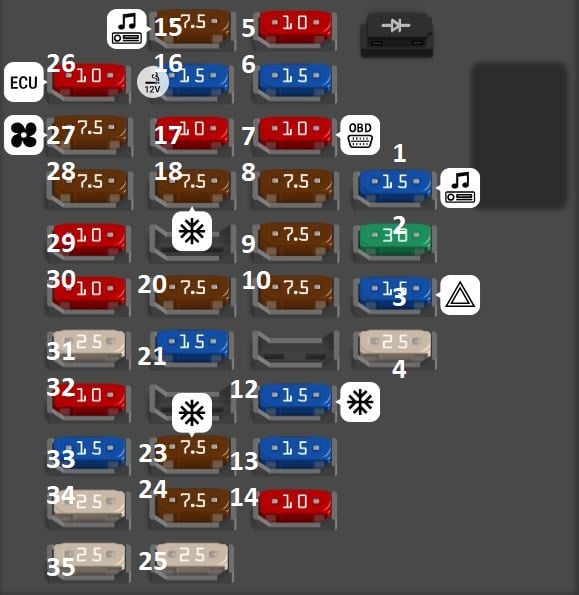

Hyundai Genesis Coupe (2013 – 2016)
| Type | No. | Description |
| Fuse MINI 15A |
1 | (AUDIO) Audio, A/V & Navigation Head Unit, Multi Gauge, Multi Monitor Front Monitor, MTS Module |
| Fuse MINI
30A |
2 | (DRV P/SEAT) Driver Seat Manual Switch, Driver Lumbar Support Switch |
| Fuse MINI
15A |
3 | (HAZARD) BCM, Flasher Sound Relay |
| Fuse MINI 25A |
4 | (PDM1) PDM |
| Fuse MINI
10A |
5 | (ROOM LP) Driver/Passenger Door Lamp, Trunk Room Lamp Driver/Passenger Door Scuff Lamp, Vanity Lamp LH/RH Map Lamp |
| Fuse MINI
15A |
6 | (C/LIGHTER) Front Power Outlet |
| Fuse MINI 10A |
7 | (MEMORY1) BCM, Data Link Connector, Auto Light & Photo Sensor Ignition Key ILL. & Door Warning Switch, Electro Chromic Mirror Instrument Cluster (IND. MICOM), A/C Control Module Tire Pressure Monitoring Module |
| Fuse MINI
7.5A |
8 | (MEMORY2) RF Receiver |
| Fuse MINI
7.5A |
9 | (ABS) E/R Junction Box LH (Multipurpose Check Connector) ESC Module, ESC & PAS Switch, Steering Angle Sensor |
| Fuse MINI 7.5A |
10 | (A/BAG IND) Instrument Cluster (Air Bag IND.) |
| Fuse MINI
15A |
12 | (A/BAG) SRS Control Module, A/C Control Module, PODS Module |
| Fuse MINI
15A |
13 | (B/UP LP) Back-Up Lamp Switch, TCM, Transmission Range Switch |
| Fuse MINI 10A |
14 | (MODULE3) ECM, PDM, Smart Key Control Module, Injector Drive Box (G6DJ) |
| Fuse MINI
7.5A |
15 | (MODULE1) AMP, Audio, A/V & Navigation Head Unit, Multi Monitor, MTS Module Front Monitor, Map Lamp, Power Outside Mirror Switch |
| Fuse MINI
15A |
16 | (POWER OUTLET) Console Power Outlet |
| Fuse MINI 10A |
17 | (MODULE6) BCM, PDM, Smart Key Control Module |
| Fuse MINI
7.5A |
18 | (MODULE2) IPS Control Module, Instrument Cluster (IND, MICOM), BCM, ATM Shift Lever IND., Multifunction Switch (Remote Control), Multi Gauge, Cruise Clutch Pedal Position Switch, A/C Control Module, Auto Head Lamp Leveling Device Unit, Stop Lamp Switch, Driver/Passenger Seat Warmer Module, Electro Chromic Mirror, MTS Module, Tire Pressure Monitoring Module, Head Lamp Leveling Device Actuator LH/RH, Front Parking Assist Sensor LH/RH Rear Parking Assist Sensor Side LH/RH Rear Parking Assist Sensor Center LH/RH |
| Fuse MINI
7.5A |
20 | (MODULE5) Sport Mode Switch (A/T), Key Solenoid |
| Fuse MINI 15A |
21 | (STOP LP) Stop Signal Relay |
| Fuse MINI
7.5A |
23 | (MODULE7) Blower Relay, Sunroof Control Module, A/C Control Module, Cluster lonizer (Auto A/C) |
| Fuse MINI
7.5A |
24 | (MODULE4) BCM, PDM, IPS Control Module, Vacuum Switch E/R Junction Box LH (Vacuum Pump Relay) |
| Fuse MINI 25A |
25 | (WIPER FRT) MultiFunction Switch (Wiper), Front Wiper Motor E/R Junction Box LH (Wiper FRT Relay) |
| Fuse MINI
10A |
26 | (START) E/R Junction Box LH (Start Relay), Ignition Lock Switch, PDM Transmission Range Switch, ECM [G6DJ], B/Alarm Relay |
| Fuse MINI
7.5A |
27 | (BLOWER) A/C Control Module |
| Fuse MINI 7.5A |
28 | (HTD MIRR) A/C Control Module, Driver/Passenger Power Outside Mirror |
| Fuse MINI
10A |
29 | (TRUNK) Trunk Lid & Fuel Filler Door Switch, ICM Relay Box (Trunk Lid Relay) |
| Fuse MINI
10A |
30 | (PDM2) PDM, Smart Key Control Module, Start Stop Button Switch, FOB Holder |
| Fuse MINI 25A |
31 | (SAFETY POWER WINDOW RH) Passenger Safety Power Window Module |
| Fuse MINI
10A |
32 | (FOG LP RR) (Not Used) |
| Fuse MINI
15A |
33 | (S/HEATER) Driver/Passenger Seat Warmer Module |
| Fuse MINI 25A |
34 | (AMP) AMP (JBL) |
| Fuse MINI
25A |
35 | (SAFETY POWER WINDOW LH) Driver Safety Power Window Module |
Engine Compartment Fuse Box
Hyundai Genesis Coupe (2009 – 2012)

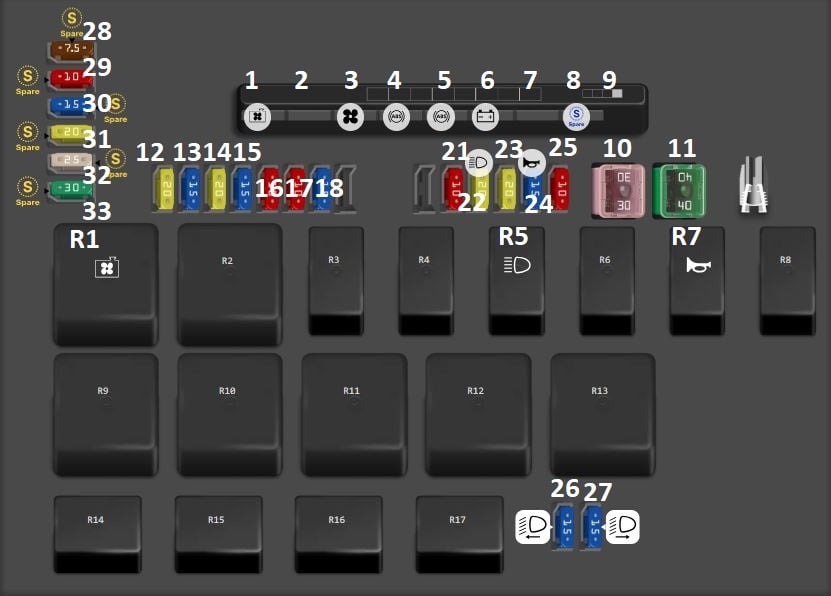

Main Fuse Panel
| Type | Description |
| Multi fuse block MUSB | 1
(COOLING FAN) Electric cooling fan |
| Multi fuse block MUSB | 2 HTD GLASS (RR) |
| Multi fuse block MUSB | 3
(BLOWER) AC blower motor |
| Multi fuse block MUSB | 4
(ABS-2) Anti-lock braking system |
| Multi fuse block MUSB | 5 (ABS-2) Anti-lock braking system |
| Multi fuse block MUSB | 6
(ALT) Battery and charging system |
| Multi fuse block MUSB | 7
(BATT1) Battery and charging system |
| Multi fuse block MUSB | 8 (SPARE 7) Spare fuse |
| Multi fuse block MUSB | 9
(BATT2) Battery and charging system |
| Fuse FMX/JCase
30A |
10 (IG1) Protects several circuits |
| Fuse FMX/JCase
40A |
11
(IG2) Protects several circuits |
| Fuse MINI 20A |
12
(S/ROOF) Sunroof |
| Fuse MINI
15A |
13 DRL B/HORN |
| Fuse MINI
20A |
14
HTD CLASS (RR) |
| Fuse MINI 15A |
15
(TAIL) Tail lights |
| Fuse MINI
10A |
16 FOG LP (FR) |
| Fuse MINI
10A |
17
(A/CON COMP) Air conditioning compressor |
| Fuse MINI 15A |
18
VACUUMP PUMP |
| Fuse MINI
10A |
21 DR LOOK |
| Fuse MINI
20A |
22
(H/LP (HI)) Headlights high beam |
| Fuse MINI 20A |
23
(H/LP (LO)) Headlights low beam |
| Fuse MINI
15A |
24 (HORN) Horn |
| Fuse MINI
10A |
25
(B/UP) Backup lights |
| Fuse MINI 15A |
26
(H/LP LO LH) Left-hand headlight low beam |
| Fuse MINI
15A |
27 (H/LP LO RH) Right-hand headlight low beam |
| Fuse MINI
7.5A |
28
(SPARE) Spare fuse |
| Fuse MINI 10A |
29
(SPARE) Spare fuse |
| Fuse MINI
15A |
30 (SPARE) Spare fuse |
| Fuse MINI
20A |
31
(SPARE) Spare fuse |
| Fuse MINI 25A |
32
(SPARE) Spare fuse |
| Fuse MINI
30A |
33 (SPARE) Spare fuse |
| Fuse puller | Fuse Puller
Extraction tool for fuse replacement. |
| Relay | R1
COOLING FAN (HI) |
| Relay | R2 COOLING FAN (LO) |
| Relay | R3
(A/CON) Air conditioning |
| Relay | R4
VACUUM PUMP |
| Relay | R5 (H/LP (HI)) Headlights high beam |
| Relay | R6
(H/LP (LO)) Headlights low beam |
| Relay | R7
(HORN) Horn |
| Relay | R8 (B/UP LP) Backup lights |
| Relay | R9
(START) Starter system |
| Relay | R10
HTD GLASS (RR) |
| Relay | R11 (ESCL (IGN2)) Steering lock |
| Relay | R12
(ESCL (IGN1)) Steering lock |
| Relay | R13
(ESCL (ACC)) Steering lock |
| Relay | R14 HTD GLASS (FR) |
| Relay | R15
FOG LP (FR) |
| Relay | R16
WIPER (FR) |
| Relay | R17 SUB START |

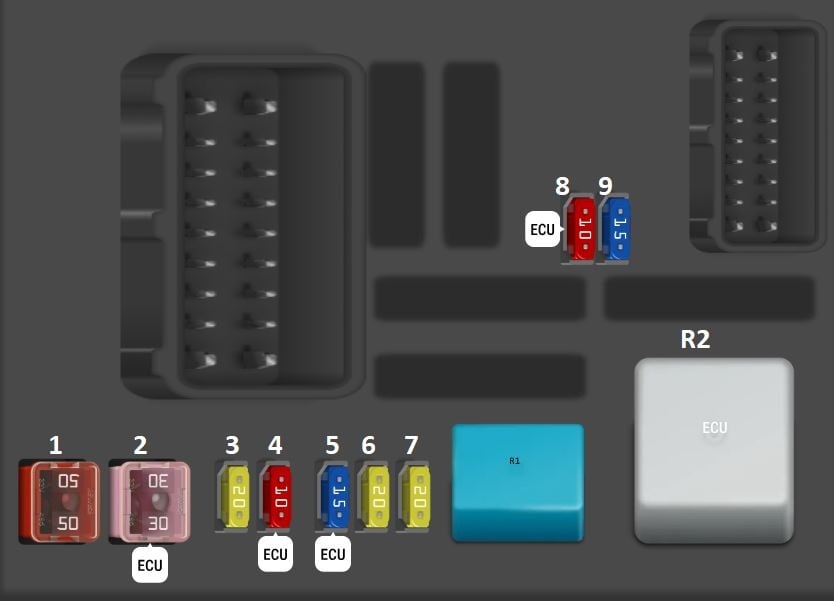

Sub Fuse Panel
| Type | No. | Description |
| Fuse FMX/JCase
50A |
1 | (B+) Fuse (EMS 30A. ECU1 10A, F/PUMP 20A) |
| Fuse FMX/JCase
30A |
2 | (EMS) Engine Control Relay |
| Fuse MINI 20A |
3 | (F/PUMP) F/Pump Relay |
| Fuse MINI
10A |
4 | (ECU 1) [G4KF]: ECM, TCM. [G6DJ]: ECM, TCM, Injector Drive Box |
| Fuse MINI
15A |
5 | (INJECTOR) [G4KF]: F/Pump Relay, Injector #1/#2/#3/#4. [G6DJ] F/Pump Relay. Fuel Pump Relay (Low). ECM |
| Fuse MINI 20A |
6 | (IGN COIL) [G4KF]: Ignition Coil #1/#2/#3/#4 Condenser. [G6DJ]: Ignition Coil #1/#2/#3/#4/#5/#6. Condenser #1/#2 |
| Fuse MINI
20A |
7 | (ECU 2) [G4KF]: ECM. [G6DJ]: Injector Drive Box |
| Fuse MINI
10A |
8 | (SENSOR 1) [G4KF]: Cooling Fan (High)/(Low) Relay, Oxygen Sensor (Up)/(Down). [G6DJ]: Cooling Fan (High)/(Low) Relay, ECM, Oxygen Sensor #1/#2/#3/#4 |
| Fuse MINI 15A |
9 | (SENSOR 2) [G4KF]: Camshaft Position Sensor #1/#2, RCV Control Solenoid Valve, Immobilizer Module, Canister Close Valve, Purge Control Solenoid Valve, Crankshaft Position Sensor, Oil Control Valve #1/#2. [G6DJ]: ECM, Oil Control Valve #1/#2/#3/#4. Purge Control Solenoid Valve, Immobilizer Module. Canister Close Valve |
| Relay | R1 | F/PUMP |
| Relay | R2 | ECU MAIN |
Hyundai Genesis Coupe (2013 – 2016)

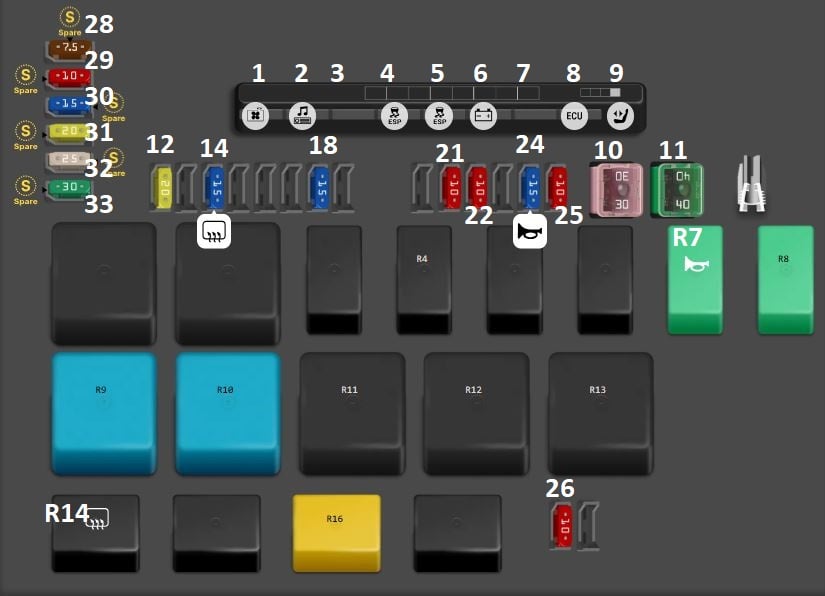

Main Fuse Panel
| Type | Description |
| Multi fuse block MUSB | 1
(C/FAN) Cooling Fan (High) Relay, Cooling Fan (Low) Relay |
| Multi fuse block MUSB | 2
(B+1) Smart Junction Box ((Fuse : S/HEATER, AMP, SAFETY POWER WINDOW LH/RH), IPS 2, IPS Control Module) |
| Multi fuse block MUSB | 3 (BLOWER) Smart Junction Box (Blower Relay) |
| Multi fuse block MUSB | 4
(ABS2) Multipurpose Check Connector, ESC Module |
| Multi fuse block MUSB | 5
(ABS1) Multipurpose Check Connector, ESC Module |
| Multi fuse block MUSB | 6 (ALT) Alternator, Multi Fuse (ABS1, ABS2, BLOWER B+1, C/FAN), Fuse (S/ROOF FRT, DEICER, VACUUM PUMP) |
| Multi fuse block MUSB | 7
(RR HTD) RR HTD Relay |
| Multi fuse block MUSB | 8
(B+2) Smart Junction Box ((Fuse : HAZARD, PDM1, MODULES, STOP LP, TRUNK, PDM2), IPS 1, ARISU 2, IPS Control Module) |
| Multi fuse block MUSB | 9 (B+3) Smart Junction Box ((Fuse : AUDIO, DRV P/SEAT, ROOM LP, MEMORY1, MEMORY2), ARISU 1, IPS Control Module, Leak Current Autocut Device Switch, Leak Current Autocut Device Relay) |
| Fuse FMX/JCase
30A |
10
(IG2) Start Relay, IG2 Relay, Ignition Switch |
| Fuse FMX/JCase 40A |
11
(IG1) IG1 Relay, ACC Relay, Ignition Switch |
| Fuse MINI
20A |
12 (S/ROOF FRT) Sunroof Control Module |
| Fuse MINI
15A |
14
(DEICER) Deicer Relay |
| Fuse MINI 15A |
18
(VACUUM PUMP) Vacuum Pump Relay (G4KF A/T) |
| Fuse MINI
10A |
21 (DR LOCK) Smart Junction Box (Door Lock Relay, Door Unlock Relay), ICM Relay Box (Two Turn Unlock Relay) |
| Fuse MINI
10A |
22
(BRAKE SW) Stop Lamp Switch |
| Fuse MINI 15A |
24
(HORN) Horn Relay |
| Fuse MINI
10A |
25 (DEDICATED DRL) Dedicated DRL Relay |
| Fuse MINI
10A |
26
(B/UP LP) M/T – Back-Up Lamp Switch A/T – Rear Combination Lamp LH/RH, Electro Chromic Mirror, A/V & Navigation Head Unit |
| Fuse MINI 7.5A |
28
Spare |
| Fuse MINI
10A |
29 Spare |
| Fuse MINI
15A |
30
Spare |
| Fuse MINI 20A |
31
Spare |
| Fuse MINI
25A |
32 Spare |
| Fuse MINI
30A |
33
Spare |
| Fuse puller | Fuse Puller Extraction tool for fuse replacement. |
| Relay | R4
VACUUM PUMP |
| Relay | R7
HORN |
| Relay | R8 DEDICATED DRL |
| Relay | R9
START |
| Relay | R10
RR HTD |
| Relay | R11 IG2 |
| Relay | R12
IG1 |
| Relay | R13
ACC |
| Relay | R14 DEICER |
| Relay | R16
WIPER FRT |

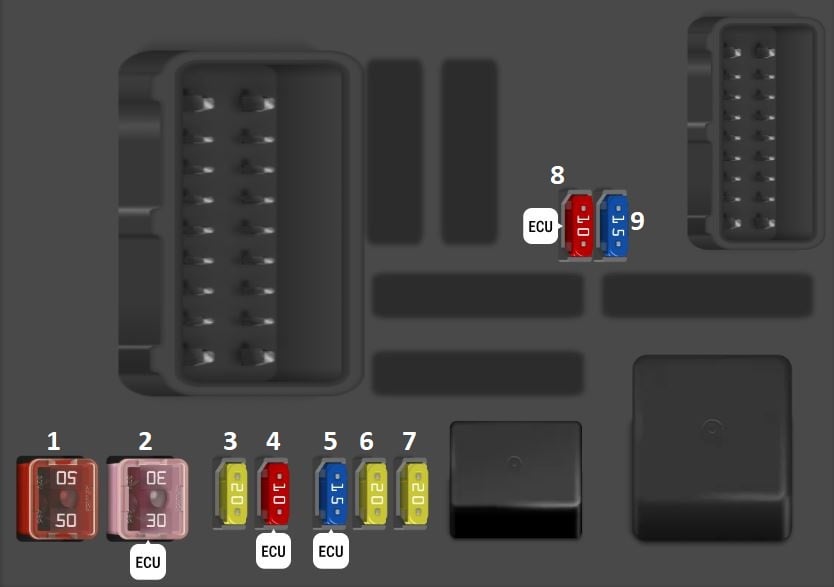

Sub Fuse Panel
| Type | No. | Description |
| Fuse FMX/JCase
50A |
1 | (B+) Fuse (EMS 30A. ECU1 10A, F/PUMP 20A) |
| Fuse FMX/JCase 30A |
2 | (EMS) Engine Control Relay |
| Fuse MINI
20A |
3 | (F/PUMP) F/Pump Relay |
| Fuse MINI
10A |
4 | (ECU 1) [G4KF]: ECM, TCM. [G6DJ]: ECM, TCM, Injector Drive Box |
| Fuse MINI 15A |
5 | (INJECTOR) [G4KF]: F/Pump Relay, Injector #1/#2/#3/#4. [G6DJ] F/Pump Relay. Fuel Pump Relay (Low). ECM |
| Fuse MINI
20A |
6 | (IGN COIL) [G4KF]: Ignition Coil #1/#2/#3/#4 Condenser. [G6DJ]: Ignition Coil #1/#2/#3/#4/#5/#6. Condenser #1/#2 |
| Fuse MINI
20A |
7 | (ECU 2) [G4KF]: ECM. [G6DJ]: Injector Drive Box |
| Fuse MINI 10A |
8 | (SENSOR 1) [G4KF]: Cooling Fan (High)/(Low) Relay, Oxygen Sensor (Up)/(Down). [G6DJ]: Cooling Fan (High)/(Low) Relay, ECM, Oxygen Sensor #1/#2/#3/#4 |
| Fuse MINI
15A |
9 | (SENSOR 2) [G4KF]: Camshaft Position Sensor #1/#2, RCV Control Solenoid Valve, Immobilizer Module, Canister Close Valve, Purge Control Solenoid Valve, Crankshaft Position Sensor, Oil Control Valve #1/#2. [G6DJ]: ECM, Oil Control Valve #1/#2/#3/#4. Purge Control Solenoid Valve, Immobilizer Module. Canister Close Valve |
Related Posts:
