Hyundai Kona EV (2024 – 2026) Fuse Box Diagrams & Location
Find the fuse box locations and detailed fuse diagrams for the Hyundai Kona EV (2024–2026). This blog helps you identify fuse assignments, locate interior and engine compartment fuse panels, and understand each fuse’s function, making troubleshooting and electrical maintenance easier and more efficient.
Fuse Box Location
Passenger Compartment Fuse Box
Open the fuse panel cover to access.

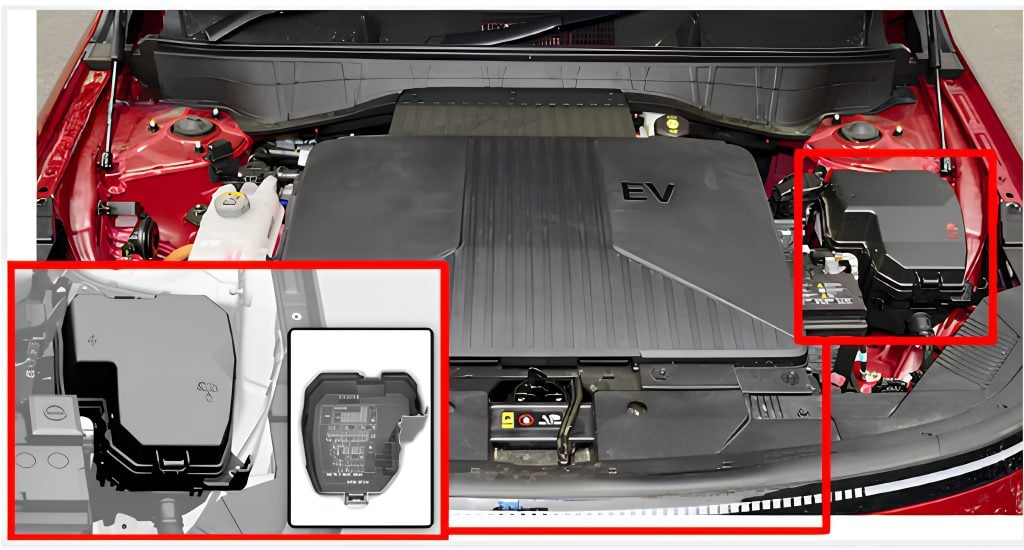

Engine Compartment Fuse Box
Remove the fuse panel cover by pressing the tabs and pulling up.
Fuse Box Diagrams

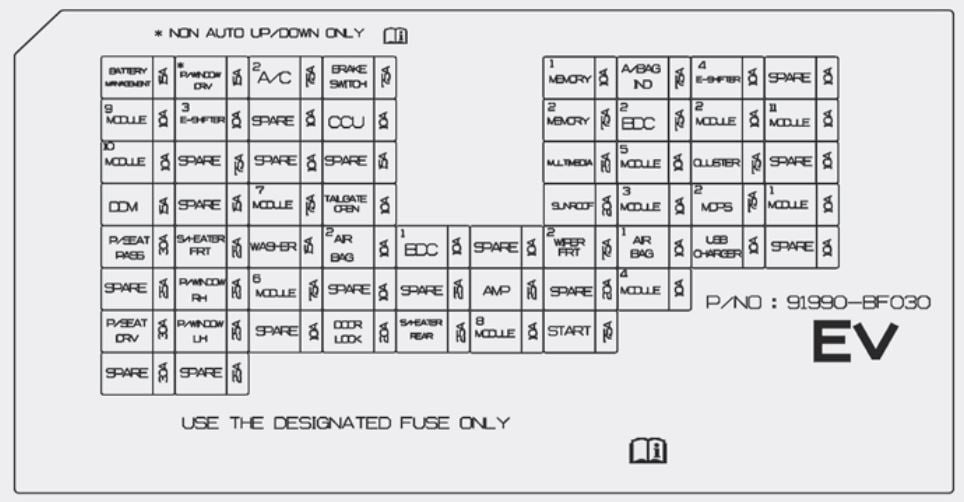

Passenger Compartment Fuse Box
| Fuse Name | Amp | Circuit Protected |
|---|---|---|
| BATTERY MANAGEMENT | 15A | BMU |
| P/WINDOW DRV | 15A | Motor Room Junction Block (RLY. 8, RLY. 13) |
| A/C 2 | 7.5A | A/C Control Module |
| BRAKE SWITCH | 7.5A | BDC, Stop Lamp Switch |
| MEMORY 1 | 10A | ADAS Unit (Parking), Driver/Passenger Door Mood Lamp, Cluster Unit, Mood Lamp, Mood Lamp Unit, A/C Control Module |
| A/BAG IND | 7.5A | PAB OFF IND |
| E-SHIFTER 4 | 10A | SCU, Electronic ATM Shift Lever |
| MODULE 9 | 10A | Rain Sensor, Data Link Connector, Hazard Switch, BDC |
| E-SHIFTER 3 | 10A | SBW Lever |
| CCU | 10A | CCU |
| MEMORY 2 | 7.5A | DCU |
| BDC 2 | 7.5A | BDC |
| MODULE 2 | 10A | Stop Lamp Switch, CCU |
| MODULE 11 | 10A | CONSOLE SW (SEAT HEAT, VENT SW), CLUSTER, CCNC, A/CON, PTC |
| MODULE 10 | 10A | – |
| MULTIMEDIA | 25A | CCNC Head Unit |
| MODULE 5 | 10A | Crash Pad Switch, Head Lamp LH/RH, AMP, CCNC Head Unit, Data Link Connector, Electro Chromic Mirror |
| CLUSTER | 7.5A | Cluster Unit |
| DDM | 15A | Driver Power Outside Mirror, Driver door Module |
| MODULE 7 | 7.5A | – |
| TAILGATE OPEN | 10A | PDC (Tail Gate Open Relay) |
| SUNROOF | 20A | Sunroof Blind Motor, Sunroof Glass Motor |
| MODULE 3 | 10A | Driver Door Module, Smart Phone Wireless Charger Unit, Passenger Airbag IND. & Seat Belt Reminder Lamp |
| MDPS2 | 7.5A | MDPS Unit |
| MODULE 1 | 10A | ADAS Unit (Parking), Front Console Keyboard, BDC, DCU, CCU, AMP, CCNC Head Unit |
| P/SEAT PASS | 30A | Passenger Power Seat Switch |
| S/HEATER FRT | 25A | Front Air Ventilation Control Module, Seat Heater Control Module |
| WASHER | 15A | Multifunction Switch |
| AIRBAG 2 | 10A | SRS Control Module |
| BDC 1 | 10A | BDC |
| WIPER FRT 2 | 7.5A | BDC, PCB Block (Wiper LOW Relay) |
| AIRBAG 1 | 10A | SRS Control Module, ODS |
| USB CHARGER | 10A | Front USB Charger Connector, Rear USB Charger Connector |
| P/WINDOW RH | 25A | Rear Power Window Switch RH, Passenger Safety Power Window Module, Passenger Power Window Switch |
| MODULE 6 | 7.5A | BDC |
| AMP | 25A | AMP |
| MODULE 4 | 10A | ADAS Unit (Parking), Rear Corner Radar LH/RH, Front View Camera, Crash Pad Switch, ADAS UNIT (DRV) |
| P/SEAT DRV | 30A | Driver Power Seat Switch |
| P/WINDOW LH | 25A | Rear Power Window Switch LH, Driver Safety Power Window Module |
| DOOR LOCK | 20A | PDC (Door Lock/Unlock Relay) |
| S/H EATER REAR | 25A | Seat Heater Control Module |
| MODULE 8 | 10A | Driver/Passenger Smart Key Outside Handle, VESS Unit, Power Tailgate Module |
| START | 7.5A | BDC, VCU |

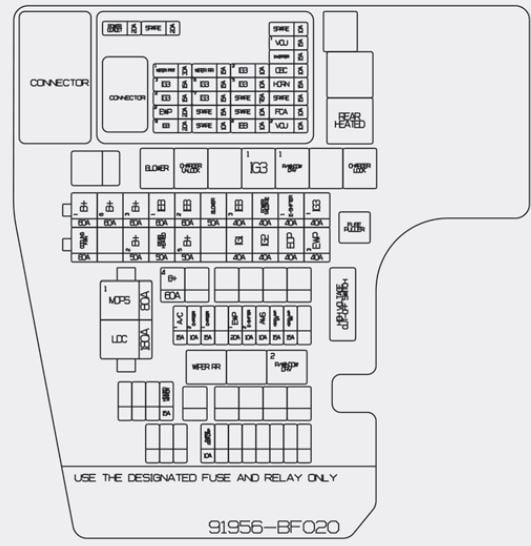

Engine Compartment Fuse Box
| Fuse name | Amp | Circuit protected |
|---|---|---|
| MDPS1 | 80A | MDPS Unit |
| LDC | 180A | CHARGE DOOR LAMP |
| COOLING FAN | 80A | Cooling Fan Controller |
| B+2 | 50A | PDC (IPS9 (4CH), IPS11 (2CH), IPS12 (4CH)) |
| REAR HEATED | 50A | Motor Room Junction Block (RLY. 3) |
| B+5 | 50A | PDC (Fuse – F29, F36, F48, F56) |
| IG1 | 40A | PCB Block (ACC Relay, IG1 Relay) |
| IG2 | 40A | PCB Block (IG2 Relay) |
| EOP | 40A | Front Electronic Oil Pump |
| EWP 3 | 40A | Electronic Water Pump & Coolant Valve |
| B+1 | 60A | PDC (IPS3 (4CH), IPS7 (2CH), IPS4 (1CH), IPS2 (2CH), IPS6 (2CH), IPS5 (1CH)) |
| B+6 | 60A | PCB Block (IG3 Main Relay, Wiper Front Relay, Fuse – F19, F20, F21, F22, F23) |
| B+3 | 60A | PDC (Fuse – F1, F2, F9, F10, F17, F25, F26, F33, F34, F44, F51, F52) |
| IEB 1 | 60A | IEB |
| IEB 2 | 60A | IEB |
| BLOWER | 50A | Motor Room Junction Block (RLY. 4) |
| IEB 3 | 40A | Multipurpose Check Connector |
| POWER TAILGATE | 40A | Power Tailgate Module |
| E-SHIFTER 1 | 40A | SCU |
| IG3 1 | 40A | COOLANT HUB RLY (Motor Room Junction Block (RLY. 7)) |
| B+4 | 60A | PDC (Fuse – F4, F12, F28, F37, F54, F55, IPS13 (1CH), Long Term Load Latch Relay) |
| A/C 1 | 15A | A/C Control Module, BATT EXV |
| CHARGER 2 | 10A | CHARGE LOCK/UNLOCK RLY (Motor Room Junction Block (RLY. 5,10)) |
| CHARGER 1 | 15A | CDM |
| EWP 1 | 20A | EWP |
| E-SHIFTER 2 | 10A | SCU |
| AMS | 10A | 12 V Battery Sensor |
| HEAD LAMP LH | 15A | Head Lamp LH |
| HEAD LAMP RH | 15A | Head Lamp RH |
| HEATED MIRROR | 15A | Driver/Passenger Power Outside Mirror |
| CHARGE DOOR LAMP | 10A | CHARGE DOOR LAMP |
| POWER OUTLET | 20A | Power Outlet |
| WIPER FRT1 | 30A | PCB Block (Wiper Front Low Relay), Front Wiper Motor |
| IG3 3 | 15A | VCU, INVERTER |
| IG3 4 | 15A | SOU |
| EWP 2 | 20A | EWP |
| IG3 8 | 20A | PDC (Fuse – F16) |
| WIPER RR | 15A | Motor Room Junction Block (RLY.11), Rear Wiper Motor |
| IG3 6 | 15A | 3 WAY VALVE, EOP |
| IG3 7 | 15A | VCMS, ICCU, CCU, CDM |
| IG3 2 | 10A | BMS |
| IG3 5 | 10A | E-COMP, COOLING FAN, Motor Room Junction Block (RLY.7) |
| IEB 4 | 10A | IEB, Multipurpose Check Connector |
| VCU 1 | 15A | VCU |
| INVERTER | 15A | INVERTER |
| OBC | 10A | VCMS, ICCU |
| HORN | 15A | PCB Block (Horn Relay) |
| FCA | 10A | Front Radar Unit |
| VCU 2 | 10A | VCU |
