Hyundai Kona EV (2018 – 2023) Fuse Box Diagrams & Location
Finding the correct fuse box on your Hyundai Kona EV (2018–2023) is essential for diagnosing electrical issues and safely replacing blown fuses. This blog provides fuse box locations, detailed fuse diagrams, and fuse assignments to help you quickly identify the right fuse for each electrical component.
Fuse Box Location

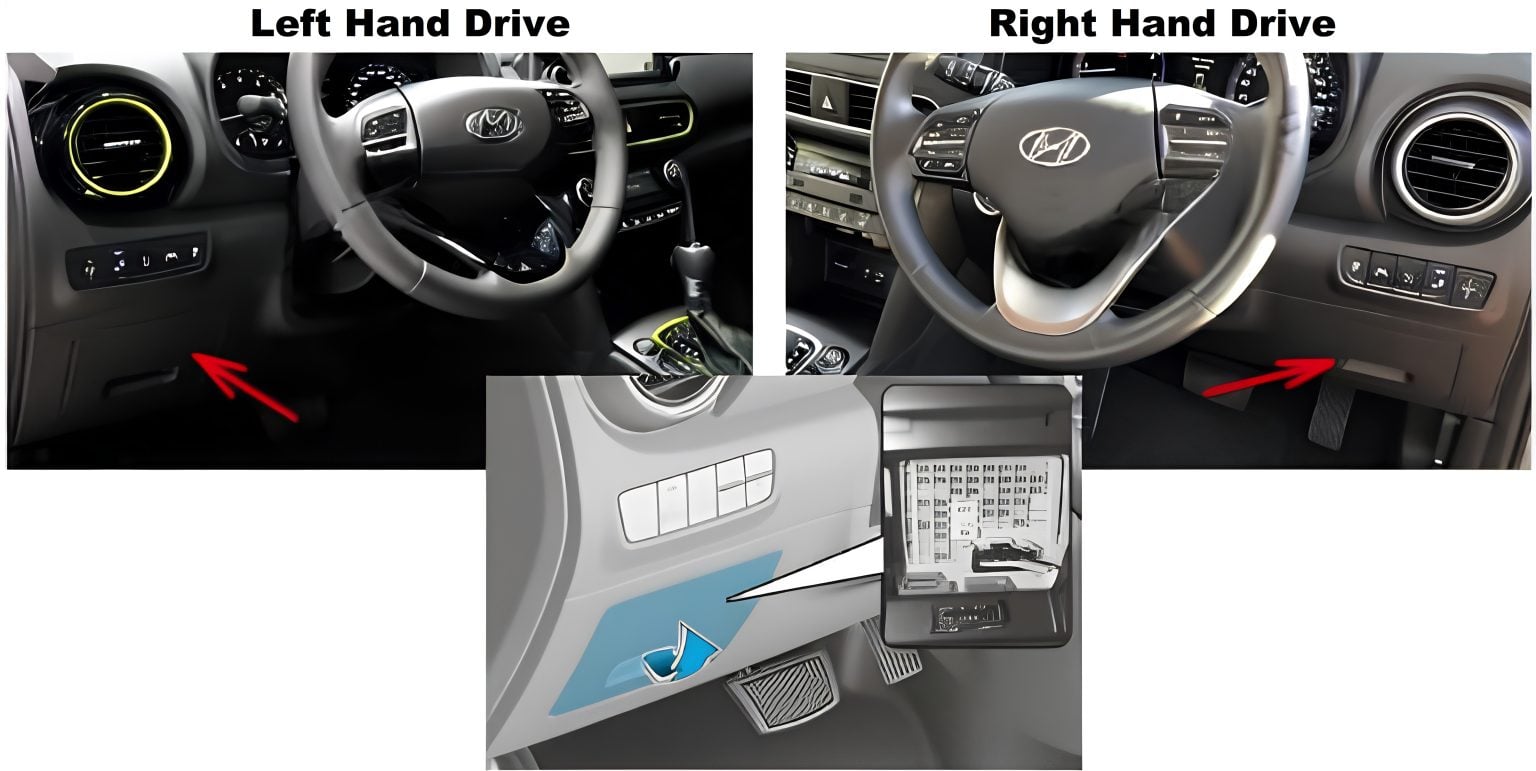

Passenger Compartment Fuse Box
The fuse box is located on the driver’s side of the instrument panel behind the cover.

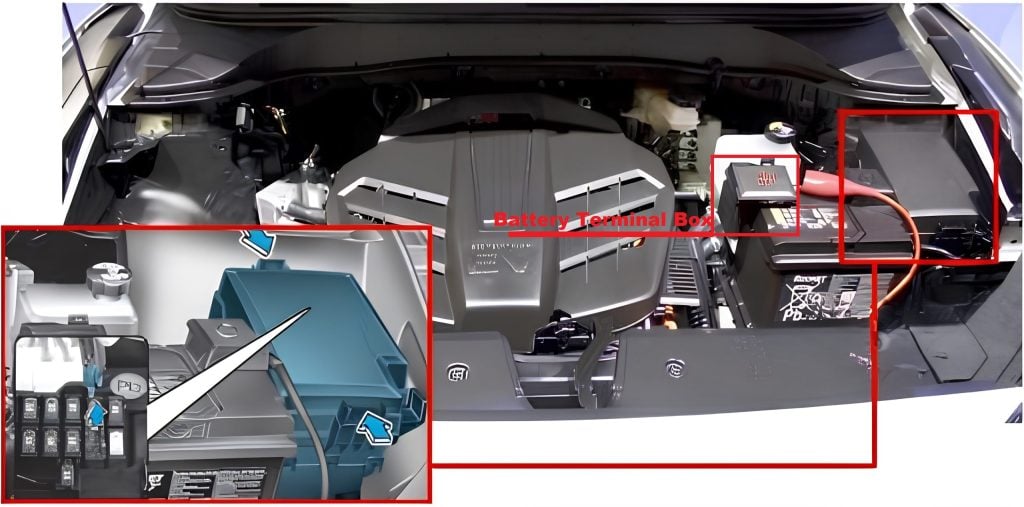

Engine Compartment Fuse Box
Fuse Box Diagrams
Passenger Compartment Fuse Box

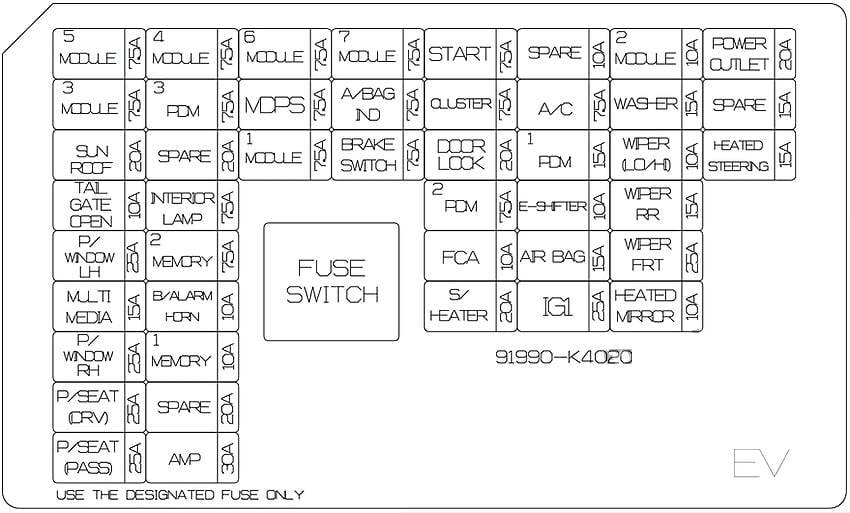

Hyundai Kona EV (2018 – 2021)
| Fuse Name | Fuse Rating | Protected Component |
|---|---|---|
| MODULE 5 | 7.5A | Electro Chromic Mirror, Audio, A/V & Navigation Head Unit, Crash Pad Switch, Head Lamp LH, Front Air Ventilation Seat Module, Front Seat Warmer Module |
| MODULE 3 | 7.5A | Stop Lamp Switch, BCM |
| SUNROOF | 20A | Sunroof Unit |
| TAIL GATE OPEN | 10A | Tail Gate Relay |
| P/WINDOW LH | 25A | Power Window LH Relay, Driver Safety Power Window Module |
| MULTI MEDIA | 15A | Audio, A/V & Navigation Head Unit |
| P/WINDOW RH | 25A | Power Window RH Relay, Passenger Safety Power Window Module |
| P/SEAT(DRV) | 25A | Driver Seat Manual Switch, Driver Lumbar Support Switch |
| P/SEAT(PASS) | 25A | Passenger Seat Manual Switch |
| MODULE 4 | 7.5A | Blind-Spot Collision Warning Unit LH/RH, BCM, Crash Pad Switch, Vess Unit (Speaker), Multifunction Front View Camera |
| PDM 3 | 7.5A | Smart Key Control Module |
| SPARE | 20A | Spare |
| INTERIOR LAMP | 7.5A | Glove Box Lamp, Vanity Lamp LH/RH, Room Lamp, Overhead Console Lamp, Wiresess Charger Unit, Luggage Lamp |
| MEMORY 2 | 7.5A | Vess Unit (Speaker), Electronic Refrigerant Reduced Pressure Valve |
| B/ALARM HORN | 10A | Not Used |
| MEMORY 1 | 10A | A/C Control Module, Head Up Display, Instrument Cluster, BCM, Rain Sensor |
| SPARE | 20A | Spare |
| AMP | 30A | AMP |
| MODULE 6 | 7.5A | Smart Key Control Module, BCM |
| MDPS | 7.5A | MDPS Unit |
| MODULE 1 | 7.5A | Active Air Flap, Hazard Switch, Data Link Connector, ICM Relay Box (Outside Mirror Folding/Unfolding Relay) |
| MODULE 7 | 7.5A | Front Air Ventilation Seat Module, Front Seat Warmer Module |
| A/BAG IND | 7.5A | Instrument Cluster, A/C Control Module |
| BRAKE SWITCH | 7.5A | Stop Lamp Switch, Smart Key Control Module |
| START | 7.5A | Smart Key Control Module, EPCU |
| CLUSTER | 7.5A | Head Up Display, Instrument Cluster |
| DOOR LOCK | 20A | Door Lock Relay, Door Unlock Relay, ICM Relay Box (Two Turn Unlock Relay) |
| PDM 2 | 7.5A | Start/Stop Button Switch |
| FCA | 10A | Forward Collision Avoidance Assist Unit |
| S/HEATER | 20A | Front Seat Warmer Module, Front Air Ventilation Seat Module |
| SPARE | 20A | Spare |
| A/C | 7.5A | A/C Control Module, Cluster Ionizer |
| PDM 1 | 15A | Smart Key Control Module |
| E-SHIFTER | 10A | Shift Select Switch (SBW), Front Console Switch |
| AIR BAG | 15A | SRS Control Module, Passenger Occupant Detection Sensor |
| IG1 | 25A | PCB Block(FUSE : IEB 3, EPCU 2) |
| MODULE 2 | 10A | Wiresess Charger Unit, Smart Key Control Module, BCM, Audio, A/V & Navigation Head Unit, Power Outlet #1, AMP, Power Outside Mirror Switch |
| WASHER | 15A | Muntifunction Switch |
| WIPER (LO/HI) | 10A | BCM |
| WIPER RR | 15A | Rear Wiper Relay, Rear Wiper Motor |
| WIPER FRT | 25A | Front Wiper Motor, E/R Junction Block (Front Wiper(Low) Relay) |
| HEATED MIRROR | 10A | Driver/Passenger Power Outside Mirror, A/C Control Module |
| POWER OUTLET | 20A | Power Outlet #2 |
| SPARE | 15A | Spare |
| HEATED STEERING | 15A | BCM |
Hyundai Kona EV (2022 & 2023)
| Fuse Name | Amp | Circuit Protected |
|---|---|---|
| MODULE 5 | 7.5A | Electro Chromic Mirror, Audio, A/V & Navigation Head Unit, Front Air Ventilation Seat Module, Front Seat Warmer Module, Data Link Connector, Rear Seat Warmer Control Module, Front Console Switch |
| MODULE 3 | 7.5A | Stop Lamp Switch, BCM, IAU |
| SUNROOF | 20A | Sunroof Unit |
| LIFTGATE OPEN | 10A | Tail Gate Relay |
| P/WINDOW LH | 25A | Power Window LH Relay, Driver Safety Power Window Module |
| MULTIMEDIA | 15A | Audio, A/V & Navigation Head Unit |
| P/WINDOW RH | 25A | Power Window RH Relay, Passenger Safety Power Window Module |
| P/SEAT(DRV) | 25A | Driver Seat Manual Switch, Driver Lumbar Support Switch |
| P/SEAT(PASS) | 25A | Not Used |
| MODULE 4 | 7.5A | BCM, Crash Pad Switch, Front View Camera, Vess Unit (Speaker) |
| PDM 3 | 7.5A | Smart Key Control Module |
| SPARE | 20A | Spare |
| INTERIOR LAMP | 7.5A | Vanity Lamp LH/RH, Room Lamp, Foot Lamp LH/RH, Overhead Console Lamp, Luggage Lamp |
| MEMORY 2 | 7.5A | Vess Unit (Speaker), Electronic Refrigerant Reduced Pressure Valve, Rear Coner Radar LH/RH |
| B/ALARM HORN | 10A | Not Used |
| MEMORY 1 | 15A | A/C Control Module, Head Up Display, Instrument Cluster, BCM, Rain Sensor, Electro Chromic Mirror, Wireless Charger Unit |
| S/HEATER REAR | 20A | Rear Seat Warmer Control Module |
| AMP | 30A | AMP |
| MODULE 6 | 7.5A | Smart Key Control Module, BCM, IAU |
| MDPS | 7.5A | MDPS Unit |
| MODULE 1 | 7.5A | Active Air Flap, Hazard Switch, Data Link Connector |
| MODULE 7 | 7.5A | Front Air Ventilation Seat Module, Front Seat Warmer Module, Rear Seat Warmer Control Module |
| A/BAG IND | 7.5A | A/C Control Module |
| BRAKE SWITCH | 7.5A | Stop Lamp Switch, Smart Key Control Module |
| START | 7.5A | Smart Key Control Module, EPCU |
| CLUSTER | 7.5A | Head Up Display, Instrument Cluster |
| DOOR LOCK | 20A | Door Lock Relay, Door Unlock Relay, ICM Relay Box (Two Turn Unlock Relay) |
| PDM 2 | 7.5A | Driver/Passenger Smart Key Outside Handle, BLE Unit, IAU |
| FCA | 10A | Front Radar Unit |
| S/HEATER FRT | 20A | Front Seat Warmer Module, Front Air Ventilation Seat Module |
| SPARE | 10A | Spare |
| A/C | 7.5A | A/C Control Module |
| PDM 1 | 15A | Smart Key Control Module, Start/Stop Button |
| AIRBAG | 15A | SRS Control Module, Passenger Occupant Detection Sensor |
| IG1 | 25A | PCB Block (Fuse – IEB 3, EPCU 2, E-SHIFTER 3) |
| MODULE 2 | 10A | Rear USB Charger, Smart Key Control Module, BCM, Audio, A/V & Navigation Head Unit, Power Outlet #1, AMP, IAU, Power Outside Mirror Switch |
| WASHER | 15A | Muntifunction Switch |
| WIPER (LO/HI) | 10A | BCM |
| WIPER RR | 15A | Rear Wiper Relay, Rear Wiper Motor |
| WIPER FRT | 25A | Front Wiper Motor, E/R Junction Block (Front Wiper(Low) Relay) |
| HEATED MIRROR | 10A | Driver/Passenger Power Outside Mirror, A/C Control Module |
| POWER OUTLET | 20A | Power Outlet #2 |
| SPARE | 15A | Spare |
| SPARE | 15A | Spare |
Engine Compartment Fuse Box
Hyundai Kona EV (2018 – 2023)

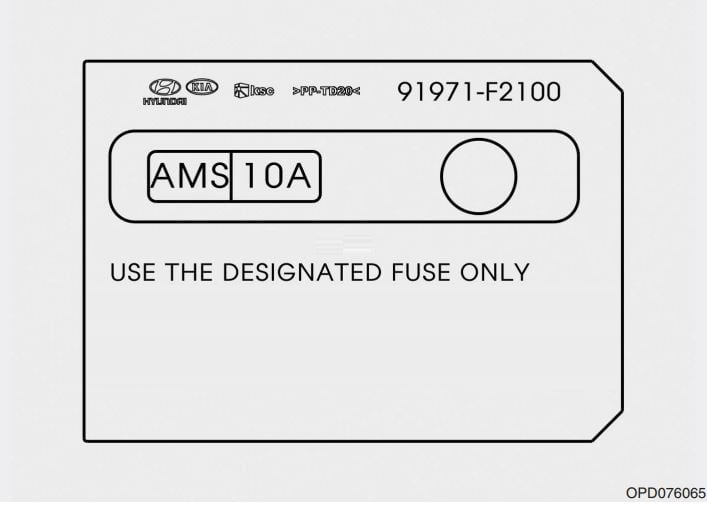

Battery Terminal Box
| Name | Amp Rating | Circuit Protected |
| AMS | 10A | Alternator Management System |

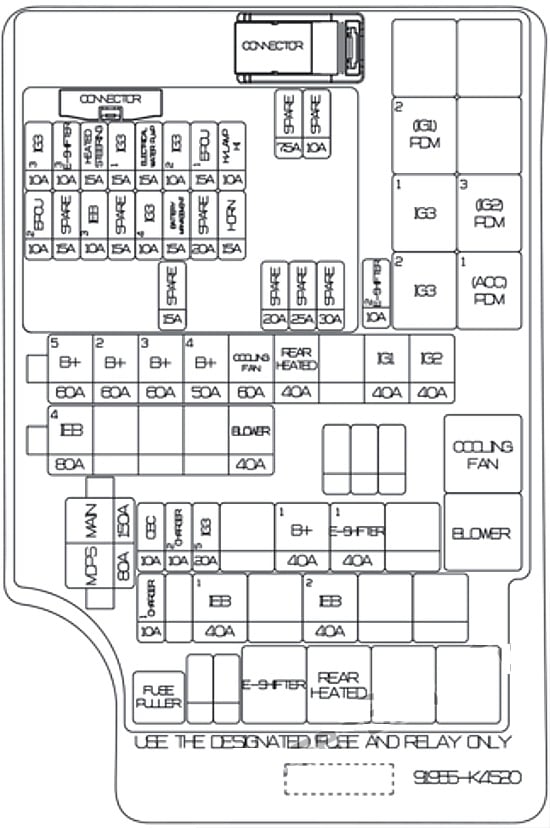

Hyundai Kona EV (2018 – 2021)
Main Fuse Box
| Fuse Name | Fuse Rating | Protected Component |
|---|---|---|
| MAIN | 150A | E/R Junction Block (Fuse – IEB 1, IEB 2, CHARGER 1), EPCU (LDC) |
| MDPS | 80A | MDPS Unit |
| B+ 5 | 60A | PCB Block ((Fuse – BATTERY MANAGEMENT, HORN, EPCU 1, H/LAMP), IG3 MAIN Relay) |
| B+ 2 | 60A | IGPM ((Fuse – S/HEATER), IPSO, IPS1, IPS2) |
| B+ 3 | 60A | IGPM (IPS3, IPS5, IPS6, IPS7, IPS8) |
| B+ 4 | 50A | IGPM (Fuse – P/WINDOW LH, P/WINDOW RH, TAIL GATE OPEN, SUNROOF, AMP, P/SEAT (DRV), P/SEAT (PASS)) |
| COOLING FAN | 60A | E/R Junction Block (Cooling Fan Relay) |
| REAR HEATED | 40A | E/R Junction Block (Rear Heated Relay) |
| IG1 | 40A | E/R Junction Block (PDM (IG1) 2 Relay, PDM (ACC) 1 Relay) |
| IG2 | 40A | E/R Junction Block (PDM (IG2) 3 Relay) |
| IEB 4 | 40A | Electronic Brake Control Module |
| BLOWER | 40A | E/R Junction Block (Blower Relay) |
| OBC | 10A | OBC |
| CHARGER 2 | 10A | ICM Relay Box (Charge Lock/Unlock Relay), CCM Unit |
| IG3 5 | 20A | E/R Junction Block (IG3 1 Relay, IG3 2 Relay) |
| B+ 1 | 40A | IGPM ((Fuse – BRAKE SWITCH, MODULE 1, PDM 1, PDM 2, DOOR LOCK), Leak Current Autocut Device) |
| E-SHIFTER 1 | 40A | E/R Junction Block (Fuse – E-SHIFTER, E-Shifter Relay) |
| CHARGER 1 | 10A | Charge Connector Door Module |
| IEB 1 | 40A | Electronic Brake Control Module, Multipurpose Check Connector |
| IEB 2 | 40A | Electronic Brake Control Module |
| IG3 3 | 10A | E/R Junction Block (Cooling Fan Relay, Blower Relay), Electronic A/C Compressor, 3Way Coolant Control Valve LH/RH |
| E-SHIFTER 3 | 10A | SCU |
| IG3 1 | 15A | E/R Junction Block (IG3 1 Relay, IG3 2 Relay) |
| ELECTRICAL WATER PUMP | 15A | Electronic Water Pump |
| IG3 2 | 10A | BMU, OBC, EPCU |
| EPCU 1 | 15A | EPCU |
| H/LAMP HI | 10A | Head Lamp (High) Relay |
| EPCU 2 | 10A | EPCU |
| IEB 3 | 10A | Electronic Brake Control Module, Multipurpose Check Connector |
| IG3 4 | 10A | Active Air Flap, CCM Unit, Charge Connector Door Module, Air Conditioning PTC Heater, Crash Pad Switch, A/C Control Module, Audio, A/V & Navigation Head Unit, Instrument Cluster, IPGM (IPS Control Module) |
| BATTERY MANAGEMENT | 15A | BMU |
| HORN | 15A | Horn Relay |
Hyundai Kona EV (2022 & 2023)
Main Fuse Box
| Fuse Name | Amp | Circuit Protected |
|---|---|---|
| LDC | 150A | E/R Junction Block (Fuse – IEB 1, IEB 2, CHARGER 1, HEATED STEERING), EPCU (LDC) |
| MDPS | 80A | MDPS Unit |
| B+ 5 | 60A | PCB Block ((Fuse – BATTERY MANAGEMENT 1, HORN, EPCU 1), IG3 MAIN Relay) |
| B+ 2 | 60A | IGPM ((Fuse – S/HEATER FRT), IPSO, IPS1, IPS2) |
| B+ 3 | 60A | IGPM (IPS3, IPS5, IPS6, IPS7) |
| B+ 4 | 50A | IGPM (Fuse – P/WINDOW LH, P/ WINDOW RH, LIFTGATE OPEN, SUNROOF, AMP, P/SEAT (DRV), P/SEAT (PASS), S/HEATER REAR) |
| COOLING FAN | 60A | E/R Junction Block (Cooling Fan Relay) |
| REAR HEATED | 40A | E/R Junction Block (Rear Heated Relay) |
| IG1 | 40A | E/R Junction Block (PDM (IG1) 2 Relay, PDM (ACC) 1 Relay) |
| IG2 | 40A | E/R Junction Block (PDM (IG2) 3 Relay) |
| IEB 4 | 40A | Electronic Brake Control Module |
| BLOWER | 40A | E/R Junction Block (Blower Relay) |
| OBC | 10A | OBC |
| CHARGER 2 | 10A | ICM Relay Box (Charge Connector Lock/ Unlock Relay), CCM Unit |
| IG3 2 | 20A | E/R Junction Block (IG3 1 Relay, IG3 2 Relay) |
| B+ 1 | 40A | IGPM ((Fuse – BRAKE SWITCH, MODULE 1, PDM 1, PDM 2, DOOR LOCK), Leak Current Autocut Device) |
| E-SHIFTER 1 | 40A | E/R Junction Block (Fuse – E-SHIFTER 2, E-Shifter Relay) |
| CHARGER 1 | 10A | Charge Connector Door Module |
| IEB 1 | 40A | Electronic Brake Control Module, Multipurpose Check Connector |
| IEB 2 | 40A | Electronic Brake Control Module |
| Name | Amp Rating | Circuit Protected |
| AMS | 10A | Alternator Management System |
