Hyundai Palisade (2020 – 2025) Fuse Box Diagrams & Location
The Hyundai Palisade (2020–2025) fuse box location and diagrams help you quickly identify every fuse and relay in your SUV. This blog covers interior and engine compartment fuse boxes, fuse assignments, and diagram details to simplify troubleshooting, maintenance, and safe electrical component replacement.
Fuse Box Location
Passenger Compartment Fuse Box

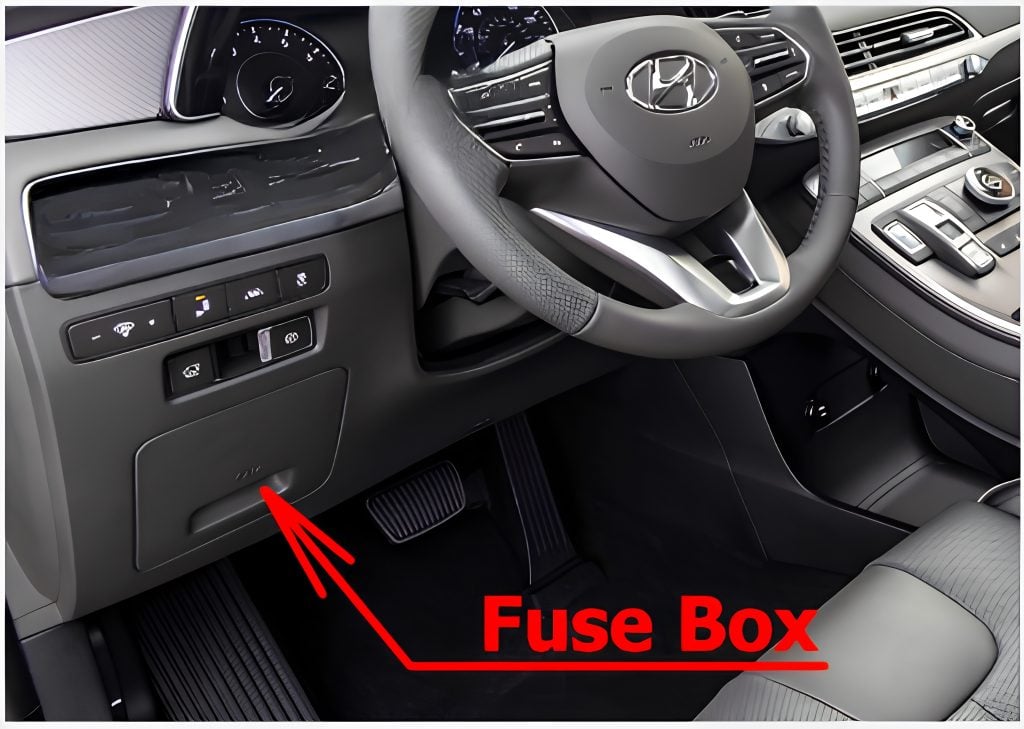

The fuse box is located behind the cover on the driver’s side of the instrument panel.
Engine Compartment Fuse Box

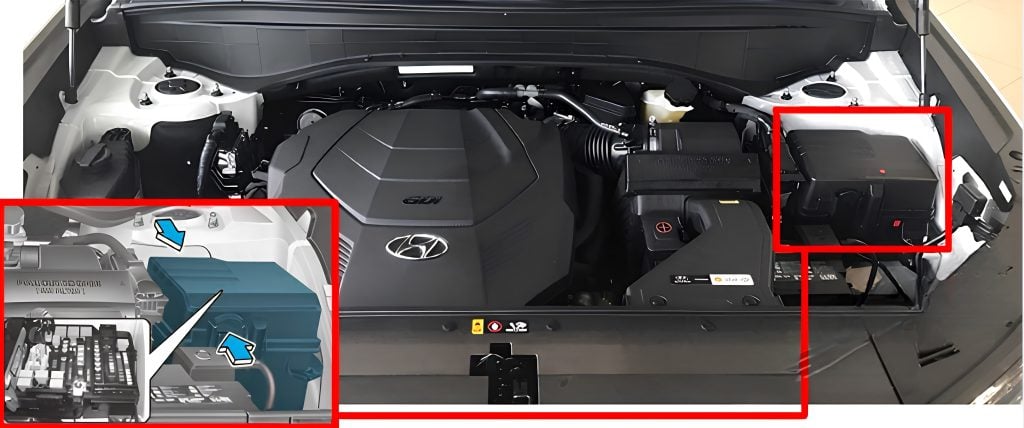

Remove the fuse panel cover by pressing the tab and pulling up.
Fuse Box Diagrams
Passenger Compartment Fuse Box

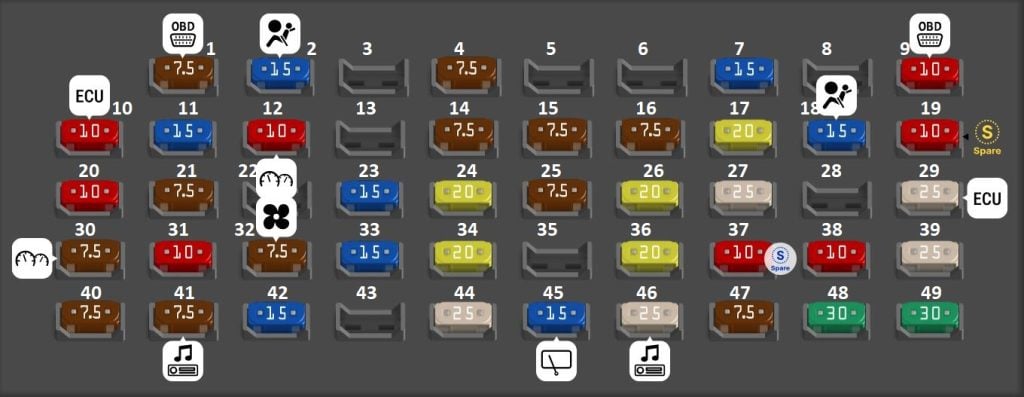

Hyundai Palisade (2020- 2022)
| Type | No. | Description |
| Fuse MICRO2 7.5A |
1 | Data Link Connector, Stop Lamp Switch, Driver Door Module |
| Fuse MICRO2 15A |
2 | SRS Control Module, Passenger Occupant Detection Sensor |
| Fuse MICRO2
7.5A |
4 | IBU, Stop Lamp Switch |
| Fuse MICRO2 15A |
7 | Front A/C Control Module, Low DC-DC Converter (Audio), Power Tail Gate Unit, Driver IMS Control Module, Head-up Display, Driver Door Module, Driver/Passenger Power Outside Mirror, Security Indicator, Rain Sensor, Rear Occupant Alert (ROA) Sensor, 3RD Seat Folding Control Module |
| Fuse MICRO2
10A |
9 | Blind-Spot Collision Warning Unit LH/RH, Front Console Switch, Rear A/C Control Module, Electro Chromic Mirror, Data Link Connector, Front Wireless Charger |
| Fuse MICRO2
10A |
10 | MODULE 7 |
| Fuse MICRO2 15A |
11 | CCU |
| Fuse MICRO2
10A |
12 | Seat Belt Indicator, Instrument Cluster |
| Fuse MICRO2
7.5A |
14 | IBU |
| Fuse MICRO2 7.5A |
15 | 1ST Seat Warmer Control Module, 1ST Air Ventilation Seat Control Module, 2ND Air Ventilation Seat LH/RH Control Module, 2ND Seat LH/RH Warmer Control Module, 3RD Seat Folding Control Module, AC Inverter Outlet, Inverter Unit, Surround View Monitor Unit |
| Fuse MICRO2
7.5A |
16 | Driver/Passenger Smart Key Outside Handle, Driver/Passenger Outside Mirror, Key Solenoid, Center Fascia Keyboard (Hazard Switch) |
| Fuse MICRO2
20A |
17 | 1ST Air Ventilation Control Module, 1ST Seat Warmer Control Module |
| Fuse MICRO2 15A |
18 | SRS Control Module |
| Fuse MICRO2
10A |
19 | SPARE 1 |
| Fuse MICRO2
10A |
20 | Electronic ATM Shift Lever Switch (SBW), SCU |
| Fuse MICRO2 7.5A |
21 | Crash Pad Switch, IBU, Smart Cruise Control Radar, 4WD ECM, Front Console Switch, Lane Keeping Assist Unit (Line) |
| Fuse MICRO2
15A |
23 | IBU, Ignition Switch |
| Fuse MICRO2
20A |
24 | Panoramic Sunroof |
| Fuse MICRO2 7.5A |
25 | IBU |
| Fuse MICRO2
20A |
26 | 3RD Seat Folding Control Module |
| Fuse MICRO2
25A |
27 | Passenger Safety Power Window Module, Rear Power Window Switch RH |
| Fuse MICRO2 25A |
29 | 2ND Air Ventilation Seat LH Control Module, 2ND Seat LH Warmer, Control Module, 2ND Seat LH Reclining Folding Actuator |
| Fuse MICRO2
7.5A |
30 | Instrument Cluster, Head Up Display |
| Fuse MICRO2
10A |
31 | MDPS Unit |
| Fuse MICRO2 7.5A |
32 | E/R Junction Block (Blower FRT Relay, Blower RR Relay, PTC Heater 1/2 Relay), Front A/C Control Module |
| Fuse MICRO2
15A |
33 | ICM Relay Box (Child Lock/Unlock Relay) |
| Fuse MICRO2
20A |
34 | Door Lock Relay, Door Unlock Relay, Liftgate Relay, Two Turn Unlock Relay |
| Fuse MICRO2 20A |
36 | Sunroof |
| Fuse MICRO2
10A |
37 | SPARE 2 |
| Fuse MICRO2
10A |
38 | Electronic ATM Shift Lever Switch (SBW), SCU, E/R Junction Block (FUSE E-SHIFTER 2) |
| Fuse MICRO2 25A |
39 | Driver Safety Power Window Module, Rear Power Window Switch LH |
| Fuse MICRO2
7.5A |
40 | IBU |
| Fuse MICRO2
7.5A |
41 | Audio, A/V & Navigation Head Unit, Low DC-DC Converter (Audio/AMP), Front/Rear A/C Control Module Driver IMS Control Module, Electro Chromic Mirror, Center Facia Keyboard, 1ST Air Ventilation Seat Control Module, 1ST Seat Warmer Control Module, 2ND Air Ventilation Seat LH/RH Control Module, 2ND Seat LH/RH Warmer Control Module, 3RD Seat Folding Control Module |
| Fuse MICRO2 15A |
42 | Multifunction Switch |
| Fuse MICRO2
25A |
44 | 2ND Air Ventilation Seat Control Module, 2ND Seat RH Warmer Control Module, 2ND Seat RH Reclining Folding Actuator |
| Fuse MICRO2
15A |
45 | Rear Wiper Relay, Rear Wiper Motor |
| Fuse MICRO2 25A |
46 | AMP, Low DC-DC Converter (AMP) |
| Fuse MICRO2
7.5A |
47 | IBU, Low DC-DC Converter (Audio/AMP) |
| Fuse MICRO2
30A |
48 | Passenger Seat Manual Switch |
| Fuse MICRO2 30A |
49 | P/SEAT (DRV) |

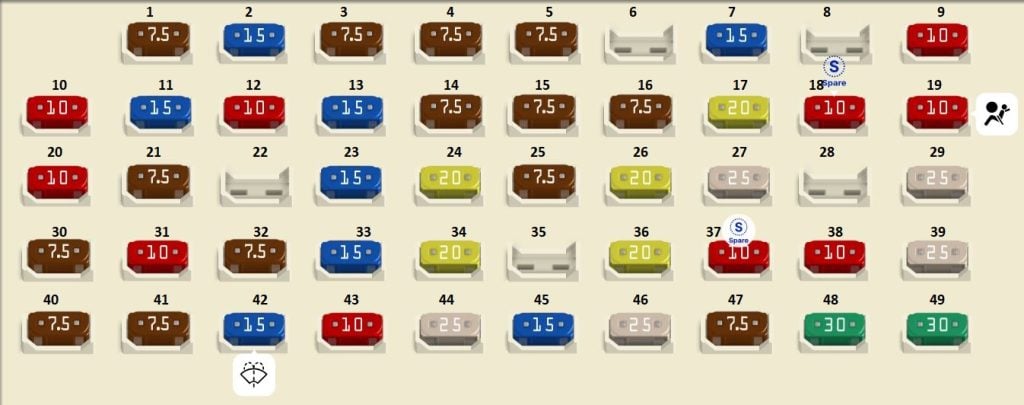

Hyundai Palisade (2023 – 2025)
| Type | No. | Description |
| Fuse MICRO2
7.5A |
1 | (MODULE 4) Passenger Abag Indicator Seat Belt Indicator Data Link Connector Stop Lamp Switch Driver Door Module |
| Fuse MICRO2
15A |
2 | (AIR BAG1) SRS Control Module Passenger Occupant Detection Sensor |
| Fuse MICRO2 7.5A |
3 | (MODULE 12) ADAS-PARKING UNIT HEAD UP DISPLAY |
| Fuse MICRO2
7.5A |
4 | (BRAKE SWITCH) IBU Stop Lamp Switch |
| Fuse MICRO2
7.5A |
5 | (MODULE 13) MOOD LAMP |
| Fuse MICRO2 15A |
7 | (MODULE 9) Low DC-DC Converter (Audio) A/V & Navigation Head Unit Front A/C Control Module MOOD LAMP CLUSTER Rear A/C Control Module HEAD UP DISPLAY |
| Fuse MICRO2
10A |
9 | (MODULE 10) Front Console Switch Front Wireless Charger Blind-Spot Collision Warning Unit LH/RH FRT-Spot Collision Warning Unit LH/RH |
| Fuse MICRO2
10A |
10 | (MODULE 7) Head Lamp RH Head Lamp LH |
| Fuse MICRO2 15A |
11 | (DCU) DCU UNIT |
| Fuse MICRO2
10A |
12 | (AIR BAG IND) Instrument Cluster |
| Fuse MICRO2
15A |
13 | (POWER HANDLE) |
| Fuse MICRO2 7.5A |
14 | (IBU 2) |
| Fuse MICRO2
7.5A |
15 | (MODULE 2) 3RD Seat Folding Control Module AC Inverter Outlet Inverter Unit |
| Fuse MICRO2
7.5A |
16 | (MODULE 8) Center Fascia Keyboard (Hazard Switch) Key Solenoid RAIN SENSOR REAR OCCUPANT ALERT (ROA) Driver IMS Control Module Driver Door Module Driver/Passenger Power Side view Mirror Driver/Passenger Side view Mirror Power Tail Gate Unit |
| Fuse MICRO2 20A |
17 | (S/HEATER FRT) 1ST Air Ventilation Control Module 1ST Seat Warmer Control Module |
| Fuse MICRO2
10A |
18 | Spare |
| Fuse MICRO2
10A |
19 | (AIR BAG 2) SRS Control Module |
| Fuse MICRO2 10A |
20 | (E-SHIFTER 2) Electronic ATM Shift Button Switch (SBW) |
| Fuse MICRO2
7.5A |
21 | (MODULE 5) IBU Crash Pad Switch Front Console Switch Lane Keeping Assist Unit (Line) ADAS-PARKING UNIT ADAS-DRIVING UNIT Smart Cruise Control Radar AWD ECM |
| Fuse MICRO2
15A |
23 | (IBU 2) IBU Ignition Switch Driver/Passenger DIGITAL Key Outside Handle |
| Fuse MICRO2 20A |
24 | (SUNROOF 2) Panoramic Sunroof |
| Fuse MICRO2
7.5A |
25 | (MODULE 1) IBU |
| Fuse MICRO2
20A |
26 | (S/HEATER 3RD) 3RD Seat LH/RH Warmer Control Module |
| Fuse MICRO2 25A |
27 | (P/WINDOW RH) Passenger Safety Power Window Module Rear Power Window Switch RH |
| Fuse MICRO2
25A |
29 | (RR SEAT LH) 2ND Air Ventilation Seat LH Control Module 2ND Seat LH Warmer Control Module 2ND Seat LH Reclining Folding Actuator |
| Fuse MICRO2
7.5A |
30 | (CLUSER) Instrument Cluster Head Up Display |
| Fuse MICRO2 10A |
31 | (MDPS) MDPS Unit |
| Fuse MICRO2
7.5A |
32 | (A/C) E/R Junction Block (Blower FRT Relay, Blower RR Relay PTC HEATER 1/2 RELAY Front A/C Control Module |
| Fuse MICRO2
15A |
33 | (CHILD LOCK) ICM Relay Box (Child Lock/Unlock Relay) |
| Fuse MICRO2 20A |
34 | (DOOR LOCK) Door Lock Relay Door Unlock Relay Liftgate Relay Two Turn Unlock Relay |
| Fuse MICRO2
20A |
36 | (SUNROOF 1) Sunroof |
| Fuse MICRO2
10A |
37 | Spare |
| Fuse MICRO2 10A |
38 | (E-SHIFTER 1) Electronic ATM Shift Button Switch (SBW) |
| Fuse MICRO2
25A |
39 | (P/WINDOW LH) Driver Safety Power Window Module Rear Power Window Switch LH |
| Fuse MICRO2
7.5A |
40 | (MODULE 3) IBU |
| Fuse MICRO2 7.5A |
41 | (MODULE 6) A/V & Navigation Head Unit Electro Chromic Mirror Low DC-DC Converter (Audio/AMP) Front Wireless Charger Front/Rear A/C Control Module Center Facia Keyboard 1ST Air Ventilation Seat Control Module 1ST Seat Warmer Control Module 2ND Air Ventilation Seat LH/RH Control Module 2ND Seat LH/RH Warmer Control Module |
| Fuse MICRO2
15A |
42 | (WASHER) Multifunction Switch |
| Fuse MICRO2
10A |
43 | (MODULE 11) 2ND CONSOLE SWITCH |
| Fuse MICRO2 25A |
44 | (RR SEAT RH) 2ND Air Ventilation Seat Control Module 2ND Seat RH Warmer Control Module 2ND Seat RH Reclining Folding Actuator |
| Fuse MICRO2
15A |
45 | (RR WIPER) Rear Wiper Relay Rear Wiper Motor |
| Fuse MICRO2
25A |
46 | (AMP) AMP Low DC-DC Converter (AMP) |
| Fuse MICRO2 7.5A |
47 | (ACC) A/V & Navigation Head Unit AMP Front Wireless Charger Center Fascia Keyboard ADAS-PARKING UNIT IBU |
| Fuse MICRO2
30A |
48 | (P/SEAT PASS) Passenger Seat Manual Switch |
| Fuse MICRO2
30A |
49 | (P/SEAT DRV) Driver IMS Control Module Driver Seat Manual Switch |
Engine Compartment Fuse Box

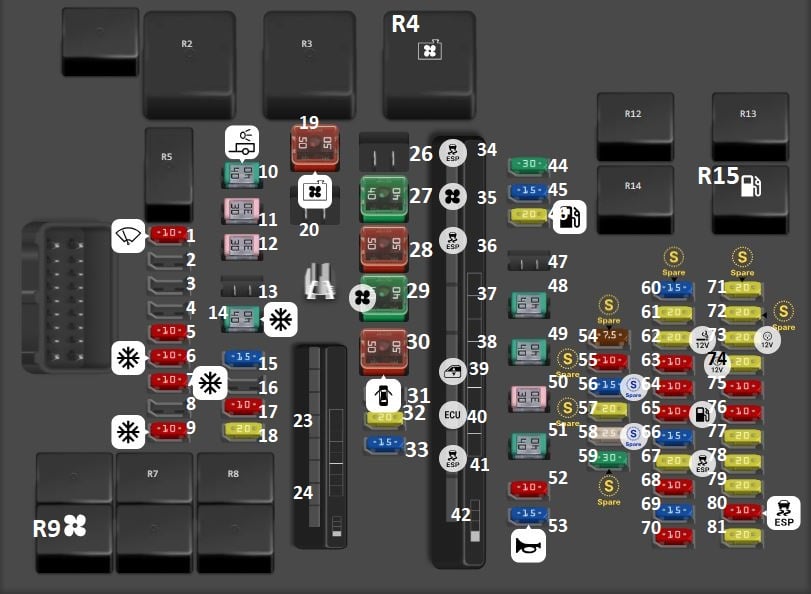

Hyundai Palisade (2020 – 2022)
| Type | Description |
| Fuse MINI 10A |
1
Wiper (LO) Relay, Front Wiper Motor |
| Fuse MINI
10A |
5 Electronic Transmission |
| Fuse MINI
10A |
6
A/C Control Module |
| Fuse MINI 10A |
7
Driver/Passenger Power Outside Mirror, A/C Control Module |
| Fuse MINI
10A |
9 A/C Control Module |
| Fuse FMM/MCase
40A |
10
Trailer Lamp |
| Fuse FMM/MCase 30A |
11
Power Tail Gate Module |
| Fuse FMM/MCase
30A |
12 AC Inverter Unit |
| Fuse FMM/MCase
40A |
14
Start Relay, ICU Junction Block (Fuse – A/C, WASHER, WIPER (REAR), MODULE 1, MODULE 2, REAR A/C) |
| Fuse MINI 15A |
15
Transmission Range Switch |
| Fuse MINI
10A |
17 Battery Sensor |
| Fuse MINI
20A |
18
AWD ECM |
| Fuse FMX/JCase 50A |
19
Cooling Fan Relay |
| Multi fuse block MUSB | 23
PTC Heater 2 Relay |
| Multi fuse block MUSB | 24 PTC Heater 1 Relay |
| Fuse FMX/JCase
40A |
27
Electronic Oil Pump Module |
| Fuse FMX/JCase 50A |
28
ICU Junction Block (IPS 1/IPS 2/IPS 3/IPS 5/IPS 6/IPS 7, Long/Short Term Load Latch Relay) |
| Fuse FMX/JCase
40A |
29 Rear Blower Relay |
| Fuse FMX/JCase
50A |
30
ICU Junction Block (Fuse – DOOR LOCK, IBU 1, IBU 2, BRAKE SWITCH, CHILD LOCK, RR SEAT (RH), SUNROOF 2) |
| Fuse MINI 20A |
32
Electronic Transmission |
| Fuse MINI
15A |
33 PCM |
| Multi fuse block MUSB | 34
ESC Module |
| Multi fuse block MUSB | 35
Blower Relay |
| Multi fuse block MUSB | 36 ESC Module |
| Multi fuse block MUSB | 37
Rear Heated Relay |
| Multi fuse block MUSB | 38
ICU Junction Block (IPS 8/IPS 10/IPS 11/IPS 12/IPS 13/IPS 14/IPS 15) |
| Multi fuse block MUSB | 39 ICU Junction Block (Fuse – P/WINDOW LH, RR SEAT (LH), P/SEAT (DRV), P/SEAT (PASS)) |
| Multi fuse block MUSB | 40
ICU Junction Block (Fuse – MODULE 8, S/HEATER FRT, P/WINDOW RH, AMP, SUNROOF) |
| Multi fuse block MUSB | 41
ESC Module |
| Multi fuse block MUSB | 42 Cooling Fan Relay (600W) |
| Multi fuse block MUSB | 43
MDPS Unit |
| Fuse MINI
30A |
44 Wiper Main Relay |
| Fuse MINI
15A |
45
Burglar Alarm Horn Relay |
| Fuse MINI 20A |
46
Fuel Pump Relay |
| Fuse FMM/MCase
40A |
48 ACC 1 Relay |
| Fuse FMM/MCase
40A |
49
ACC 2 Relay |
| Fuse FMM/MCase 30A |
50
Main Relay |
| Fuse FMM/MCase
40A |
51 PDM (IG1) Relay |
| Fuse MINI
10A |
52
[2.4 GDI] A/CON Relay |
| Fuse MINI 15A |
53
Horn Relay |
| Fuse MINI
7.5A |
54 SPARE |
| Fuse MINI
10A |
55
SPARE |
| Fuse MINI 15A |
56
SPARE |
| Fuse MINI
20A |
57 SPARE |
| Fuse MINI
25A |
58
SPARE |
| Fuse MINI 30A |
59
SPARE |
| Fuse MINI
15A |
60 SPARE |
| Fuse MINI
20A |
61
Luggage Power Outlet |
| Fuse MINI 20A |
62
Front Power Outlet |
| Fuse MINI
10A |
63 ICU Junction Block (Fuse – ACC) |
| Fuse MINI
10A |
64
ICU Junction Block |
| Fuse MINI 10A |
65
Fuel Pump Relay |
| Fuse MINI
15A |
66 Ignition Coil #1/#2/#3/#4/#5/#6, Cooling Fan Controller |
| Fuse MINI
20A |
67
ESC 3 |
| Fuse MINI 10A |
68
TCM, SBW Controller |
| Fuse MINI
15A |
69 Glow Relay Unit |
| Fuse MINI
10A |
70
PCM |
| Fuse MINI 20A |
71
SPARE |
| Fuse MINI
20A |
72 SPARE |
| Fuse MINI
20A |
73
Rear Power Outlet 2 |
| Fuse MINI 20A |
74
Rear Power Outlet 1 |
| Fuse MINI
10A |
75 Oxygen Sensor Up #1/#2 |
| Fuse MINI
10A |
76
A/C Comp Relay, Variable Intake Solenoid Valve, Oil Pump Solenoid Valve, Oxygen Sensor Down, Oil Control Valve, Electronic Thermostat Heater, Purge Control Solenoid Valve |
| Fuse MINI 20A |
77
SENSOR 3 |
| Fuse MINI
20A |
78 PCM |
| Fuse MINI
20A |
79
PCM |
| Fuse MINI 10A |
80
ESC Module |
| Fuse MINI
20A |
81 Ignition Coil #1/#2/#3/#4/#5/#6 |
| Fuse puller | FUSE PULLER
FUSE PULLER |
| Relay | R2
REAR HEATED RELAY |
| Relay | R3 BLOWER FRT RELAY |
| Relay | R4
COOLING FAN RELAY |
| Relay | R5
START RELAY |
| Relay | R7 PTC HEATER 2 RELAY |
| Relay | R8
PTC HEATER 1 RELAY |
| Relay | R9
BLOWER RR RELAY |
| Relay | R12 WIPER LO RELAY |
| Relay | R13
WIPER HI RELAY |
| Relay | R14
WIPER FRT |
| Relay | R15 FUEL PUMP RELAY |
| ECU 3 – 2
PCM |

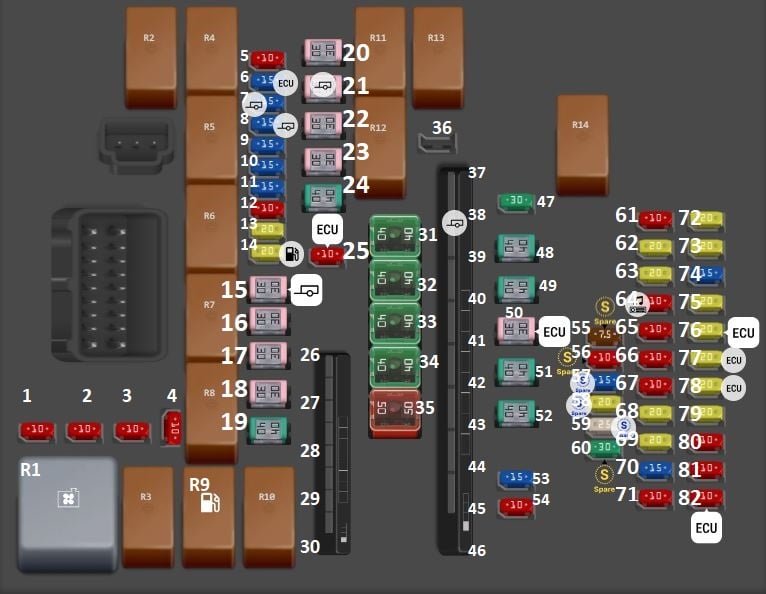

Hyundai Palisade (2023 – 2025)
| Type | No. | Description |
| Fuse MICRO2
10A |
1 | (A/C 2) Front A/C Control Module (Auto) |
| Fuse MICRO2 10A |
2 | (HEATED MIRROR) Driver/Passenger Power Side view Mirror, Front A/C Control Module |
| Fuse MICRO2
10A |
3 | (BLOWER (RR 2)) Rear A/C Control Module |
| Fuse MICRO2
10A |
4 | (E-SHIFTER 2) Electronic Transmission |
| Fuse MICRO2 10A |
5 | (AMS) Battery Sensor |
| Fuse MICRO2
15A |
6 | (ECU 6) ECM |
| Fuse MICRO2
15A |
7 | (TRAILER 3) Trailer Lamp |
| Fuse MICRO2 15A |
8 | (TRAILER 2) Trailer Lamp |
| Fuse MICRO2
15A |
9 | (TCU 1) TCM |
| Fuse MICRO2
15A |
10 | (ACC 3) 2ND USB Charger |
| Fuse MICRO2 15A |
11 | (B/ALARM HORN) Burglar Alarm Horn Relay |
| Fuse MICRO2
10A |
12 | (HEATED NOZZLE) Heated Nozzle Unit |
| Fuse MICRO2
20A |
13 | (AWD) AWD ECM |
| Fuse MICRO2 20A |
14 | (FUEL PUMP) Fuel Pump Relay |
| Fuse FMM/MCase
30A |
15 | (TRAILER 5) Trailer Lamp |
| Fuse FMM/MCase
30A |
16 | (PTC HEATER 3) PTC Heater Relay |
| Fuse FMM/MCase 30A |
17 | (PTC HEATER 2) PTC Heater Relay |
| Fuse FMM/MCase
30A |
18 | (PTC HEATER 1) PTC Heater Relay |
| Fuse FMM/MCase
40A |
19 | (E-SHIFTER 1) Electronic Transmission |
| Fuse FMM/MCase 30A |
20 | (POWER LIFTGATE) Power Liftgate Module |
| Fuse FMM/MCase
30A |
21 | (TRAILER 4) Trailer Lamp |
| Fuse FMM/MCase
30A |
22 | (INVERTER) AC Inverter Unit |
| Fuse FMM/MCase 30A |
23 | (3rd ROW SEAT FOLDING) 3rd ROW Seat Folding Unit |
| Fuse FMM/MCase
40A |
24 | (IG2) Start Relay, ICU Junction Block |
| Fuse MICRO2
10A |
25 | (WIPER (FRT) 2) IBU, ECM |
| Multi fuse block MUSB | 26 | (FUEL HEATER) Fuel Heater Relay |
| Multi fuse block MUSB | 27 | (COOLING FAN 2) Cooling Fan Relay (400W) |
| Multi fuse block MUSB | 28 | (-) Not Used |
| Multi fuse block MUSB | 29 | (B+1) ICU Junction Block((IPS1,3,4,5,6,7), Long/ Short Term Load Latch Relay) |
| Multi fuse block MUSB | 30 | (GLOW) |
| Fuse FMX/JCase 40A |
31 | (BLOWER (FRT)) Blower Relay (FRT) |
| Fuse FMX/JCase
40A |
32 | (REAR HEATED) Rear HTD Relay |
| Fuse FMX/JCase
40A |
33 | (BLOWER (RR) 1) Blower Relay (RR) |
| Fuse FMX/JCase 40A |
34 | (BUILT-IN CAM) |
| Fuse FMX/JCase
50A |
35 | (B+5) ICU Junction Block(DOOR LOCK) |
| Multi fuse block MUSB | 37 | (EPB 2) EPB Control Module |
| Multi fuse block MUSB | 38 | (TRAILER 1) Trailer Lamp |
| Multi fuse block MUSB | 39 | (-) Not Used |
| Multi fuse block MUSB | 40 | (EOP) Electronic Oil Pump Module |
| Multi fuse block MUSB | 41 | (B+2) ICU Junction Block (IPS 2,8,9,10,11,13) |
| Multi fuse block MUSB | 42 | (B+3) ICU Junction Block |
| Multi fuse block MUSB | 43 | (B+4) ICU Junction Block |
| Multi fuse block MUSB | 44 | (EPB 1) EPB Control Module |
| Multi fuse block MUSB | 45 | (COOLING FAN 1) Cooling Fan Relay (600W) |
| Multi fuse block MUSB | 46 | (MDPS) MDPS Unit |
| Fuse MICRO2
30A |
47 | (WIPER 1 (FRT)) PCB Block (Wiper Main Relay) |
| Fuse FMM/MCase 40A |
48 | (ACC 1) PCB Block (ACC1 Relay) |
| Fuse FMM/MCase
40A |
49 | (ACC 2) PCB Block (ACC2 Relay) |
| Fuse FMM/MCase
30A |
50 | (ECU 5) ECM (Main Relay) |
| Fuse FMM/MCase 40A |
51 | (DCU 4) Doosing Control Unit (DCU Relay) |
| Fuse FMM/MCase
40A |
52 | (IG1) PCB Block (IG1 Relay) |
| Fuse MICRO2
15A |
53 | (HORN) PCB Block (Horn Relay) |
| Fuse MICRO2 10A |
54 | (A/C 1) PCB Block (A/CON Relay) |
| Fuse MICRO2
7.5A |
55 | Spare |
| Fuse MICRO2
10A |
56 | Spare |
| Fuse MICRO2 15A |
57 | Spare |
| Fuse MICRO2
20A |
58 | Spare |
| Fuse MICRO2
25A |
59 | Spare |
| Fuse MICRO2 30A |
60 | Spare |
| Fuse MICRO2
10A |
61 | (ACC 4) USB Charger_luggage_LH/RH |
| Fuse MICRO2
20A |
62 | (POWER OUTLET 2) 2ND POWER OUTLET#2 |
| Fuse MICRO2 20A |
63 | (POWER OUTLET 1) 2ND POWER OUTLET#1 |
| Fuse MICRO2
10A |
64 | (ICU) PCB Block (ACC FUSE – AMP, ETC) |
| Fuse MICRO2
10A |
65 | (SENSOR 1) Fuel Pump Relay |
| Fuse MICRO2 10A |
66 | (SENSOR 2) [L3.8 GDI] A/C Comp Relay, Variable Intake Solenoid Valve #1/#2, Oil Pump Solenoid Valve, Oxygen Sensor Down #1/#2, Oil Control Valve #1/#2(Intake/Exhaust), Electronic Thermostat Heater, Purge Control Solenoid Valve |
| Fuse MICRO2
10A |
67 | (SENSOR 5) Oxygen Sensor Up #1/#2, CCV |
| Fuse MICRO2
20A |
68 | (DCU 1) Doosing Control Unit |
| Fuse MICRO2 20A |
69 | (DCU 2) Doosing Control Unit |
| Fuse MICRO2
15A |
70 | (DUC 3) Doosing Control Unit |
| Fuse MICRO2
10A |
71 | (TCU 2) TCM, Electronic Transmission |
| Fuse MICRO2 20A |
72 | (POWER OUTLET 3) LUGGAGE POWER OUTLET |
| Fuse MICRO2
20A |
73 | (POWER OUTLET 4) 1ST POWER OUTLET |
| Fuse MICRO2
15A |
74 | (SENSOR 4) [L3.8 GDI] Cooling Fan Controller |
| Fuse MICRO2 20A |
75 | (SENSOR 3) |
| Fuse MICRO2
20A |
76 | (ECU 1) ECM |
| Fuse MICRO2
20A |
77 | (ECU 2) [L3.8 GDI] ECM |
| Fuse MICRO2 20A |
78 | (ECU 3) [L3.8 GDI] ECM |
| Fuse MICRO2
20A |
79 | (IGN COIL) [L3.8 GDI] Ignition Coil #1/#2/#3/#4/#5/#6 |
| Fuse MICRO2
10A |
80 | (EPB 3) EPB Control Module |
| Fuse MICRO2 10A |
81 | (SENSOR 6) Electronic Oil Pump |
| Fuse MICRO2
10A |
82 | (ECU 4) ECM |
| Relay | R1 | Cooling Fan |
| Relay | R2 | Heated Nozzle |
| Relay | R3 | PTC Heater |
| Relay | R4 | Rear Heated |
| Relay | R5 | Fuel Heater |
| Relay | R6 | Blower (FRT) |
| Relay | R7 | PTC Heater |
| Relay | R8 | Blower (RR) |
| Relay | R9 | Fuel Pump |
| Relay | R10 | B/Alarm Horn |
| Relay | R11 | Start |
| Relay | R12 | ACC |
| Relay | R13 | PTC Heater |
| Relay | R14 | Wiper (FRT) |
Related Posts:
