Hyundai Matrix (2001 – 2010) Fuse Box Diagrams & Location
Find the fuse box locations and detailed fuse diagrams for the Hyundai Matrix (2001–2010) in this helpful guide. Quickly identify fuse assignments, relay positions, and electrical components to troubleshoot issues, replace blown fuses safely, and keep your vehicle’s electrical system operating reliably and efficiently.
Fuse Box Location

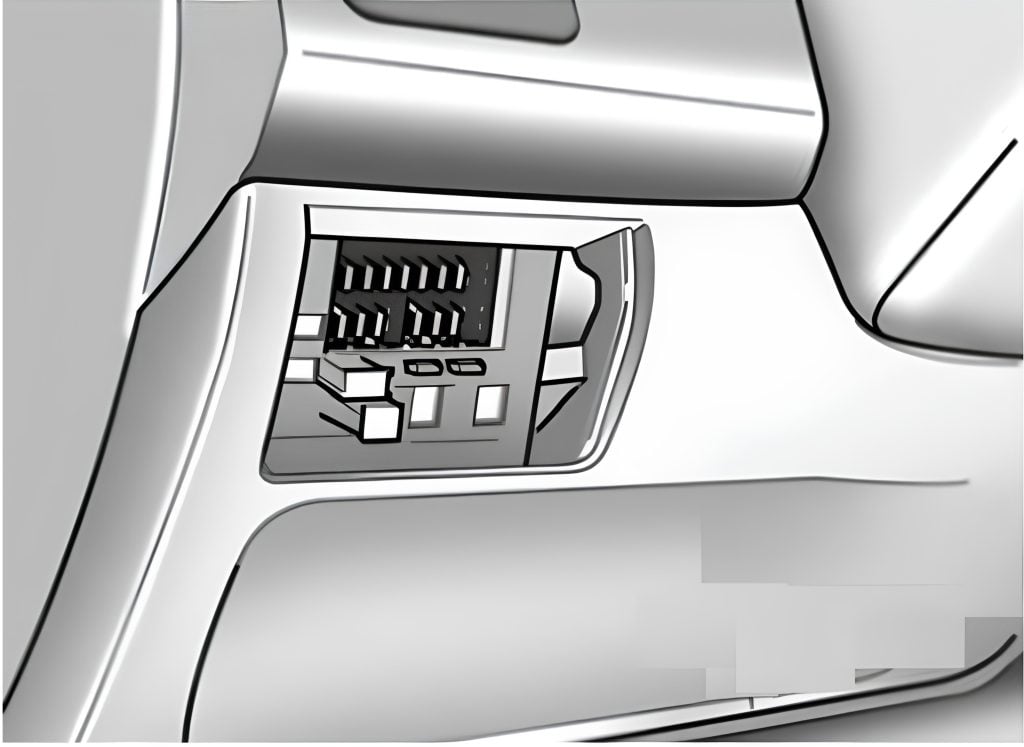

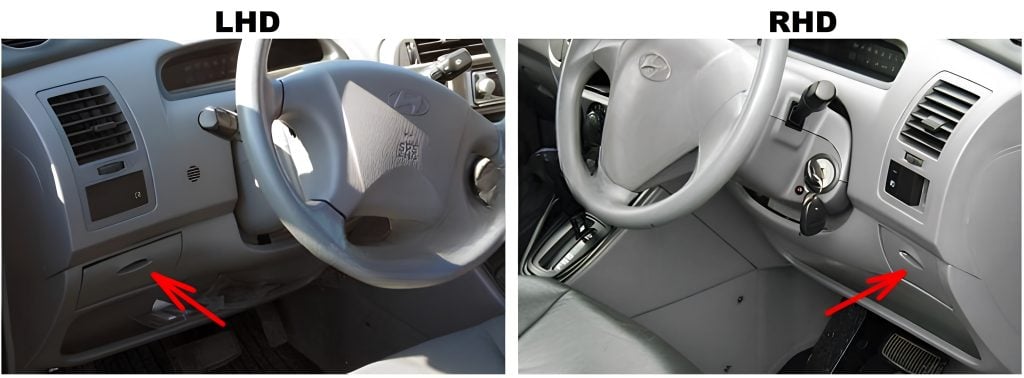

Passenger Compartment Fuse Box
The fuse box is located on the driver’s side of the instrument panel behind the cover.

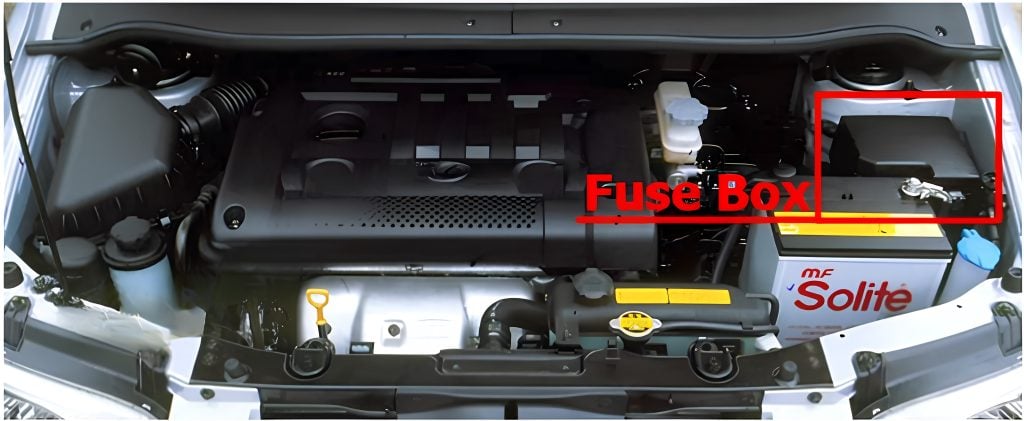

Engine Compartment Fuse Box
The fuse box is located in the engine compartment (left-side).
Fuse Box Diagrams

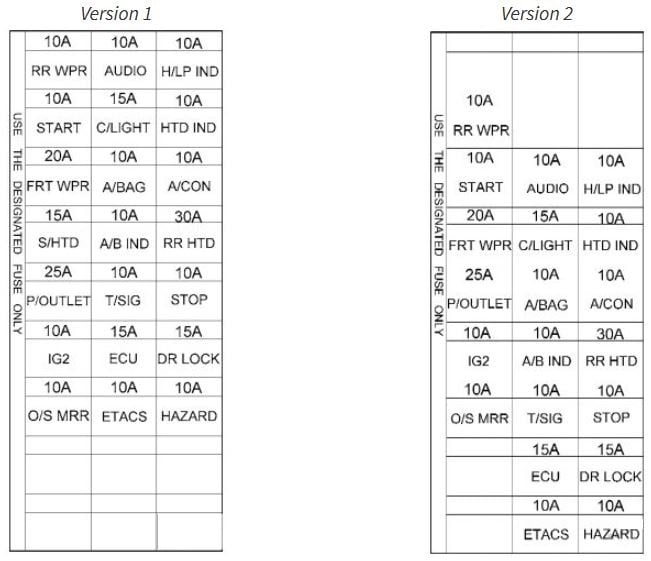

Passenger Compartment Fuse Box
| DESCRIPTION | AMP RATING | PROTECTED COMPONENTS |
|---|---|---|
| H/LP IND | 10A | Head lamp indicator |
| HTD IND | 10A | Defogger relay, Left(Right) outside mirror motor, Rear window motor |
| A/CON | 10A | A/C Switch |
| RR HTD | 30A | Defogger relay |
| STOP | 10A | Stop lamp switch, Power window relay |
| D/LOCK | 15A | Door lock(unlock) relay, ETACM, Sunroof relay |
| HAZARD | 10A | Burglar alarm relay, Hazard relay |
| AUDIO | 10A | Audio |
| C/LIGHT | 15A | Cigarette lighter |
| A/B | 10A | SRS control module |
| A/B IND | 10A | SRS IND. |
| T/SIG | 10A | Hazard switch, Seat belt timer, Instrument cluster, ABS control module, Pre-excitation resistor, Washer motor |
| ECU | 15A | ECM, Vehicle speed sensor, TCM, Ignition coil |
| ETACS | 10A | ETACM, A/T Shift lever |
| RR WPR | 10A | Rear wiper motor, Rear wiper relay |
| START | 10A | Start relay |
| FRT WPR | 20A | Wiper relay, Washer motor, Wiper & Defogger timer |
| S/HTD | 15A | Left (Right) front seat warmer switch |
| P/OUTLET | 25A | Front (Rear) power outlet |
| IG2 | 10A | ETACM, Power window relay, Defogger relay, Sunroof relay Head lamp relay, Blower relay |
| O/S MRR | 10A | Outside mirror switch, Rear fog lamp relay |

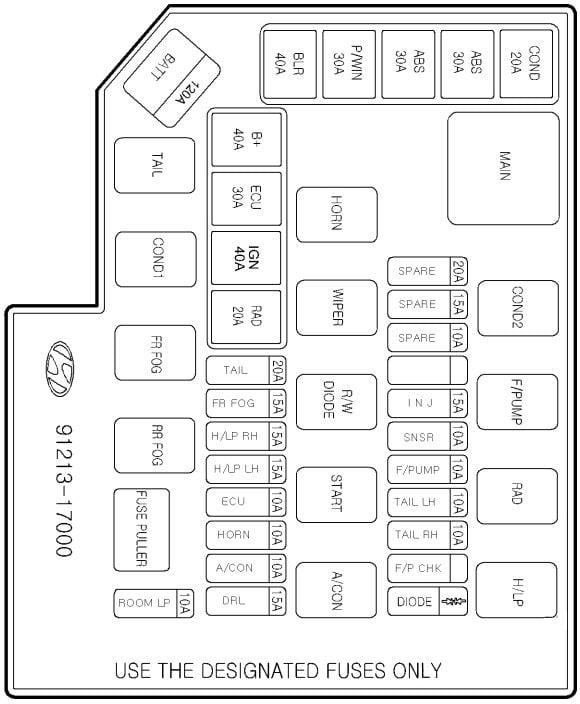

Engine Compartment Fuse Box
Gasoline Engine
| DESCRIPTION | AMP RATING | PROTECTED COMPONENTS |
|---|---|---|
| ALT | 120A | Generator |
| B+ | 40A | (A/CON, RR HTD, STOP, D/LOCK, HAZARD) Fuse |
| ECU | 30A | Generator, Engine control relay, ECM |
| RAD | 20A | Radiator fan relay |
| IGN | 40A | Start relay, Ignition switch |
| BLR | 40A | Blower relay |
| P/WIN | 30A | Power window relay |
| COND | 20A | Condenser fan relay #1 |
| ABS | 30A 40A |
ABS control module, ABS bleeding connector 2006-2010: ABS control module, ABS bleeding connector, ESP |
| ABS | 30A
40A |
ABS control module, ABS bleeding connector 2006-2010: ABS control module, ABS bleeding connector, ESP |
| F/PUMP | 10A | Fuel pump relay |
| INJ | 15A | Injector, Ignition coil |
| SNSR | 10A | MAP sensor, Oxygen sensor, CP sensor, Knock sensor, Throttle position sensor |
| ROOM LP | 10A | Audio, Room lamp, Overhead console lamp, Instrument cluster |
| DRL | 15A | DRL control module |
| HORN | 10A | Horn relay |
| A/CON | 10A | A/C relay |
| FR FOG | 15A | Front fog lamp relay |
| ECU | 10A | ECM, TCM |
| LP | 20A | Tail lamp relay |
| TAIL LH | 10A | Left rear combi lamp, Left position lamp, Left License lamp |
| TAIL RH | 10A | Right rear combi lamp, Right position lamp, Right License lamp |
| H/LP LH | 15A | Left head lamp |
| H/LP RH | 15A | Right head lamp, (H/LP IND) Fuse |
Diesel Engine
| DESCRIPTION | AMP RATING | PROTECTED COMPONENTS |
|---|---|---|
| FUSE: | ||
| ALT | 140A | Generator |
| B+ | 40A | (A/CON, RR HTD, STOP, D/LOCK, HAZARD) Fuse, Deicer |
| ECU | 30A | Generator, Enqine control relav, ECM |
| RAD | 30A | Radiator fan relav |
| IGN | 40A | Start relav, Iqnition switch |
| BLR | 40A | Blower relav |
| P/WIN | 30A | Power window relay |
| COND | 30A | Condenser fan relay #1 |
| ABS | 30A
40A |
ABS control module, ABS bleedinq connector
2006-2010: ABS control module, ABS bleeding connector, ESP |
| ABS | 30A 40A |
ABS control module, ABS bleedinq connector
2006-2010: ABS control module, ABS bleeding connector, ESP |
| F/PUMP | 10A | Fuel pump relav |
| ECU | 30A | ECM No.5 (Batt+) |
| ECU | 10A | ECM No.4 (Batt+), Stop lamp switch, PTC heater relay #1 |
| SNSR | 15A | Glow plug relay, Assistor heater relay 1/2, Stop lamp switch, TDC sensor, EGR act, Throttle plate act, VGT vacuum |
| ROOM LP | 10A | Audio, Room lamp, Overhead console lamp, Instrument cluster, ETACM, Luqqaqe lamp |
| DRL | 15A | DRL control module |
| HORN | 10A | Horn relav |
| A/CON | 10A | A/C relav |
| FR FOG | 15A | Front foq lamp relav |
| ECU | 10A | ECM, TCM |
| LP | 20A | Tail lamp relay |
| TAIL LH | 10A | Left rear combi lamp, Left position lamp. Left License lamp |
| TAIL RH | 10A | Riqht rear combi lamp, Riqht position lamp, Riqht License lamp |
| H/LP LH | 15A | Left head lamp |
| H/LP RH | 15A | Riqht head lamp, (H/LP IND) Fuse |

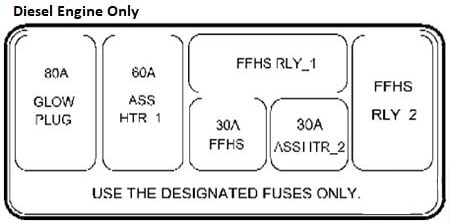

Fusible Link
| PTC HTR 1 | 40A | PTC heater relav #1 |
| GLOW | 80A | GLOW relav |
| PTC HTR 2 | 40A | PTC heater relav #2 |
| FFHS | 30A | FFHS relav |
| PTC HTR 3 | 40A | PTC heater relay #3 |
